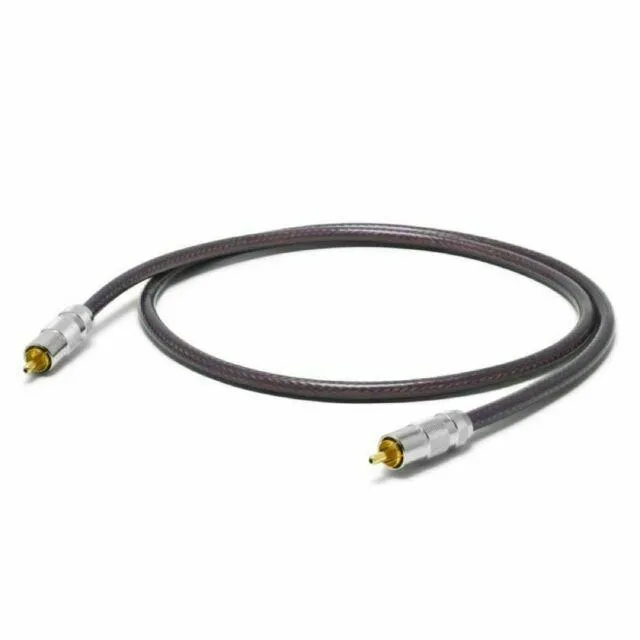

Oyaide Neo AS-808R V2 0.6m

AS-808 High-quality cable manufactured in Japan. 75-ohm digital coaxial cable. 1 x RCA male to 1 x RCA male, 0.6 meters.

The AS-808 is a professional 75-ohm digital coaxial cable designed for audio interfaces, DACs, CDJs, and other audiovisual equipment. The cable is designed for high signal integrity and low signal loss during digital audio transmission.

The central conductor consists of a φ1.0 single-strand conductor made of 102 SSC from Oyaide Elec., with a conductivity of 102.3% IACS after annealing. This design minimizes impurities and reduces signal loss during transmission.

An air chamber is used between the central conductor and the polyethylene tube to reduce dielectric loss caused by the insulator.

Features and Specifications

Professional 75-ohm digital coaxial cable
Developed for Word Clock systems, DACs, CDJs, and audio interfaces
φ1.0 solid center conductor in 102 SSC
Conductivity: 102.3% IACS
Reduced signal loss and fewer impurities
Air chamber for reduced dielectric loss
Double-shielded construction
Copper foil shield with 100% shielding
102 SSC braided shield with 90% shielding
Cord-like structure
Brass RCA connectors
24K gold-plated connectors for corrosion protection
Teflon insulator with low dielectric constant
RCA center pin with tubular structure for increased contact area and signal transmission

Technical Specifications

Cable Type: 75-ohm coaxial cable
Conductor: φ1.0 102 SSC solid conductor
Connector: AS-808R RCA
Connector Material: Brass with 24K gold plating
Made in Japan

The AS-808 is a high-quality digital coaxial cable for professional audio systems where stable signal transmission, effective shielding, and high conductivity are essential.
