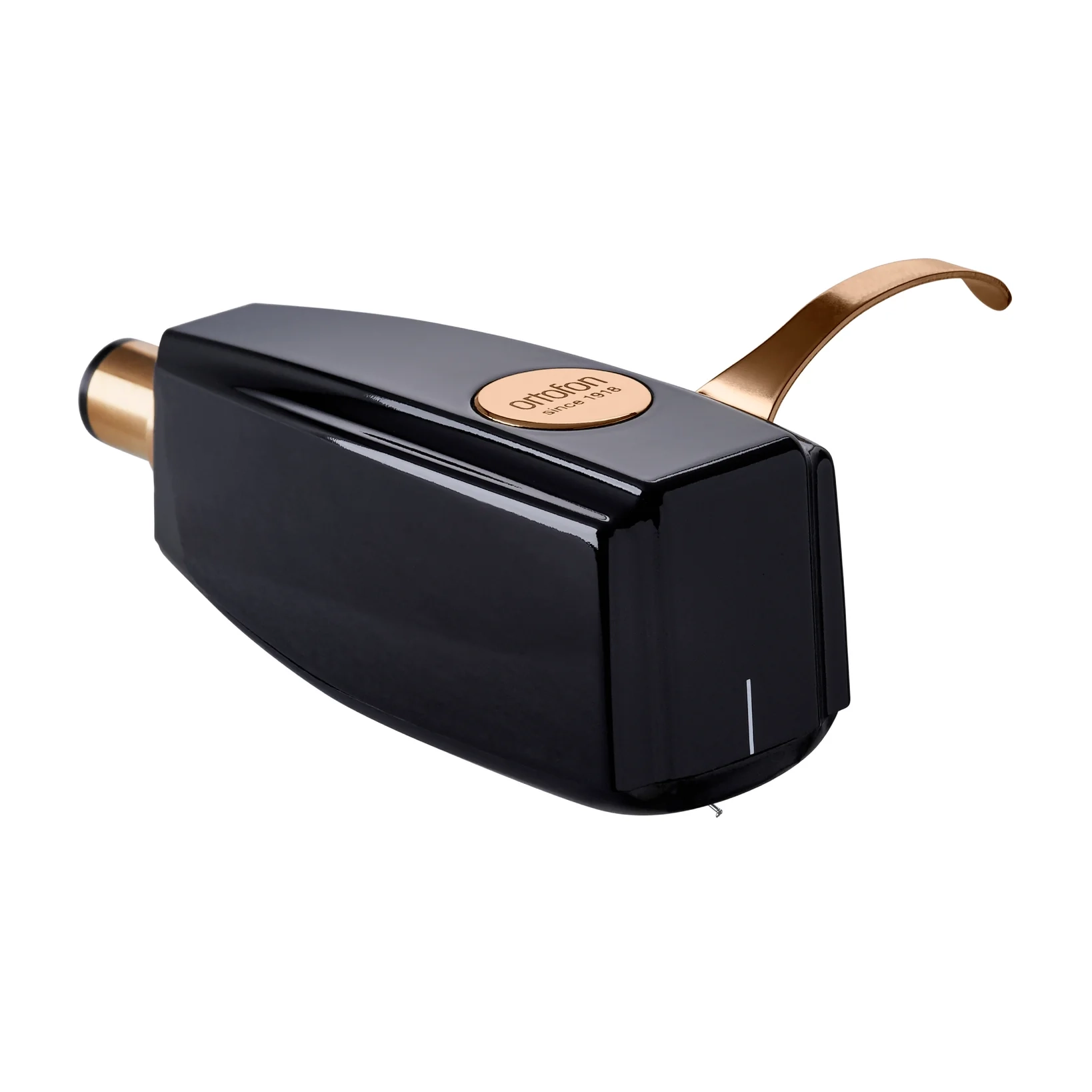

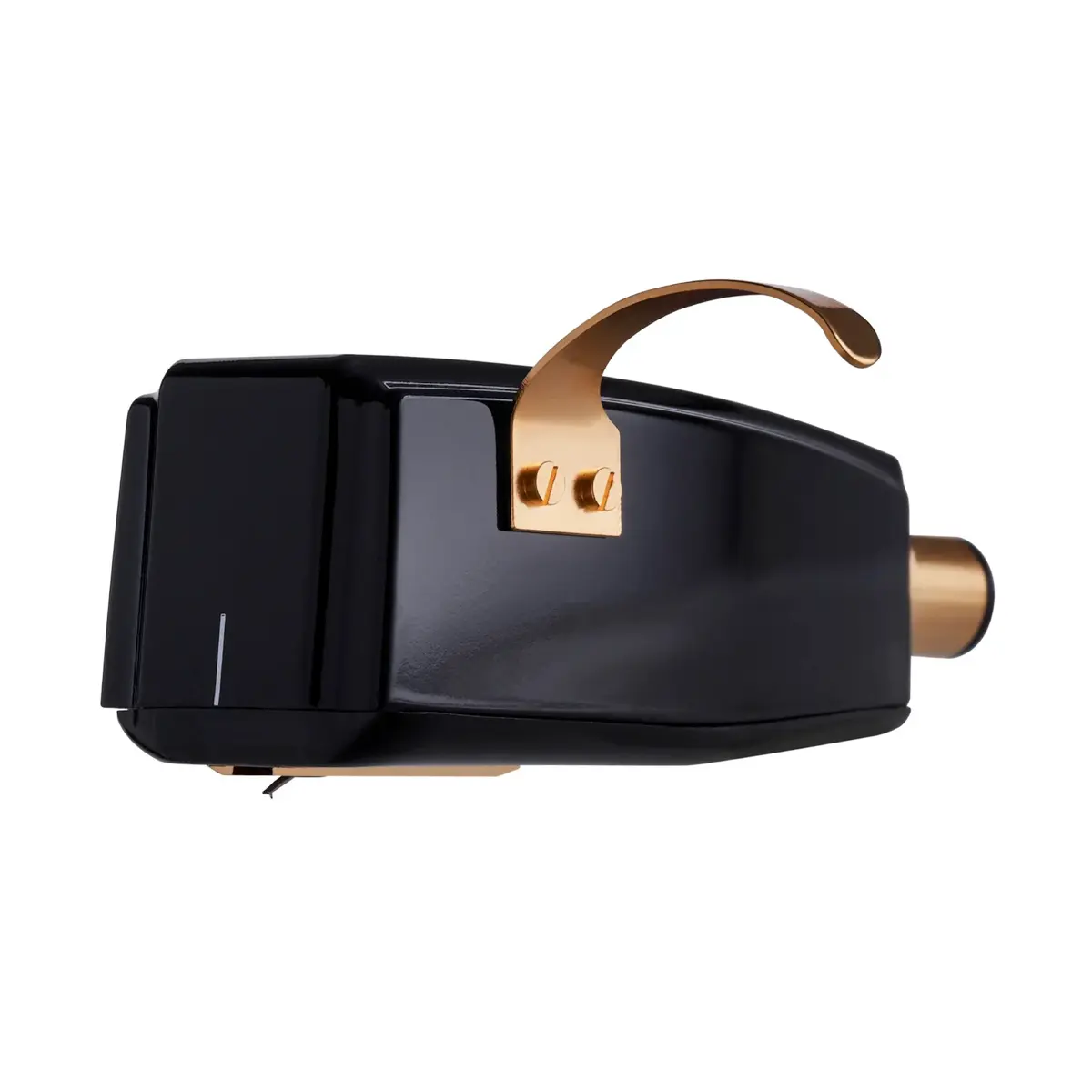

Ortofon SPU Royal G MKII

The SPU Royal G model was released in 1998 to celebrate the Ortofon 80 year anniversary

SPU Royal G MKII
The SPU Royal G MkII provides a playback experience that embodies the essence of analog with generous refinements which bring the legendary SPU cartridges into the realm of unrivaled perfection.

Channel balance at 1 kHz 1 dB
Output voltage at 1 kHz, 5cm/sec 0.2 mV
Channel separation at 1 kHz 25 dB
Frequency response 20 Hz - 20 kHz 1.5/- 0 dB
Tracking ability at 315 Hz 60 µm
Compliance, dynamic, lateral 8 µm/mN
Stylus type Nude Ortofon Replicant 100
Stylus tip radius r/R 5/100 µm
Tracking force range 2.5-3.5 g (25-35 mN)
Tracking force, recommended 3.0 g (30 mN)
Tracking angle 20°
Internal impedance, DC resistance 7 ohm
Recommended load impedance 100 ohm
Coil wire material Goldplated silver
Cartridge body material Ground wood and resin composite
Cartridge colour Shiny black
Cartridge weight 30 g
