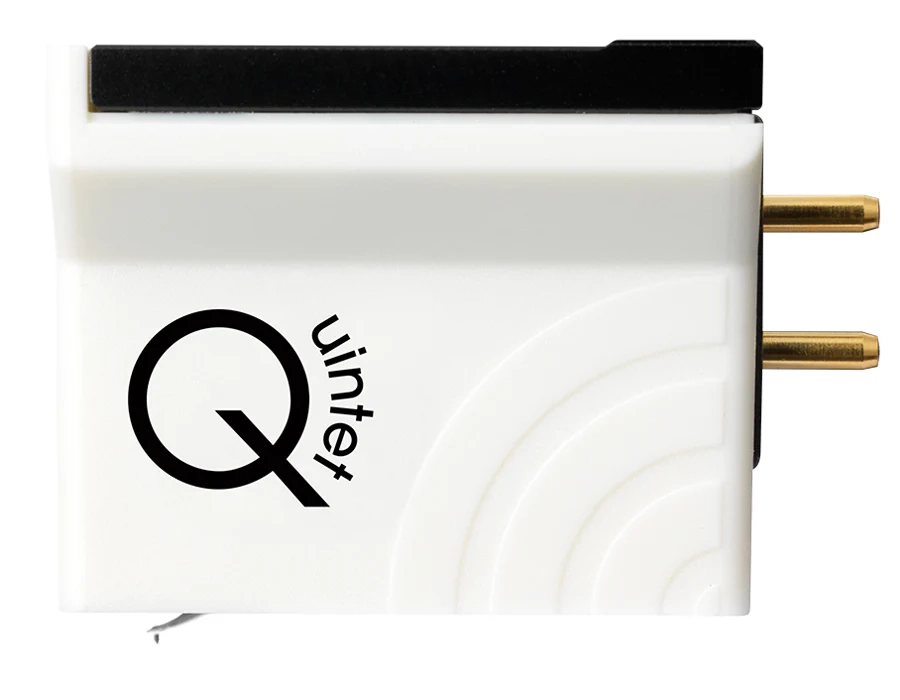

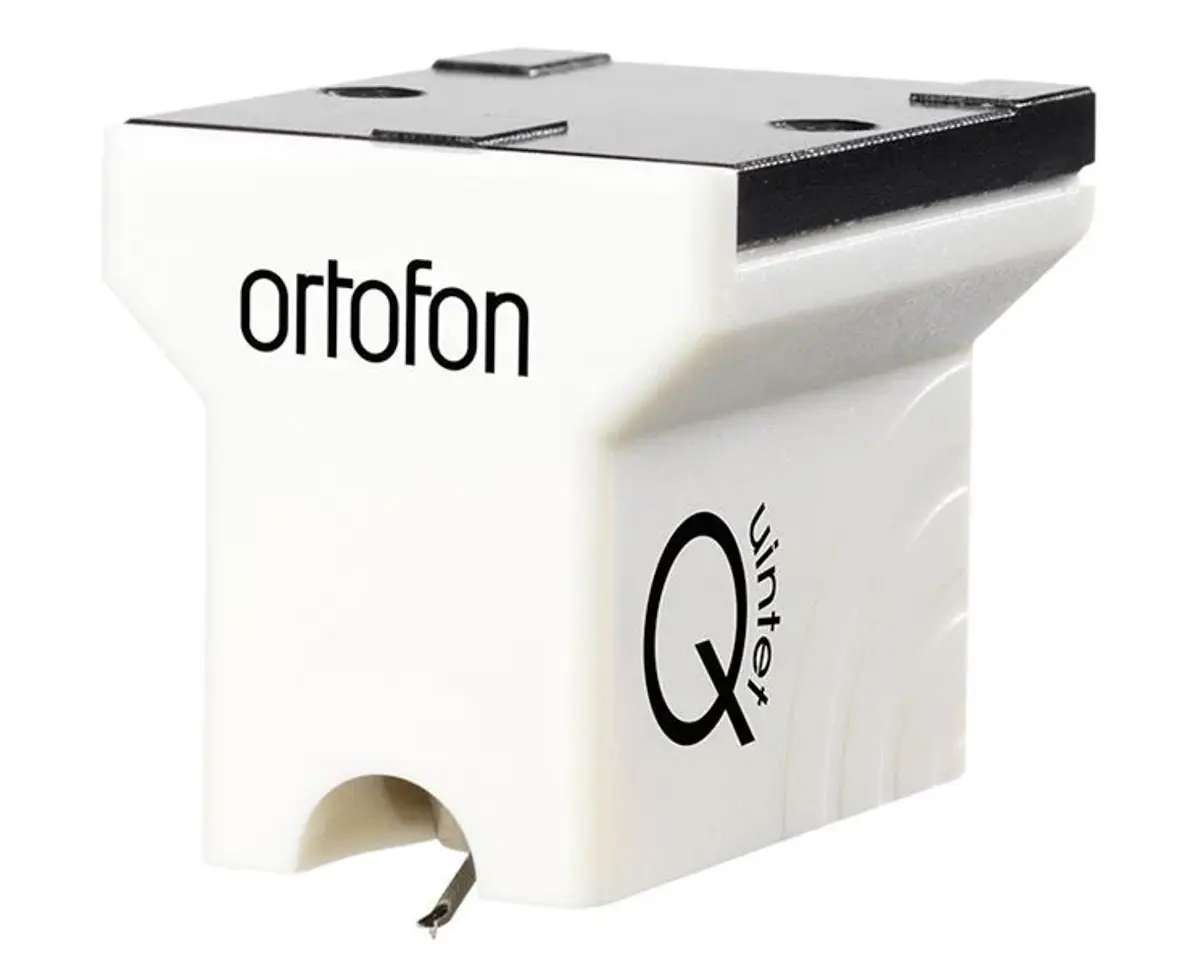

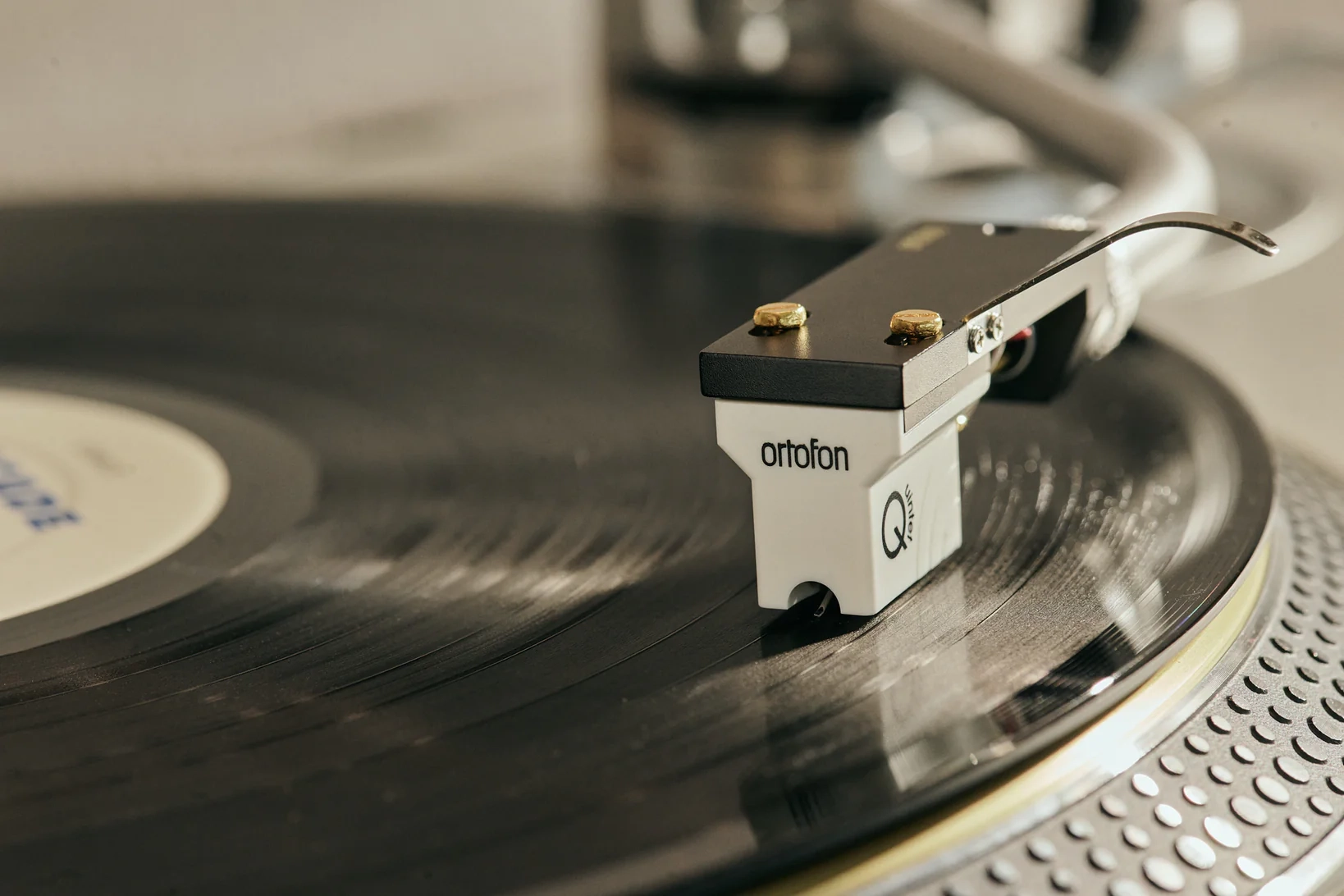

Ortofon Quintet Mono

It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.
Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins.

This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Output voltage at 1 kHz, 5cm/sec 0.3 mV
Frequency response 20 Hz - 20 kHz +/- 2.0 dB
Tracking ability at 315 Hz 70 µm
Compliance, dynamic, lateral 15 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 2.1-2.5 g
Tracking force, recommended 2.3 g
Tracking angle 20°
Internal impedance, DC resistance 5 Ohm
Recommended load impedance > 20 Ohm
Coil wire material Pure 4-nines silver/Ag
Cartridge body material PC
Cartridge colour White
Cartridge weight 9 g
