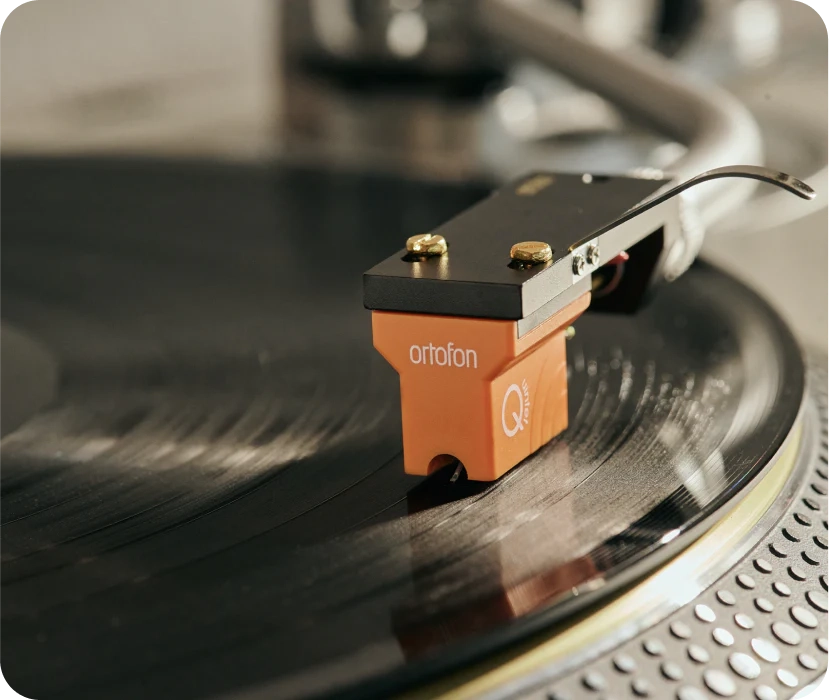

Ortofon Quintet Bronze

The Quintet Bronze moves into the higher league of the Quintets.

The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.

Additionally its larger footprint ensures reduced distortion and record wear.

The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.

Channel balance at 1 kHz < 1.2 dB
Output voltage at 1 kHz, 5cm/sec 0.3 mV
Channel separation at 1 kHz > 23 dB
Frequency response 20 Hz - 20 kHz +/- 1.5 dB
Tracking ability at 315 Hz 80 μm
Compliance, dynamic, lateral 15 µm/mN
Stylus type Nude Fine Line
Stylus tip radius r/R 8/40 µm
Tracking force range 2.1-2.5 g
Tracking force, recommended 2.3 g
Tracking angle 20°
Internal impedance, DC resistance 5 Ohm
Recommended load impedance > 20 Ohm
Coil wire material Pure 4-nines copper
Cartridge body material PC
Cartridge colour Bronze
Cartridge weight 9 g
