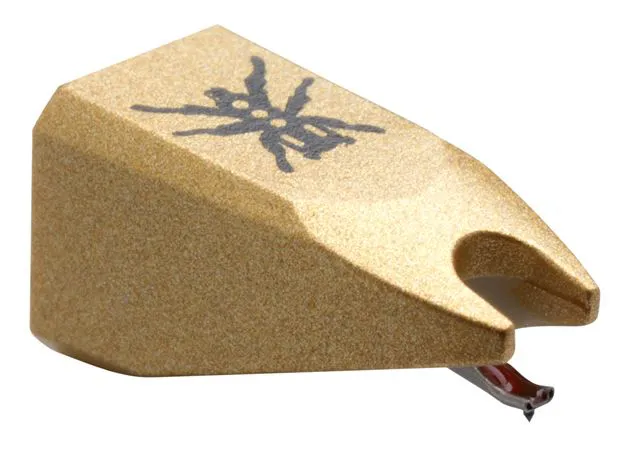

Ortofon Q-Bert Anniversary Stylus

Replacement stylus for the Q.BERT Gold Anniversary Concorde Cartridge

Exclusively designed E.T. character on top and "THUD RUMBLE" and "OSGEMEOS" tags on both sides of the cartridge. Features the exact "industry standard" audio specifications of DJ Q.Bert's Concordes with the deluxe allure of Gold.

The Q.Bert has a supreme ability to trace the grooves of your records and it is tailored specifically for scratch.

Due to its enomous output, it is perfect for scratch of all music with deep bass frequences.

Q.Bert Gold stylus Technical data
Output voltage at 1000Hz, 5cm/sec. -  11 mV
Channel balance at 1kHz  -  1,5 dB
Channel separation at 1kHz -  22 dB
Frequency response -  20-20.000 Hz -3 dB
Tracking ability at 315 Hz at recommended tracking force -  90 μm
Compliance, dynamic lateral -  12 μm/mN
Stylus type -  Spherical
Stylus tip radius - R 18 μm
Tracking force range -  2.0-4.0 g (20-40 mN)
Tracking force recommended -  3.0 g (30 mN)
Tracking angle -  20°
Internal impedance, DC resistance -  1.680 Ohm
Internal inductance -  920 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance -  200-400 pF
Concorde cartridge weight  - 18.5 g

Compatible with cartridges - Q.Bert Gold Anniversary (discontinued and no longer available) and  Q.Bert
