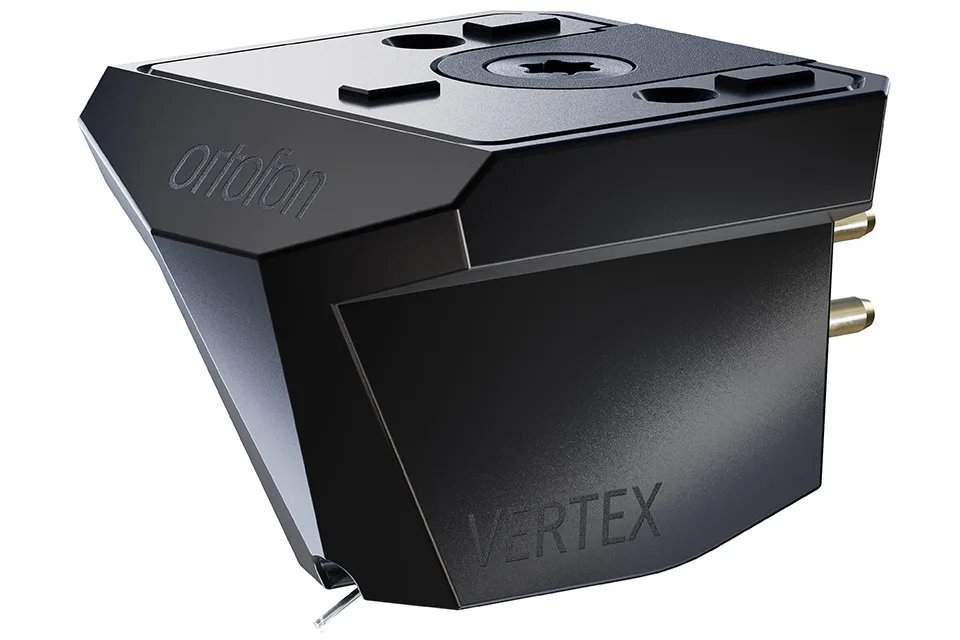

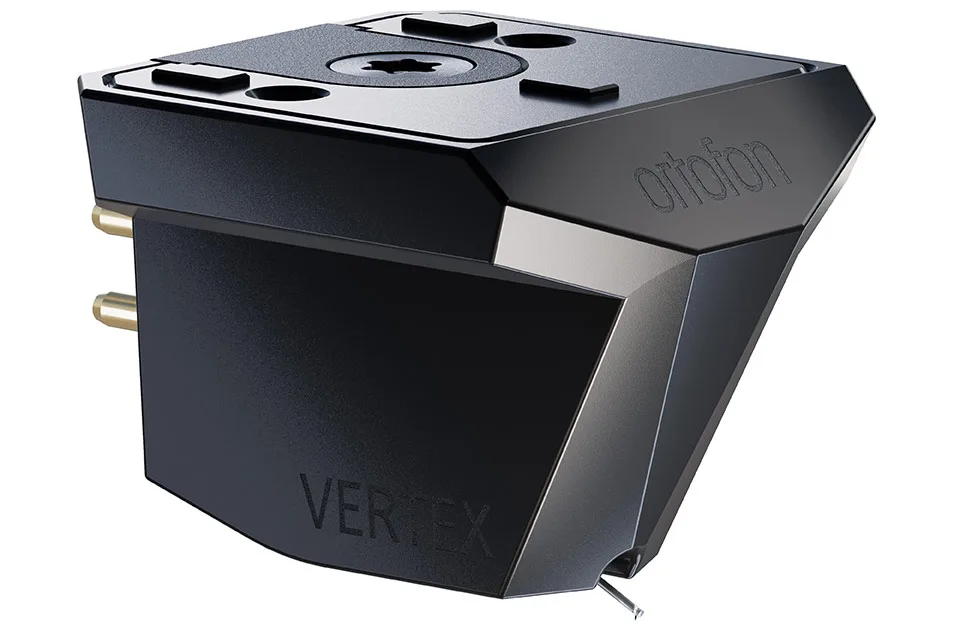

Ortofon MC Vertex

The Ortofon MC Vertex is a reference-class moving coil cartridge designed for discerning vinyl enthusiasts seeking exceptional precision, transparency, and musical realism. Every component has been engineered as part of a complete system, allowing the cartridge to extract the finest details from the record groove while maintaining natural tonal balance and remarkable accuracy.

At the heart of the MC Vertex is the newly developed Vertex Diamond stylus, featuring an advanced line contact profile that maximizes contact with the groove walls. Combined with a solid diamond cantilever, it delivers outstanding tracking performance, precise energy transfer, and exceptionally low moving mass for accurate retrieval of even the most subtle musical information.

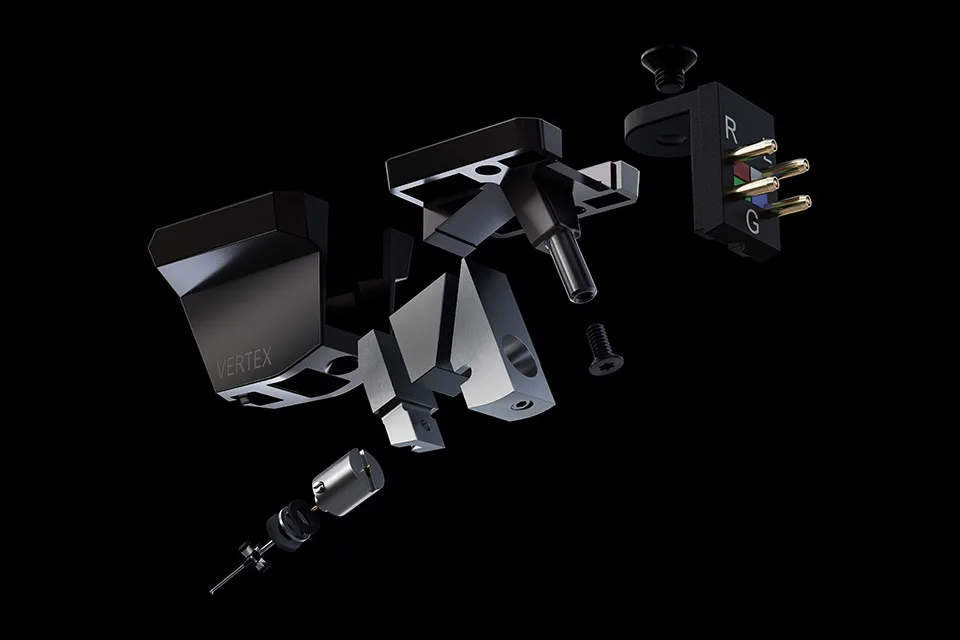

The cartridge body and internal core are manufactured from titanium using Selective Laser Melting technology. This advanced production process enables precise control of geometry, rigidity, and mass distribution while minimizing unwanted resonances that can affect sound quality.

A refined magnetic system with a non-magnetic armature and high-purity silver quad coils ensures fast transient response, excellent channel separation, and detailed signal reproduction. Ortofon’s Wide Range Damping system further enhances stability and resonance control, resulting in a spacious soundstage, precise imaging, and exceptional musical clarity.

Features
Moving Coil Cartridge Design
Exclusive Vertex Diamond Stylus
Advanced Line Contact Geometry
Solid Diamond Cantilever
Titanium Housing
Selective Laser Melting Manufacturing
High-Purity Silver Quad Coils
Non-Magnetic Armature
Wide Range Damping System
Exceptional Channel Separation
Precise Stereo Imaging
Low Distortion Sound Reproduction

Specifications
Model: MC Vertex
Cartridge Type: Moving Coil
Output Voltage: 0.3 mV
Cantilever Material: Solid Diamond
Stylus Profile: Vertex Diamond
Stylus Type: Nude
Stylus Tip Radius: r/R 4/110 µm
Stylus Suspension: Wide Range Damping
Coil System: Quad Coils
Coil Wire: High-Purity Silver
Channel Balance At 1 kHz: 0.1 dB
Channel Separation At 1 kHz: 30 dB
Frequency Response: 20 Hz – 20 kHz ±1 dB
Dynamic Lateral Compliance: 9 µm/mN
Recommended Tracking Force: 2.5 g
Recommended Load Resistance: >100 Ohm
Internal Impedance: 19 Ohm
Housing Material: Titanium
Manufacturing Process: Selective Laser Melting

Dimensions & Weight
Weight: 15 g
