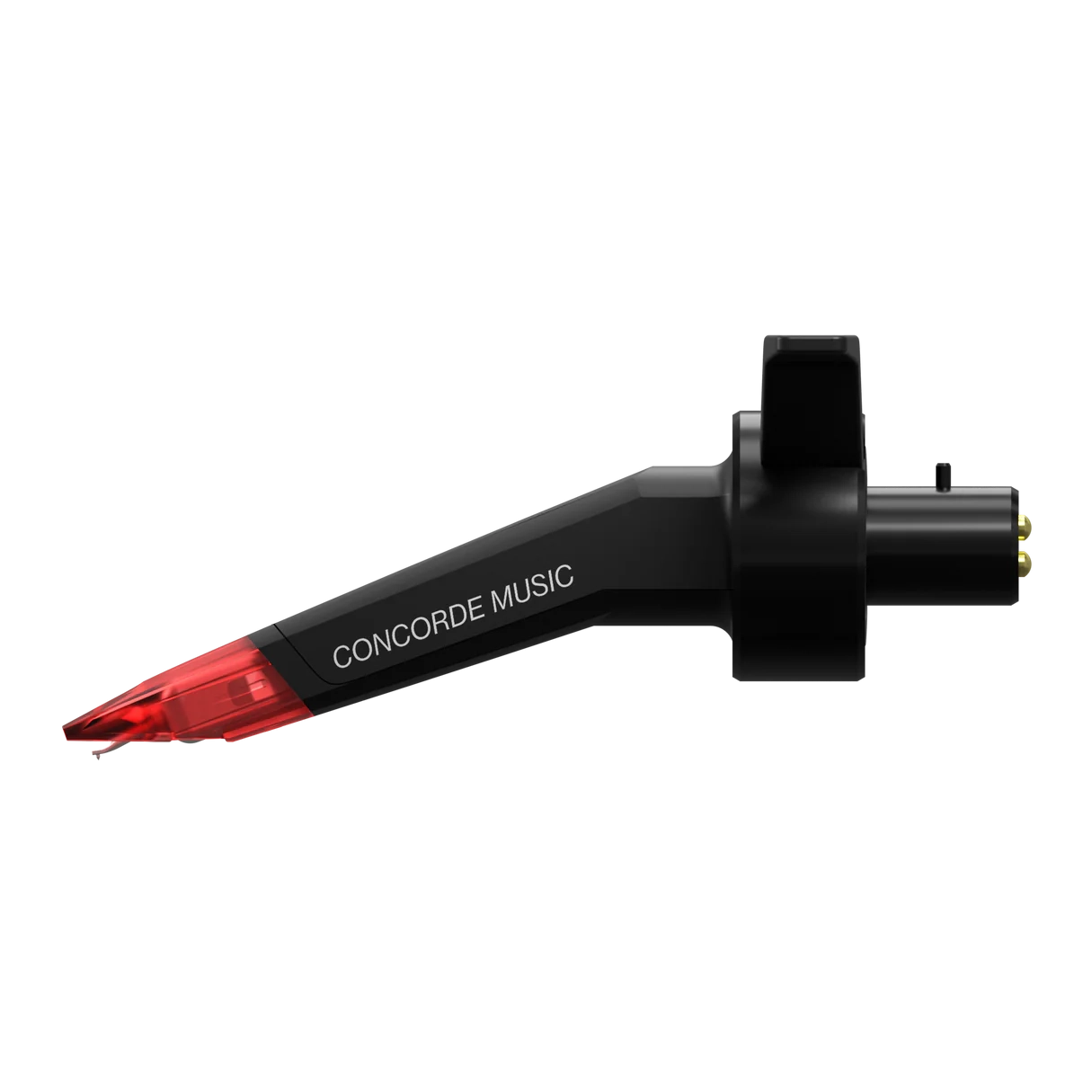

Ortofon Concorde Music Red

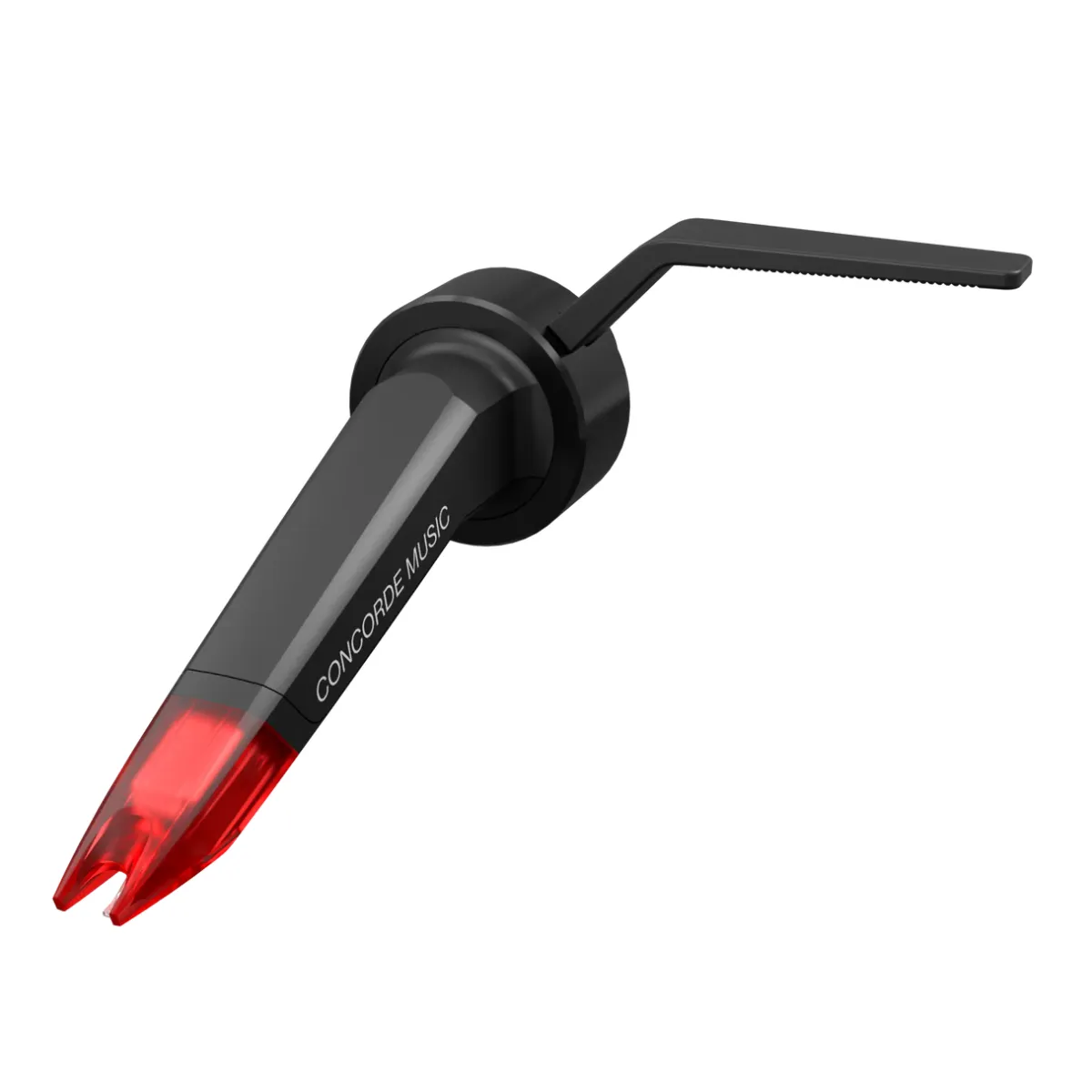

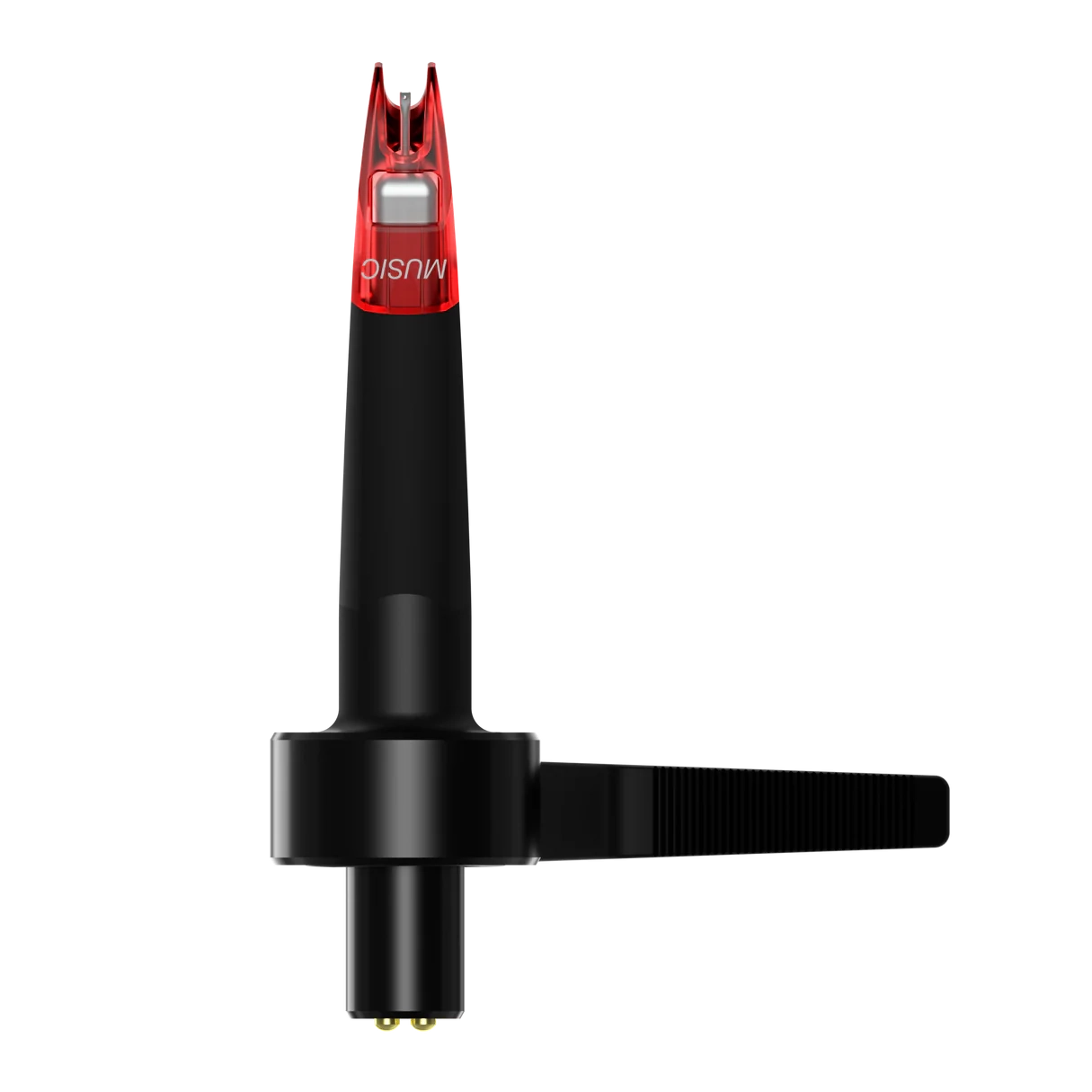

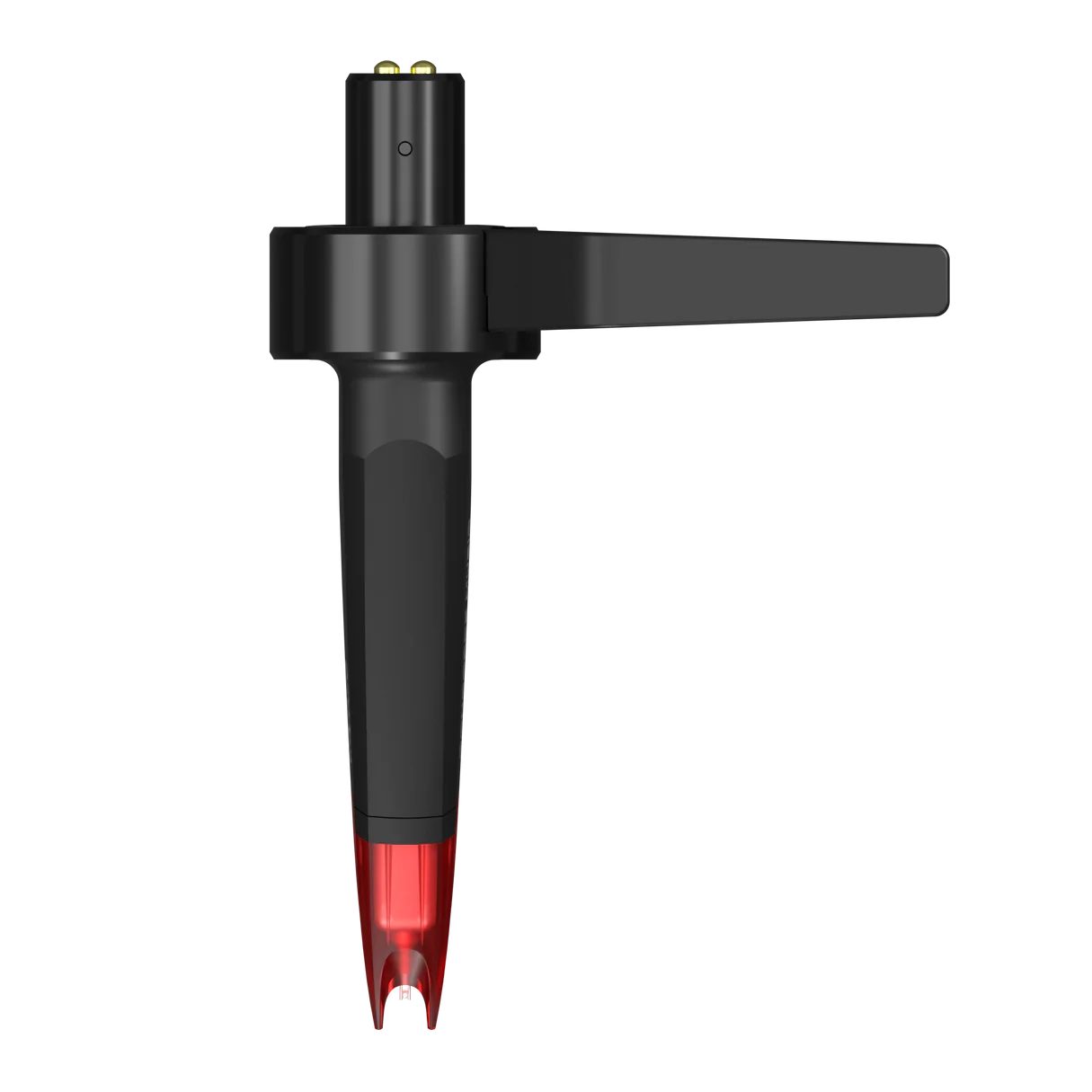

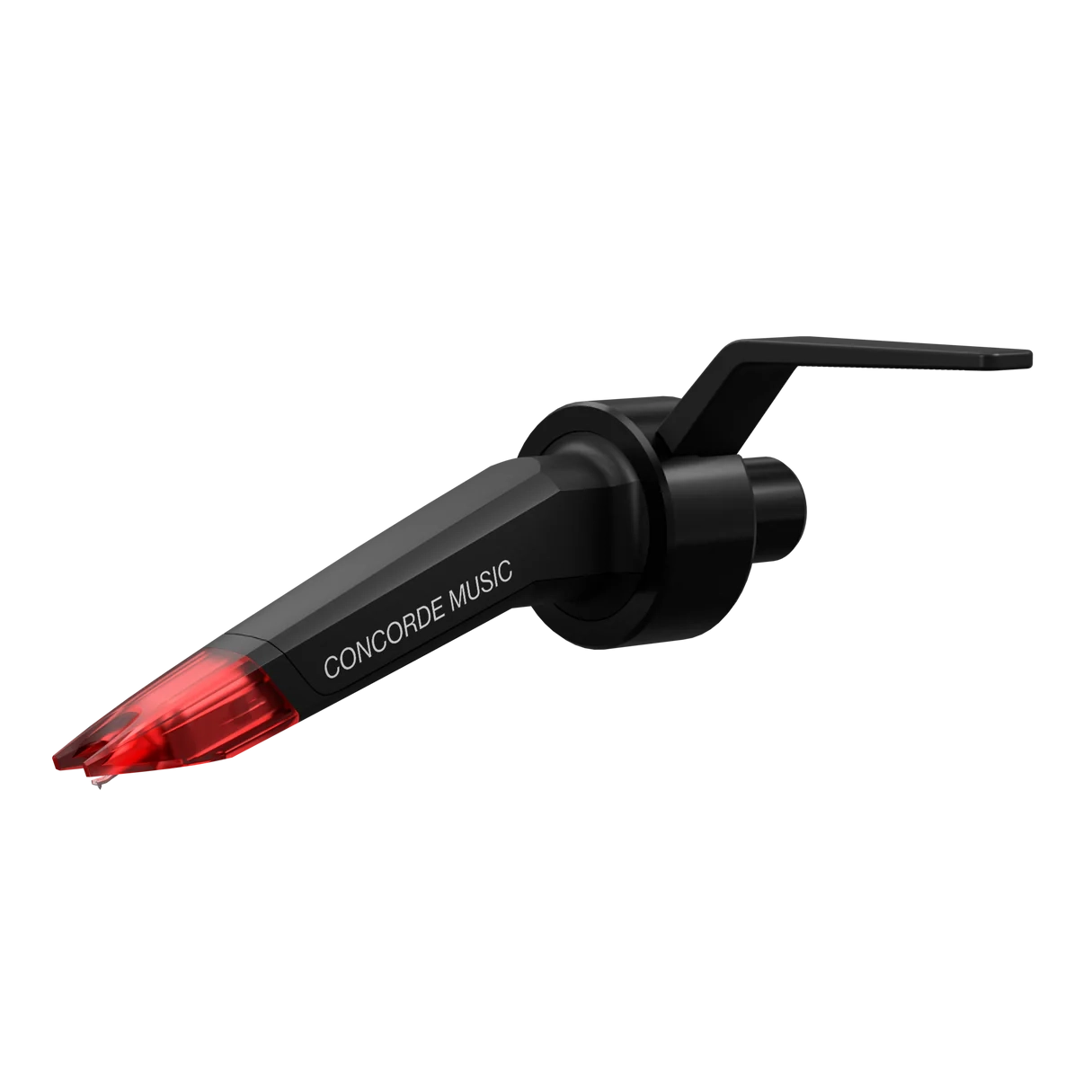

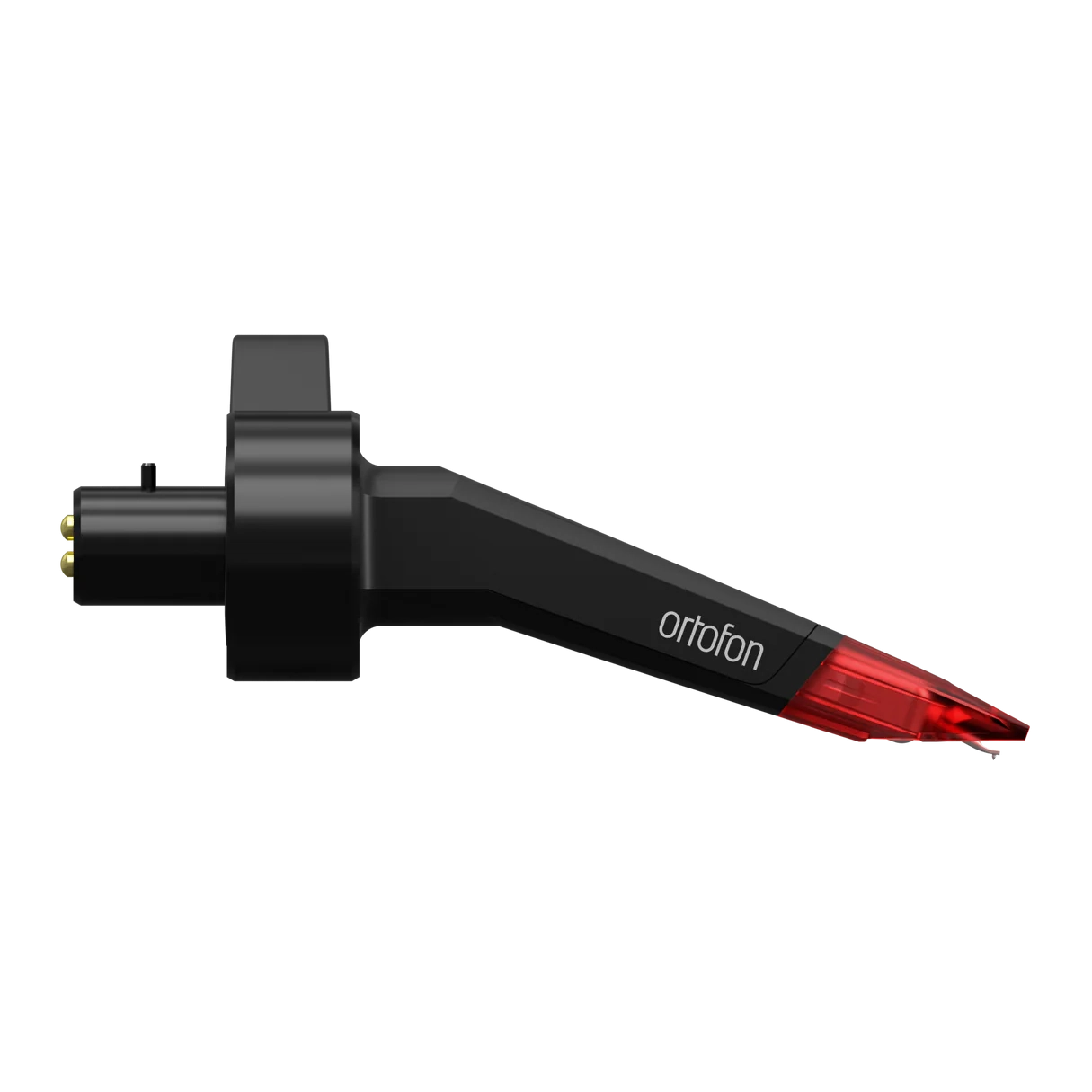

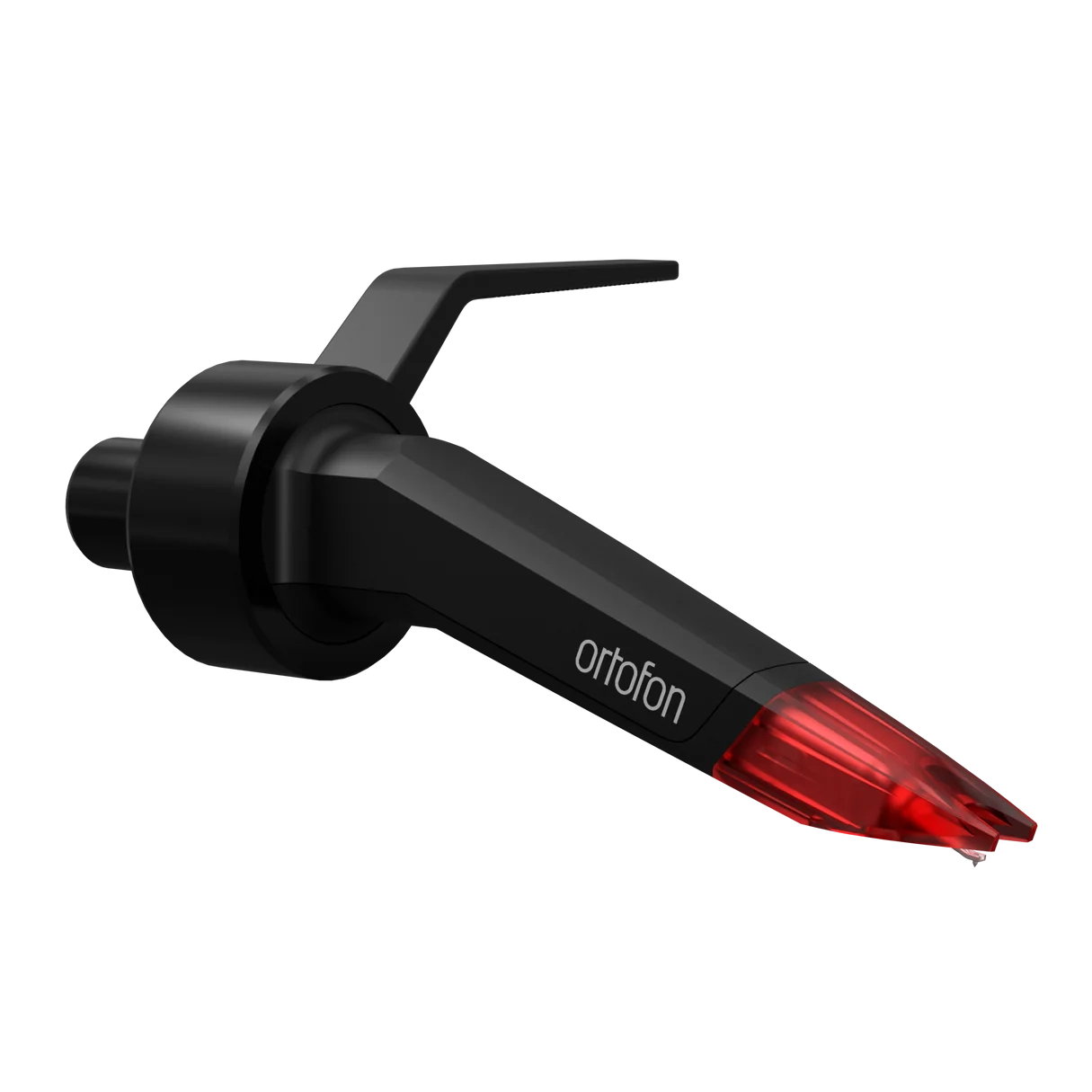

Concorde Music Red - Premium Moving Magnet cartridge

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.

The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

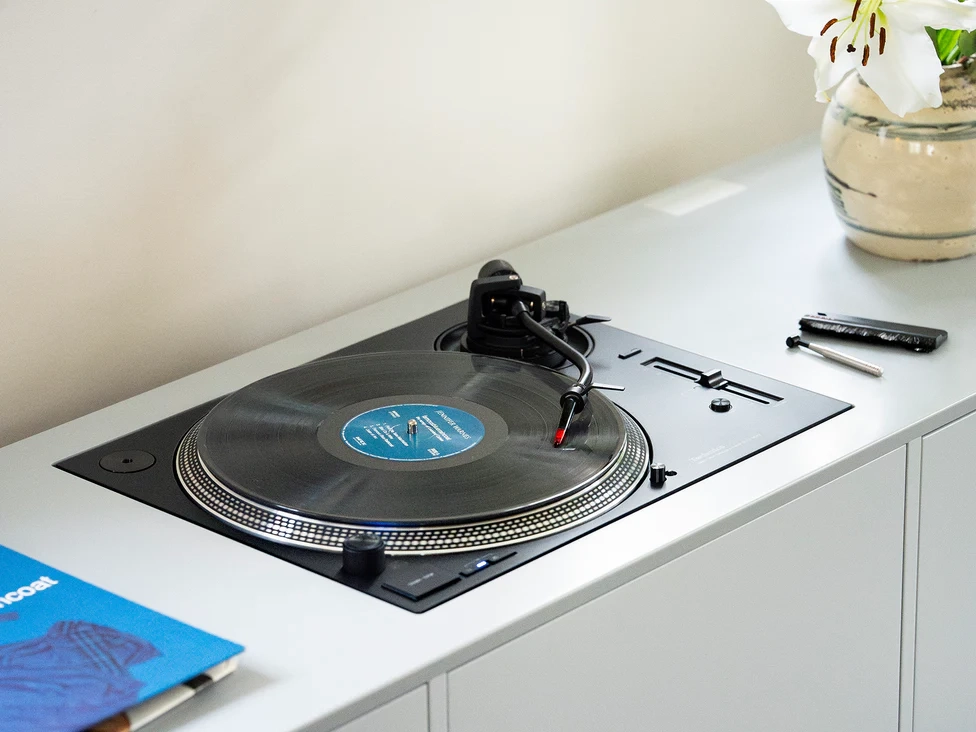

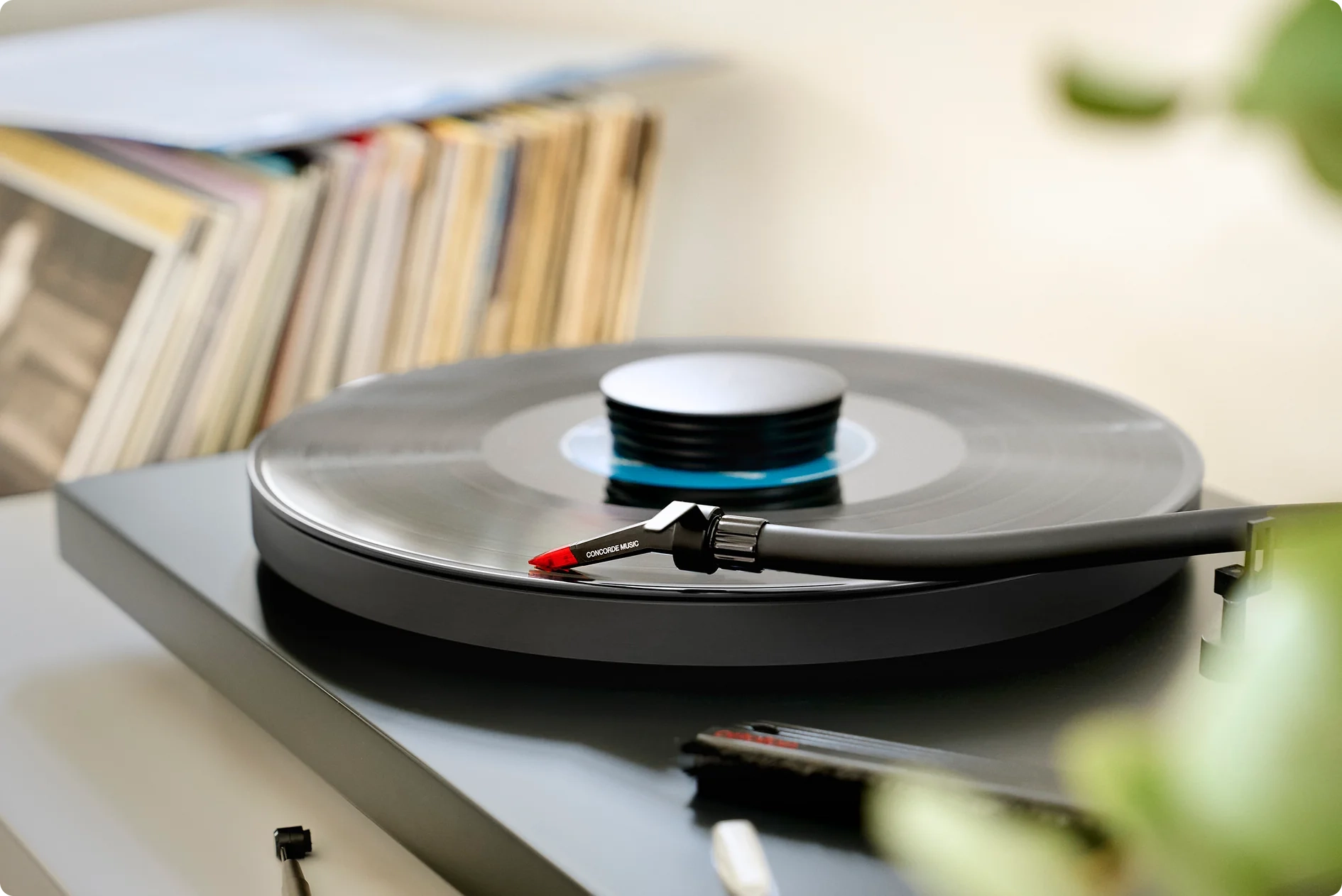

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Specifications
Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5cm/sec 6mV
Channel separation at 1 kHz 22 dB
Frequency response 20 Hz - 20 kHz +3 / -1 dB
Tracking ability at 315 Hz 80 µm
Compliance, dynamic, lateral 15 µm/mN
Cantilever material Aluminium
Stylus type Elliptical diamond
Stylus tip radius r/R 8/18 µm
Tracking force, recommended 1.8 g
Tracking angle 20°
Cartridge colour Black/Red
Cartridge weight 18 g
Recommended load resistance 47 kΩ
Recommended load capacitance 150-300 pF
