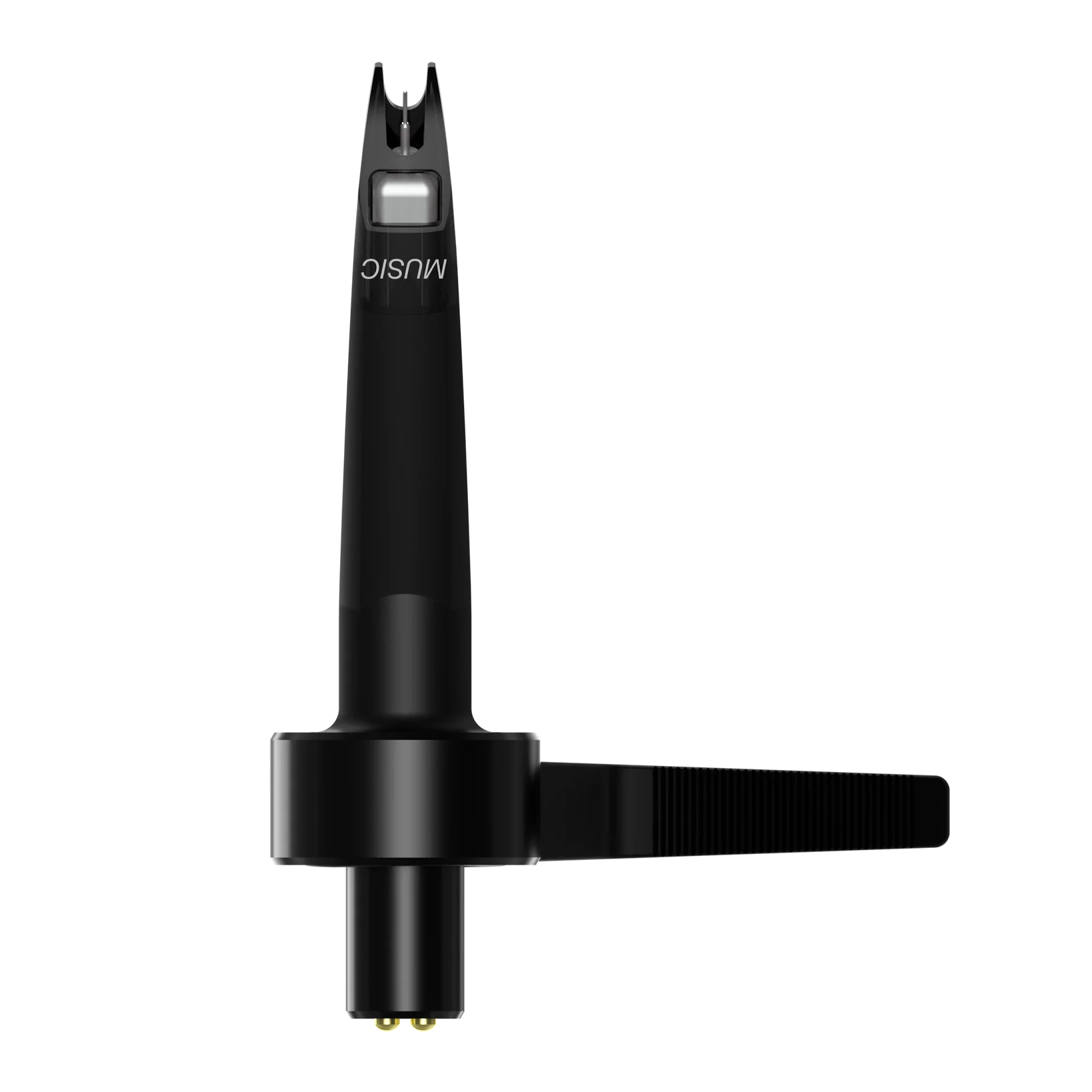

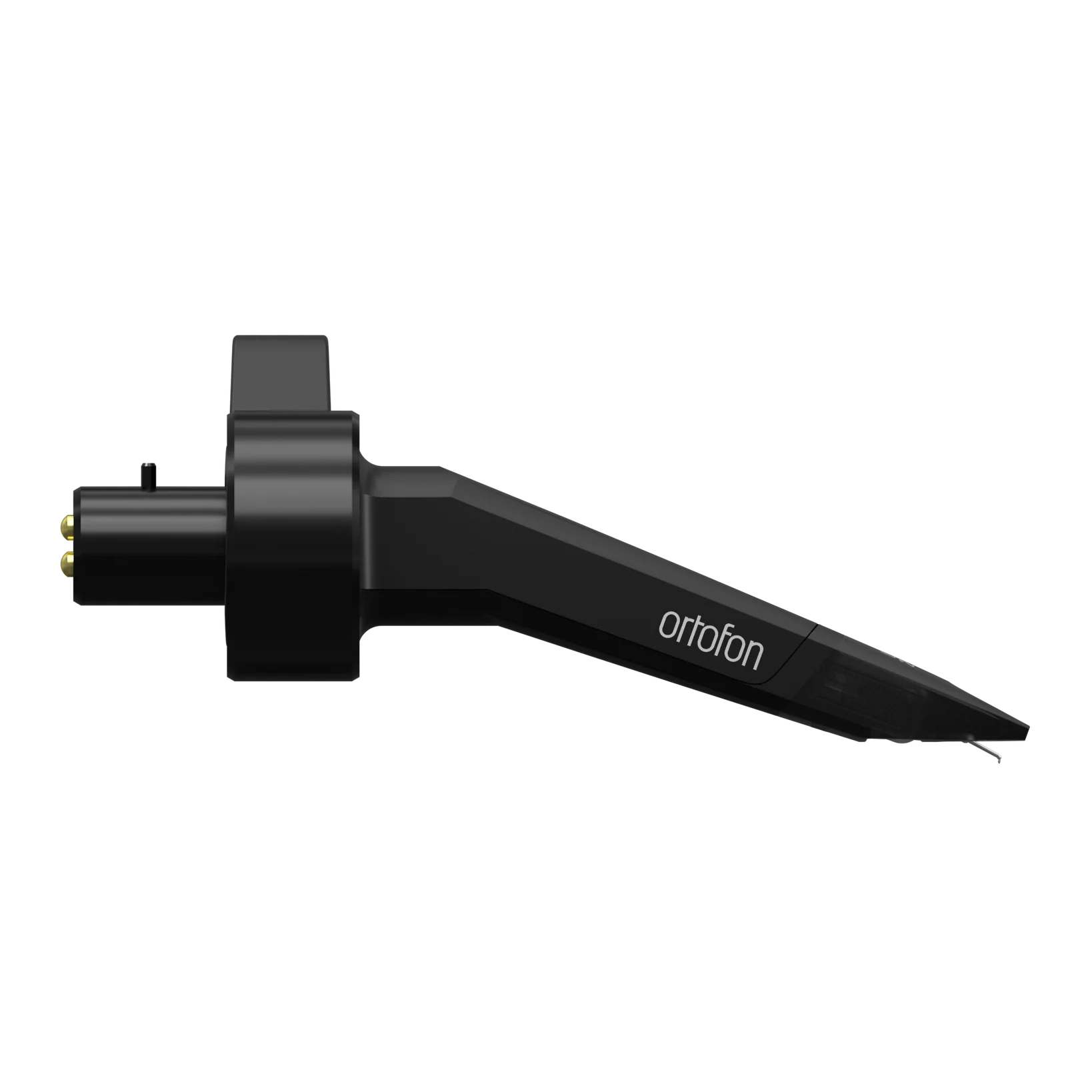

Ortofon Concorde Music Black LVB250

The Concorde music series
Developed by music lovers, for music lovers, Concorde Music cartridges combine superior performance with an iconic design. Concorde Music is not just a cartridge, but a dedication to the profound impact that music has on our lives, turning each listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and simple, it requires no tools, which makes it comfortable and uncomplicated.

Iconic design
Built on a rich legacy that began when we launched the original Concorde, the Concorde Music has a historical history as one of the most famous cartridges in the world of audio.

Originally developed as a solution to the challenge of easily mounting it on an arm without screws or cables, the Concorde's unique design won the Danish Industrial Design Award and became an icon in
the audio industry.

Needle
The Concorde Music Black LVB 250, which features a bare Shibata pencil on a boron overhang, offers an update of the Concorde Music Bronze.

The shape of the Shibata is characterized by having a long and narrow contact surface. The Shibata is very close to the original cutting pencil, which ensures the most accurate reproduction, low distortion and extended frequency range. The use of an extremely rigid and lightweight boron overhang adds remarkable transparency, speed and responsiveness.

Rubber suspension
A crucially important and vital part of the overall performance of a phonographic capsule is the rubber needle suspension.

Ortofon's exclusive rubber compounds are used for Concorde Music Blue's needle suspensions, carefully produced in in-house rubber production and developed by Ortofon's research and engineering team for brilliant performance.

Coil system

The Concorde Music features the Ortofon four-coil generator system with four split pole pins. Silver-plated oxygen-free copper is chosen for the four-coil system, along with four Ortofon split pole pins.

This results in exceptional balance and channel separation, providing a precise and dynamic sound. With a 6 mV output, it delivers a realistic sound with exceptional clarity and fidelity, capturing every detail.

Compatibility
Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, which makes it simple and convenient for all users. This is thanks to the bayonet connector, which makes it compatible with all S-shaped arms.

Specifications
Channel balance at 1 kHz 1 dB
Output voltage at 1 kHz, 5 cm/sec. 6 mV
Channel separation at 1 kHz 26 dB
Channel separation at 15 kHz 20 dB
Frequency response 20 Hz - 20 kHz +2/0dB
Tracking capability at 315 Hz with the recommended tracking force 80 microns
Compliance, dynamic, lateral. 15 µm/mN
Typical pencil Shibata diamond in boron overhang
Pencil tip radius r/R 6/50 µm
Follow-up strength, recommended 1.8 g
Tracking angle 20 °
Internal impedance, DC resistance 1.27kΩ
Cartridge color Black Black
Cartridge weight 18 g
Recommended load resistance 47kΩ
Internal inductance 815 mH
Recommended load capacity 150-300pF
