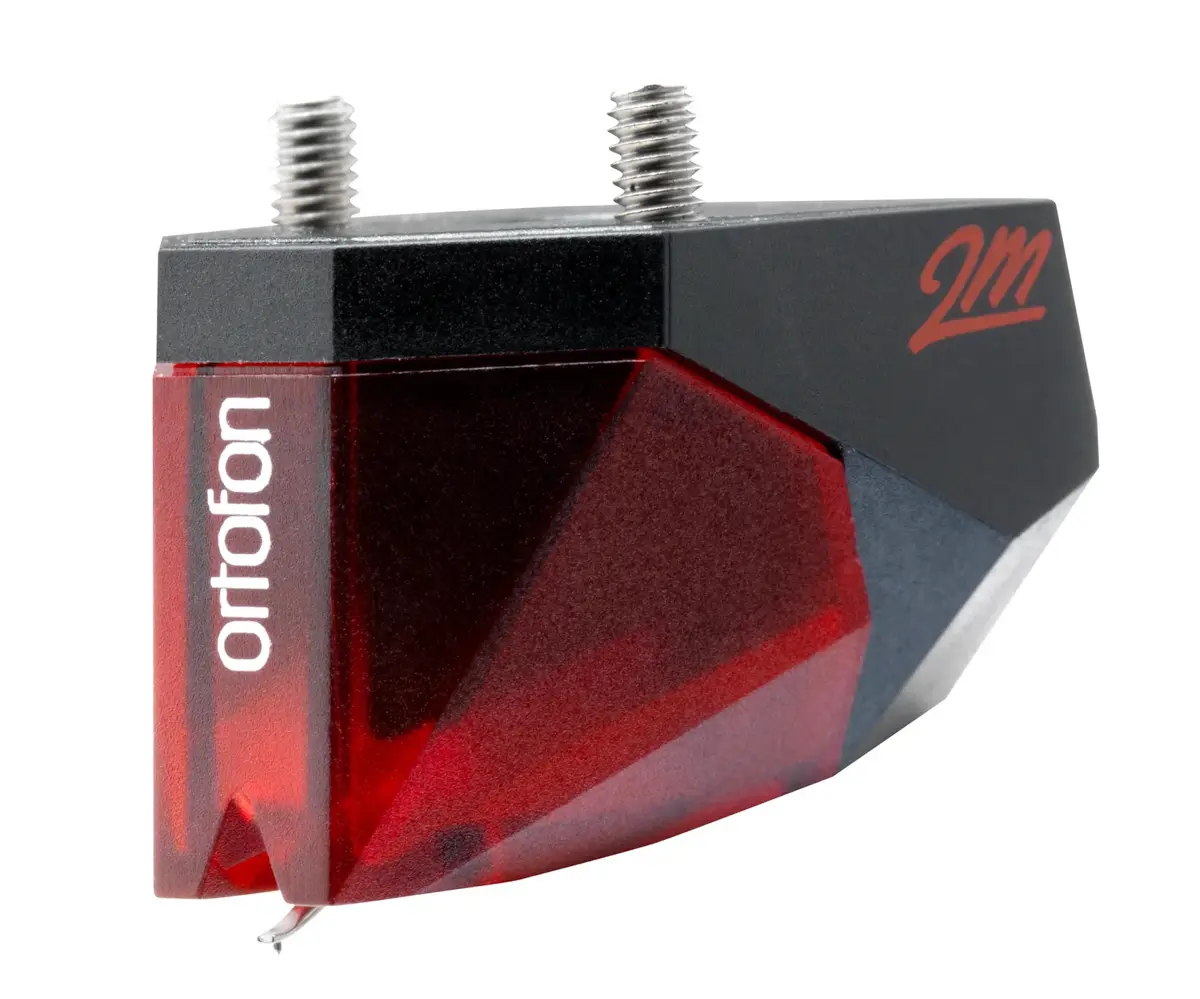

Ortofon 2M Red Verso

The 2M Red Verso model is an alternative product for bottom mount headshells. With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5cm/sec 5.5 mV
Channel separation at 1 kHz 22 dB
Frequency response 20 Hz - 20 kHz 3 / - 1 dB
Tracking ability at 315 Hz 70 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.6-2.0 g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1.3 kOhm
Cartridge colour Black/Red
Cartridge weight 16.7 g
Recommended load resistance 47 kOhm
Internal inductance 700 mH
Recommended load capacitance 150-300 pF
