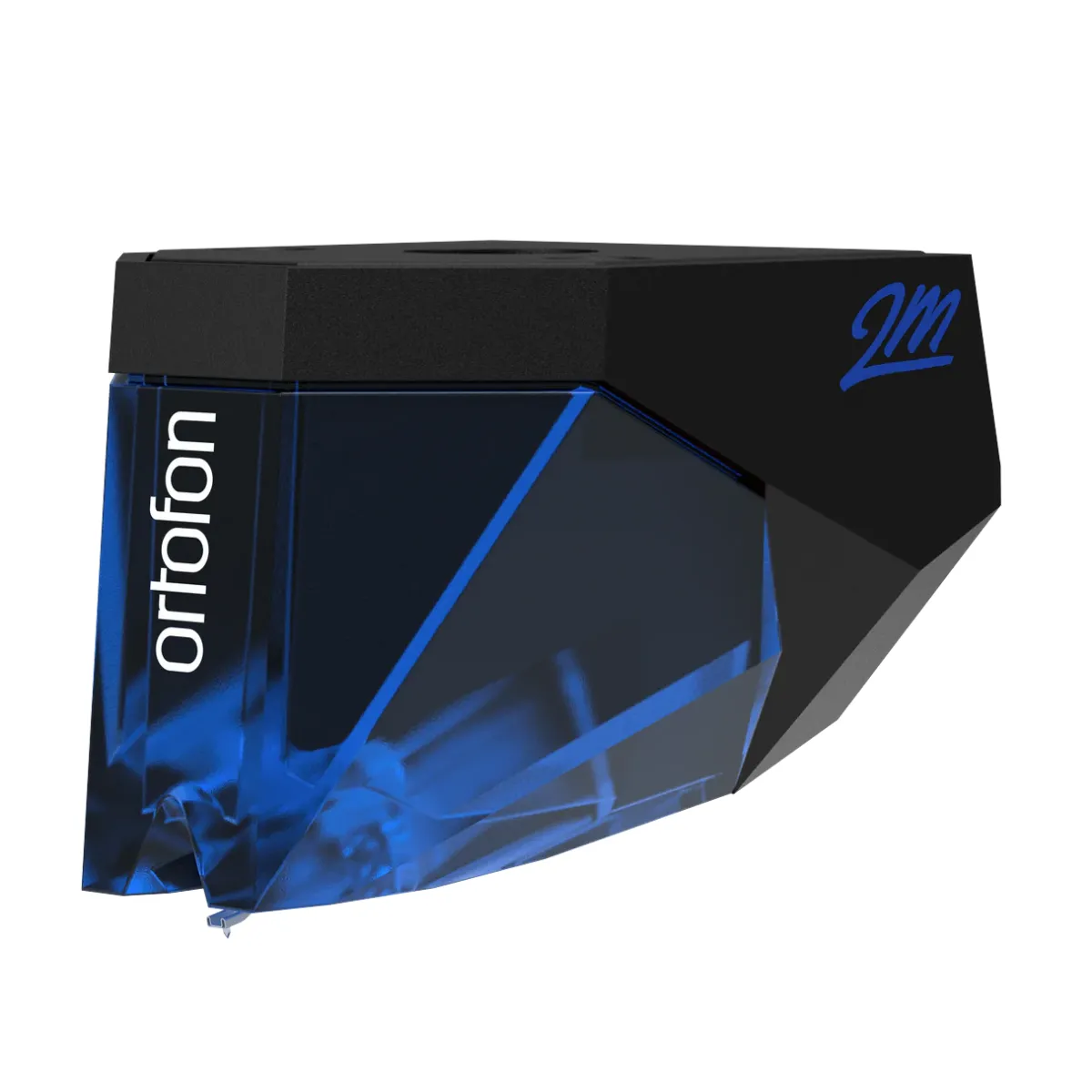

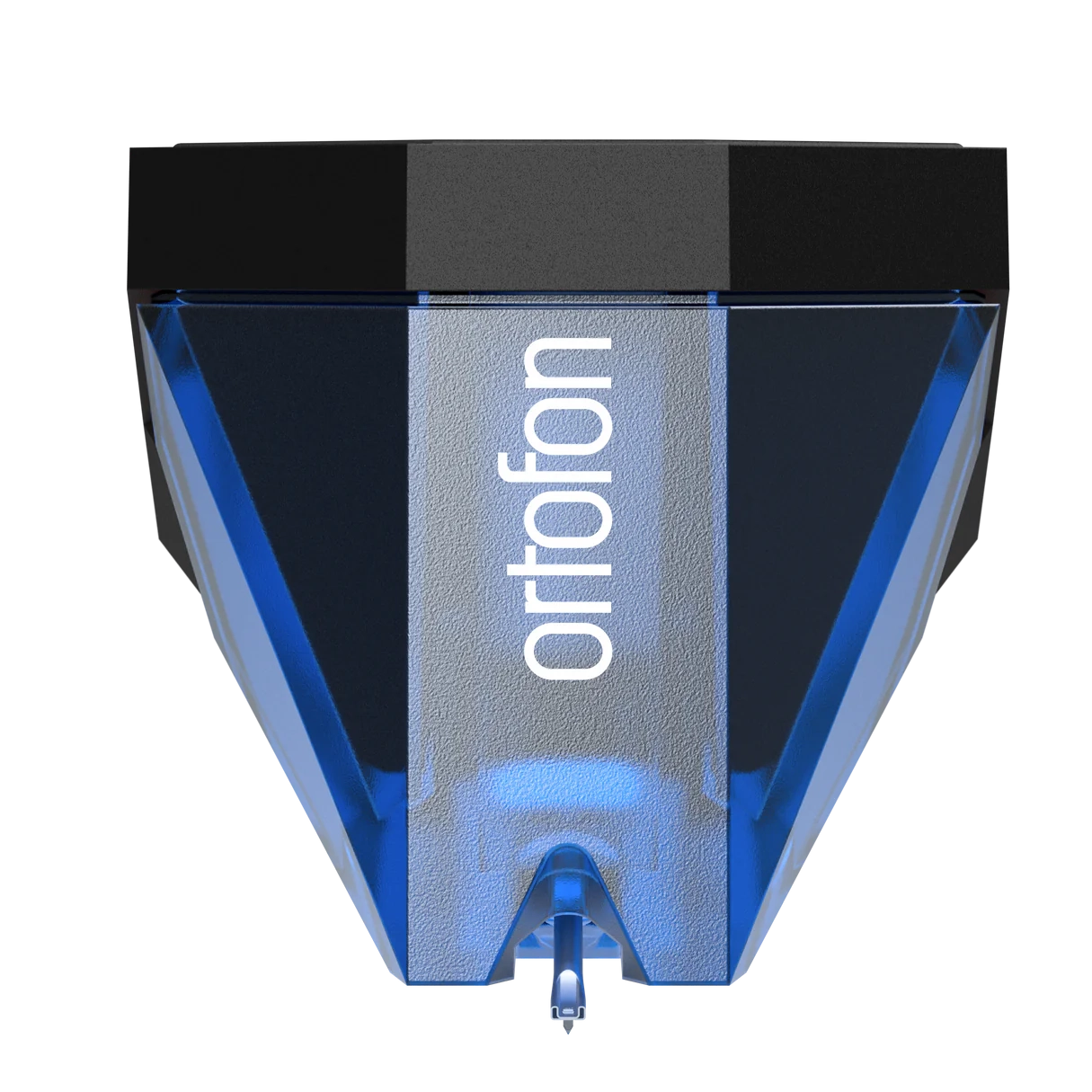

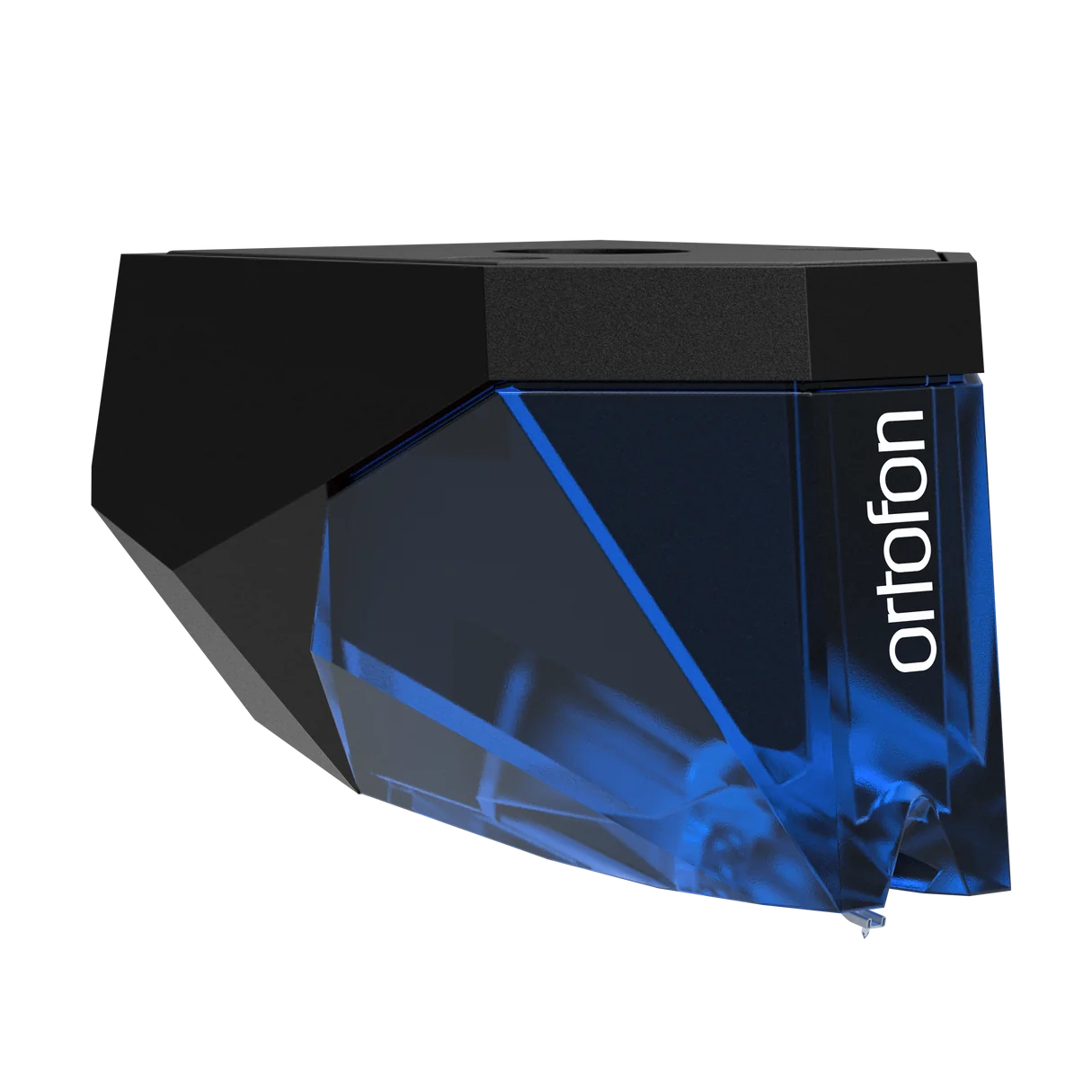

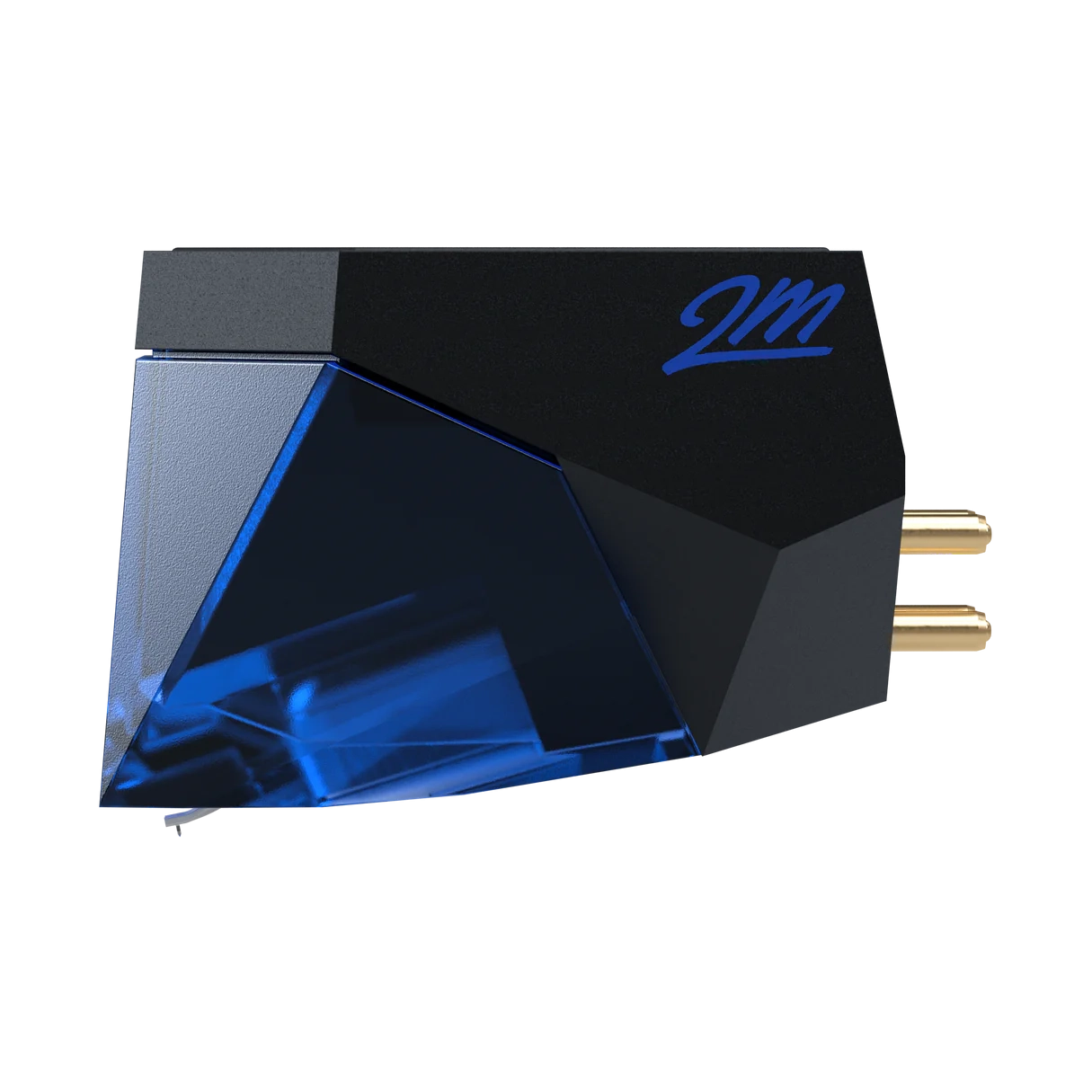

Ortofon 2M Blue

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Stylus
The Nude diamond is cut in an Elliptical shape, and when it hits the groove, it is like travelling through both space and time to the very moment the music was recorded.

Compatibility
Created to facilitate simple installation of the cartridge and to ensure compatibility with the dimensions and weights of today's most popular turntables, the 2M Series offers four distinct product versions:

The 2M is for most common turntables on the market, the 2M Premounted for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, the 2M Verso for bottom mount headshells, and the 2MR, which is designed with cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Specifications
Channel balance at 1 kHz 1.5 dB
Output voltage at 1 kHz, 5cm/sec 5.5 mV
Channel seperation at 1 kHz 25 dB
Channel seperation at 15 kHz 15 dB
Frequency response 20 Hz - 20 kHz 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.6-2.0 g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1.3 kOhm
Cartridge colour Black/Blue
Cartridge weight 7.2 g
Premounted cartridge weight 16.7 g
Recommended load resistance 47 kOhm
Internal inductance 700 mH
Stylus colour Blue
Recommended load capacitance 150-300 pF
