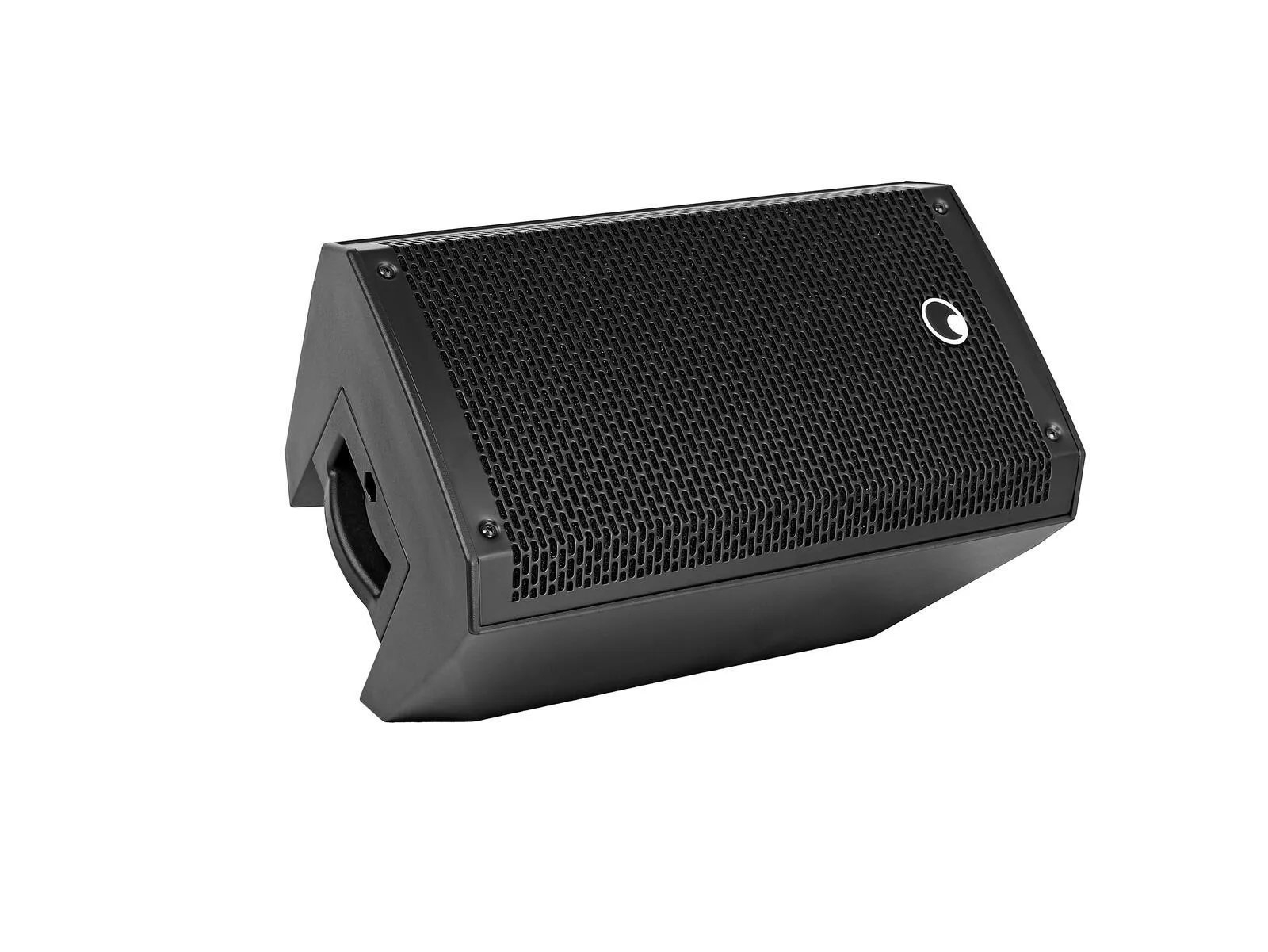

Omnitronic XNG-208A

Active speaker with 8" woofer, 1" driver, 350 W RMS

Product Overview
Type: Active compact PA speaker
Woofer: 1 × 8" with ferrite magnet, 2" voice coil
Tweeter: 1 × 1" compression driver
Construction: Vented
Grille: Black metal with acoustic foam
Carrying Handle: 1 × rugged handle
Cooling: Passive convection
Applications: Standing, monitoring, on stand
Use Cases: Touring, mobile use, rental, gyms, mobile DJs/entertainers

Power & Amplification
RMS Output: 350 W system

250 W LF (woofer, 8 Ω)
100 W HF (tweeter, 8 Ω)
Power Supply: 100–240 V AC, 50/60 Hz
Power Consumption: 100 W
Amplifier Type: Class D Biamp
DSP: Digital Signal Processor with:

Delay
Multiband Compressor
Multistep Limiter
Active Phase Correction
Delay Compensation
3-band EQ
DSP Presets: DEFAULT, LIVE, DANCE, MONITOR, SPEECH

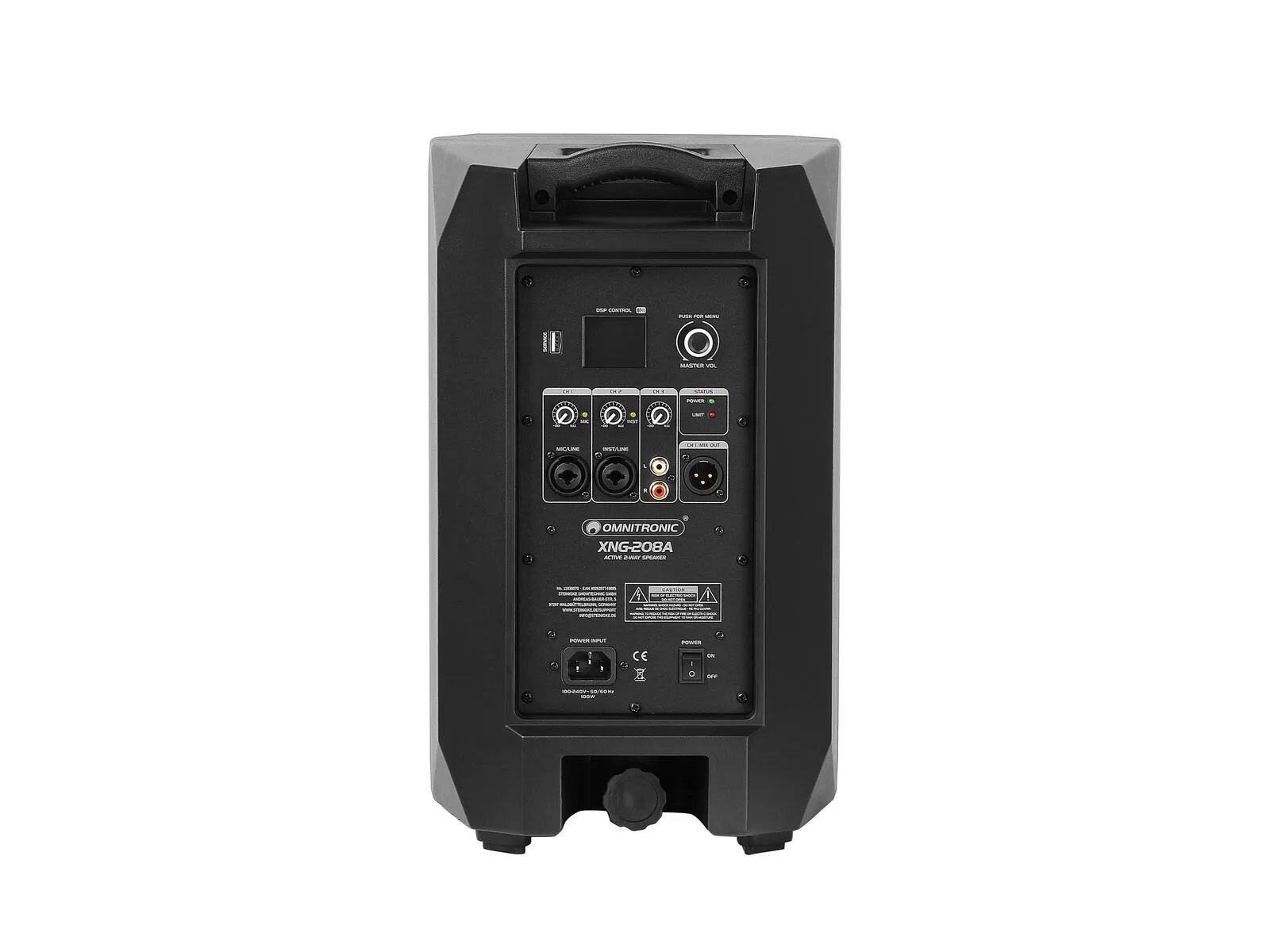

Connectivity & Control
Inputs:

1 × Mic/Line (3-pin XLR / 6.35 mm combo socket)
1 × Line/Hi-Z (3-pin XLR / 6.35 mm combo socket)
1 × Stereo RCA Line
Outputs:

1 × Line XLR (3-pin)
Control:

Bluetooth with stereo link (TWS)
Monochrome LCD display
Encoder & level controls per channel
Status Indicators: Power, Limit

Audio Specifications
Frequency Range: 65 Hz – 20 kHz
Max SPL: 121 dB
Dispersion Angle: 90° × 60°
Low Cut Options: FLAT, 80 Hz, 100 Hz, 120 Hz
Delay: 0–10 ms

Physical Specifications
Dimensions: W 25.9 cm × D 25.0 cm × H 43.2 cm
Weight: 8.0 kg
Cabinet Material: PP polypropylene
Color: Black, powder-coated
Mounting: Flange Ø 35 mm

Package Contents
1 × Compact cabinet speaker
1 × Power cord
1 × User manual
1 × Declaration of conformity
