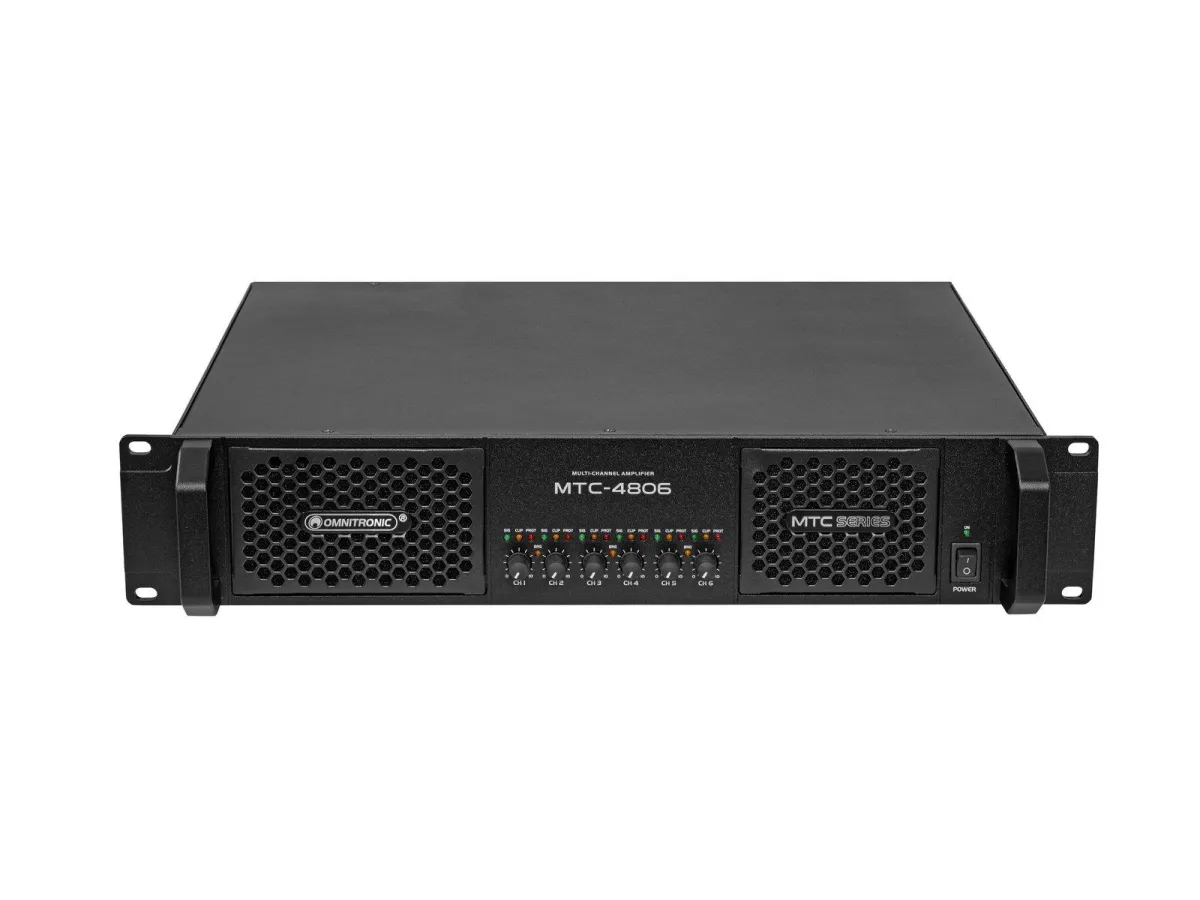

Omnitronic MTC-4806 6-Channel Amplifier

Class D multi-channel PA amplifier with SMPS, 6 x 800 W RMS (4 ohms), 6 x 400 W RMS (8 ohms)

Extremely low weight and height due to integrated switch mode power supply
2 operating modes can be selected (stereo or bridge/100V)
Level control per channel
(19") 48.3 cm rack installation 2 U
Highly efficient Air flow from front to rear
The device is cooled by temperature-controlled fan
Package contents

1 x amplifier, 1 x power cord, 1 x user manual

TECHNICAL SPECIFICATIONS
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 900 W 1/8 power
Protection class: Protection class I
Output power: 6 x 800 W RMS (4 ohms)
6 x 400 W RMS (8 ohms)
Bridged (8 ohms)
3 x 1500 W RMS
3 x 1500 W RMS bridged (100 V)
6 x 200 W RMS (100 V)
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length: 1 m detachable
Device fuse: 5 x 20 mm, T 10 A Fuse fix on board
Frequency range: 20 - 20000 Hz
S/N ratio: >119 dB
THD: <0,05 % at 1 kHz
Cooling: 2 x temperature-controlled fan , Air flow from front to rear
Impedance: Input: 20 kOhm , bal.
Input: 10 kOhm , unbal.
Gain: 28,2 dB
Housing color: Black
Circuitry: Class D
Damping factor: 350
Control elements: Power switch, level control per channel, mode switch (stereo/bridged)
Controls: Softstart; overheat; overload; short-circuit; DC voltage
Status LED: Power, signal, clip, bridged, protect

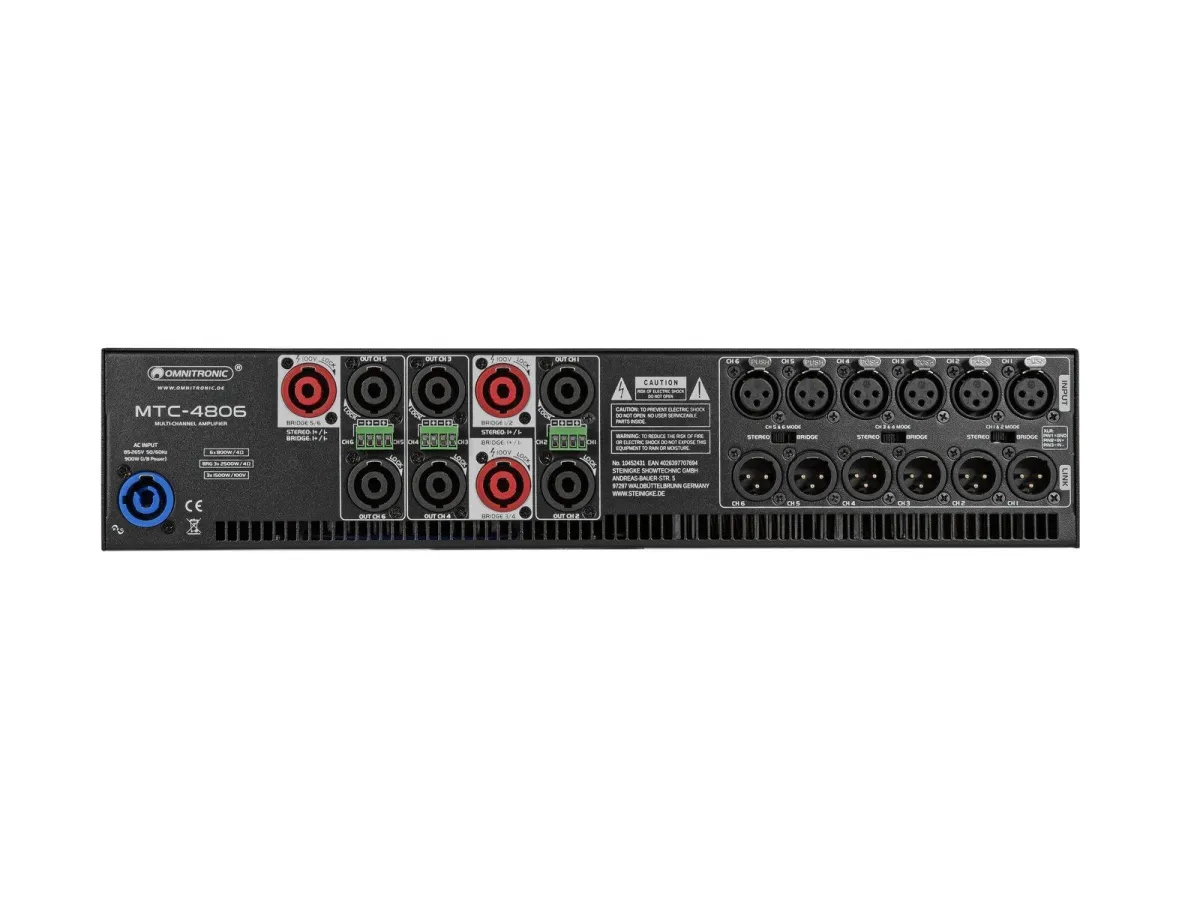

Connections: Input: line via 6 x 3-pin XLR
Link: line via 6 x 3-pin XLR
Output: speaker via 6 x screw plug-in terminal
Output: 6 x speaker built-in socket (F)
Housing design: (19") 48.3 cm rack installation 2 U
Dimensions: Width: 48,3 cm
Depth: 40,8 cm
Height: 8,8 cm
Weight: 8,72 kg
