Omnitronic EM-260 Entertainment Mixer

6-channel microphone/line mixer

6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
Ideal e.g. for karaoke when microphones need to mixed with CDs
3 mono input channels mic/line (XLR, bal.), switchable
3 stereo line input channels (RCA)
Clip LED for each microphone channel
Each microphone input with optional 12 V phantom power
FX send/return with FX level control
Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
Stereo record output (RCA)
(19") 48.3 cm rack installation 1 U
For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school

TECHNICAL SPECIFICATIONS
Power supply: 115/230 V AC, 50/60 Hz
Power consumption: 5 W
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range: 20 - 20000 Hz
Phantom power: Or 12 V DC
Housing color: Silver
Control elements: Phantom power switch, power switch, FX send/returne control
Status LED: Power, clip

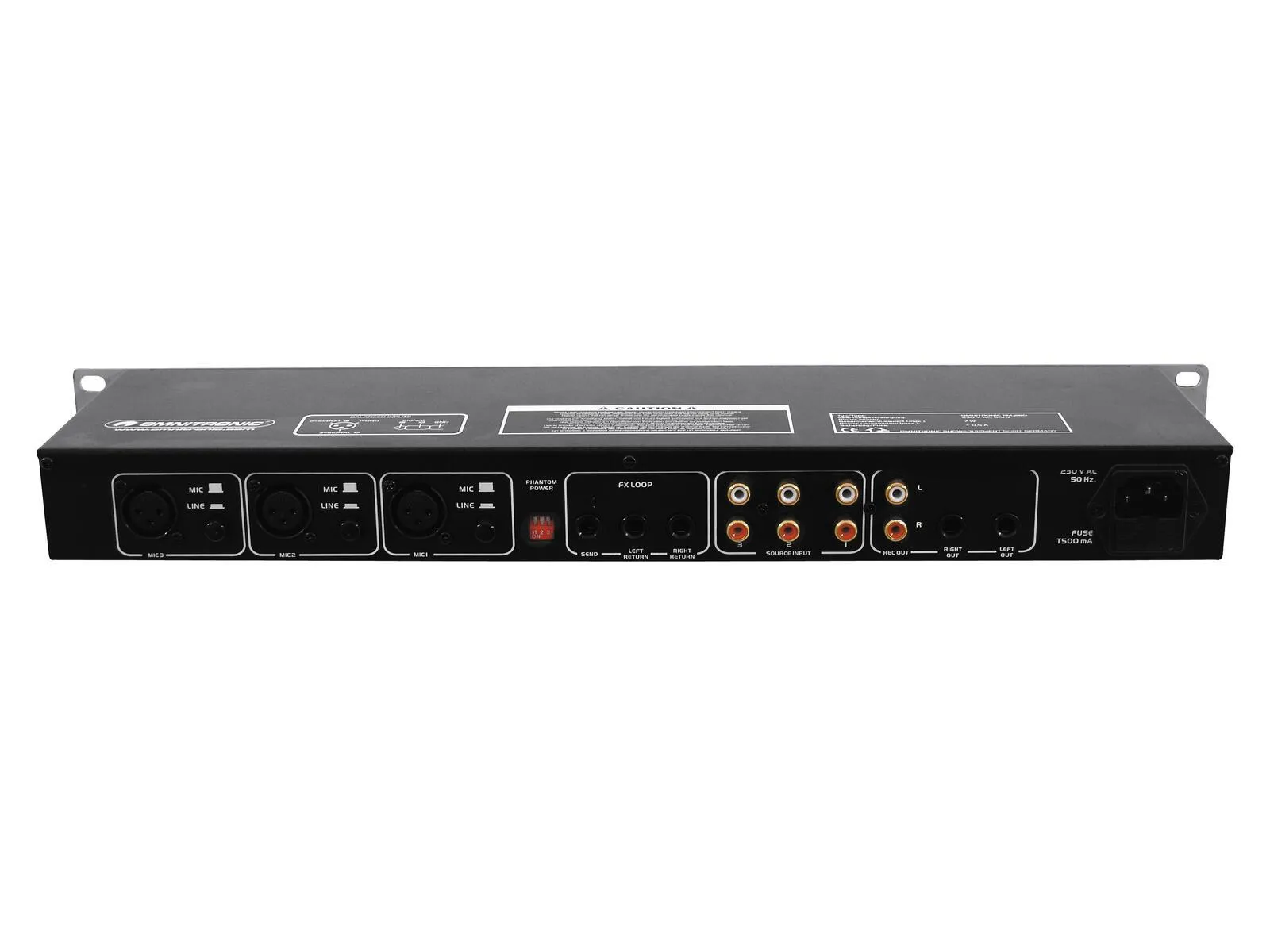

Connections: Input: mic/line via 3 x 3-pin XLR
Input: line via 3 x stereo RCA
Input: FX via 2 x 6.3 mm jack socket (mono) mounting version
Output: rec. via 1 x stereo RCA
Output: master via 2 x 6.3 mm jack socket (mono) mounting version
Output: FX via 1 x 6.3 mm jack socket (stereo) mounting version
Channels: Input chanel: 3 x stereo via RCA, channel control via rotary dial, 2-band tone control EQ 100Hz/10kHz
Microphon chanal: 3 x mono with mic-line switch via XLR, channel control via rotary dial, 1 Send/AUX, FX routing switch
Master output: 1 x stereo via jack, channel control via rotary dial
Max. level: Input: microphone +14 dB
Input: line +24 dB
Material: Metal
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48,3 cm
Depth: 12,3 cm
Height: 4,45 cm
Weight: 2,20 kg
