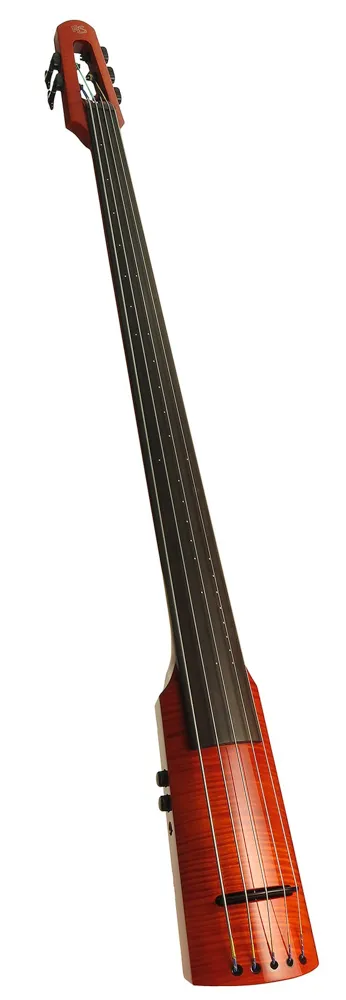

NS Design WAV5c-DB-AB

SPECIFICATIONS

LENGTH: 132 cm (52")

WIDTH: 15 cm (6")

THICKNESS: 10 cm (4")

WEIGHT: 4-String 8lbs 12.8oz (4.0 kg); 5-String 9lbs (4.1 kg)

SCALE LENGTH: 106 cm (41.73")

STRINGS: 5, Low B - E - A - D - G. Compatible with most standard ¾ size double bass strings.

BODY/NECK: Solid, straight grain maple neck and body. Flame maple face on the Amberburst, Trans Red, and Black models; Brilliant White model has solid maple.

FINGERBOARD: Coform material. Hand-graduated with asymmetric relief for easy playability in every position. Intonation referenced with cascading dot markers.

TRUSS ROD: Single action, accessible at nut.

TUNING HARDWARE: Fully encased worm gear tuners, black finish.

BRIDGE PICKUP: The Polar piezo pickup system responds selectively to either vertical vibration (for the sustained plucked sound, like an electric bass guitar), or lateral vibration (for dynamic bowing, and a percussive plucked sound).

ELECTRONICS & CONTROLS: Passive circuit with high impedance output, no batteries required. Volume control, tone control (treble roll off) and a switch to select between Arco and Pizzicato mode.

PERFORMANCE SUPPORT SYSTEMS

TRIPOD STAND: WAV/NXT tripod stand standard, black painted steel, fully adjustable, self-standing tripod design. Folds for easy storage and fits into the WAV gig bag. Weight is 2.7 kg (6 lbs.).

CR TRIPOD STAND: Optional, fully adjustable steel tripod stand. Weight is 3.6kg (8 lbs.).

BASS END PIN STAND: The optional Bass End Pin Stand offers full freedom of movement. Height, tilt and "right bout" angle are fully adjustable providing a more conventional feel. Weight 3 kg (7 lbs).

BASS END PIN STAND CONVERSION KIT: To hold the instrument upright for on-stand performance or when not in use, the Bass End Pin Stand can be attached to the CR Tripod Stand  (not compatible with the WAV/NXT Tripod Stand) using the optional End Pin Stand Conversion Kit.

BOOMERANG STRAP SYSTEM: This optional support system has a pivoting friction hub that holds the instrument firmly in place close to the body.  Attached with a guitar style strap to its two support arms, the system allows the instrument to be moved into virtually any position in relation to the hands and body as it is played. Weight is .45 kg (1 lbs.).

FRAME STRAP SYSTEM: This optional accessory is a lightweight frame structure that allows full mobility to perform in standing or upright position, holding the instrument out from the body similar to the reference in traditional positioning. The system is supported by a single guitar style strap extending over the left shoulder.  Weight is 0.68kg (1.5 lbs.).
