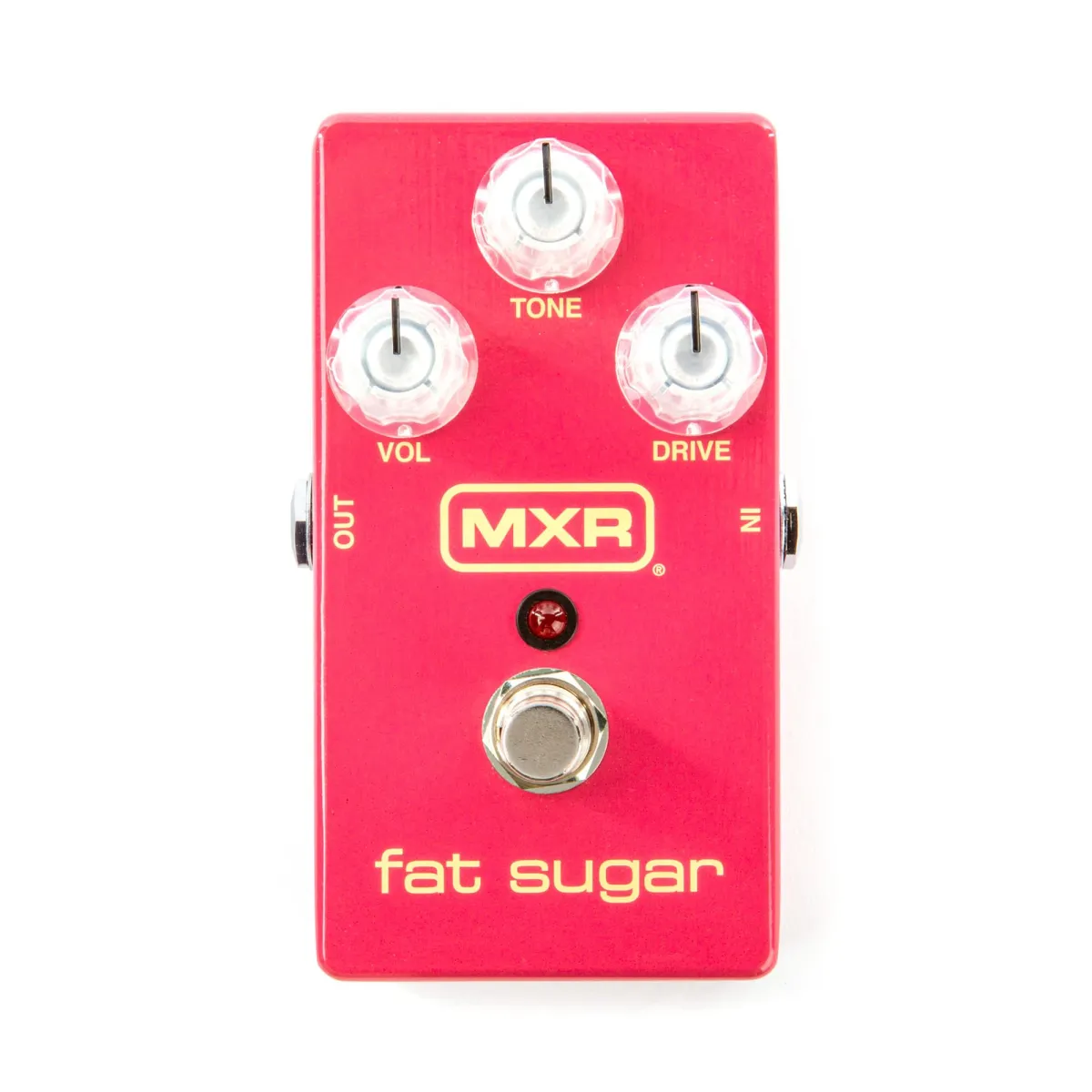

MXR M94SE Fat Sugar Drive

The MXR Fat Sugar Drive brings the Sugar Drive’s diverse range of clear and transparent overdrive tones to MXR’s classic housing for players who prefer its footprint over that of the mini.

This pedal is powered by one 9-volt battery (accessed via underside of pedal), the Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies.

THE LONG STORY
The MXR Fat Sugar Drive brings the Sugar Drive’s diverse range of clear and transparent overdrive tones to MXR’s classic housing for players who prefer its footprint over that of the mini.

This pedal’s versatility comes from its unique Drive control—which replicates an amp’s transition from clean to dirty by blending your clean signal at the start of the sweep—and a little something called a voltage doubler, which increases overall headroom and opens up the sound of the pedal. Together, these elements allow you to serve up everything from a sauced-up boost to full-on blow-tube distortion.

The Fat Sugar Drive is set for true bypass by default, but for the tonal purists who want buffered bypass instead, just remove the bottom plate and flick the internal Buffer switch, close it up, and get to playing. This special edition comes with a custom pink sparkle finish.

Specifications
Input Impedance 600 kΩ
Output Impedance 3 kΩ
Nominal Input Level +6 dBV
Maximum Output Leve l
True Bypass without Buffer selected
+26 dBV
Tone control (@ full CCW): -20 dB @ 3 kHz
Current Draw 18.5 mA @ 9 VDC
Power Requirements 9 VDC (Powersupply not included)
Throughput Gain up to +50 dB @ 1kHz
