Music Hall Stealth

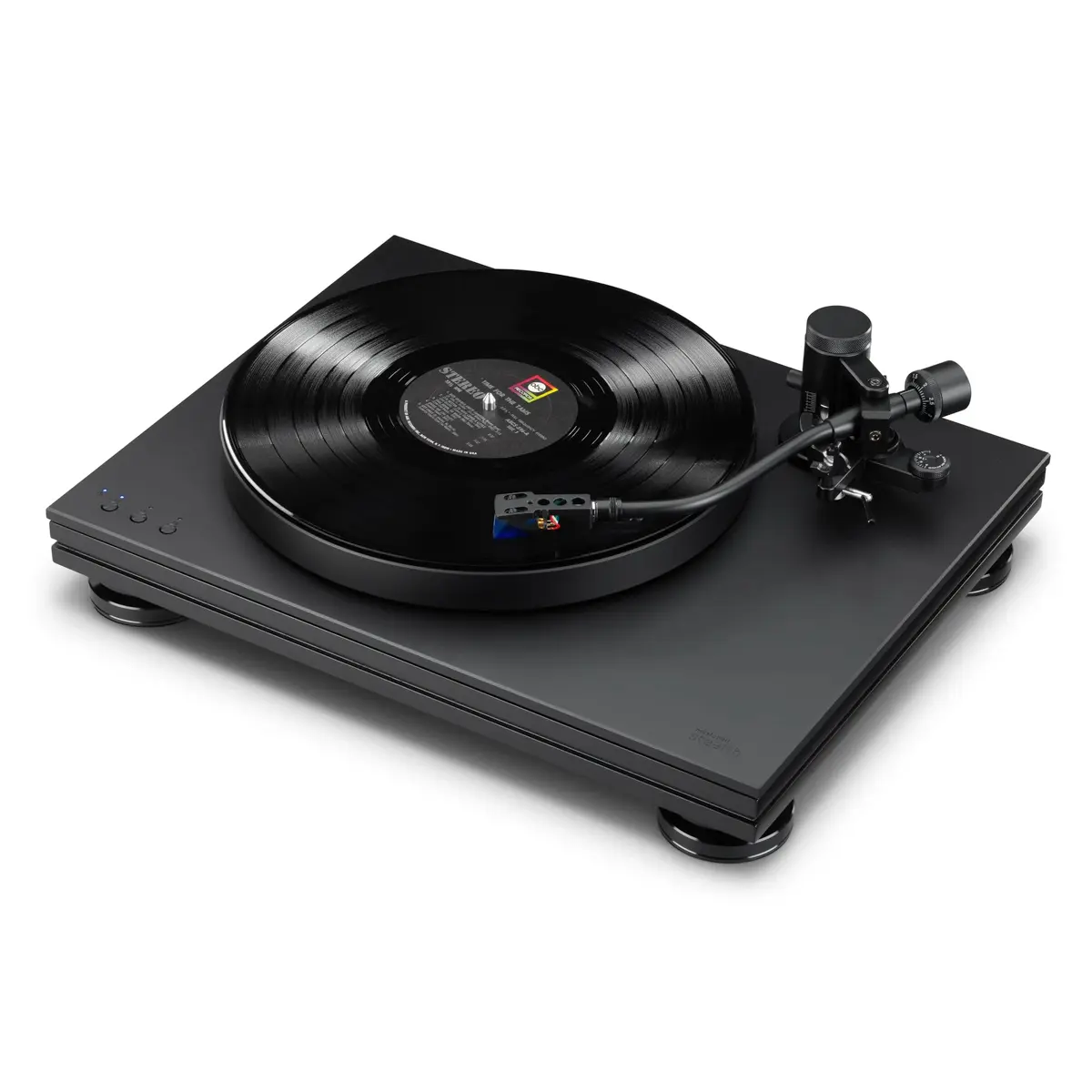

The Music Hall Stealth Turntable is a game changer for vinyl enthusiasts. The first direct drive turntable from Music Hall, the Stealth features a brushless, low-torque motor that automatically stops running at the end of a record. But that's not all - this 24-pound turntable is built with an unusually heavy, multi-layer and well-damped chassis, and large, viscous-elastomer damped height-adjustable feet that attenuate external vibrations.

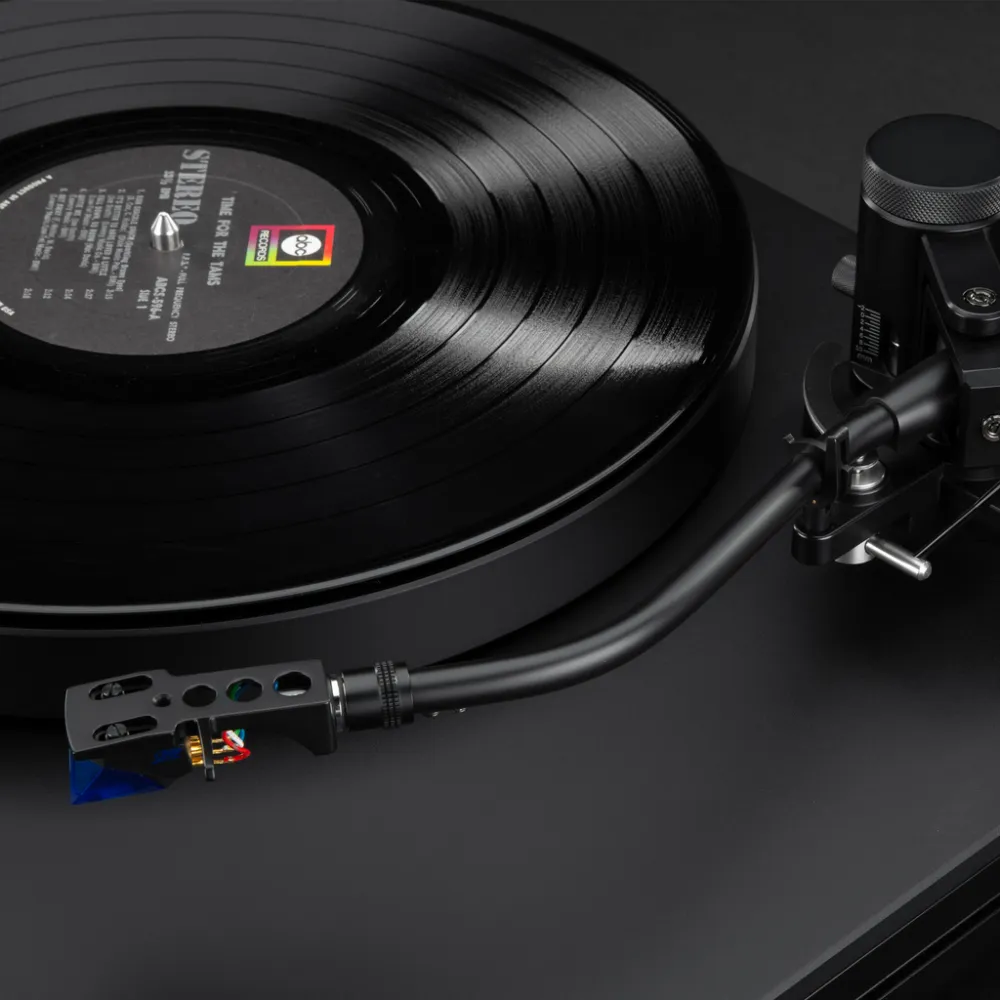

With touch-activated speed controls for ease of use, the Stealth is a 3-speed direct drive turntable that comes complete with an S-shaped tonearm, a detachable headshell, and a factory-mounted, precision aligned Ortofon 2M Blue cartridge. You can adjust the VTA of the aluminum tonearm while the record is playing, and the platter is a hefty 4-pound, elastomer-damped aluminum construction.

The Stealth is not just a beautiful turntable - it's a sound foundation for your vinyl collection. The vibration-damping rubber platter mat and feet work together to reduce unwanted resonance and noise, while the Ortofon 2M Blue cartridge delivers a clear, detailed sound. And when you're done listening, simply use the touch controls to stop the motor, or let the automatic standby mode kick in after 20 minutes of non-use. The Stealth also comes with removable RCA cables and a cloth dust cover for easy storage. Overall, the Music Hall Stealth Turntable is a top-of-the-line choice for vinyl enthusiasts looking for a direct drive design and exceptional performance.

3-speed direct drive turntable with touch-activated speed controls
Brushless, low-torque motor automatically stops running at the end of a record
Heavy, multi-layer chassis and height-adjustable feet attenuate external vibrations
S-shaped tonearm with VTA adjustment and detachable headshell
Factory-mounted, precision-aligned Ortofon 2M Blue cartridge
Vibration-damping rubber platter mat and feet reduce unwanted resonance and noise
Automatic standby mode after 20 minutes of non-use
Removable RCA cables and cloth dust cover included

Music Hall Stealth Turntable Specs

Turntable
Turntable Type: 3-speed full manual, Auto stop
Cartridge Type: Moving magnetic cartridge
Motor: Brushless motor (Low torque)
Driving Method: Direct drive
Turntable Platter: 305mm (12”) dia. Aluminum die-cast
Speed: 331/3, 45 and 78rpm
Wow and Flutter: Typical: Less than 0.07% WTD at 3kHz RMS (CD-4005), Limit: Less than 0.12% WTD at 3kHz RMS (CD-4005)
Signal-to-noise ratio (for MM): Typical: More than 70dB DIN-B (SS-4242), Limit: More than 65dB DIN-B (SS-4242)
Speed Tolerance: Constant Speed 3000Hz +/-0.3% (CD-4005)
Channel Separation: Typical: More than 20 dB at 1kHz (CD-4005), Limit: More than 15 dB at 1kHz (CD-4005)
Channel Balance: Typical: Within 1.5 dB at 1kHz (CD-4005), Limit: Within 2 dB at 1kHz (CD-4005)
Phono Output Level: Typical: 5.5mV -3dB/+1dB: 3.894mV6.172mV at 1KHz 5cm/sec (CD-4005), Limit: 5.5mV -4dB/+2dB: 3.471mV6.925mV at 1KHz 5cm/sec (CD-4005)
Frequency Response (Phono Output): Typical: 20Hz20kHz +/-0.5dB, Limit: 20Hz20kHz +/-1dB
Brushless motors torque (Direct drive): Typical: More than 1.2kg, Limit: More than 1.0kg
Power Supply: DC12V2.0A
Standby Power consumption: Less than 0.3 W, Auto stop on more than 20 minutes
Dimensions (WxDxH): 455 x 361.67 x 146.7mm
Weight: 11 Kgs)
Cartridge: Ortofon 2M (Blue)
Output Voltage: 5.5mV at 1 kHz, (5 cm/sec)
Channel Separation: Measurement point 1KHz over 25dB
Channel Balance: 1.5dB or less at 1kHz
Frequency Response: 20Hz ~ 20kHz +2/-1 dB
Vertical Tracking Force: 1.62.0g (1.8g, Recommended)

Tonearm
Type: Static balanced S-shaped tonearm with detachable head shell
Effective Arm Length: 230mm (9”)
Overhang: 15mm (0.59”)
Offset angle: 22
Tracking Error Angle: Less than 3 degree
Applicable cartridge weight: 6~10g
Anti-skating adjustment range: 0~4g
Height of cue (first track): 8~10.5mm
