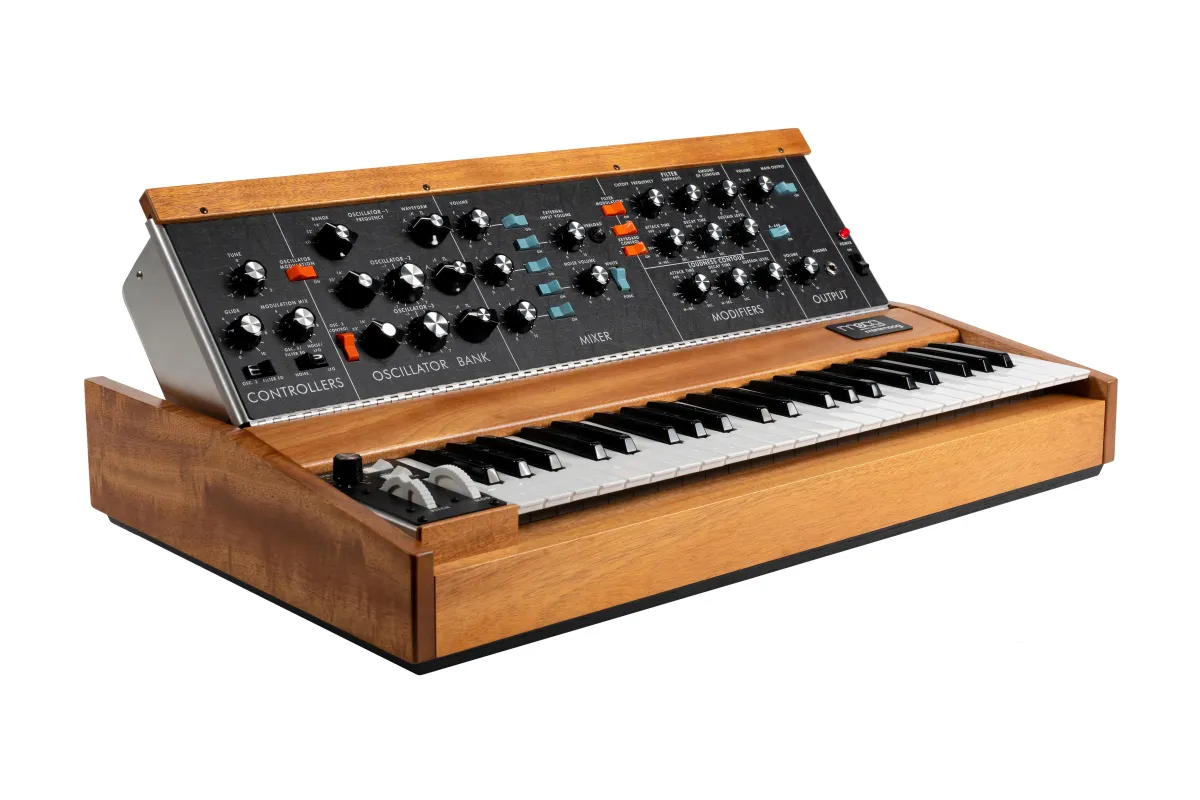

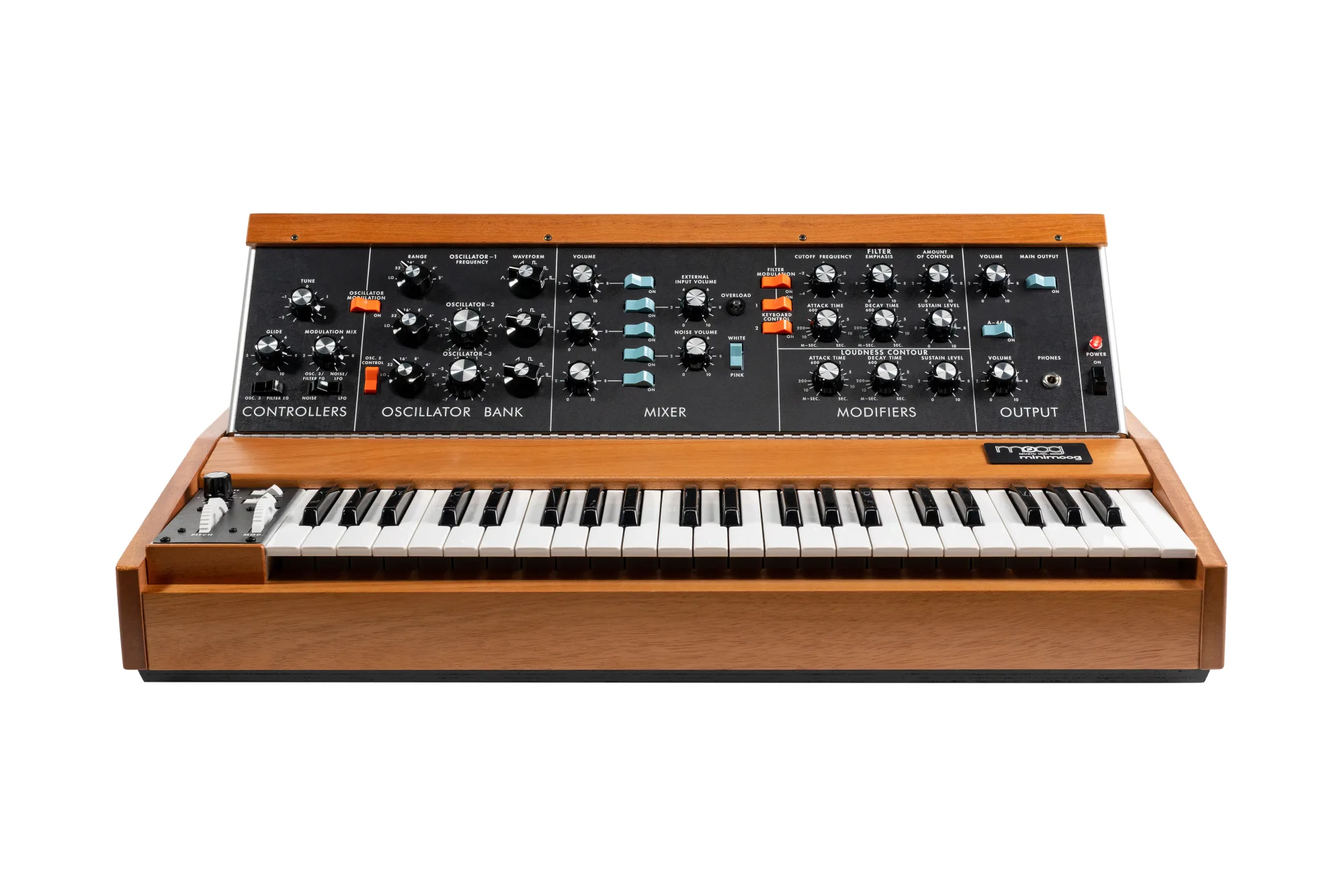

Moog Minimoog Model D Mahogany

The Minimoog Model D is a landmark instrument, originally released in 1970 as the world’s first portable synthesizer. Its fully analog architecture delivers the classic warmth and depth that defined generations of electronic music, making it a trusted choice for both studio and live performance.

This monophonic synthesizer features three oscillators, a noise generator, and an external audio input, offering a wide and flexible sound palette. The legendary Moog low-pass ladder filter provides smooth and expressive tone shaping, while the intuitive layout allows immediate hands-on control without the need for patch cables.

The modern version preserves the original sound engine while adding practical enhancements such as a dedicated analog LFO, MIDI integration, and a premium Fatar keybed with velocity and after pressure via CV outputs. A spring-loaded pitch wheel and mixer feedback modification expand performance possibilities even further.

Housed in a handcrafted Appalachian cherry cabinet with a hand-finished aluminum chassis, the Minimoog Model D combines vintage authenticity with modern reliability and build quality.

Features
Three Oscillator Analog Sound Engine
Classic Moog Low-Pass Ladder Filter
Dedicated Analog LFO With Triangle And Square Waveforms
Premium Fatar Keybed With Velocity And After Pressure Outputs
MIDI Integration With In, Out And Thru
Spring-Loaded Pitch Wheel With Center Deadband
Mixer Feedback Modification For Overdrive
External Audio Input And Noise Generator

In The Box
Minimoog Model D Analog Synthesizer
Power Supply
User's Manual
Poster Newspaper

Specifications
Number Of Keys: 44
Keyboard Range: F0 To C4
Keyboard Action: Synthesizer (Spring)
Note Priority: User Selectable
Sound Sources: 3 Oscillators, Noise Generator, External Audio Input
Oscillator Frequency Range: 0.1 To 20 kHz
Noise Generator: White And Pink
LFO Rate: 0.05 Hz To 200 Hz
Filter Type: Voltage Controlled Low Pass
Filter Frequency Range: 10 Hz To 20 kHz
Filter Slope: 24 dB Per Octave
Glide Rate: 1 ms To 10 s
Pitch Bend Range: +/- 7 Semitones
MIDI: In, Out, Thru
Power Supply: 100–240 V, 50/60 Hz

Dimensions & Weight
Dimensions: 72.71 × 43.82 × 14.29 cm
Weight: 14.52 kg
