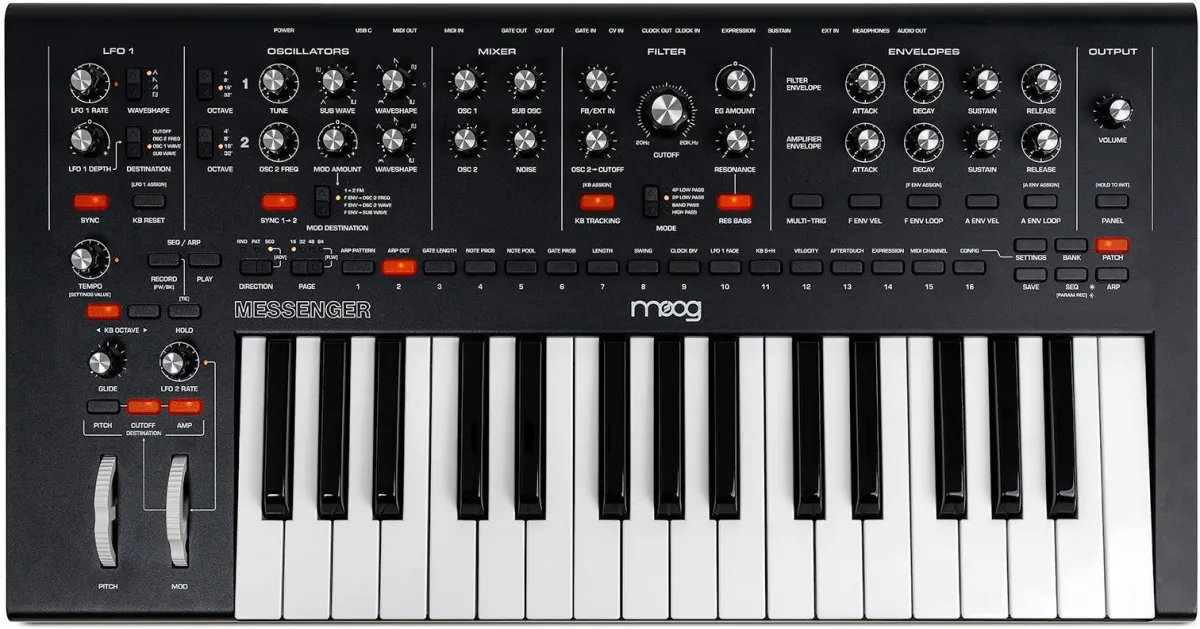

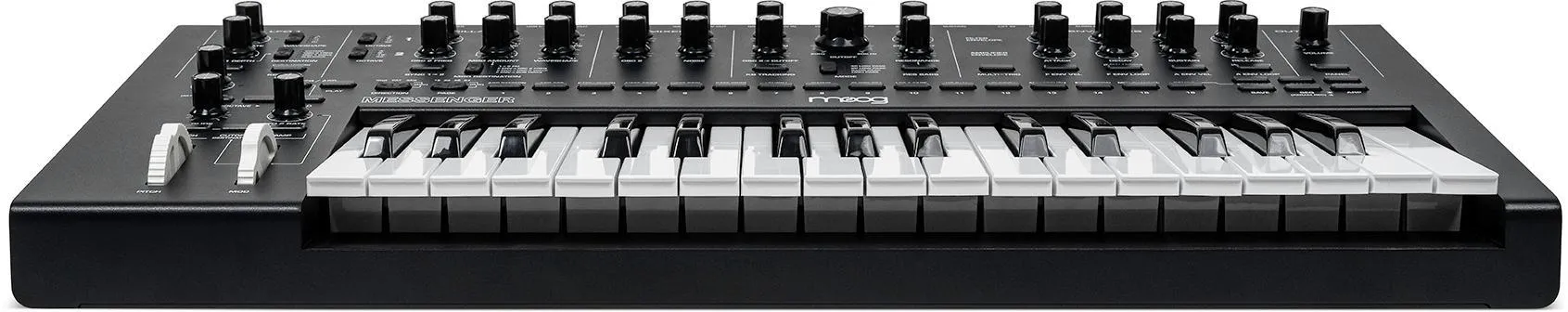

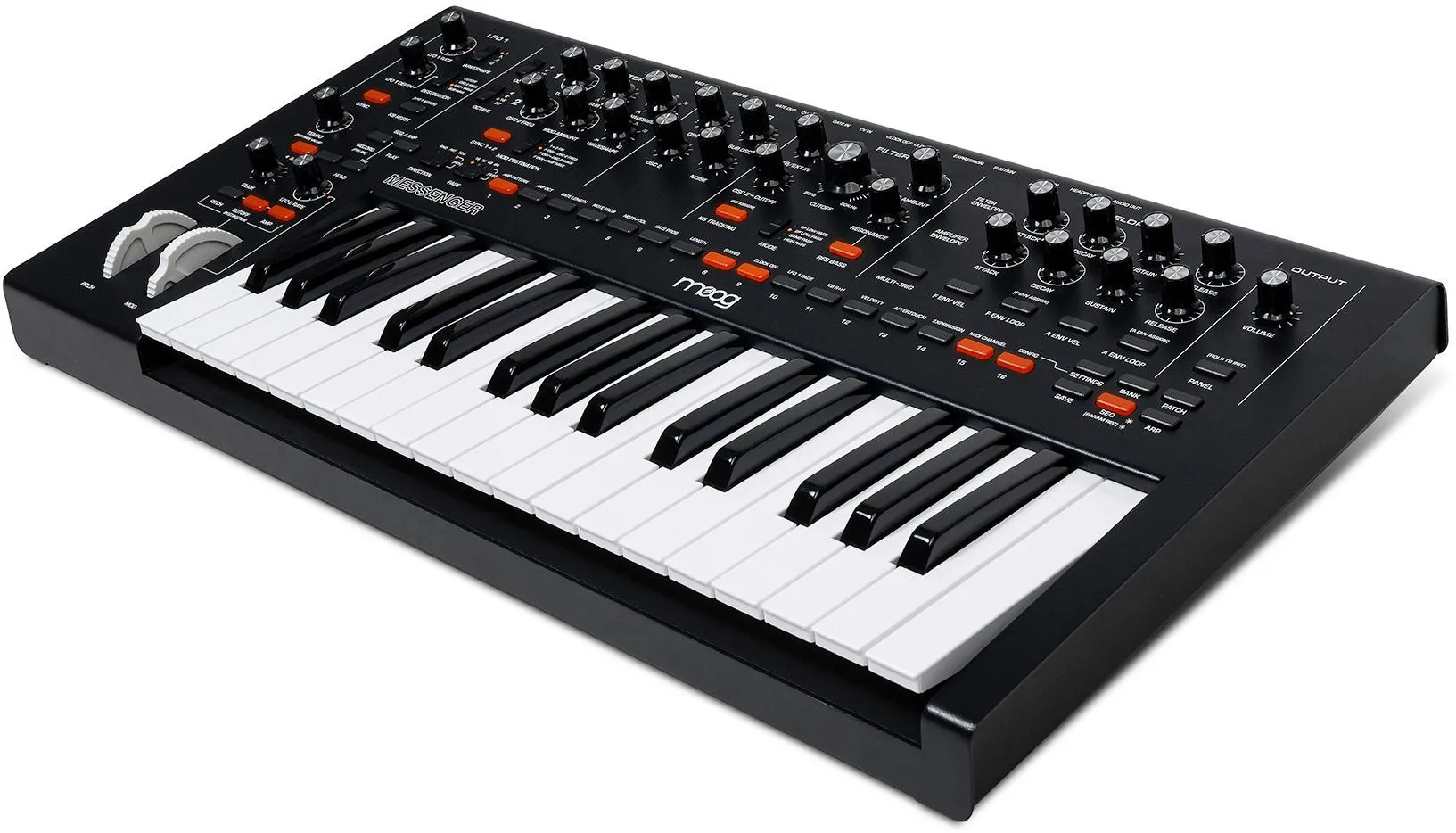

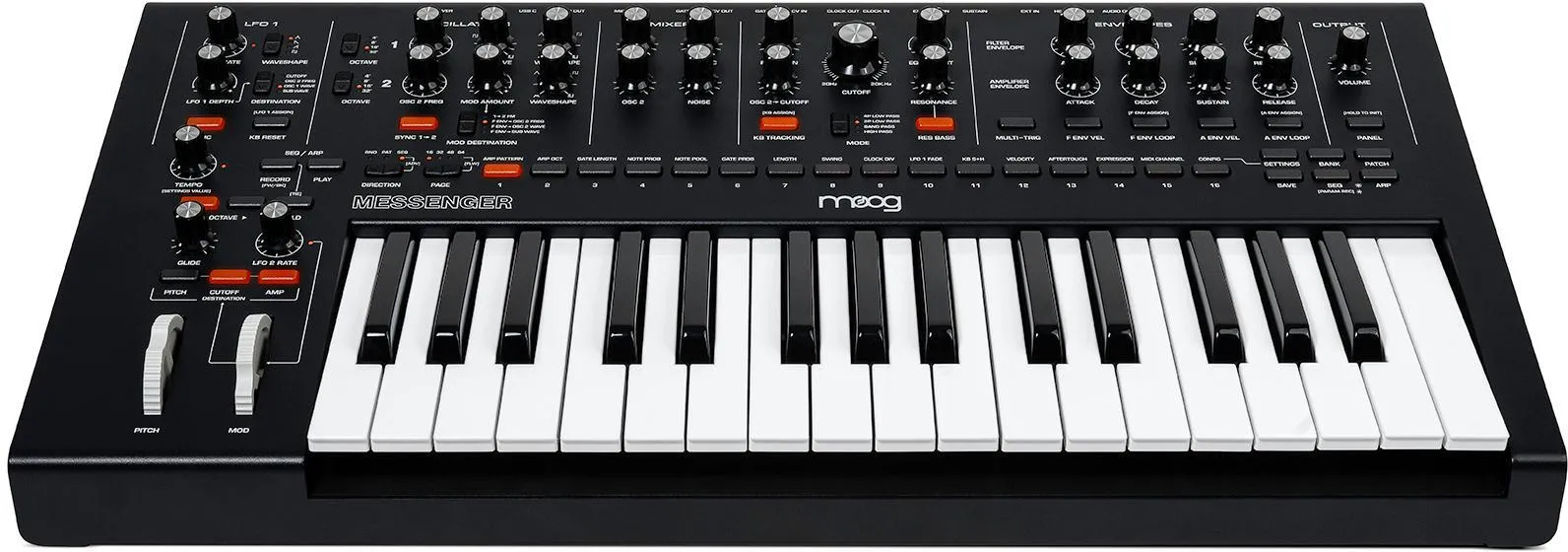

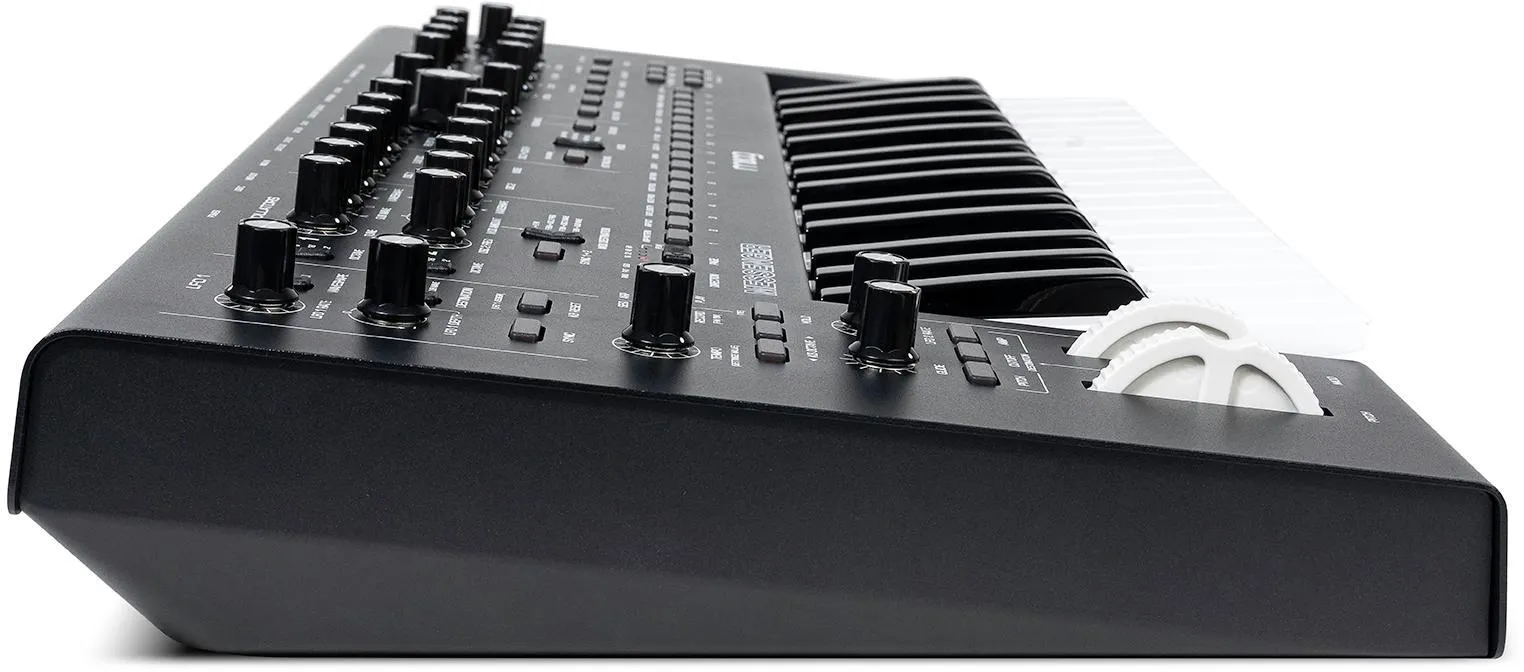

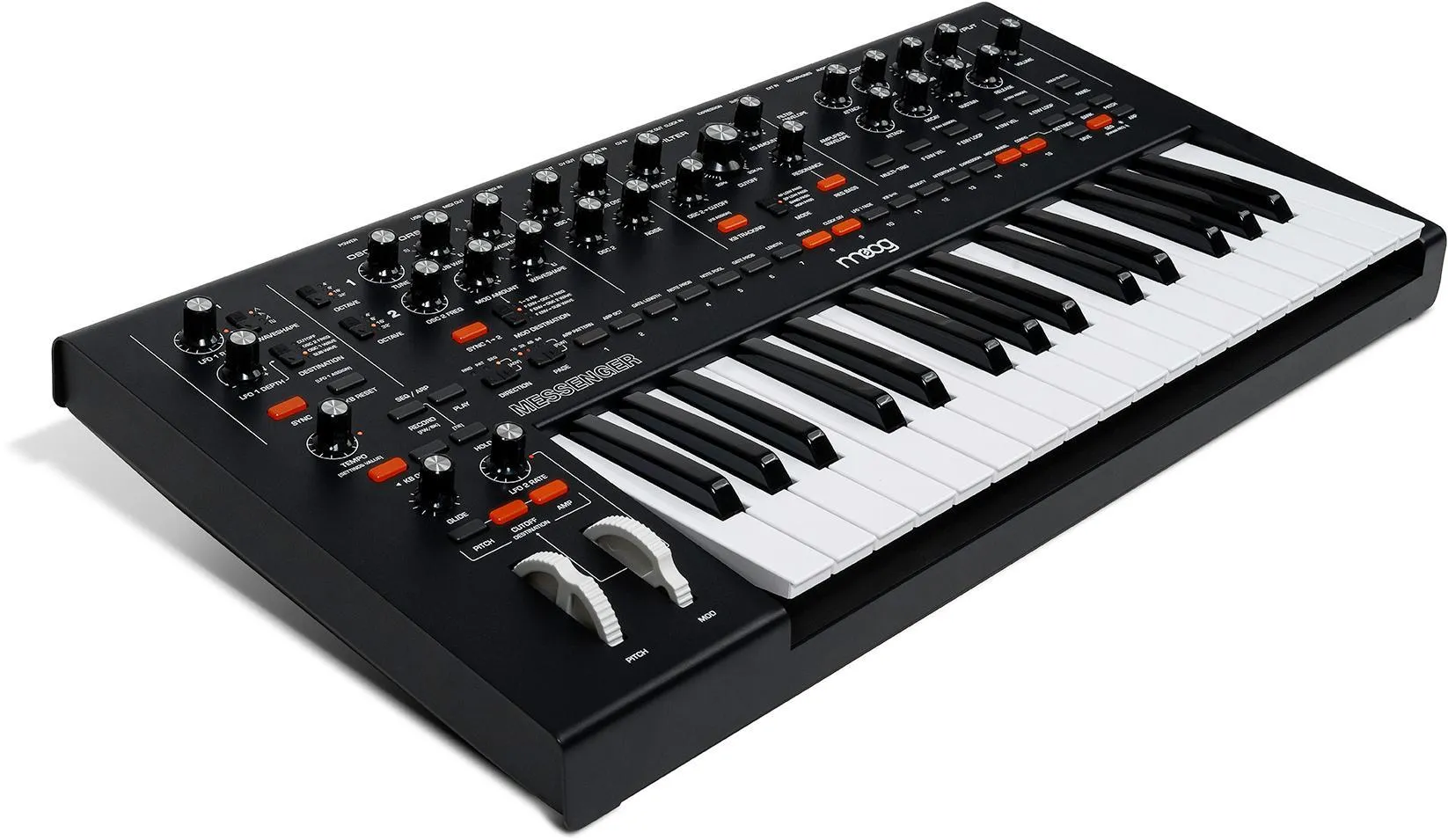

Moog Messenger

A Monophonic Analog Keyboard Synthesizer
A new method of sonic experimentation, communication, and connection has arrived. Say hello to Messenger, a next-generation analog synthesizer that celebrates classic Moog circuitry and introduces modern features to shape the future of sound design.

Messenger is a new Moog monophonic analog keyboard synthesizer designed for the electronic musicians, producers, sound designers, sonic tinkerers, and analog dreamers of today and tomorrow.

Engineered to open new portals of art and expression through sound, the instrument is ready to be a trusted creative companion for any musical genre or style—at any point in your synthesis journey.

Timeless and Intuitive
Messenger builds on the DNA of Moog’s most iconic and prolific monosynths—Minimoog Model D, Voyager, Grandmother, Subsequent 37—and puts a new spin on a familiar format with innovative circuits and timeless analog sound.

A Legend Reborn
The legendary Moog transistor ladder filter gets some new tricks up its sleeve. A unique pole-mixing design allows the ladder filter to preserve bass frequencies as resonance is increased via the RES BASS switch while keeping its sonic legacy intact. Low-pass mode adds a 2-pole filter slope in addition to the classic Moog 4-pole low-pass filter slope.

Inspiration at Your Fingertips

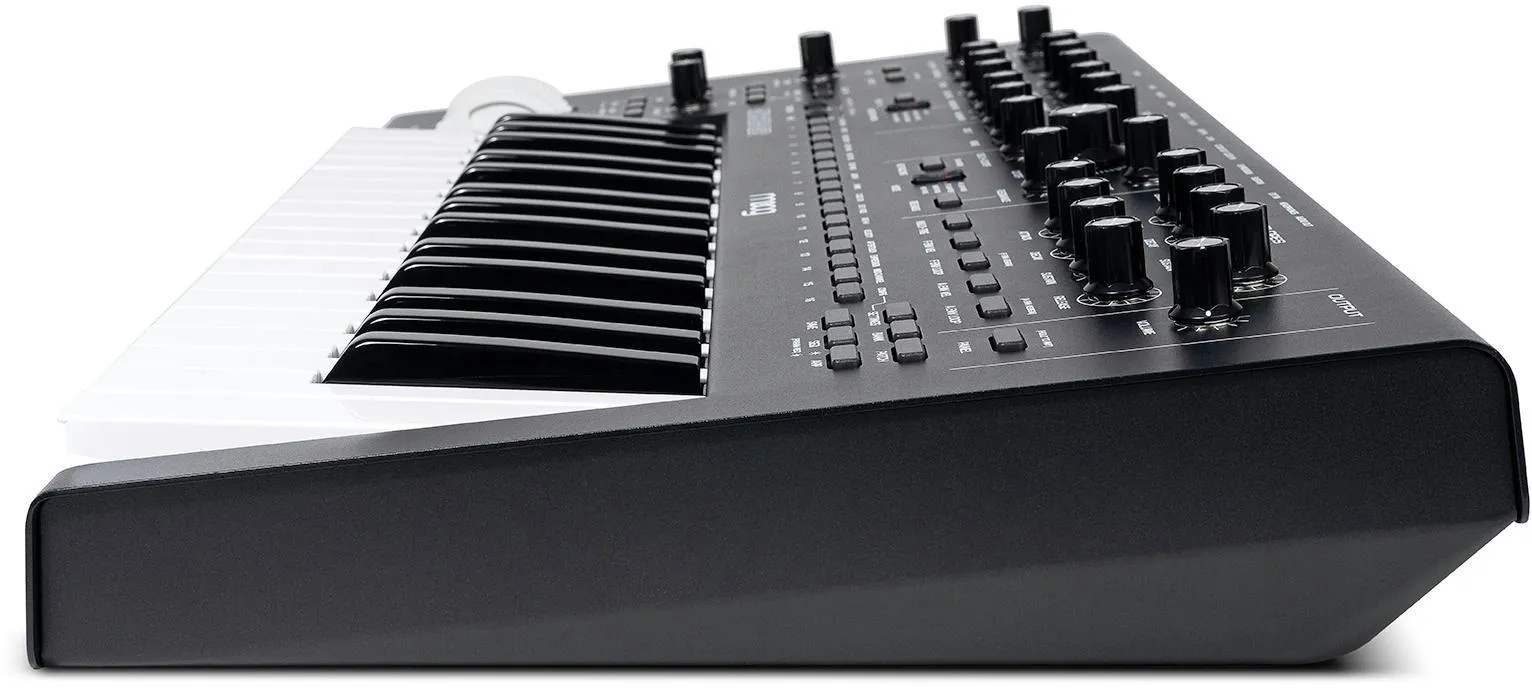

32 full-size semi-weighted keys with velocity and aftertouch, a robust metal panel, 256 presets, and knob-per-function controls mean Messenger is endlessly playable and ready to bring to your next gig.

Compositional Powerhouse

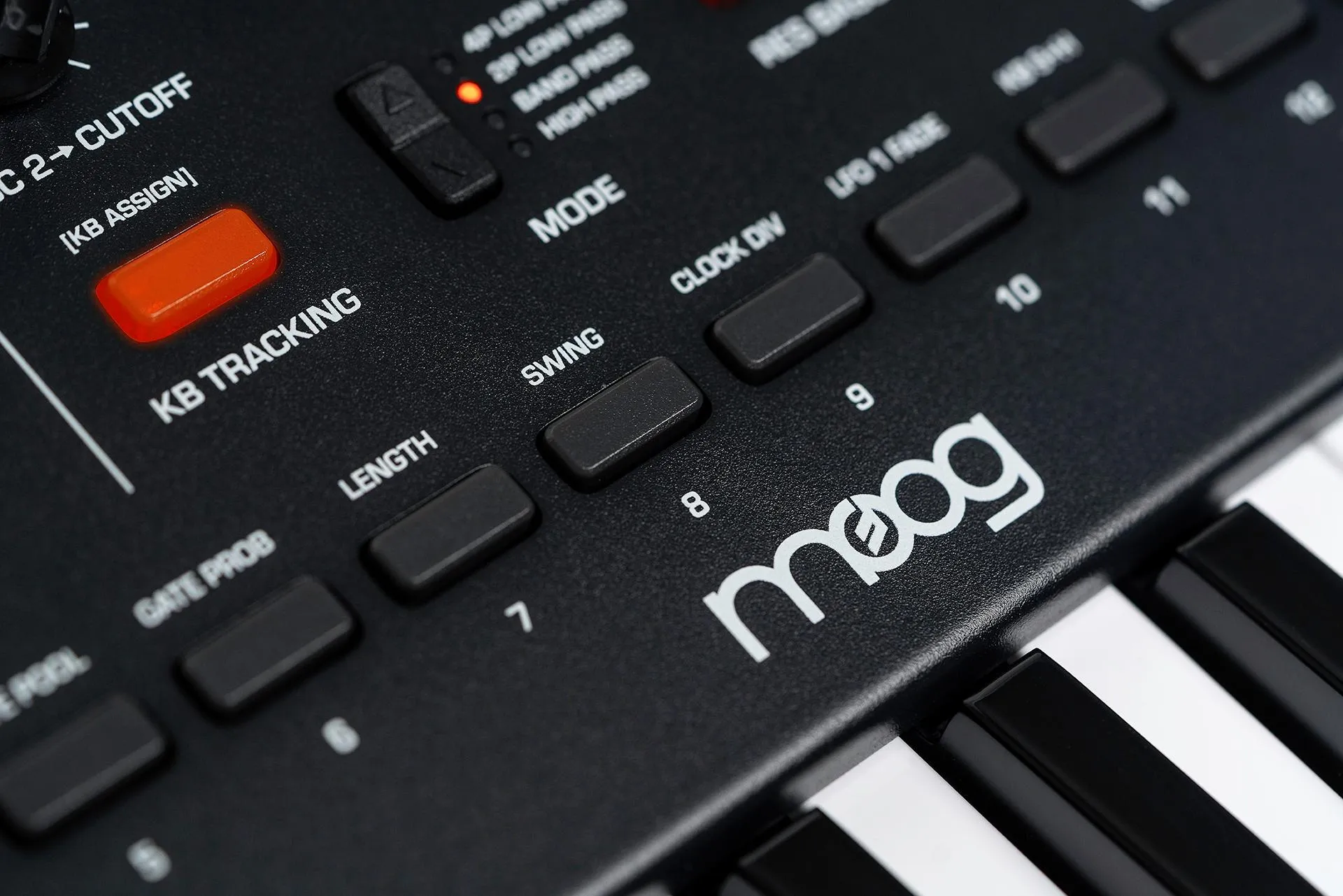

Effortlessly record sequences of up to 64 steps, integrate chance operations, and introduce random fluctuations and parameter recording. Experiment with a plethora of arpeggiator patterns and cascade notes into infinity.

Sound Design and Modulation Playground

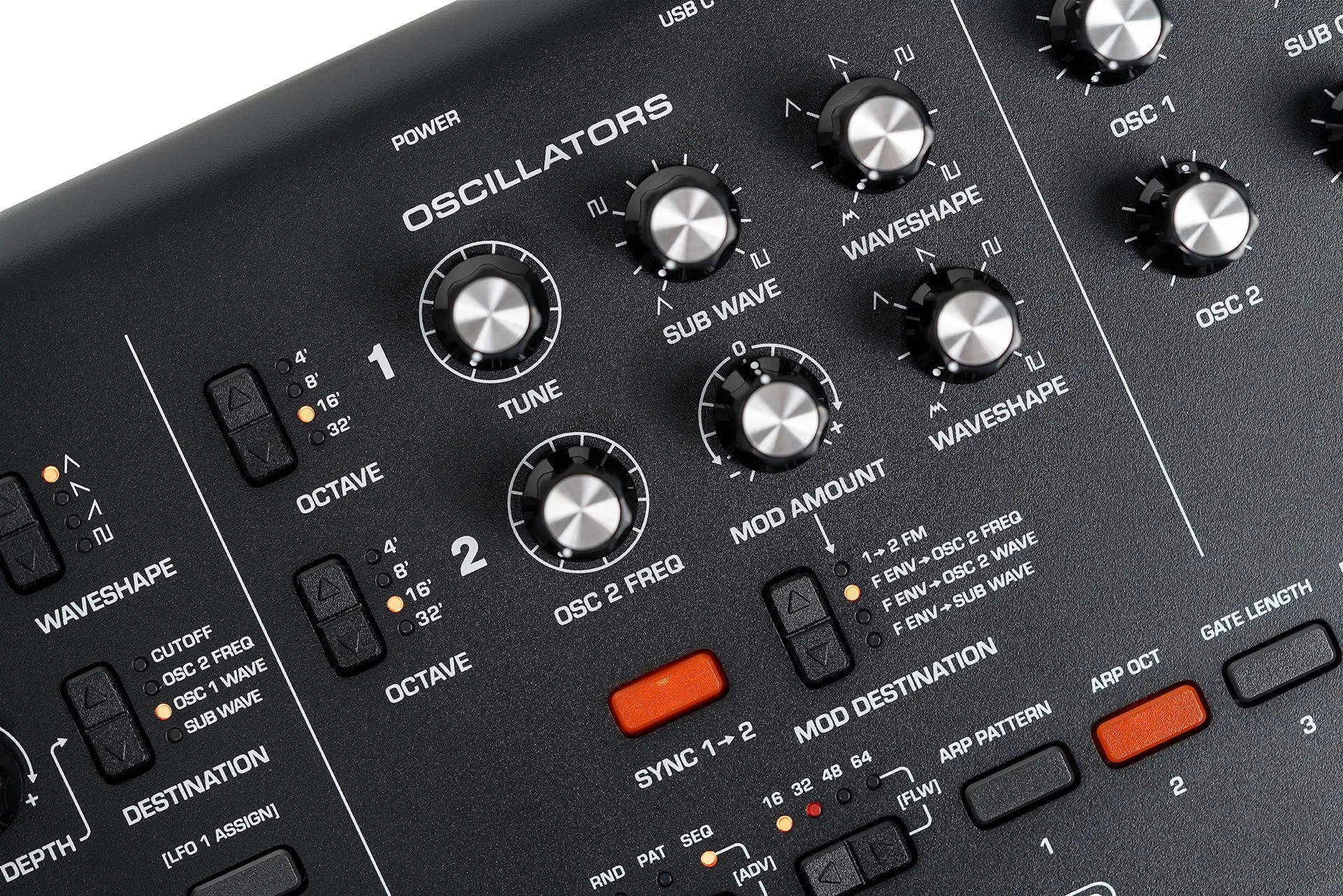

Two loopable ADSR envelopes, two LFOs, and expanded frequency and audio rate modulation options via Oscillator 2 provide a wealth of modulation options and deeper assignable possibilities.

Comprehensive Connectivity

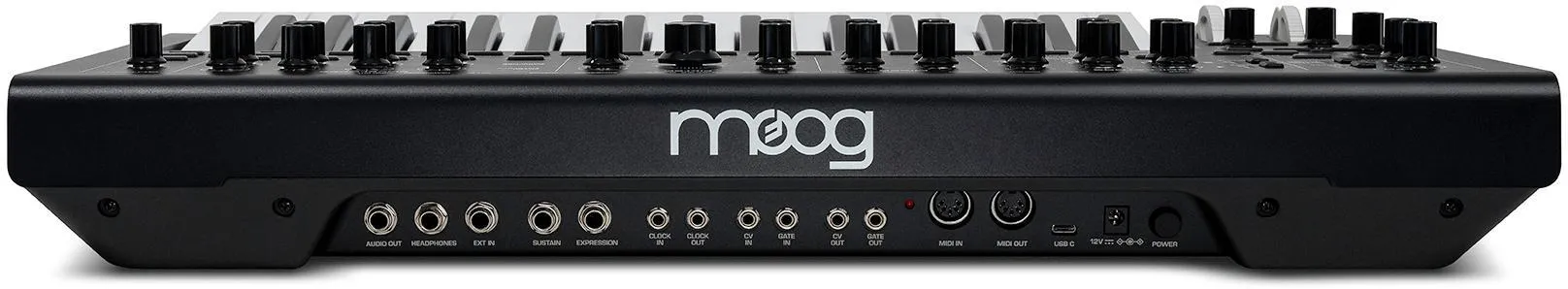

Messenger integrates seamlessly into any studio or live setup with six analog control voltage (CV) patch points, an external audio input to the filter, expression and sustain pedal inputs, and 5-pin DIN MIDI in/out as well as MIDI over USB-C.

Messenger Specifications
TYPE
Monophonic Analog Synthesizer
SOUND ENGINE
Analog
NUMBER OF KEYS
32
TYPE OF KEYS
Semi-Weighted with Velocity and Aftertouch
CONTROLLERS
Pitch Bend, Mod Wheel, Velocity, Aftertouch
POLYPHONY
Monophonic
ANALOG SOUND SOURCES
2x Variable Waveshape Voltage-Controlled Oscillators with Wavefolder, 1x Variable Waveshape Sub Oscillator, 1x Analog White Noise Generator, 1x External Input/Filter Feedback
HIDE FULL LIST -
ANALOG SIGNAL PROCESSORS
1x Voltage-Controlled Multimode Moog Transistor Ladder Filter with Selectable Resonance Compensation, 1x Voltage-Controlled Amplifier
ENVELOPES
2x ADSR Loopable Envelopes
LFOS
1x Selectable Waveshape LFO (LFO 1), 1x Triangle Wave LFO (LFO 2)
PRESETS
256 patches - 16 banks, 16 patches per bank
ARPEGGIATOR / SEQUENCER
64 step sequence saveable per-patch
AUDIO INPUT
1x 6.5mm TS
AUDIO OUTPUT
1x 6.5mm TS, 1x 6.5mm TRS Headphone
MIDI I/O
DIN In, DIN Out, USB-C
CV/GATE CONNECTIONS
6x 3.5mm TS - CV/Gate In, CV/Gate Out, Analog Clock In/Out
PEDAL INPUTS
Sustain, Expression (6.5mm TRS)
WEIGHT
4.95 kg
DIMENSIONS
58.50 width x 32.16 depth x 9.65 height (cm)
POWER
Included 12V DC (Center Positive) Power Supply, 100-240V AC 50/60 Hz
