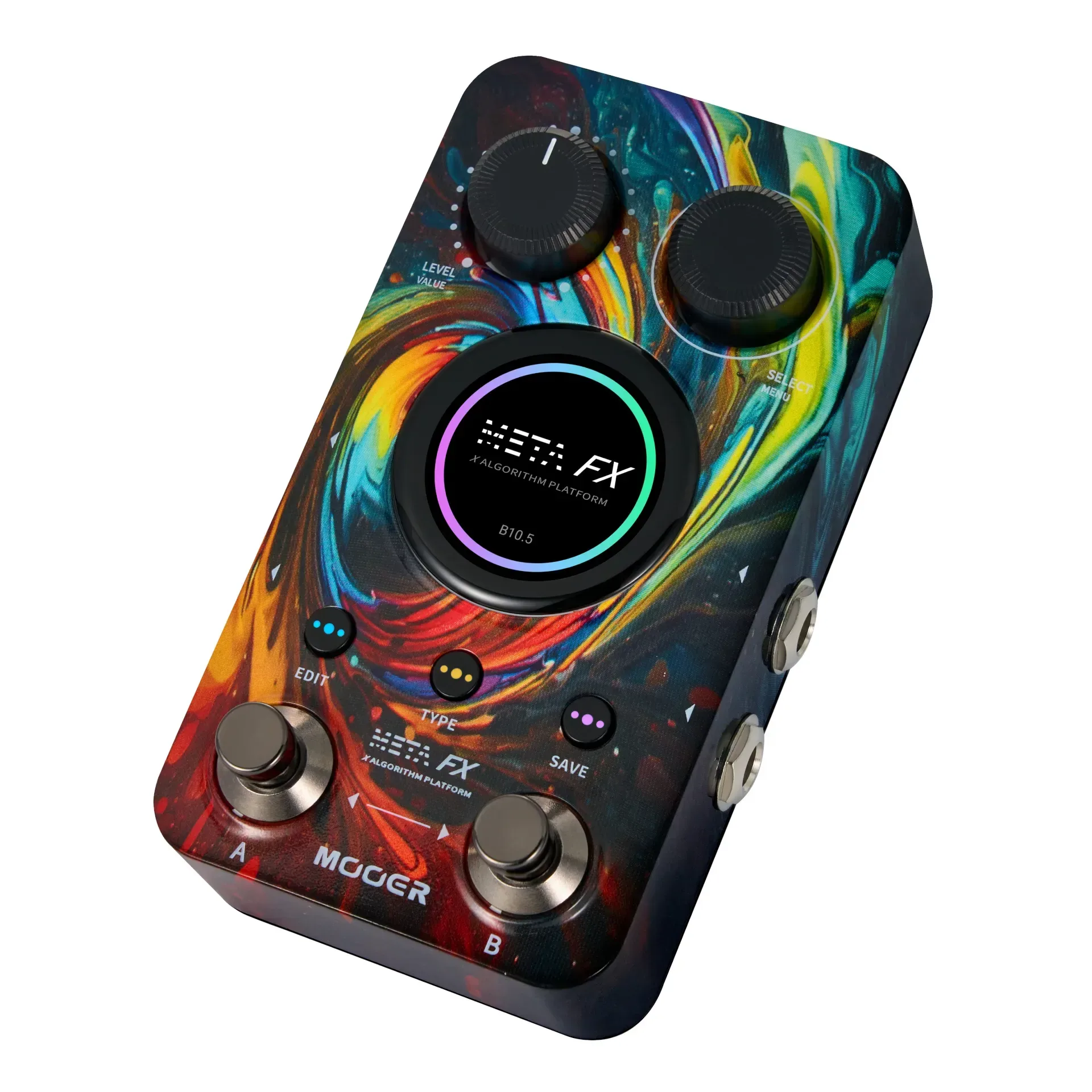

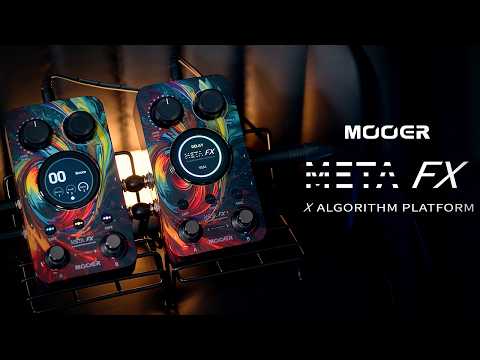

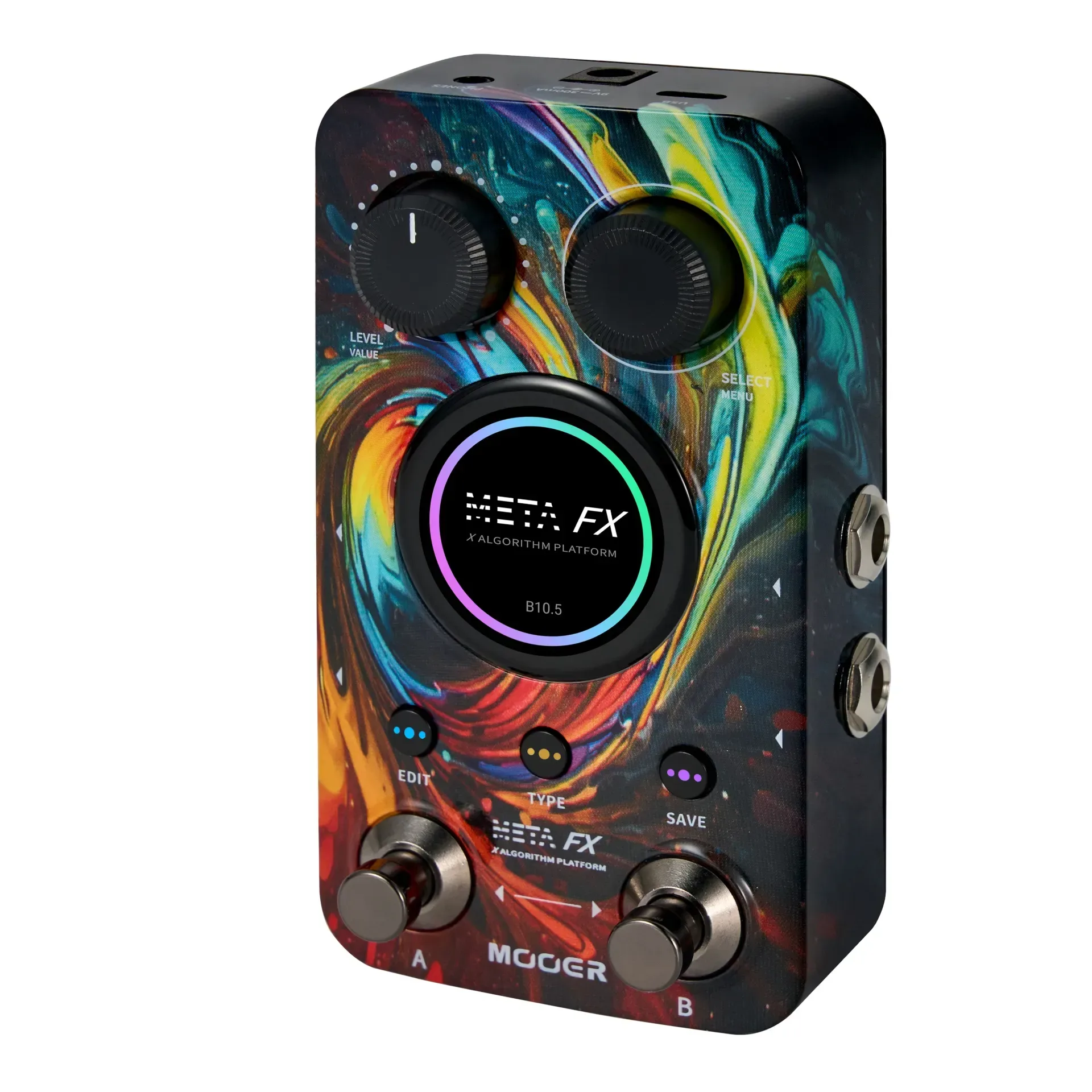

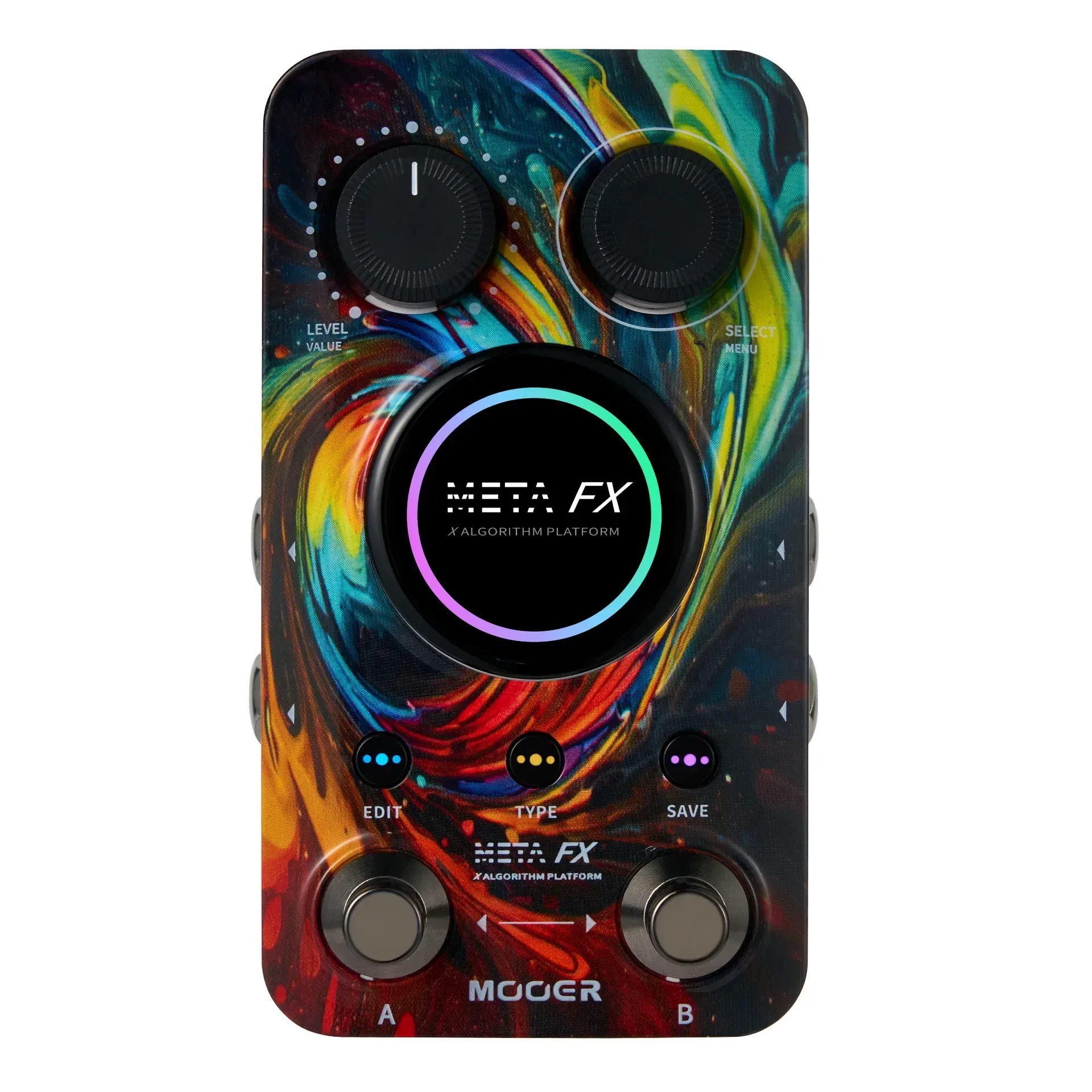

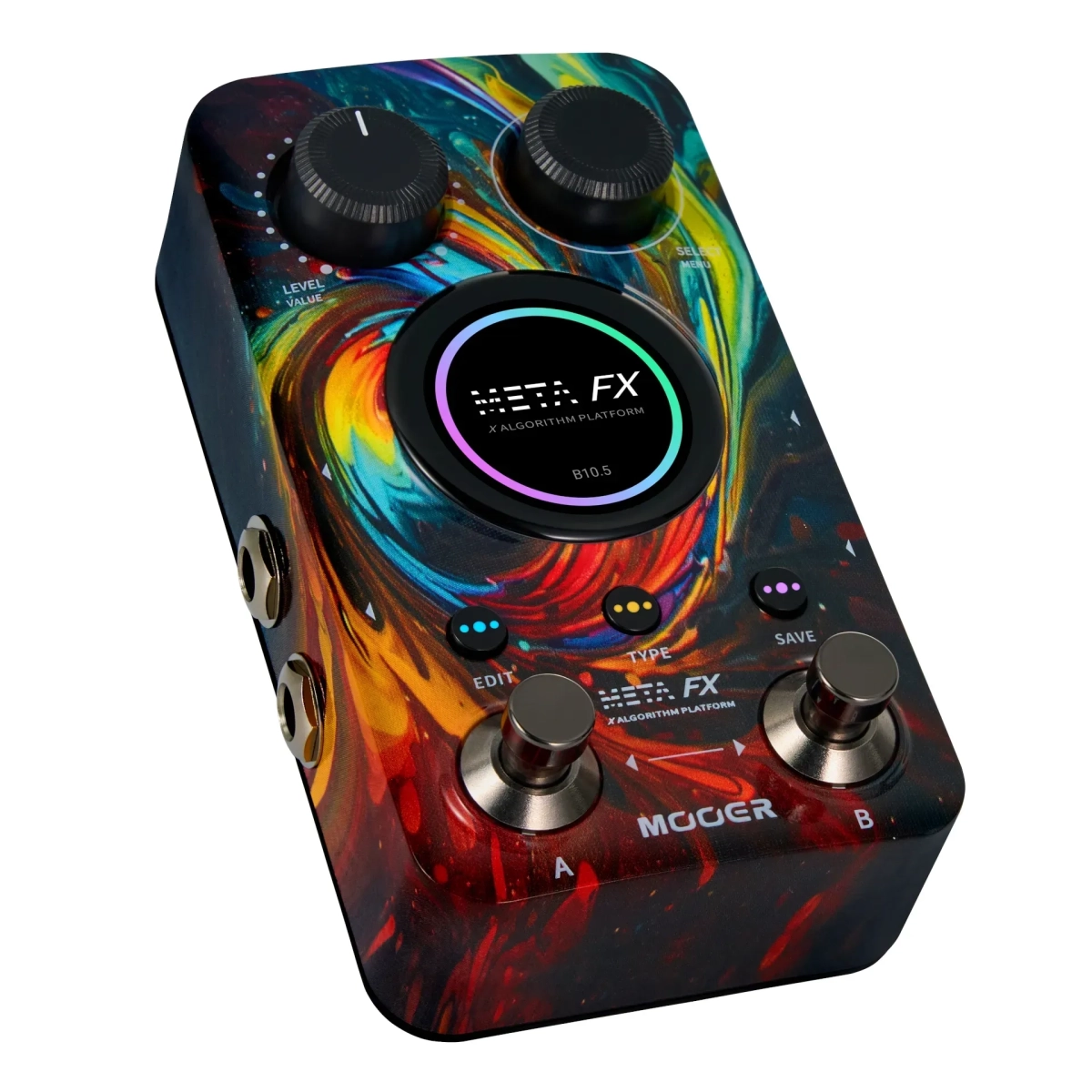

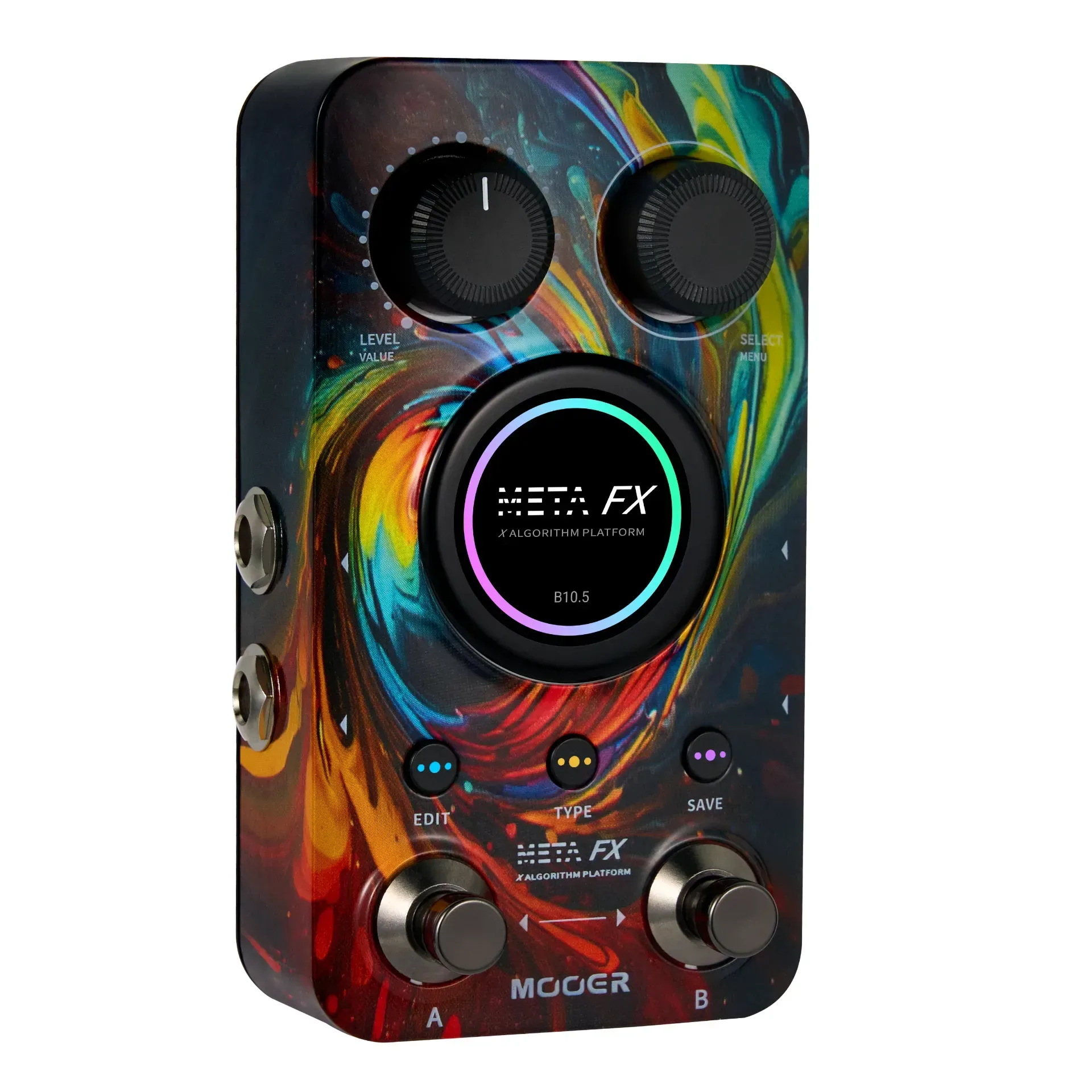

Mooer Meta FX

MOOER META FX – Stereo Effects Pedal with Reverb, Delay and Modulation

A versatile stereo effects pedal powered by MOOER's X Algorithm platform, featuring interchangeable firmware for reverb, delay, and modulation. With over 40 stereo algorithms, 100 user preset slots, and ongoing firmware updates, it offers extensive sound-shaping possibilities for stage and studio use.

Effects and Sound Features

Reverb: 14 high-quality stereo reverb algorithms, including Room, Hall, Church, Shimmer, Dream, and Warp, plus over 20 factory presets.
Delay: 14 delay types, including digital, analog, and tape echoes, as well as Ping Pong, Crystal, Rainbow, and Low-Bit. Over 20 presets and Tap Tempo.
Modulation: Effects including Chorus, Phaser, Flanger, Tremolo, Rotary, Vibrato, and Harmony, with a wide selection of presets.
Infinite Sustain: Provides an infinite sustain function via footswitch B.
Tap Tempo: Synchronizes delay and modulation speed.
Kill Dry: Removes the dry signal, leaving only the wet signal, ideal for parallel signal paths and atmospheric soundscapes.
Trails: Allows effect tails to decay naturally after the effect is bypassed.

Controls and Connections

24-bit stereo audio engine with a 44.1 kHz sampling rate.
Round 1.28-inch color display with an RGB light ring and touch interaction for selected functions.
Four control knobs for parameter adjustment, selection, and menu navigation.
Edit, Type, and Save buttons for parameter editing, effect model selection, and saving settings.
Footswitch A for effect activation and bypass.
Footswitch B with functions that depend on the installed firmware.

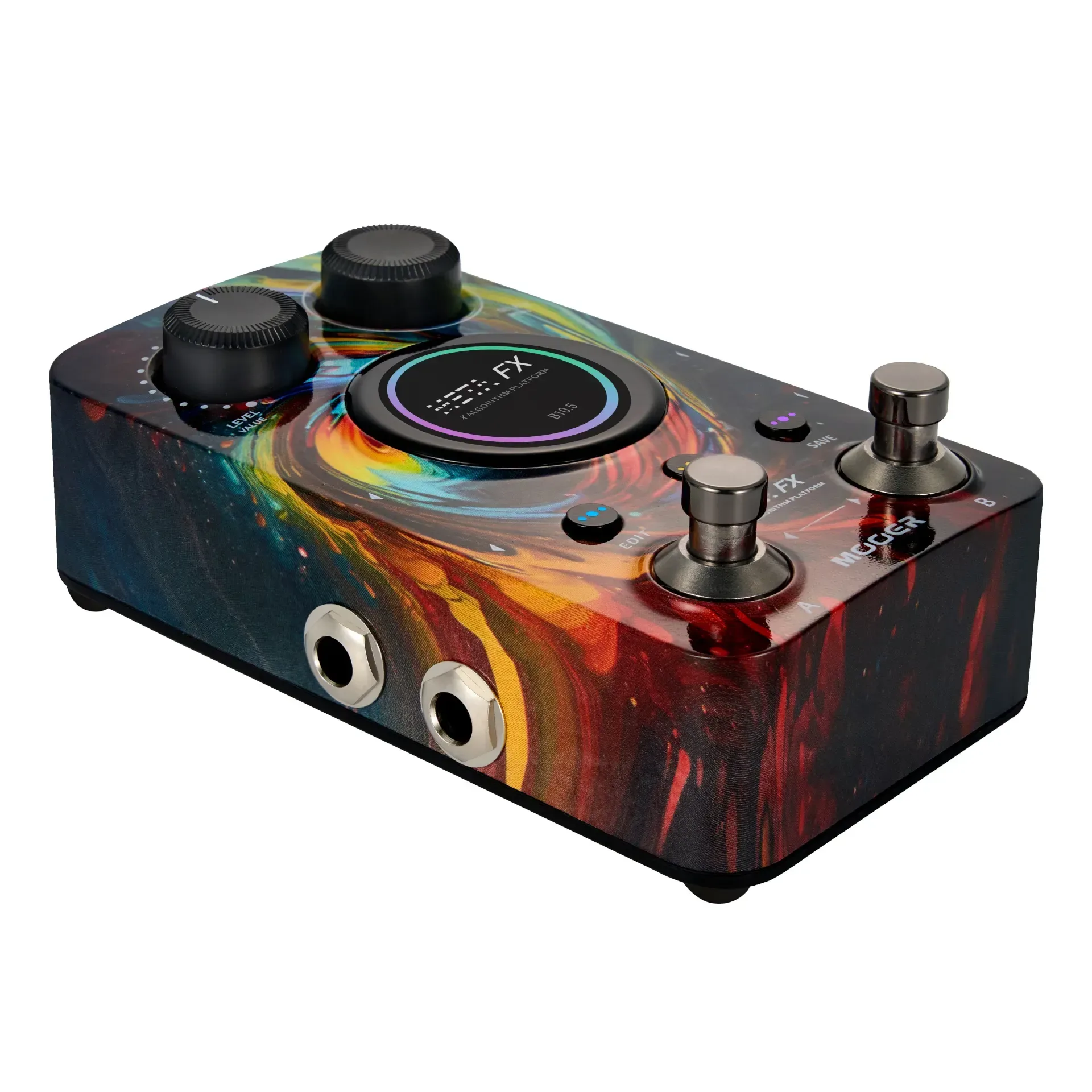

2 x 6.35 mm mono TS inputs.
2 x 6.35 mm mono TS outputs.

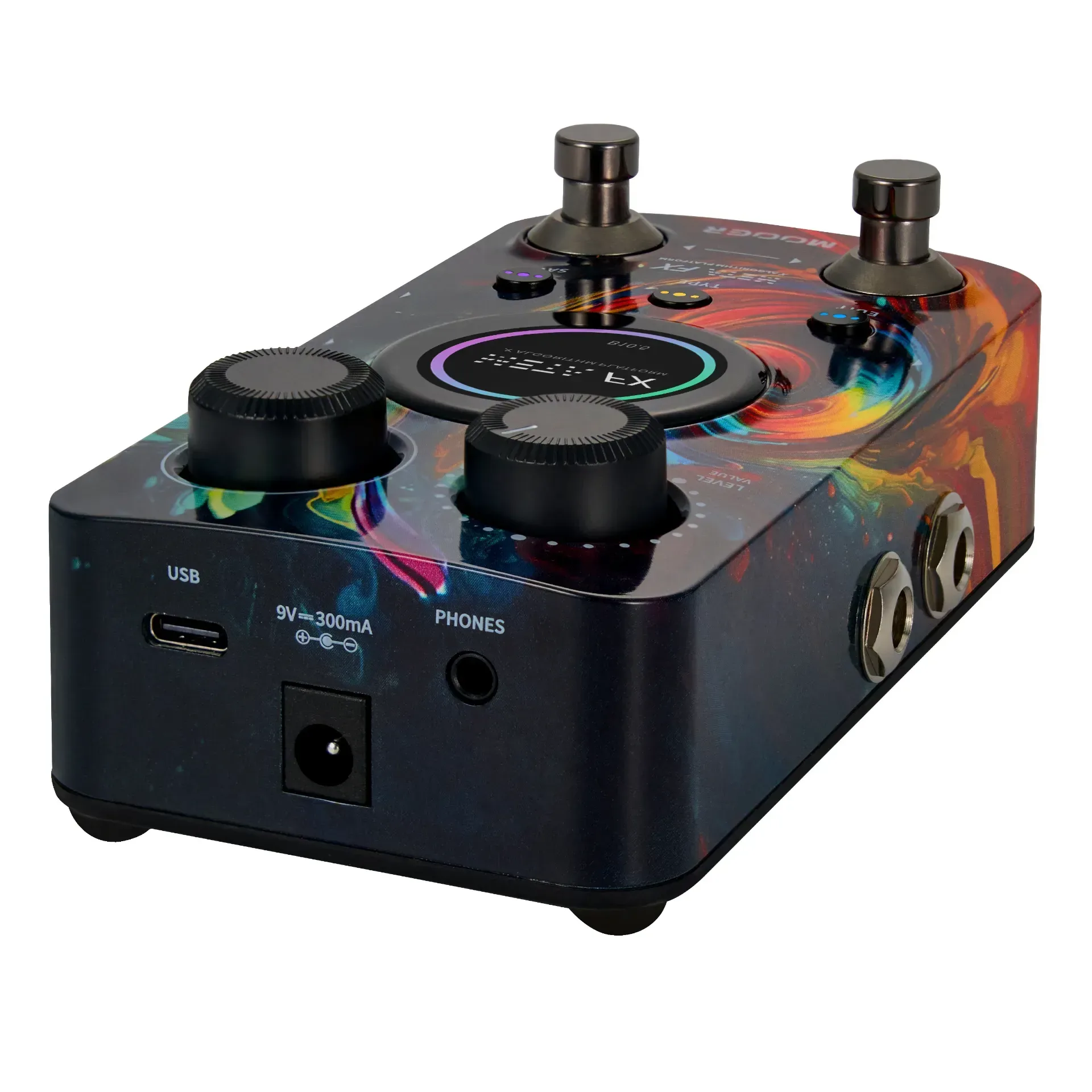

3.5 mm TRS stereo headphone output with dedicated volume control.
Headphone impedance: 32 Ω.
USB-C connection for Mac and PC, preset management, backups, and firmware updates.

Software and Power Supply

100 memory slots for user-created presets.
Free MOOER Studio software for macOS and Windows for preset management, backups, and firmware updates.
The X Algorithm platform is continuously expanded with new effect algorithms.
Powered by the included 9 V DC, 300 mA power adapter with center-negative polarity.

Dimensions and Weight

Dimensions: 125 x 74 x 49 mm.
Weight: 200 g.

Included Accessories

9 V DC power adapter.
USB Type-A to USB Type-C cable.
Quick start guide.
