Mooer Cab X2

Mooer Cab X2 is a stereo cabinet simulation and impulse response pedal designed for guitarists who need flexible cab modeling for both studio and live use. It offers editable presets, stereo routing and support for third-party IR files in a compact metal housing.

The pedal includes 14 user presets, with each preset able to store two different cabinet simulation settings for the respective outputs. It also provides 11 built-in cabinet simulations based on popular models, giving users a practical selection of tones right out of the box.

Cab X2 supports flexible mono and stereo routing, and its footswitches can be configured either as on/off switches or preset selectors. This makes it easy to adapt the pedal to different performance and signal-chain setups.

The free Cab X2 editor software for MacOS and Windows makes preset management and IR loading straightforward. A headphone output is included for silent practice, while the USB-C connection and included cable simplify editing and setup.

Features
Stereo Cabinet Simulation And IR Pedal
14 Editable User Presets
Supports Third-Party IR Files Up To 2048 Points
Flexible Mono Or Stereo Routing
Headphone Output For Silent Practice

Compatibility
MacOS
Windows
External Amplifier
Sound Board
PC

In The Box
Mooer Cab X2 pedal
USB-A to USB-C cable
9V DC adapter

Specifications
Preset Capacity: 14
Cab Sim Settings Per Preset: 2
Factory Cabinet Simulations: 11
IR Support: Third-Party IR Files Up To 2048 Points
Routing: Mono Or Stereo
Footswitch Modes: On/Off Or Preset Select

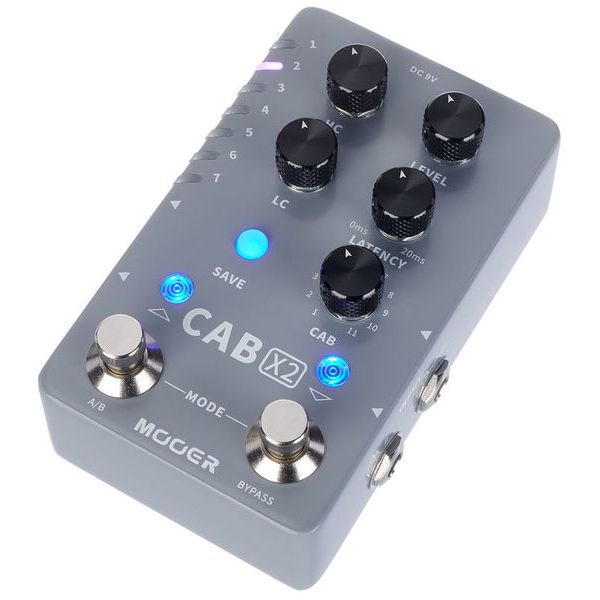

Controls: High Cut, Low Cut, Level, Latency

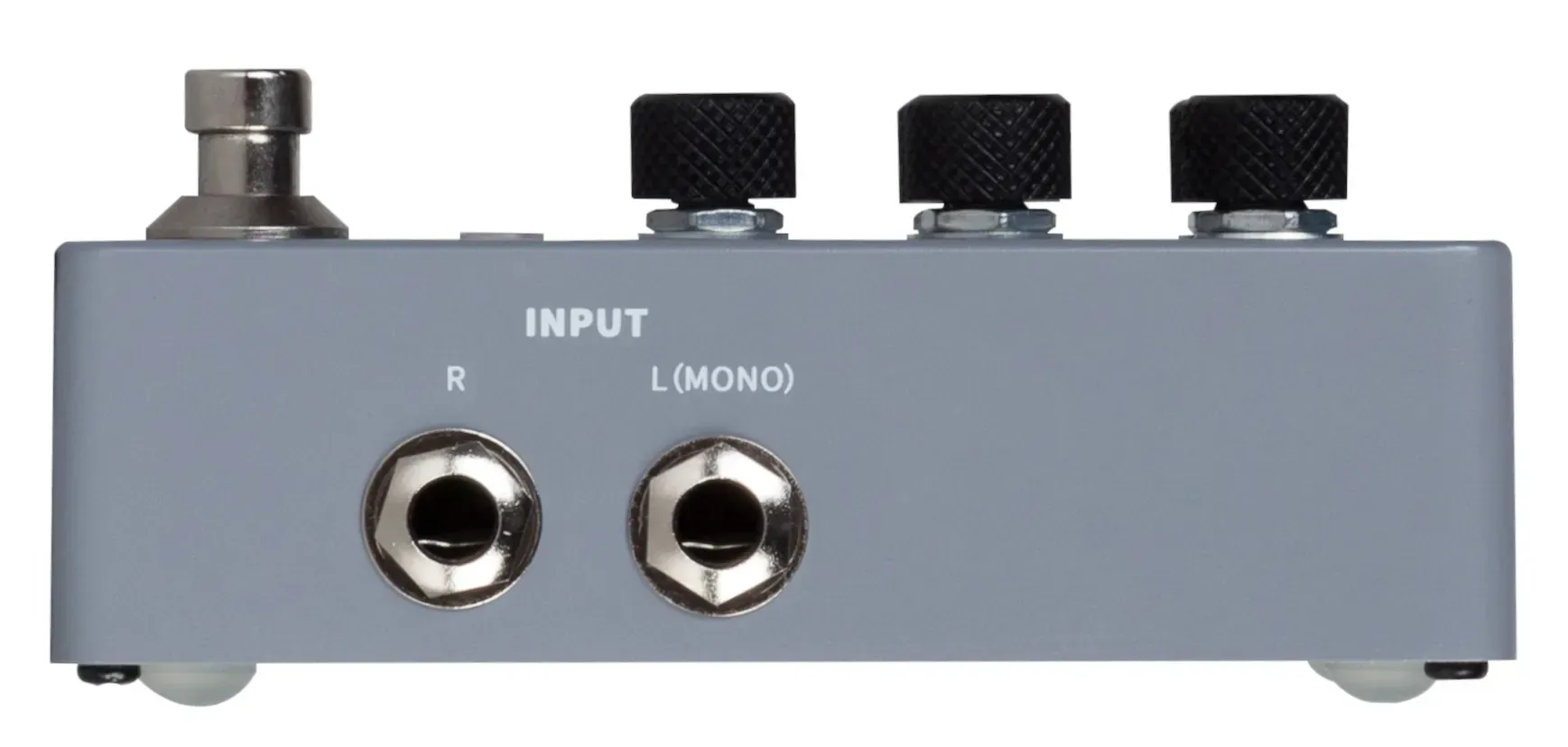

Connectivity: 2 x 6.3 mm Mono In/Out Jacks, 3.5 mm Stereo Headphone Output, USB-C Port
Power Supply: 9V DC Adapter Included
Current Draw: 300 mA
Battery Operation: Not Supported

Dimensions & Weight
Dimensions: 115 × 75 × 33 mm
Weight: 334 g
