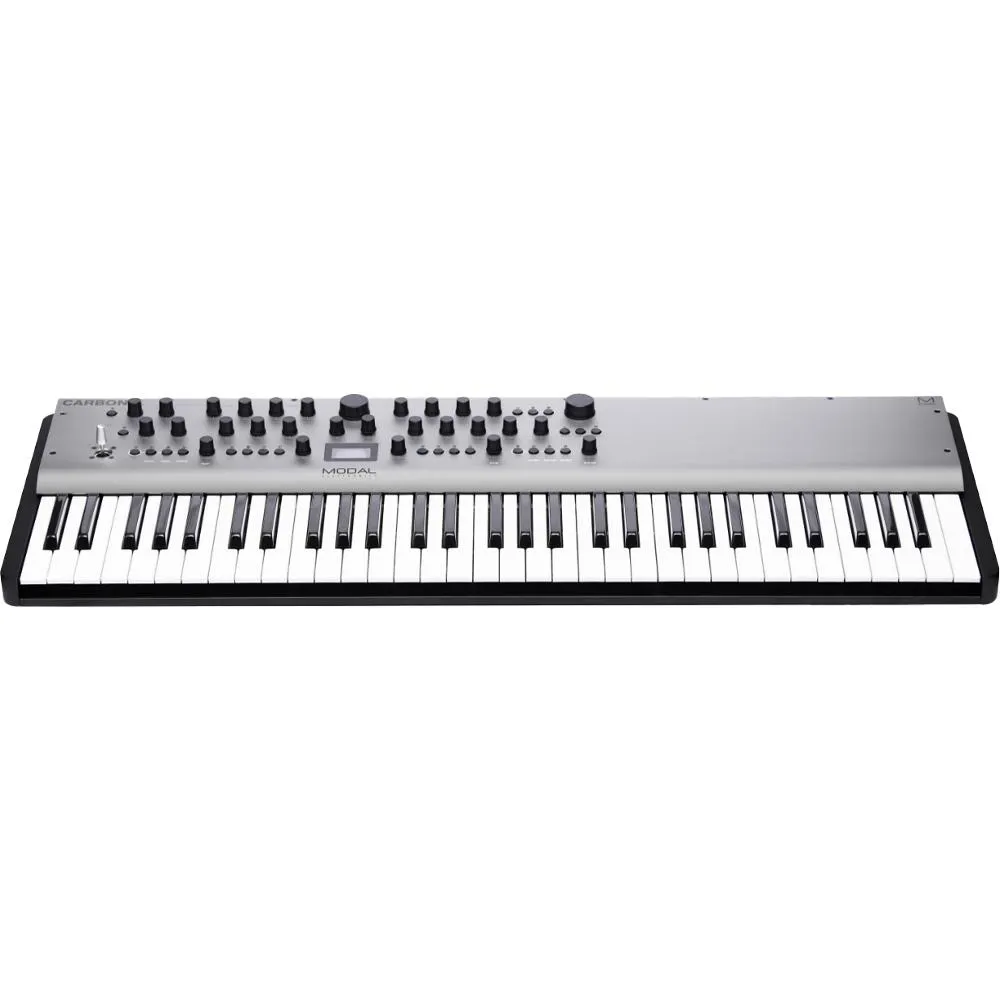

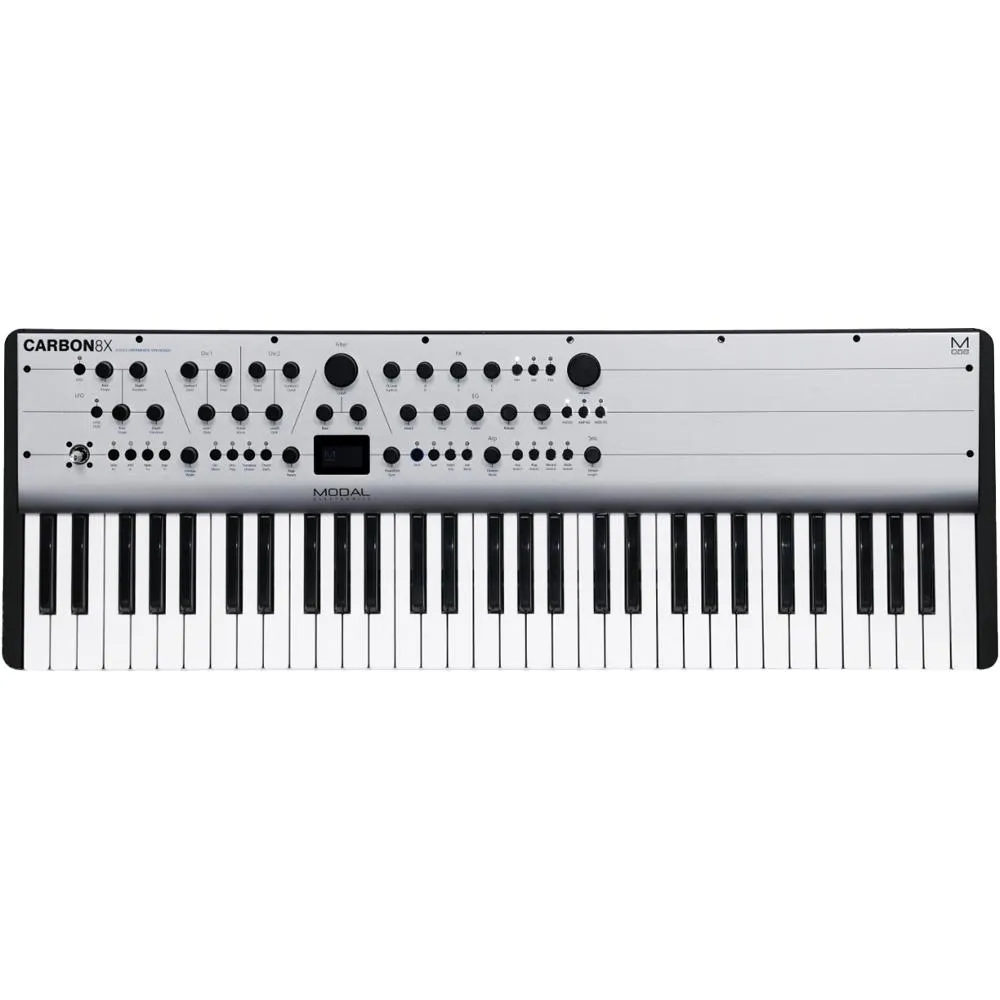

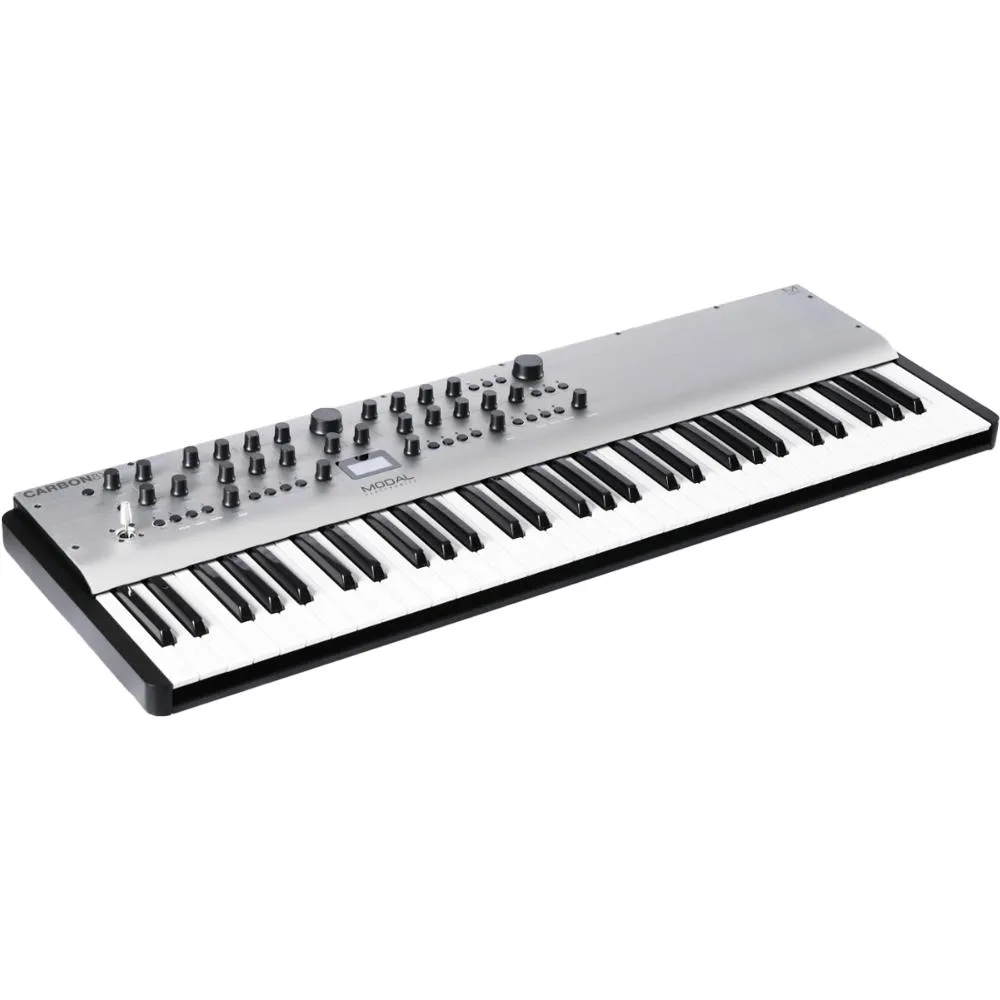

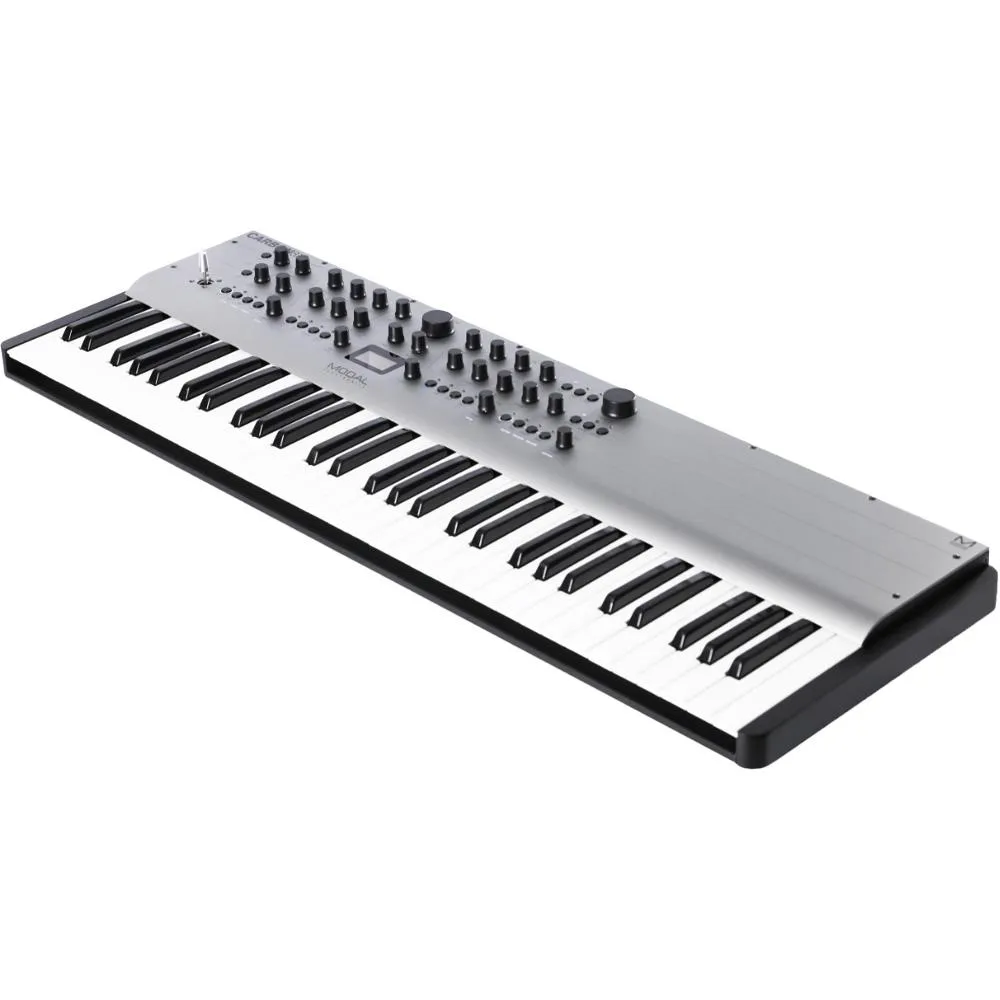

Modal Electronics Carbon8X

CARBON8X redefines digital synthesis, delivering next-generation sound design and performance capabilities. Powered by a groundbreaking engine—twice as complex as our renowned ARGON8 and COBALT8 series—CARBON8X fuses advanced waveform algorithms and wavetables into an 8-voice polyphonic synthesizer with state-of-the-art filter technology, deep modulation options, and dynamic performance tools.
Designed for sound explorers, CARBON8X offers an unprecedented level of sonic flexibility. Whether you're crafting lush, atmospheric textures or bold, aggressive leads, its innovative architecture ensures limitless creativity.

Key Features:
Revolutionary Sound Engine – Two oscillators with 56 cores each, generating 18 high-resolution algorithms and 38 wavetables for an expansive sound palette.
Advanced Modulation – Three LFOs, three envelope generators, and 12 modulation slots provide deep sound sculpting capabilities.
Powerful Sequencing & Performance – 512-note real-time/step sequencer, a 32-step programmable arpeggiator, and expressive MPE support.
Premium Build & Playability – FATAR TP9/S 61-note keybed with aftertouch, housed in a road-ready aluminum and steel chassis.
Comprehensive Connectivity – Full-size MIDI, USB-MIDI, 3.5mm sync I/O, expression and sustain pedal inputs, and poly-chain support.
Studio-Quality Effects – Three independent FX engines featuring 26 effects including reverb, delay, chorus, phaser, and more.
MODALapp Integration – Intuitive software editor for in-depth sound programming and patch management.

Enclosure and Display:
Road-ready steel and aluminium enclosure with economical stained bamboo end cheeks
1.54-inch large OLED display for instant visual feedback at all times of playing/editing

Editor Software:
Free MODALapp software editor available for macOS, Windows, iOS and Android. MODALapp can also be run within your Digital Audio Workstation (DAW), with VST3 and AU versions available

Specifications:
Inputs and Outputs:
6.35 mm / 1/4″ TS dual-mono line outputs
6.35 mm / 1/4″ TRS headphone output
3.5 mm / 1/8″ TRS stereo audio input
MIDI DIN In and Out:
3.5 mm / 1/8″ TS Analogue clock sync In and Out
Class-compliant MIDI over USB connection
6.35 mm / 1/4″ TRS expression pedal input
6.35 mm / 1/4″ TS sustain pedal input
General:
Power: DC-9.0V – 1.5A centre-positive
Dimensions: 88,5 x 30 x 10cm
Weight: 9kg
