Meris Ottobit Jr.

The Meris Ottobit Jr. is a powerful bit crusher, sample reducer, and step sequencer pedal that transforms your sound into retro-inspired digital chaos. Inspired by classic arcade tones, it combines lo-fi degradation with advanced sequencing and filtering for endless creative possibilities.

With adjustable sample rate reduction from 48 kHz down to 48 Hz and bit depth reduction from 24 to 1 bit, the Ottobit Jr. delivers everything from subtle grit to extreme digital destruction. Two sequencer modes (Pitch and Filter) and a stutter function allow rhythmic manipulation and glitch-style effects.

A high-quality resonant low-pass filter adds warmth and musicality, balancing the harshness of bitcrushing with synth-like tones. The analog signal path ensures a natural blend between dry and processed signals.

Equipped with MIDI control, tap tempo, and up to 16 presets, the Ottobit Jr. is equally suited for live performance and studio experimentation. Its compact design packs a vast range of unique sounds into a pedalboard-friendly format.

Features
Bit Crusher / Sample Reduction / Sequencer Pedal
Sample Rate And Bit Depth Reduction
Pitch And Filter Step Sequencers
Stutter And Glitch Effects
Resonant Low-Pass Filter
MIDI, Tap Tempo And Presets
Analog Signal Path
Made In USA

Specifications
Effect Type: Bit Crusher / Sequencer
Sample Rate: 48 kHz – 48 Hz
Bit Depth: 24 – 1 Bit

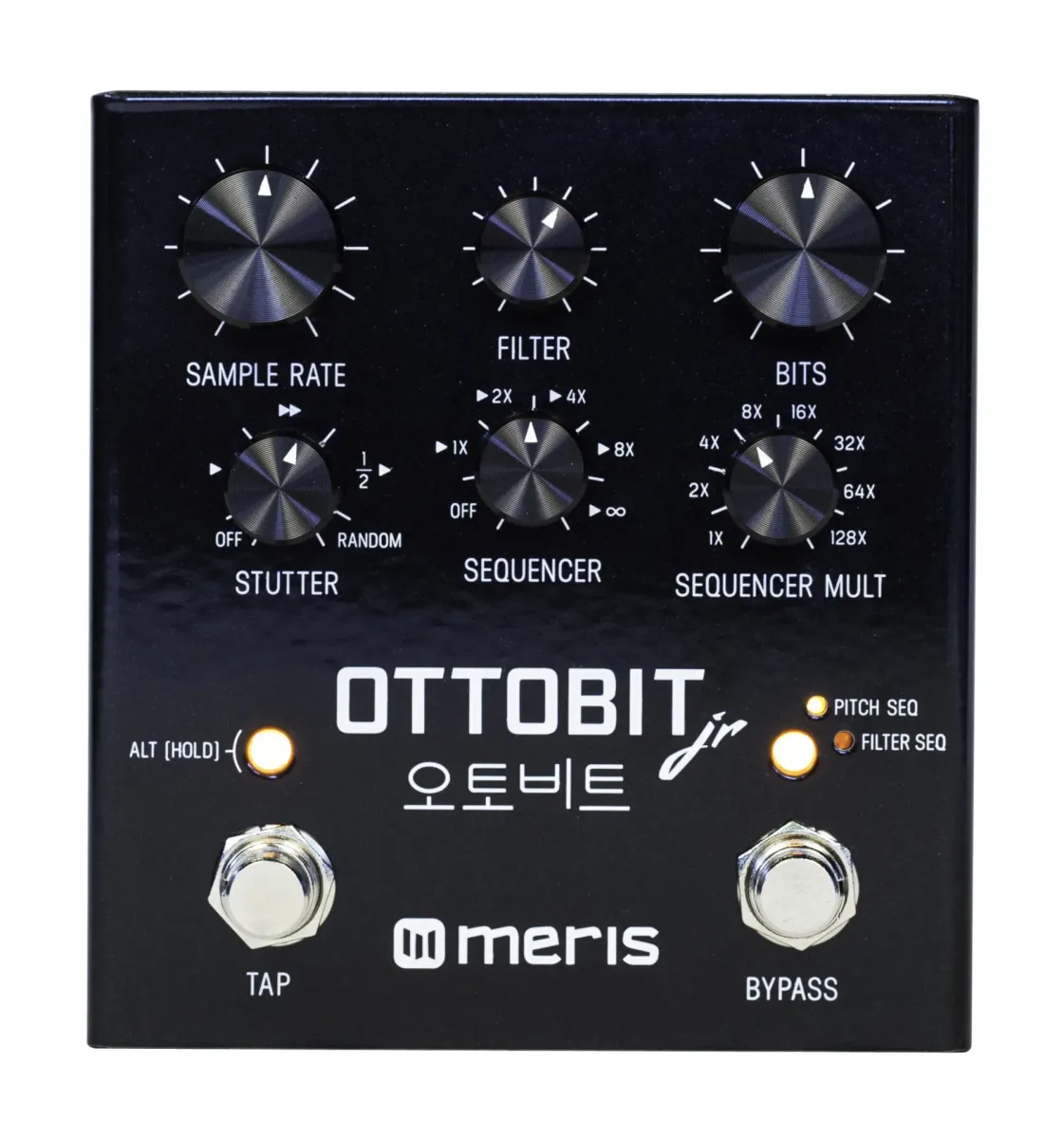

Controls: Sample Rate, Filter, Bits, Stutter, Sequencer, Seq Mult
Presets: Up To 16 (via MIDI)
Bypass: True/Buffered Selectable

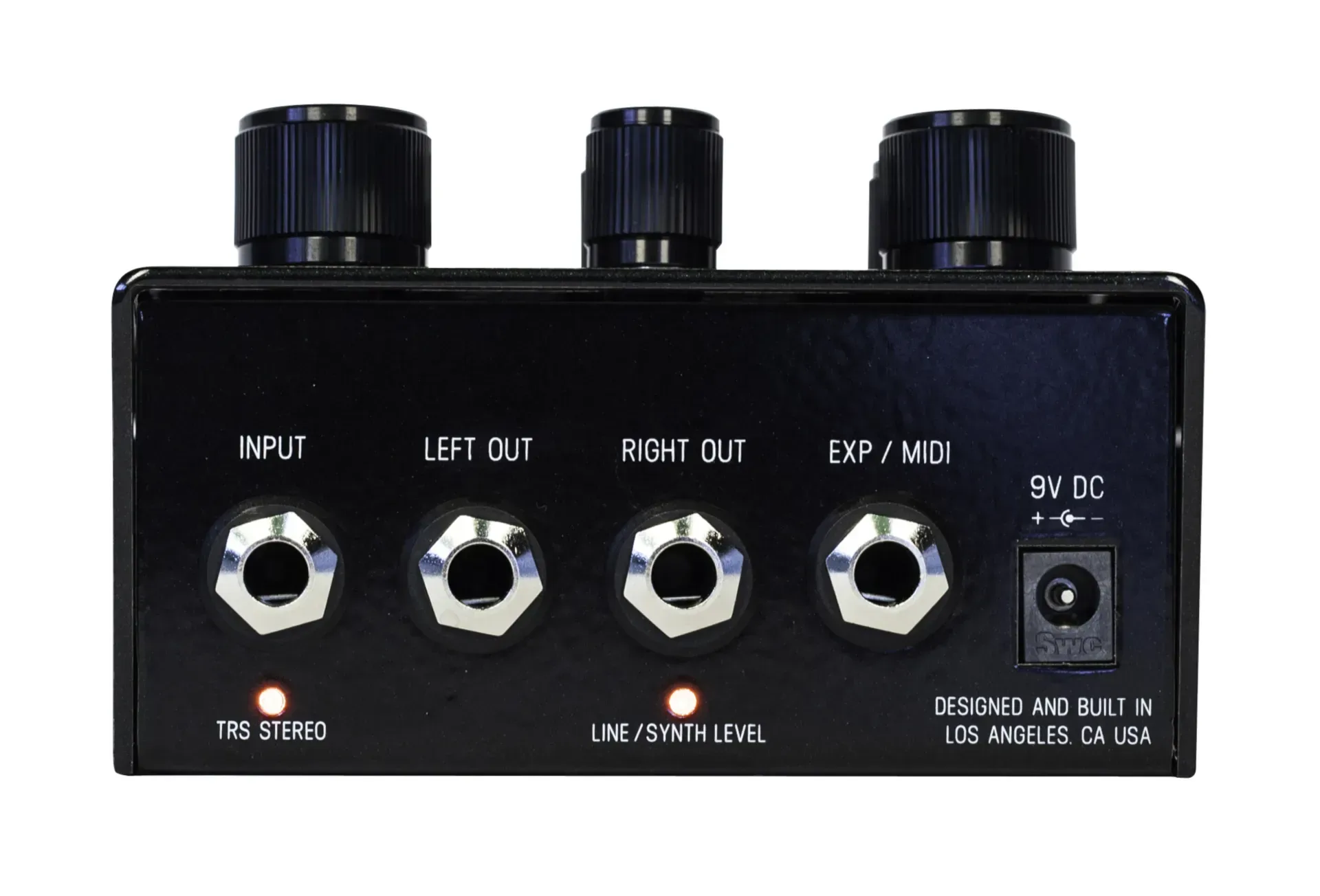

Inputs: 6.3 mm TRS (Mono/Stereo)
Outputs: 2 x 6.3 mm Mono (L/R)
Expression/MIDI: 6.3 mm TRS
Power Supply: 9 V DC Adapter (Center Negative)
Current Draw: < 150 mA
Dimensions: 115 x 107 x 67 mm
Weight: 410 g
