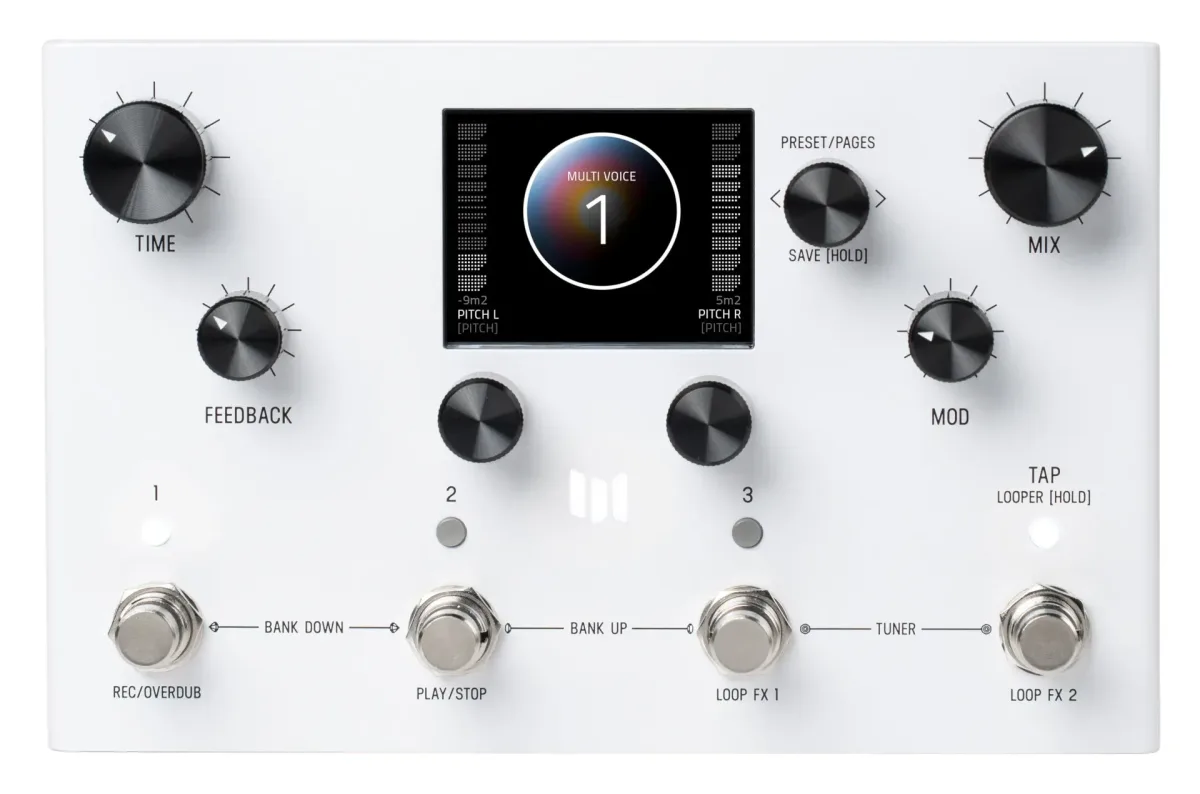

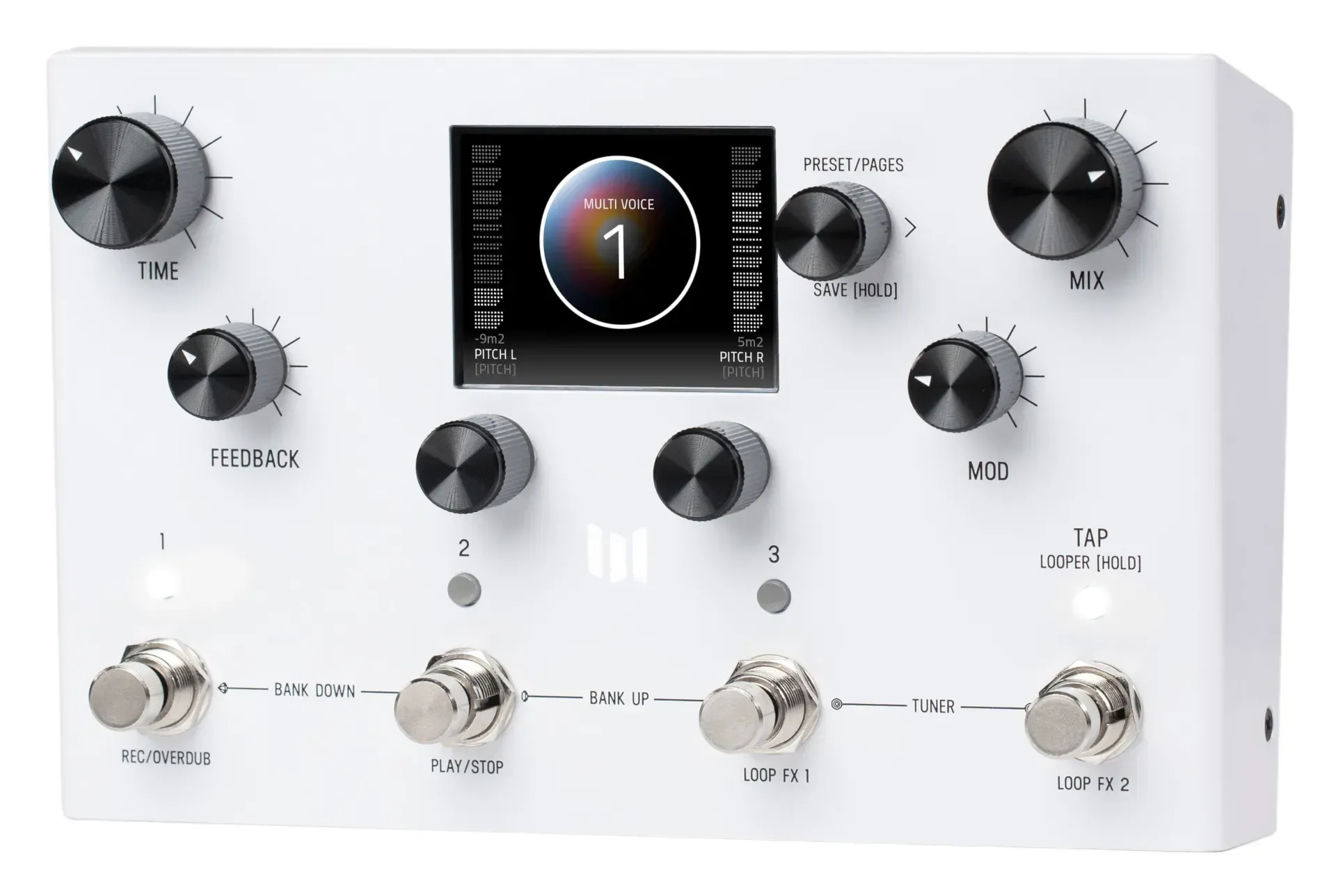

Meris LVX

The Meris LVX is a cutting-edge modular delay system designed for ultimate flexibility in sound design. Built on pro audio architecture, it allows you to create fully customized delay structures with unparalleled control and creativity.

Featuring up to 2540 ms of dual delay and a true stereo 60-second looper, the LVX goes far beyond traditional delay pedals. Its modular system lets you combine processing elements, modulation, and control signals in nearly infinite ways, breaking free from fixed delay types.

The intuitive color screen interface makes navigating complex routing simple, while 99 presets and a favorite bank provide instant access to your sounds. Built-in tuner, MIDI control, and expression support ensure seamless integration in studio and live setups.

With premium analog signal path, 24-bit AD/DA conversion, and 32-bit DSP, the LVX delivers pristine sound quality. Designed for musicians who demand total control, it redefines what a delay pedal can be.

Features
Modular Delay And Looper System
Dual Delay With 2540 ms Time
True Stereo 60-Second Looper
Fully Customizable Signal Routing
Color Screen Interface With Presets
MIDI And Expression Control
Premium Analog And DSP Processing
Made In USA

Specifications
Effect Type: Delay / Looper
Delay Time: Up To 2540 ms
Looper: 60 Seconds Stereo
Presets: 99 (33 Banks)
Controls: Time, Feedback, Mod, Mix, Control 1–3
Bypass: True/Buffered Selectable

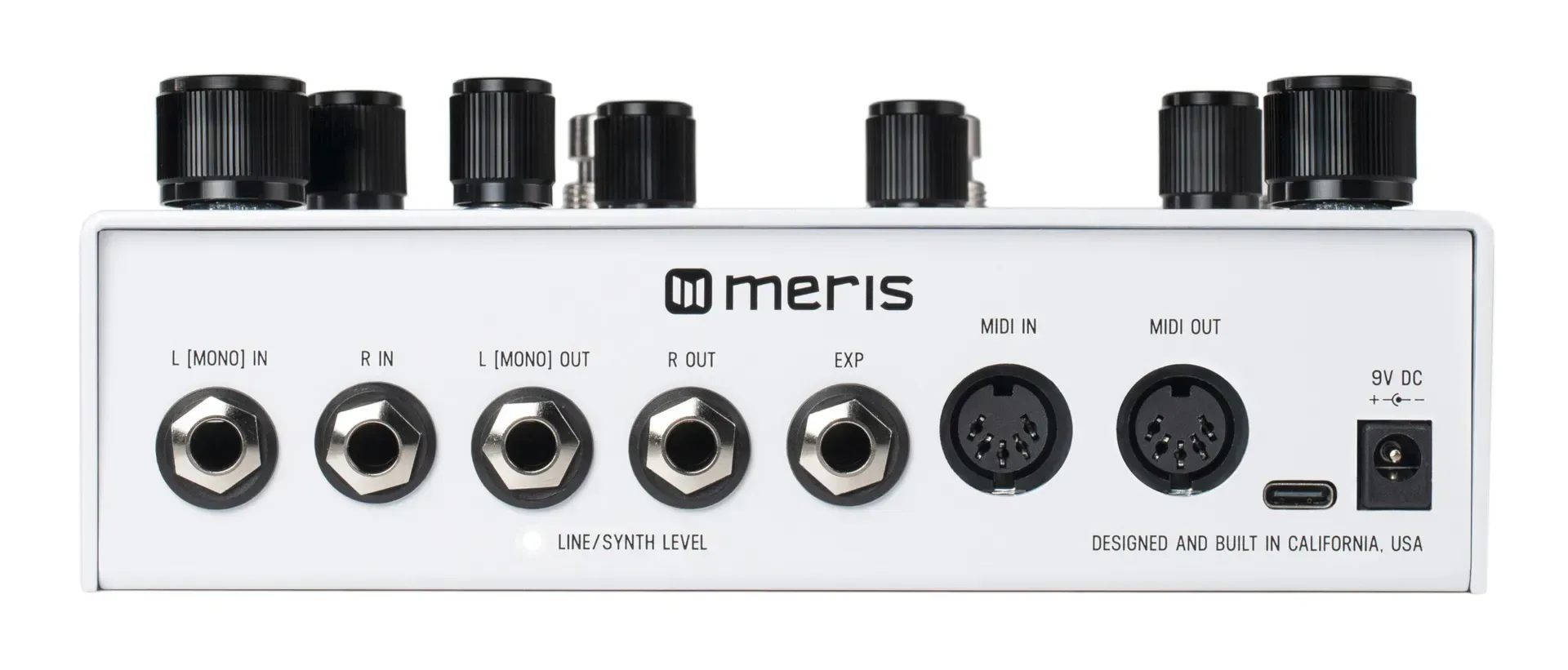

Inputs/Outputs: 2 x 6.3 mm Mono (Stereo)
MIDI: In / Thru (5-pin DIN)
Expression: 6.3 mm
USB: USB-C (Firmware)
Power Supply: 9 V DC Adapter (Center Negative)
Current Draw: 300 mA
Dimensions: 184 x 114 x 51 mm
Weight: 680 g
