Meris Hedra

The Meris Hedra is a powerful 3-voice rhythmic pitch shifter that transforms your instrument into a harmonically rich, time-based sound design tool. With three independent harmony voices and delay lines, it allows you to create complex harmonies and rhythmic textures in real time.

Each voice can be individually controlled with pitch, delay timing, and micro tuning, offering both diatonic harmonies and full chromatic pitch shifting. Tap tempo synchronization ensures precise rhythmic alignment, while multiple routing modes expand creative possibilities.

Additional features like pitch glide, pitch correction, and MIDI keyboard control make the Hedra a uniquely expressive instrument. The analog signal path preserves the integrity of your dry signal while blending seamlessly with processed tones.

With MIDI control, expression input, and up to 16 presets, the Hedra is equally suited for live performance and studio experimentation.

Features
3-Voice Pitch Shifter And Harmonizer
Independent Harmony Voices With Delay
Tap Tempo And Rhythmic Synchronization
Diatonic And Chromatic Pitch Modes
Micro Tuning And Pitch Glide
MIDI And Expression Control
Analog Signal Path
Made In USA

Specifications
Effect Type: Pitch Shifter / Harmonizer
Voices: 3 Harmony Voices
Presets: Up To 16 (via MIDI)

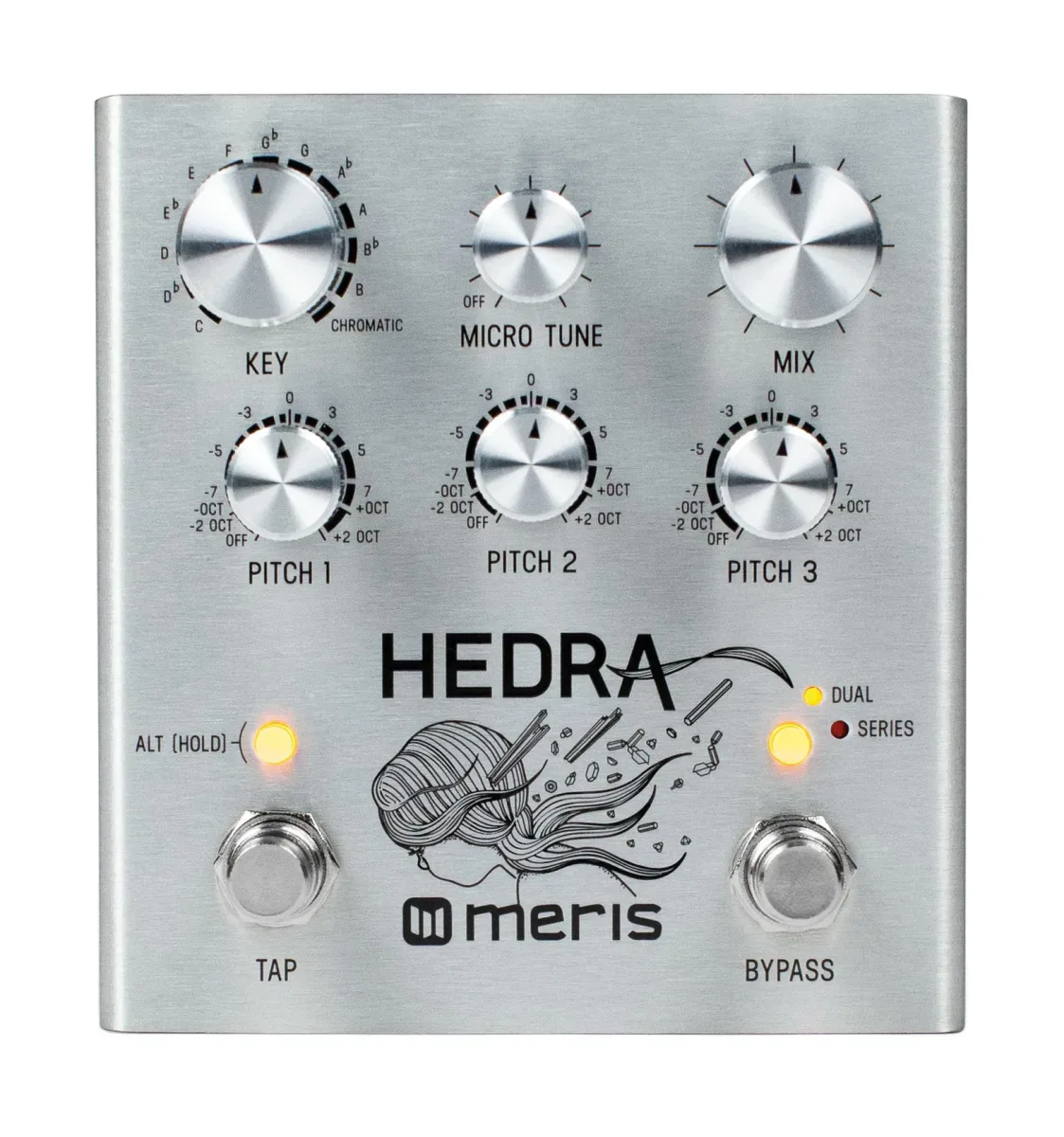

Controls: Key, Micro Tune, Mix, Pitch 1–3
Bypass: True/Buffered Selectable

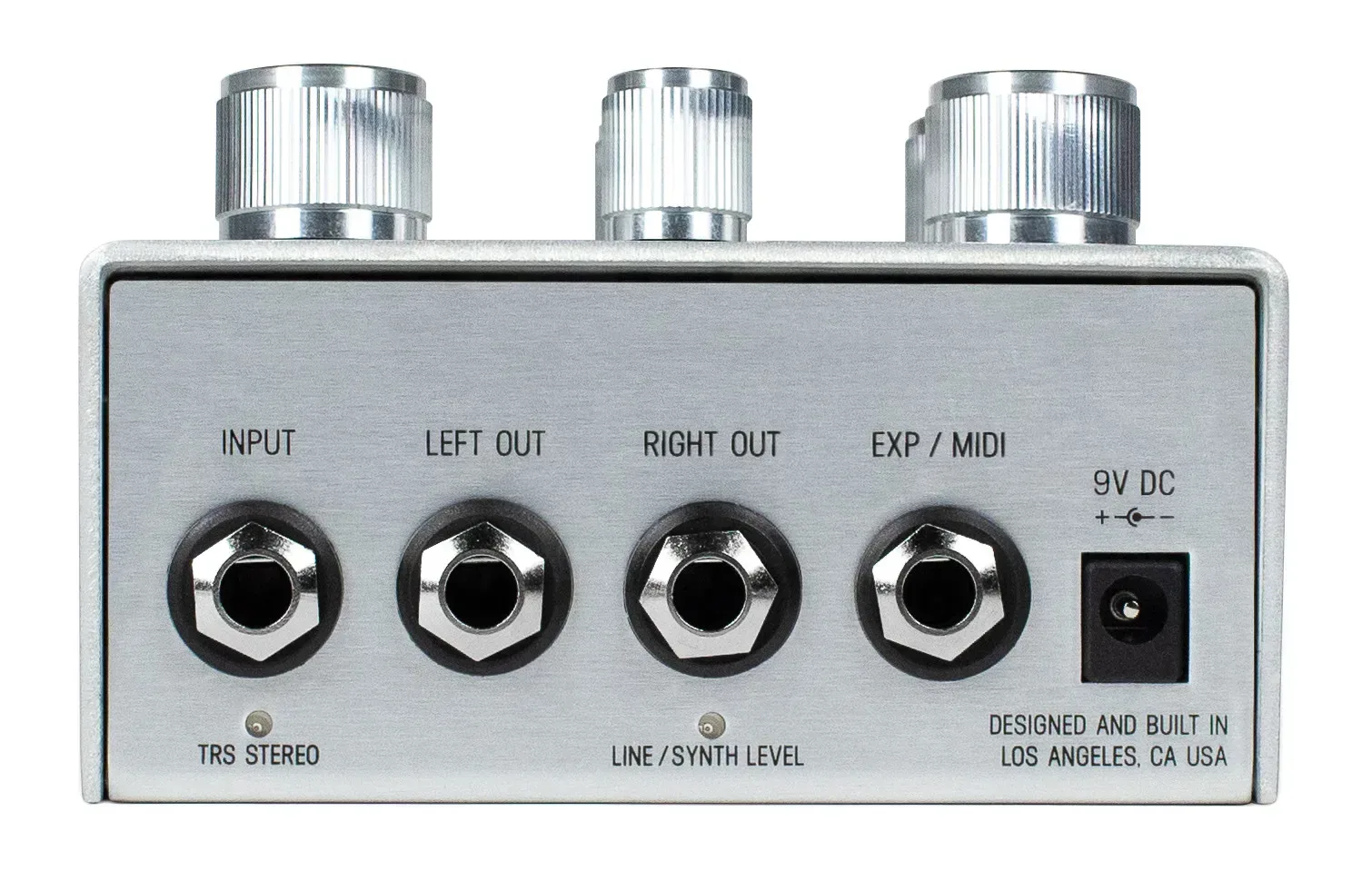

Inputs: 6.3 mm TRS (Mono/Stereo)
Outputs: 2 x 6.3 mm Mono (L/R)
Expression/MIDI: 6.3 mm TRS
Power Supply: 9 V DC Adapter (Center Negative)
Current Draw: 150 mA
Dimensions: 107 x 115 x 67 mm
Weight: 410 g
