Markbass CMD 102P V

Markbass CMD 102P V Combo

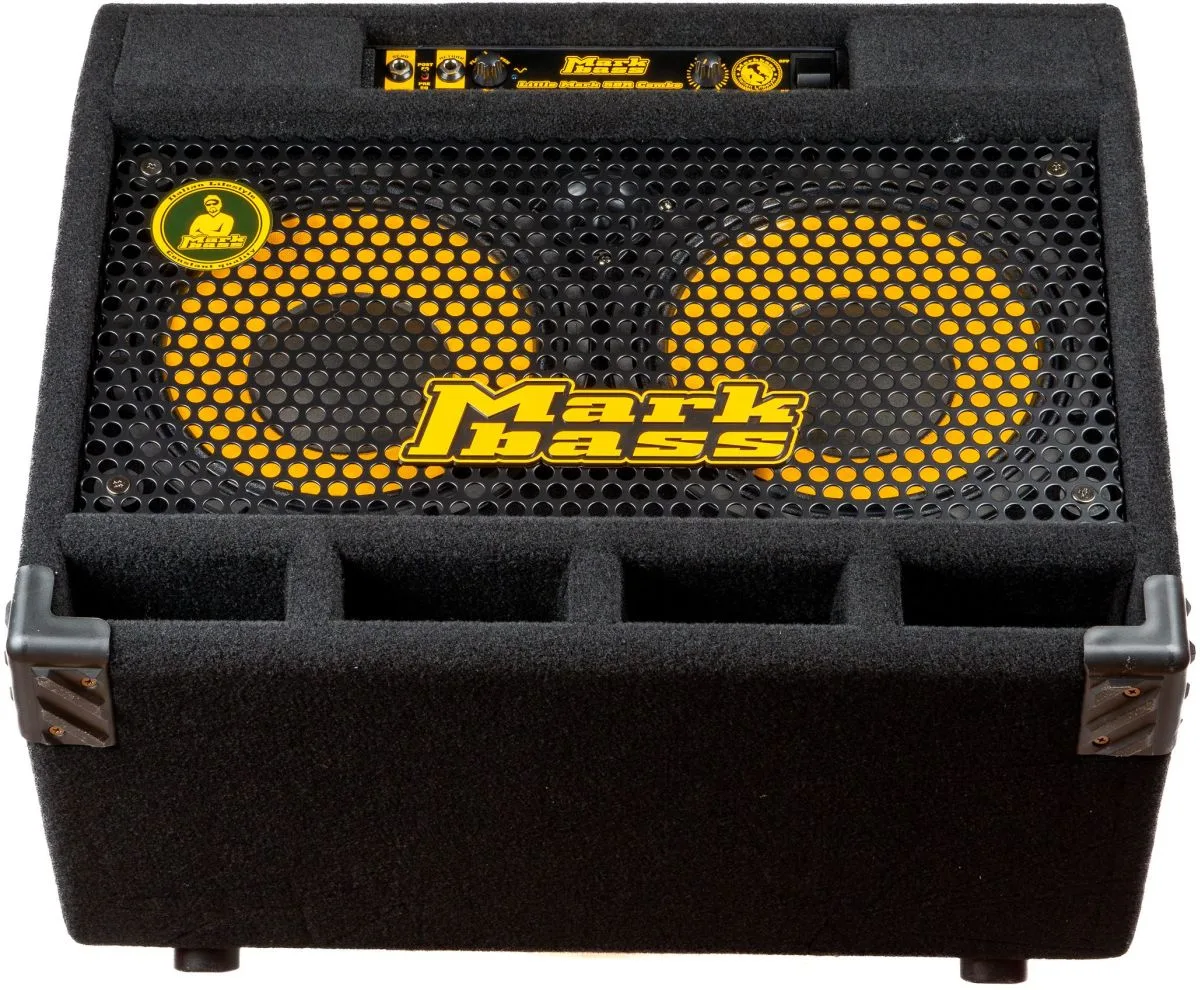

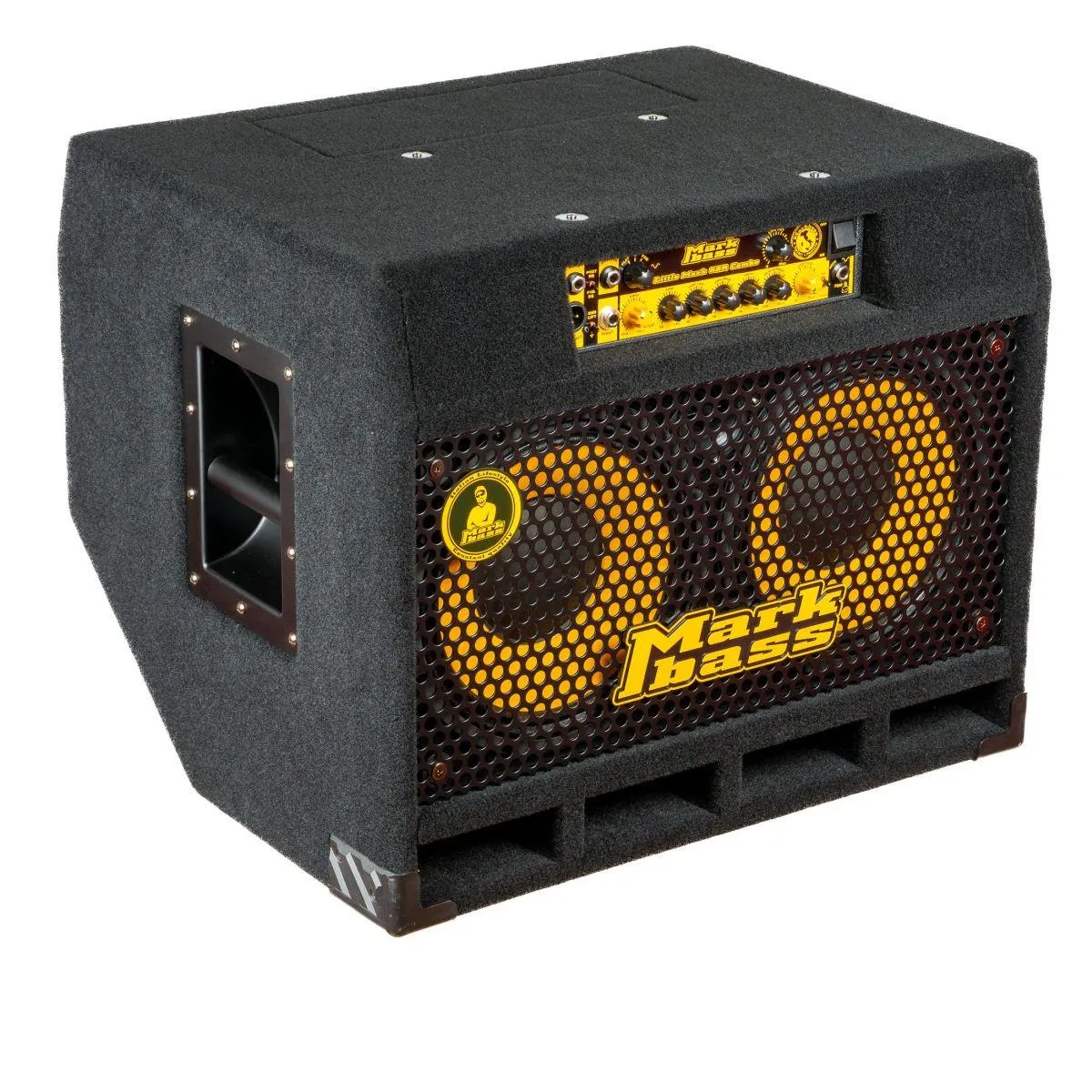

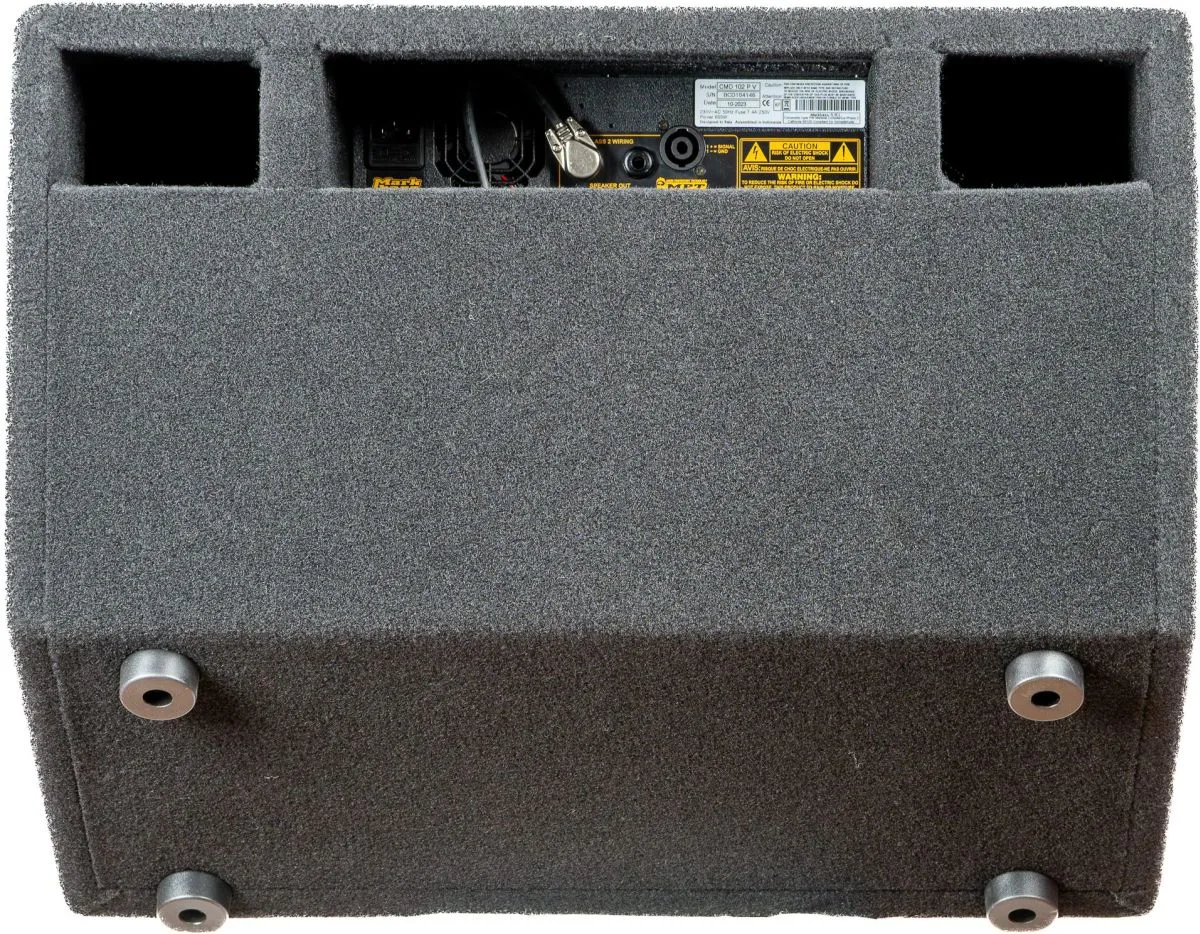

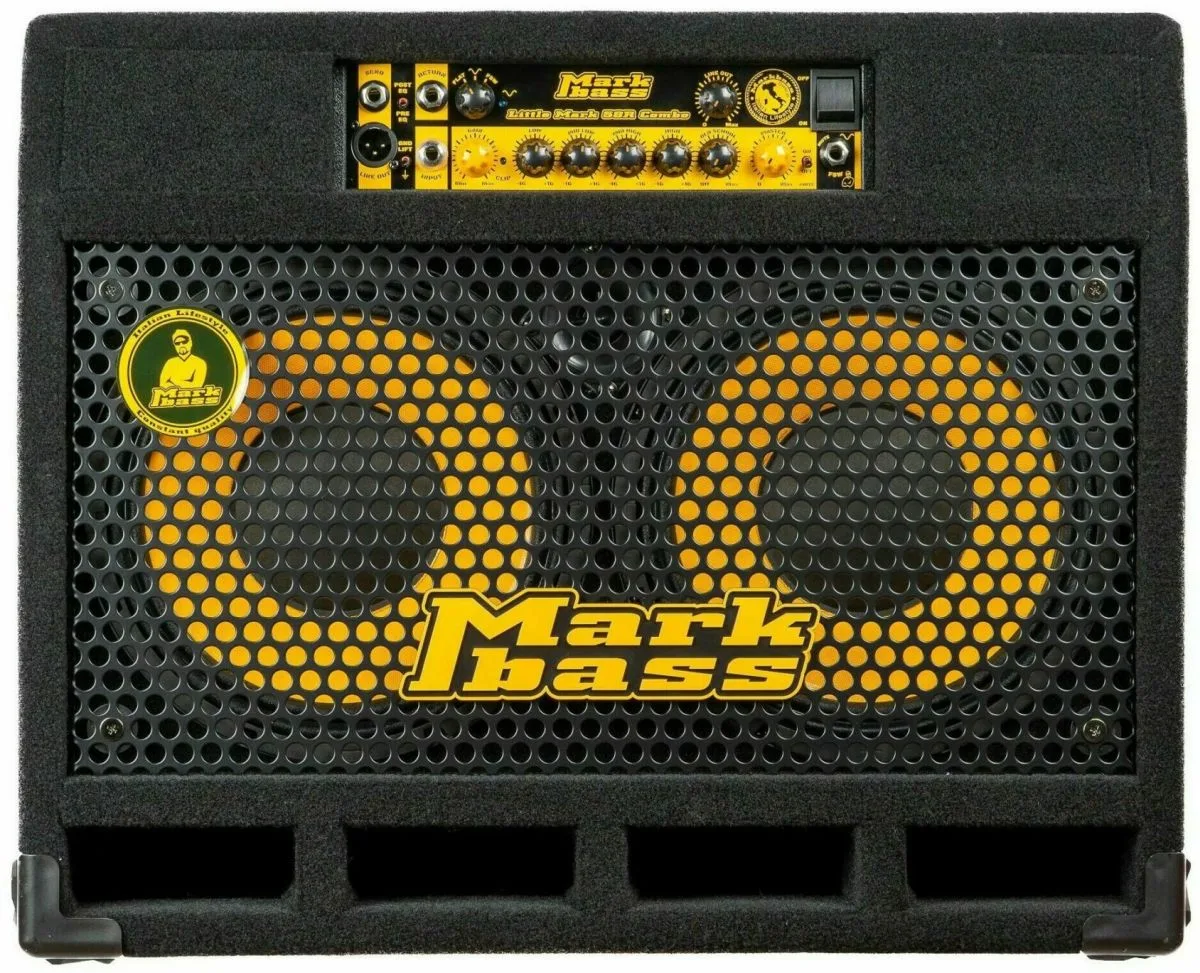

The Markbass CMD 102P V Combo is a front-ported 2x10" bass combo designed for gigging bassists who want to cut through the mix without a large rig. It features the new Little Mark 58R Combo Head, with all connections and controls located on the front panel, while the rear panel contains only the speaker outputs and AC power socket for optimal ergonomics and practicality.

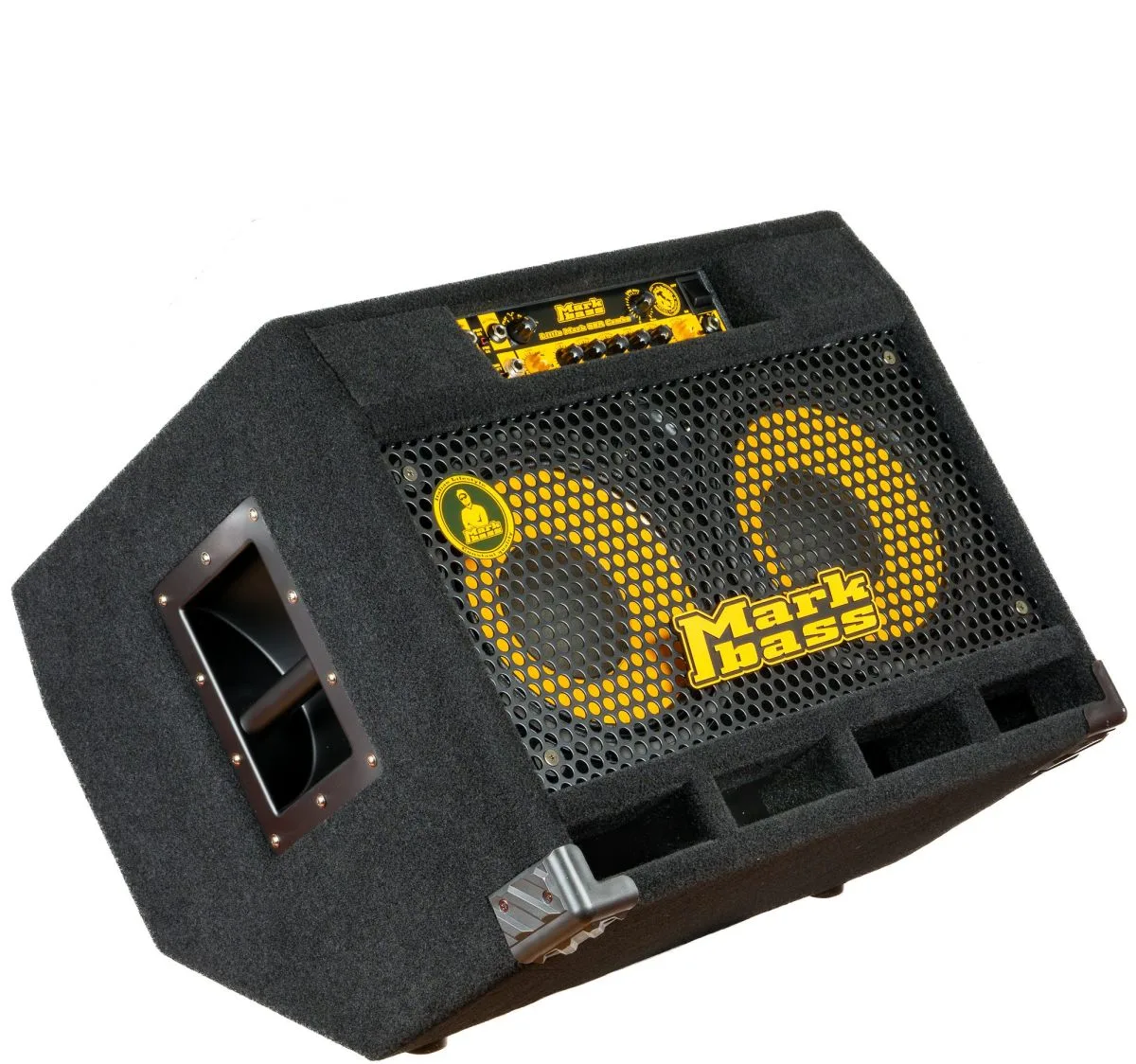

The wedge cabinet design allows the combo to be used either in a standard vertical position or as a floor monitor for improved stage monitoring. It features a bi-band limiter, MUTE switch and a 3-way switch with Flat, Scooped or FSW options.

Speaker
Woofer: 2×10"
Tweeter: Piezo
Bass port: Front
Impedance: 8 ohms
Sensitivity: 101 dB
Speaker power handling: 400 W RMS (AES Standard)
Frequency response: 40 Hz–18 kHz
Crossover frequency: 3.5 kHz

Power
Output power: 500 W RMS @ 4 ohm, 300 W RMS @ 8 ohm
Power requirement: 100 V, 120 V, 230 V, 240 V, 50/60 Hz (voltage is factory preset according to region of sale)

Inputs
INPUT impedance: 1 Mohm
INPUT max. voltage: 9 Vpp
RETURN impedance: 22 Kohm
RETURN max. voltage: 10 Vpp

Controls
GAIN: –46 dB to +23 dB range
LINE OUT level control on front panel
PRE/POST EQ switch for LINE OUT on rear panel
GROUND LIFT switch on rear panel
MUTE switch
MASTER VOLUME

Equalization
LOW: center frequency 68 Hz, level ±16 dB
MID LOW: center frequency 360 Hz, level ±16 dB
MID HIGH: center frequency 800 Hz, level ±16 dB
HIGH: center frequency 10 kHz, level ±16 dB
OLD SCHOOL: max cut range 250 Hz–20 kHz
3-way switch: Flat/Scooped-mid/FSW

Outputs
SEND EFFECTS: unbalanced, max. voltage 20 Vpp
TUNER OUT: unbalanced, max. voltage 2 Vpp
LINE OUT: balanced XLR, max. voltage 20 Vpp
SPEAKER OUT: Speakon/1/4" combo, 1/4"

Other
Bi-band limiter
Footswitch (optional): Flat/Scooped-mid

Dimensions and Weight
Weight: 17.5 kg
Dimensions: 58.5 × 47 × 47.5 cm
