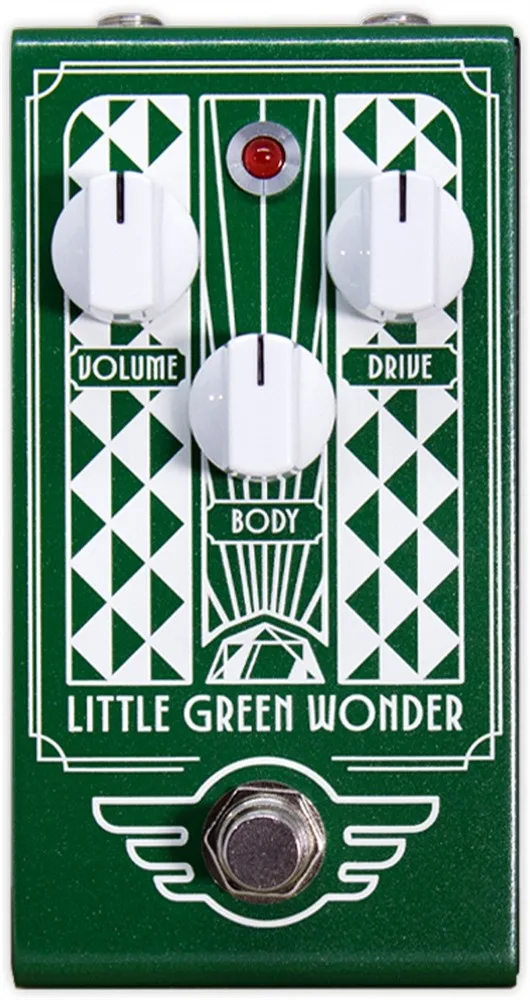

Mad Professor Little Green Wonder Handwired

Little Green Wonder Handwired – Overdrive Pedal

The Little Green Wonder Handwired is a high-headroom overdrive and boost pedal featuring a special EQ curve and focused overdrive. Based on the original circuit of the popular Green Wonder, this updated Handwired version features high-quality components and is handmade in Finland. It is designed to work with both single-coil and humbucker pickups.

The unique BODY control lets you fine-tune the frequency response to suit your guitar and desired tone. With its wide gain range, the pedal can be used as a standalone overdrive, stacked with other drive pedals or as a boost for an amplifier.

Features and Specifications

Handwired construction featuring the original circuit
Handmade in Finland
High-headroom overdrive and boost pedal
Special EQ curve and focused overdrive
Wide gain range
VOLUME control for overall output level
DRIVE control for saturation, sustain and harmonic content
BODY control for adjusting frequency response
BODY counterclockwise: more bass and low mids with a slight treble boost
BODY clockwise: more focused mids and less bass
Suitable for single-coil and humbucker pickups
High-quality through-hole components
Alpha pots and switches
Switchcraft jacks
Rugged sheet metal enclosure
Top-mounted jacks
Analogue signal processing
Mono operation
True bypass
Power supply: 9 V DC
Voltage supply range: 7.5–18 V
Current draw at 9 V DC: approximately 4 mA
Input impedance: 500 kΩ
Output impedance: 50 kΩ
Power adapter: 2.1 mm DC plug, centre negative and sleeve positive
Protected against incorrect DC adapter polarity

Important Information Use the recommended voltage for best results. Never operate the pedal with its bottom plate removed, as this may cause damage.
