Light4me XSPLIT 8

LIGHT4ME XSPLIT 8 is a professional DMX signal splitter designed to provide reliable signal distribution in lighting installations. Its compact size and durable iron housing make it an ideal solution for stage technicians, event organizers, theaters, clubs, and mobile production setups.

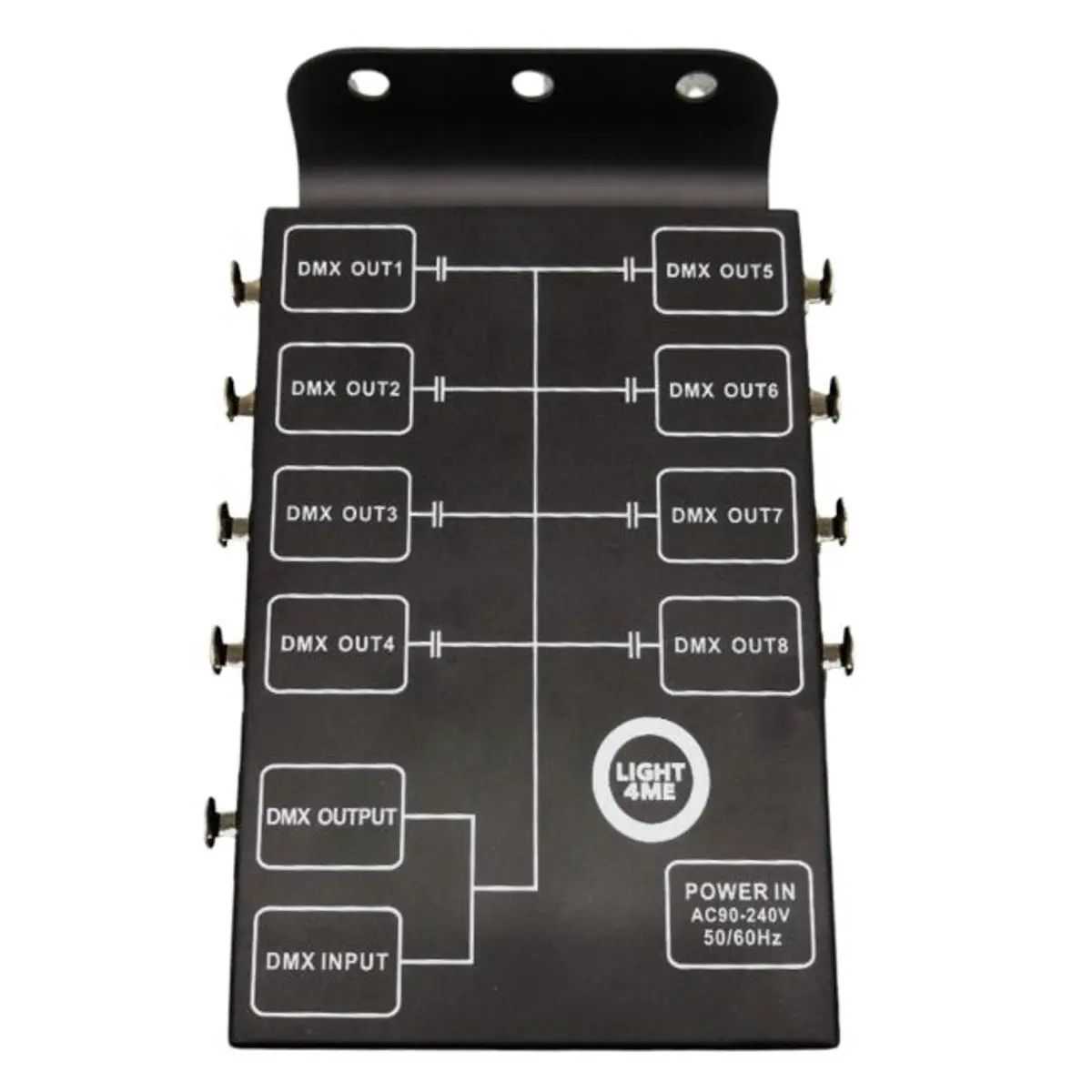

With one DMX input and eight isolated DMX outputs, the XSPLIT 8 allows multiple lighting fixtures and DMX-controlled devices to be connected from a single signal source. An additional DMX output enables easy expansion by connecting another splitter when larger systems are required.

Each of the eight outputs features an active signal indicator, allowing users to quickly verify signal transmission and troubleshoot connections. A dedicated power indicator ensures clear status monitoring during operation.

Equipped with 3-pin XLR connectors and PowerCON in/out connections, the XSPLIT 8 integrates seamlessly into professional lighting systems. Its built-in mounting bracket makes installation fast and convenient for both permanent and temporary setups.

Features
8-Channel DMX Signal Splitter
Active Signal Indicators On All Outputs

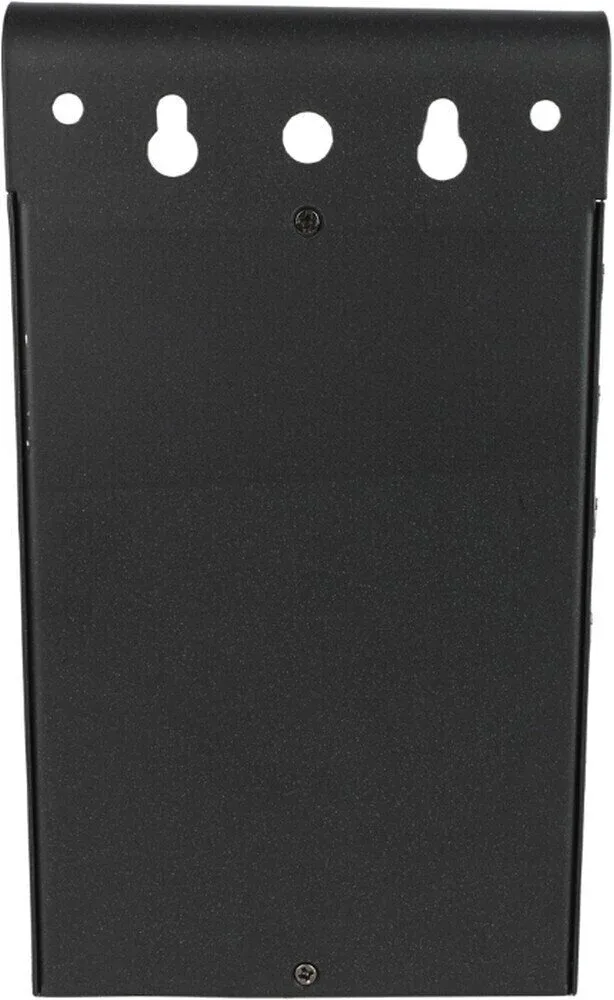

Compact Iron Housing With Mounting Bracket

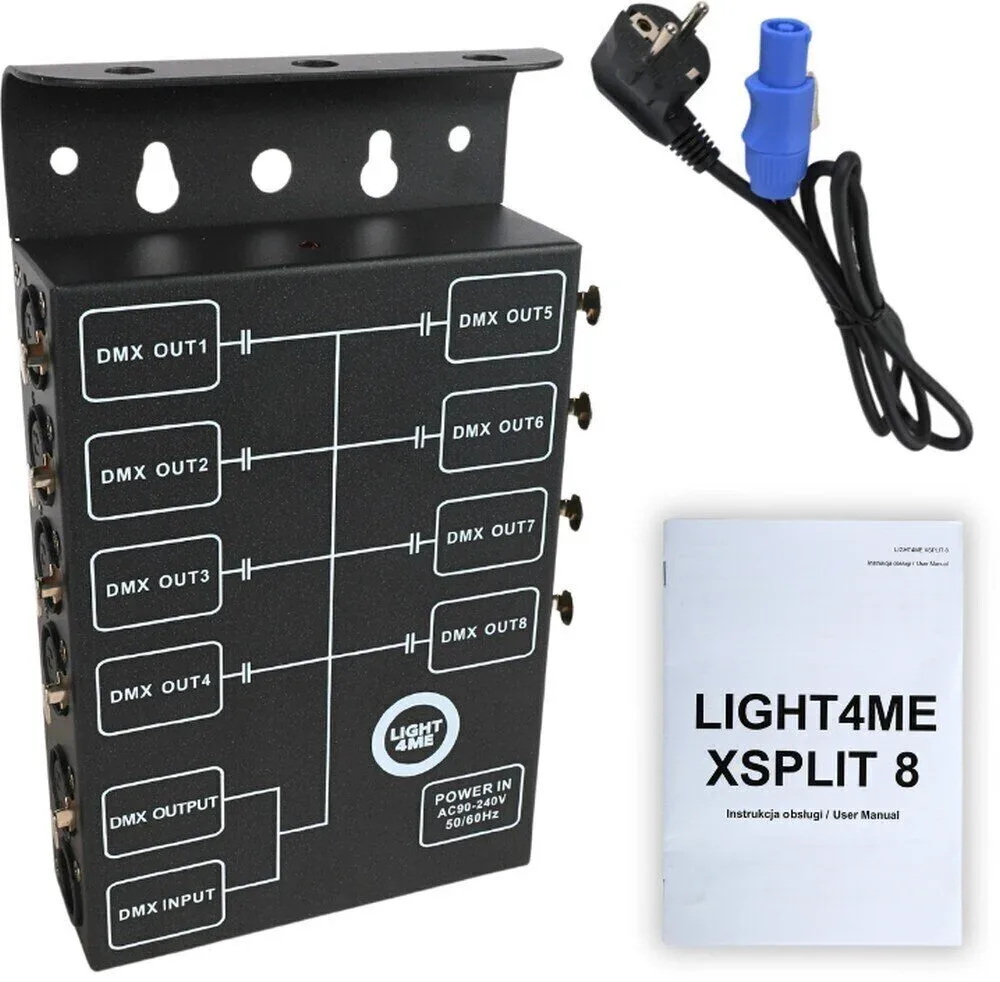

In The Box
LIGHT4ME XSPLIT 8 DMX splitter
PowerCON power cable
User manual (PL/EN)

Specifications
Power Supply: AC 90-240V, 50/60 Hz
Power Consumption: 2.4W
DMX Input: 1
DMX Outputs: 8 + 1 expansion output
Channels: 8

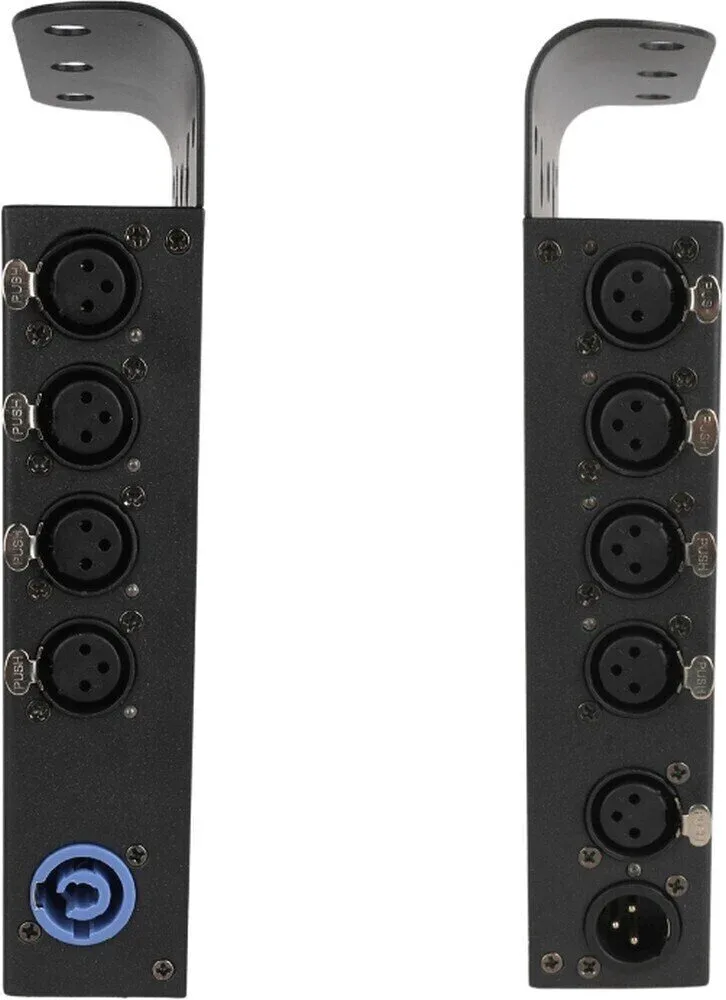

Data Connectors: 3-pin XLR
Power Connectors: PowerCON in/out
Active Signal Indicators: Yes, on all 8 outputs
Power Indicator: Yes
Mounting Bracket: Yes
Housing Material: Iron
Housing Color: Black

Dimensions & Weight
Dimensions: 21.5 × 12.3 × 4.2 cm
Weight: 0.9 kg
