Light4me XSPLIT 4

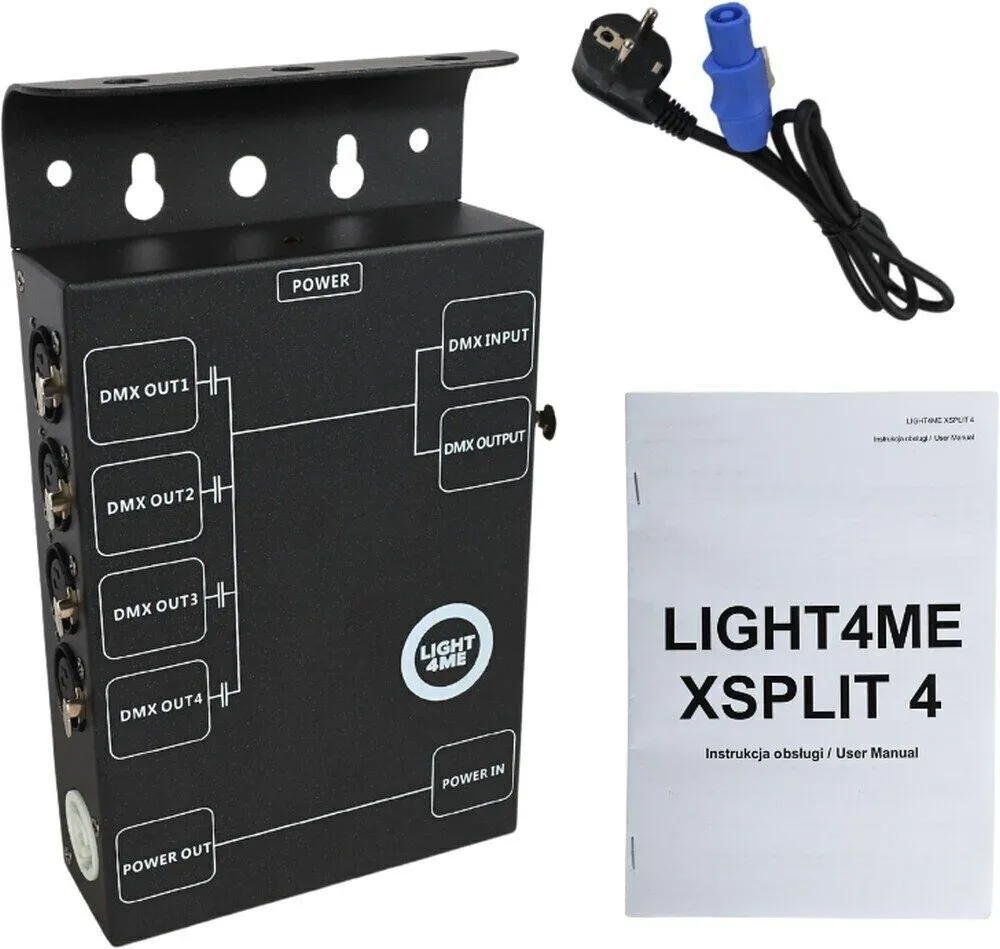

LIGHT4ME XSPLIT 4 is a compact and reliable DMX signal splitter designed for professional lighting installations. Its durable iron housing in an elegant black finish provides excellent protection while maintaining a lightweight and portable form factor, making it ideal for touring, fixed installations and event productions.

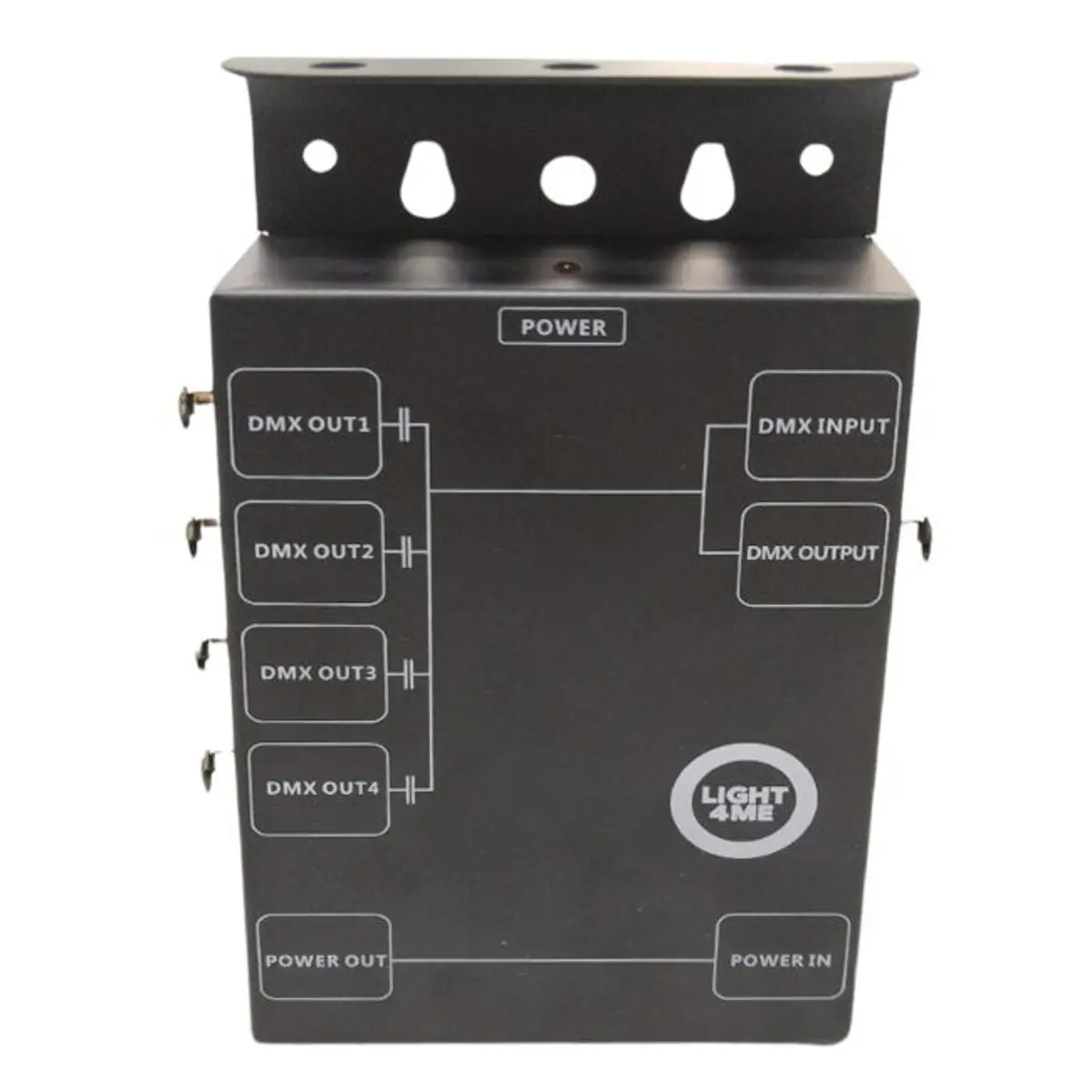

The splitter features one DMX input and four isolated DMX outputs, allowing a single DMX signal to be safely distributed to multiple lighting fixtures and effects devices. An additional DMX output is provided for connecting another splitter, making it easy to expand larger lighting systems.

Each output is equipped with an active signal indicator, allowing users to quickly verify signal transmission and identify connection issues. A dedicated power indicator confirms operational status, helping technicians maintain reliable performance during events and productions.

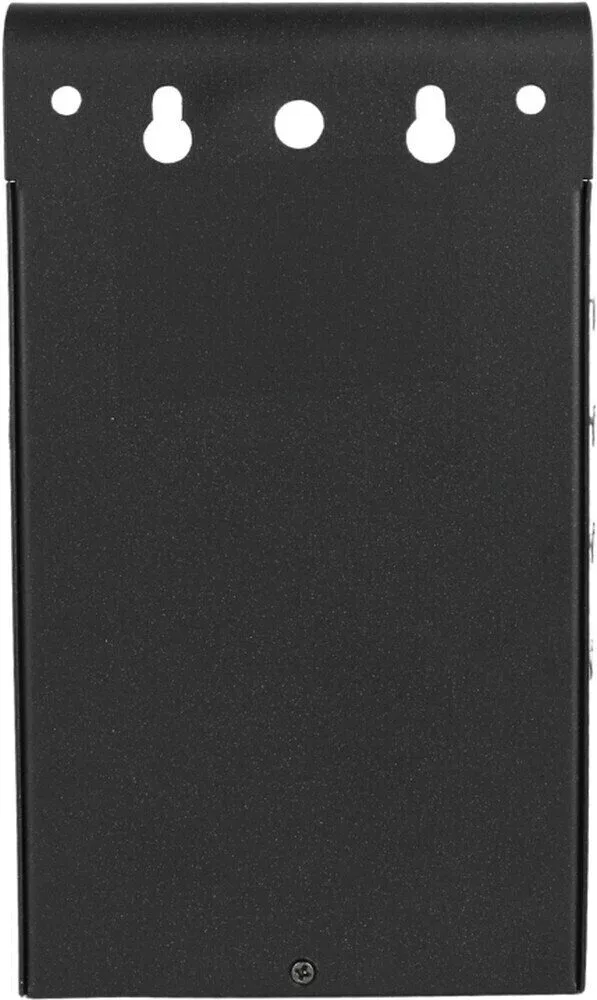

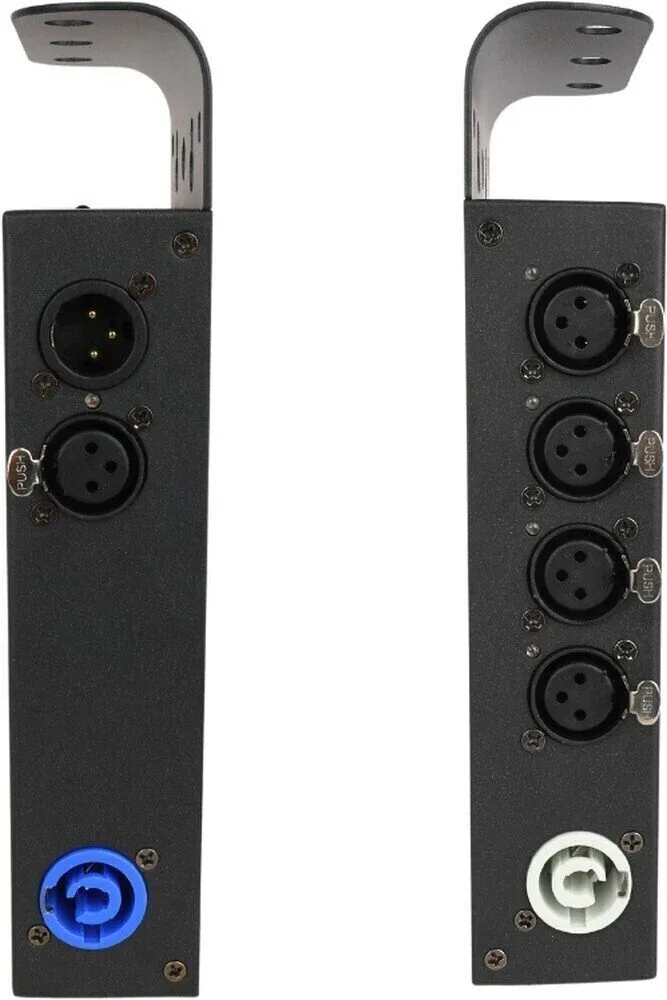

With standard 3-pin XLR data connectors and powercon power connections, the XSPLIT 4 integrates easily with most professional lighting systems. Its built-in mounting bracket allows quick installation in clubs, theaters, event venues, stages and mobile lighting setups.

Features
4 Isolated DMX Outputs
Additional DMX Link Output
Active Signal Indicators For Every Output
Compact Iron Housing With Mounting Bracket
Powercon Power Connections

Specifications
Power Supply: AC 90-240V, 50/60 Hz
Power Consumption: 2.4W
DMX Input: 1
DMX Outputs: 4 + 1 Link Output
Data Connectors: 3-pin XLR
Power Connectors: powercon in/out
Housing Material: Iron
Dimensions: 21.5 x 12.3 x 4.2 cm
Net Weight: 0.85 kg
