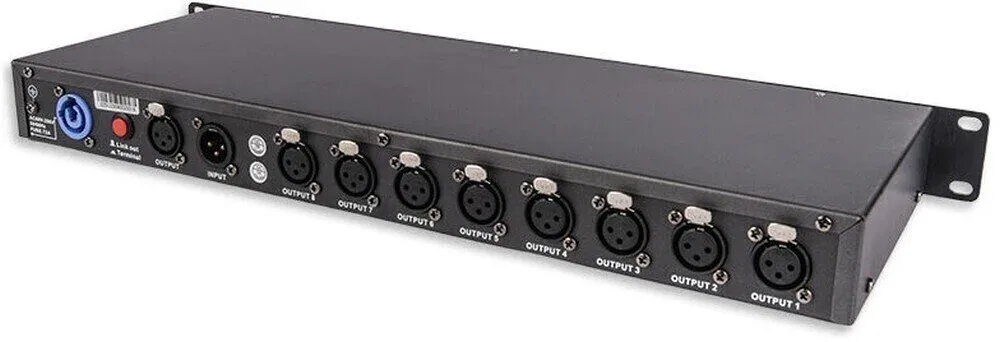

Light4me Split 18

Light4Me Split18 is a professional 8-channel DMX signal splitter designed for reliable distribution of lighting control signals in stage and event installations. It ensures stable DMX signal transmission to multiple devices, making it an essential tool for complex lighting setups.

The unit features a 3-pin DMX input and output, along with 8 additional isolated DMX outputs for connecting a wide range of stage equipment such as lighting fixtures, fog machines, special effects devices, confetti launchers, and more.

For improved signal stability, the Split18 includes a Link Out/Terminal switch that helps eliminate signal errors over long cable runs. This ensures consistent performance even in large and demanding installations.

Designed for professional use, the Split18 can be mounted in a standard 19-inch rack thanks to its durable housing and integrated mounting brackets. This makes it suitable for both permanent installations and mobile production setups.

Features
8-Channel DMX Signal Distribution
Link Out/Terminal Switch For Signal Stability
19-Inch Rack Mount Compatible Design

Specifications
Power Supply: AC 88–256V, 50–60Hz
Fuse: T2A, 250V
Power Connector: PowerCON
DMX Input: 1x 3-pin XLR-M
DMX Outputs: 1 + 8 x 3-pin XLR-F
Switches: Power switch, Link Out/Terminal switch
Rack Installation: Yes (19-inch)
Dimensions: 48.2 × 16.8 × 4.4 cm
Weight: 1.78 kg
