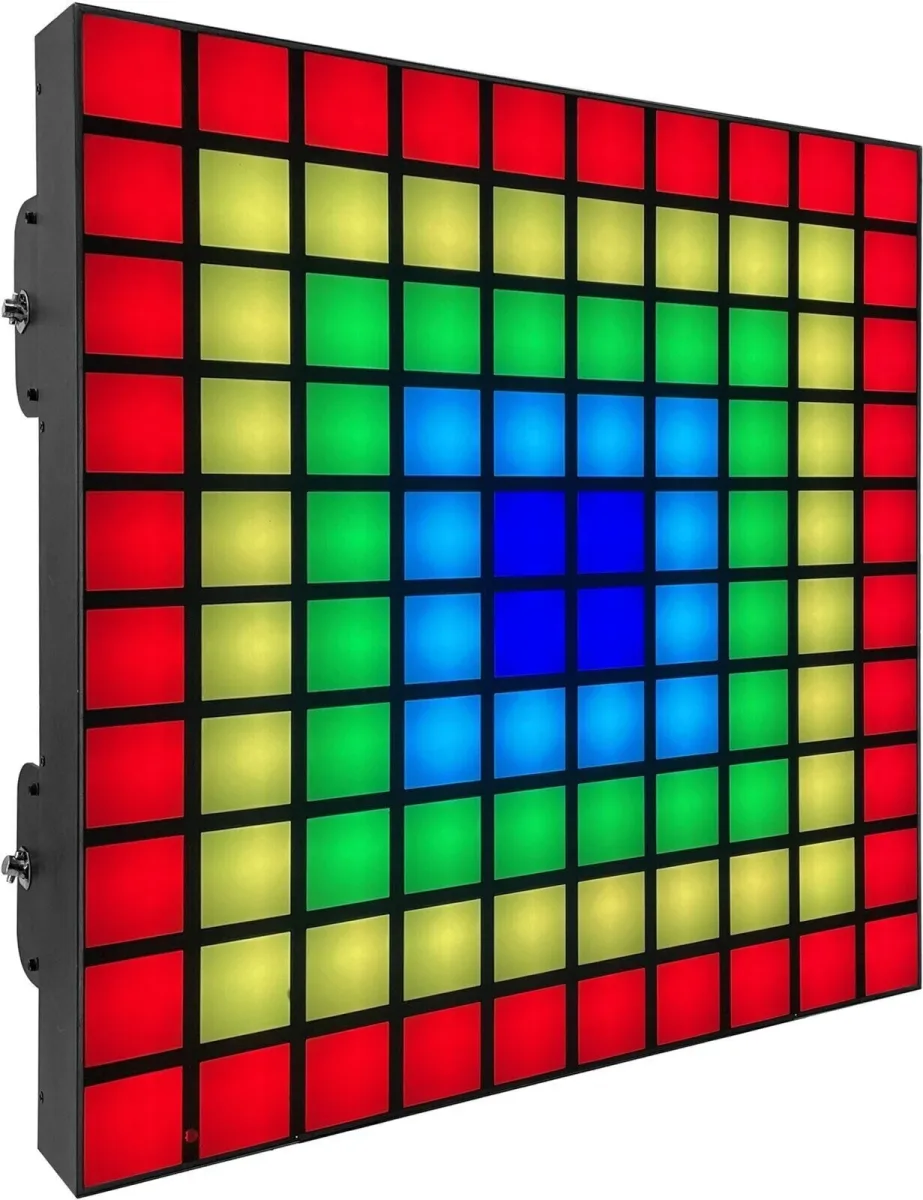

Light4me Matrix Panel 1010 RGB

Light4Me Matrix Panel 1010 RGB is a professional LED matrix effect panel designed to create dynamic animations, colorful visual displays, and eye-catching stage effects. Featuring 700 RGB SMD LEDs divided into 100 individually controllable sections, it delivers impressive lighting performances for DJs, clubs, concerts, and event productions.

The advanced Pixel Control function allows the creation of complex lighting sequences, animations, and patterns. With 99 built-in automatic programs, 37 static colors, and 21 background color effects, the panel offers extensive creative possibilities for both standalone and synchronized lighting setups.

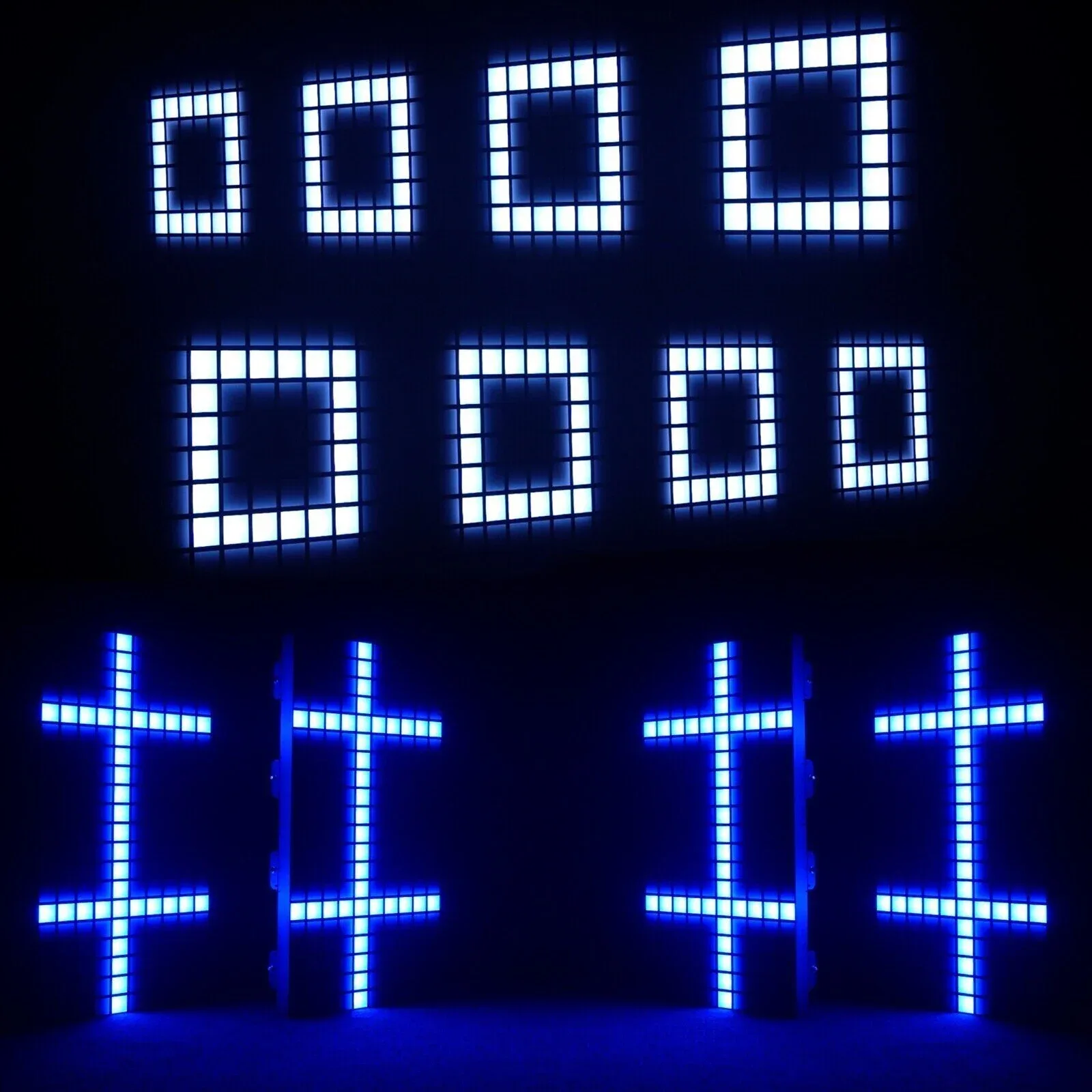

The Matrix Panel also features number and letter display functions, allowing it to show digits from 0-10 and letters from A-Z. Adjustable LED movement direction, variable-speed strobe effects, and sound-reactive operation enable highly engaging visual effects that respond to music and event atmospheres.

Designed for professional environments, the unit supports DMX control, master/slave operation, and multi-panel linking to create larger LED walls. Passive cooling ensures quiet operation, while PowerCON connectivity and integrated mounting brackets simplify installation and system integration.

Features
700 RGB LEDs With Pixel Control Across 100 Sections
99 Built-In Programs And Number And Letter Display Effects

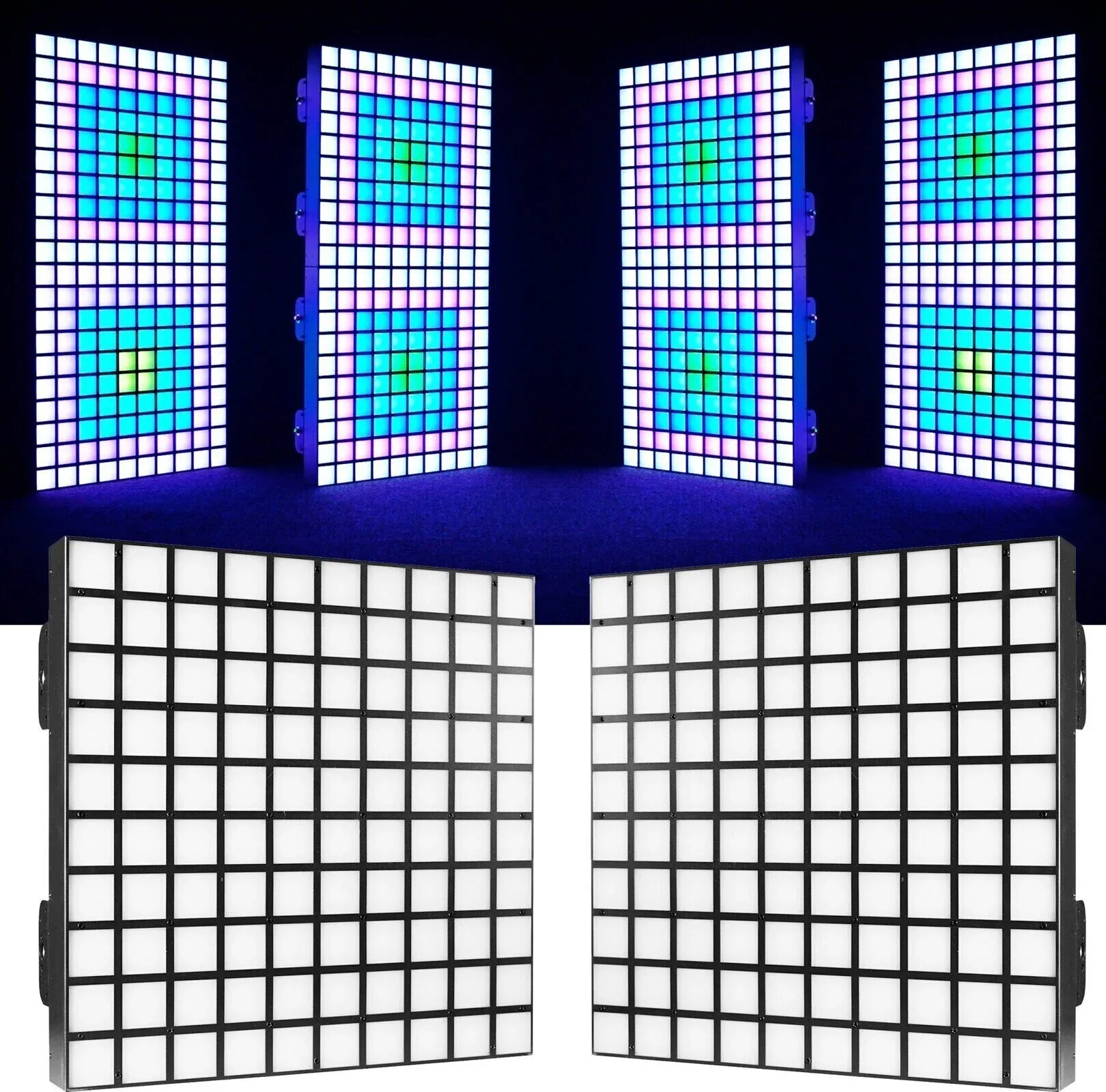

Multi-Panel Linking For Large LED Wall Configurations

In The Box
Light4Me Matrix Panel 1010 RGB
PowerCON power cable
2 mounting brackets
User manual (PL/EN)

Specifications
Power Supply: AC 100-240V, 50/60 Hz
Average Power Consumption: 200W
Fuse: 3A
Light Source: 700x0.2W RGB SMD5050 LED (3-in-1)
Light Source Sections: 100
Pixel Control: Yes
Beam Angle: 90°
Color Palette: RGB
Dimmer: Linear, 0-100%
Strobe: 0-30 Hz, adjustable speed
Static Colors: 37
Background Effects: 21 predefined colors
Auto Programs: 99, adjustable speed, program loop
Number Display: 0-10
Letter Display: A-Z
LED Direction Selection: Left-to-right or right-to-left
Control: Automatic, DMX, Manual
Operating Modes: Auto, Sound, Master/Slave, DMX
DMX Channels: 8 / 100 / 300

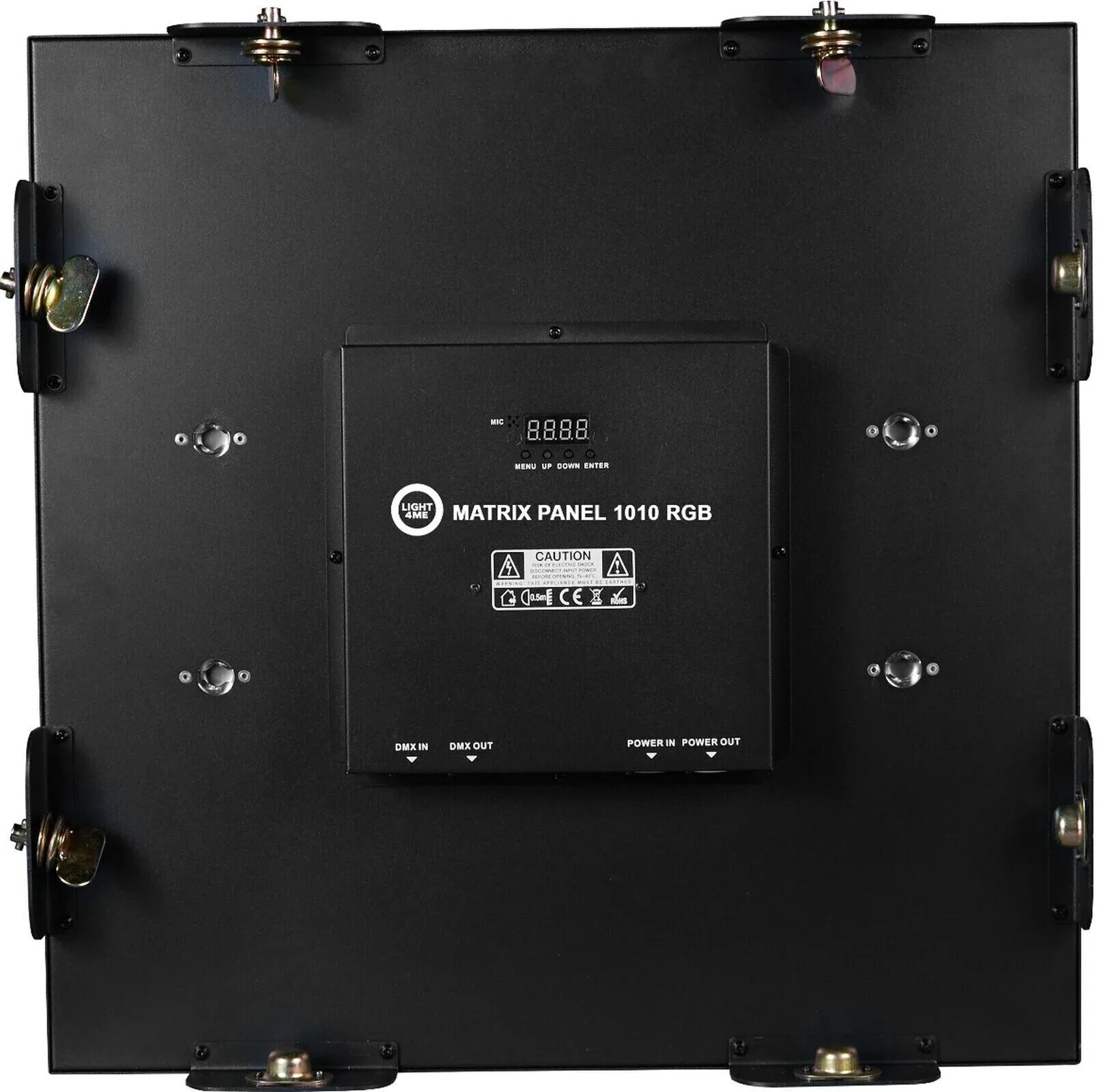

DMX Connectors: 3-pin XLR in/out
Power Connectors: PowerCON in/out
Display Backlight Control: Constant or auto-off after 10/20/30/60 seconds
Overheat Protection Settings: Yes
Temperature Display: Yes
Cooling System: Passive
Multi-Panel Connection: Yes
Housing Material: Plastic
Housing Color: Black
IP Rating: IP20

Dimensions & Weight
Dimensions: 50 × 10 × 50 cm
Weight: 9 kg
