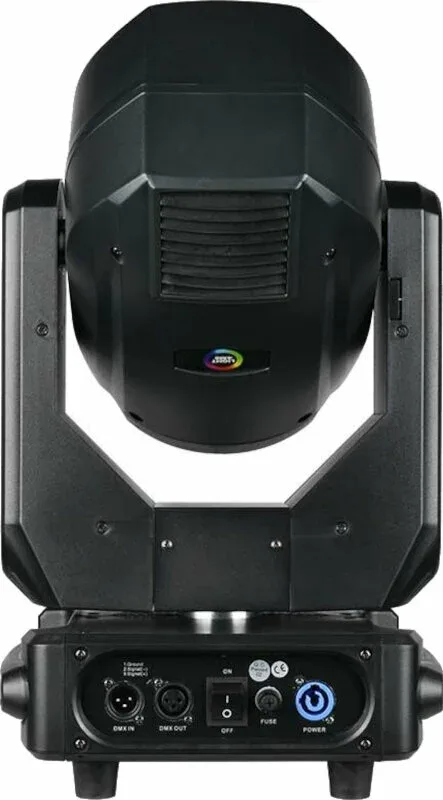

Light4me Fenix V2 Moving Head

Light4Me Fenix V2 is a professional beam moving head designed for powerful stage lighting applications. It uses a 230W discharge lamp with a color temperature of 7400K, delivering extremely high brightness suitable for concerts, galas, theatres, and club environments.

The optical system is built for precision and intensity, featuring a narrow 2° beam angle that produces sharp, focused light beams. A built-in frost filter allows the beam to be softened and widened when a more diffused lighting effect is required.

The fixture includes a 15-color wheel with rainbow effects and a gobo wheel with 13 beam-shaping patterns. Two independent prism systems (8-facet circular and multi-facet prism combinations) provide complex aerial effects and dynamic visual layering.

Control is provided via DMX512, Auto, Sound, and Master/Slave modes. The unit features a 16-bit movement system for precise PAN (540°) and TILT (270°) positioning, along with an LCD display and intuitive control buttons for configuration.

Features
230W Discharge Lamp Beam Moving Head
Ultra-Narrow 2° Beam Angle
15-Color Wheel With Rainbow Effect
13-Gobo Pattern Wheel With Shake & Scroll
Dual Prism System With Multiple Facets

Specifications
Power Supply: AC 100–240V, 50/60Hz
Power Consumption: 400W
Light Source: 230W Discharge Lamp
Color Temperature: 7400K
Beam Angle: 2°
DMX Channels: 16
Control Modes: Auto, Sound, Master/Slave, DMX
PAN: 540° (16-bit precision)
TILT: 270° (16-bit precision)
Color Wheel: 15 Colors + Open
Gobo Wheel: 13 Gobos + Open
Prisms: 8-Facet Circular + Multi-Facet Systems
Frost Filter: Yes
Display: LCD
DMX Connector: 3-Pin XLR
Housing: Heat Resistant Plastic
IP Rating: IP20

Dimensions & Weight
Net Weight: 15.3 kg
Gross Weight: 16.5 kg

In The Box
Moving Head Fixture
Power Cable
User Manual
