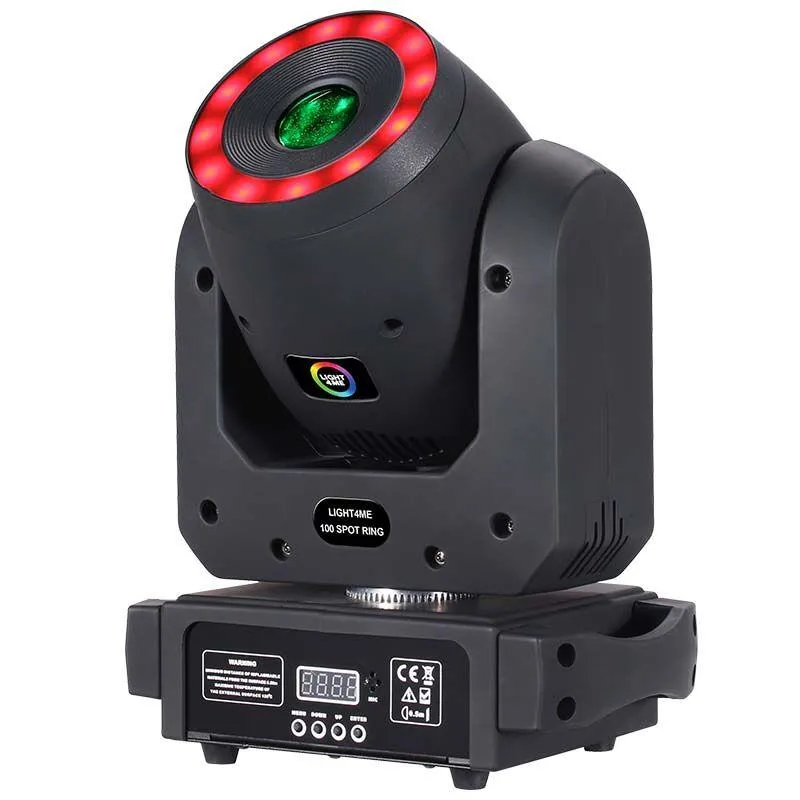

LIGHT4ME 100 Spot Ring – LED Moving Head with RGB Ring

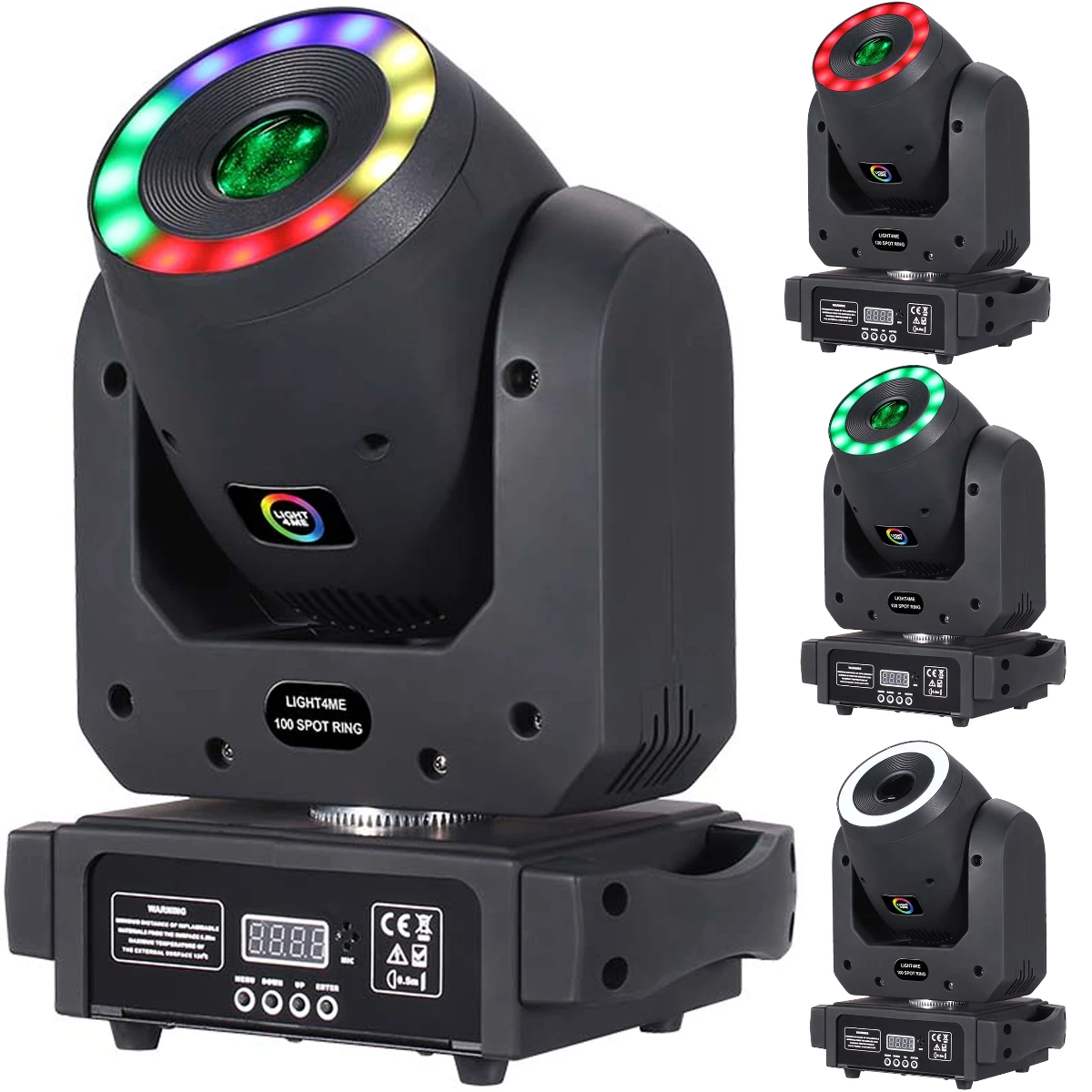

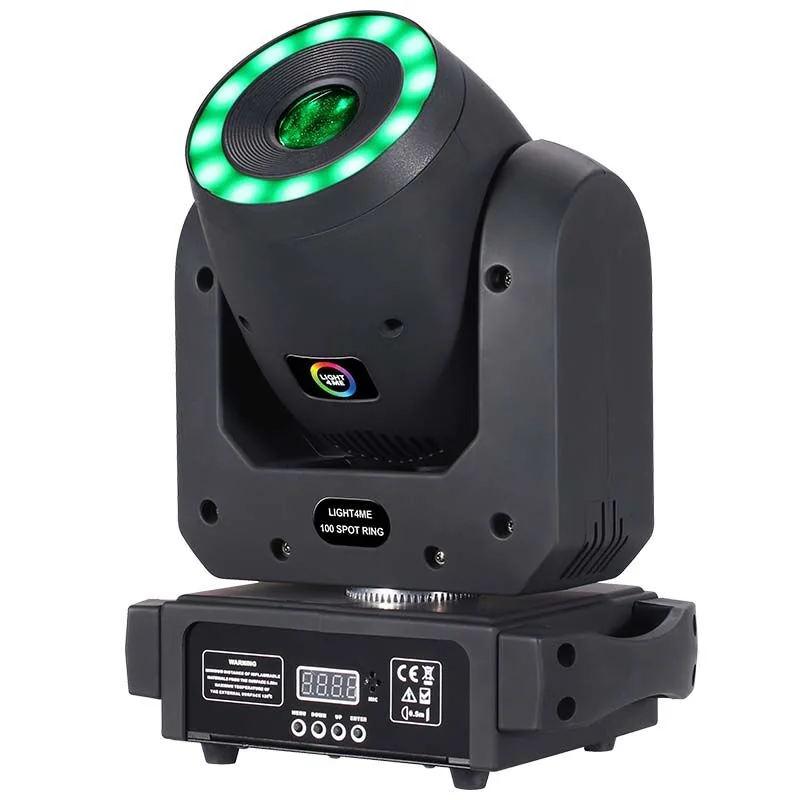

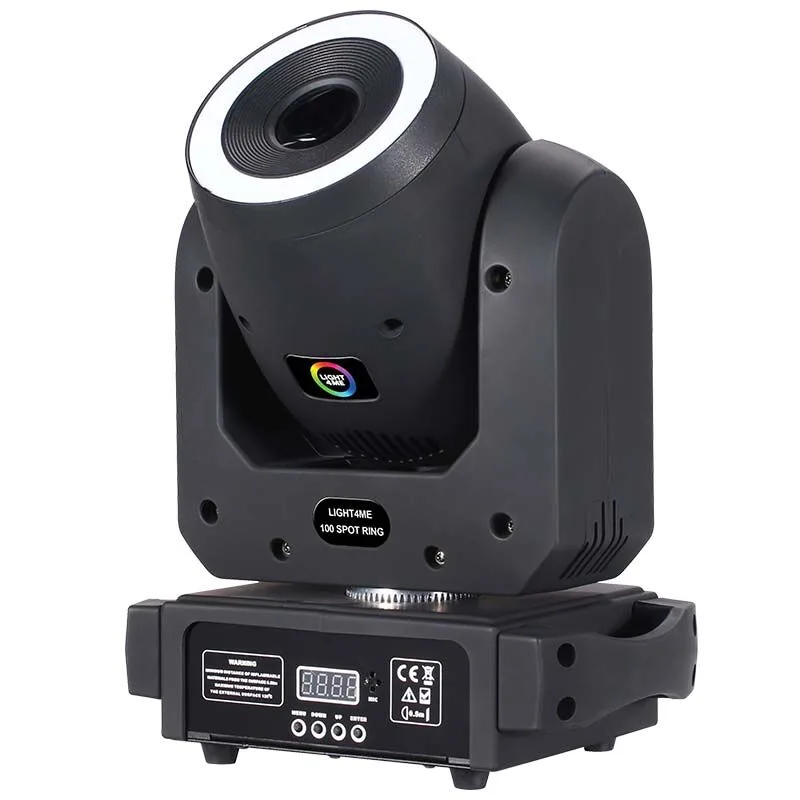

LIGHT4ME 100 Spot Ring is a compact LED moving head featuring a powerful 100 W white LED diode and an RGB ring with 12 x 0.3 W 5050 RGB LED 3-in-1 diodes. Itscompact and lightweight design makes it suitable for stationary and portable installations, including stages, concerts, performances, shows, galas, presentations, dance clubs, discos, mobile DJs and event teams.

Features
7 colors + open and rainbow effect
7 gobos + open
Gobo shake and Gobo-flow effects
12 RGB LED diodes in the ring
10 ring effects
Rotational 5-facet prism
Electronic focus
Linear 0–100% dimmer
Strobe up to 25 fps
540° pan movement
190° tilt movement
Pan/tilt movement reversal
Reversible display
Four operating modes: auto, sound, master/slave and DMX
Built-in microphone for sound control
DMX control via external DMX controllers and consoles

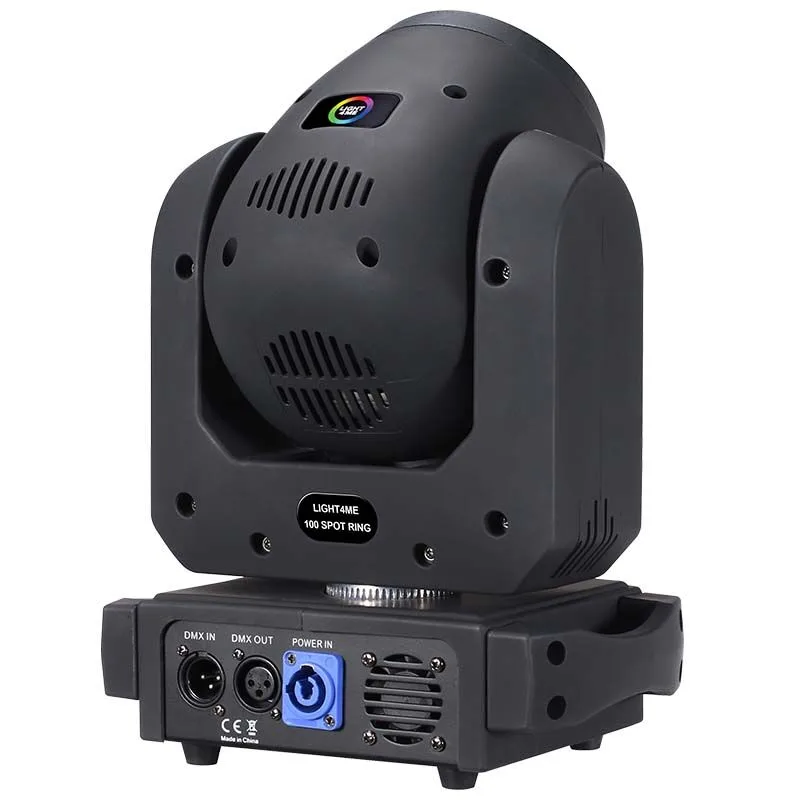

3-pin DMX input/output
Digital display and control panel with four buttons
Solid housing with two handles
Mounting bracket for trusses and lighting ramps

Technical Specifications
Power supply: AC 100–240 V, 50/60 Hz
Power consumption: 150 W
Light source: 1 x 100 W white LED diode
LED ring: 12 x 0.3 W 5050 RGB LED 3-in-1
Color wheel: 7 colors + open, rainbow effect
Colors: white, red, yellow, light blue, green, pink, orange, purple
Gobo wheel: 7 gobos + open, Gobo shake and Gobo-flow effects
Prism: rotational, 5-facet
Ring effects: 10
Dimmer: linear 0–100%
Strobe: 25 fps
Focus: electronic
Beam angle: 13°
Pan movement range: 540°
Tilt movement range: 190°
Pan/tilt movement reversal: yes
Display reversal: yes
DMX channels: 15
Operation modes: auto, sound, master/slave, DMX
DMX sockets: 3-pin (in/out)
Dimensions: 24 x 14.5 x 31 cm
Weight: 4 kg

Included
LIGHT4ME 100 Spot Ring LED moving head
Power cable
Mounting bracket
User manual
