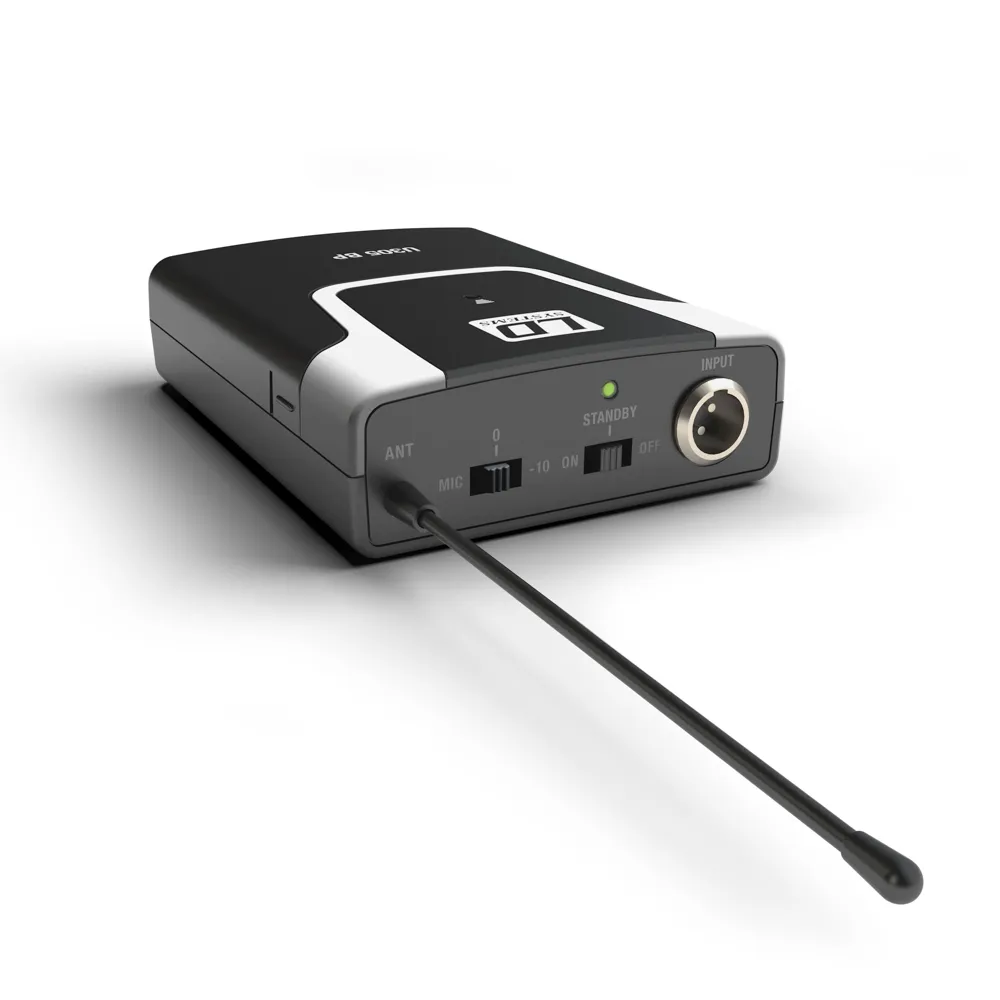

LD Systems U305 BP Bodypack transmitter

Operating in the 584 - 608 MHz band, this U300 Series bodypack transmitter features a miniature XLR input with 3-position level selector to accommodate microphones as well as active and passive instrument pickups. It has an output power of 10 mW and 25 Hz - 16 kHz frequency response to handle 5-string bass guitars with a low B string. The U305 BP provides over 10 hours of continuous operation on two AA batteries, easy IR syncing with the U305 receiver and pilot tone transmission to eliminate RF interference. The bodypack's on/off switch includes a convenient standby position for temporary muting.



Product number: LDU305BP
Product type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 584 - 608MHz
Channels: 12
Groups: 1
Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response: 25 - 16,000Hz
Signal-to-noise ratio: 104dB
Rated HF output power: 10 mW
Controls: Gain (3-way switch), Power On/Off
Indicators: ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Operating voltage: 2 x AA battery
Operating time: >10 h
Width: 65mm
Height: 91mm
Depth: 25mm
Weight: 0,085kg
Other features: Pilot tone, Belt clip, IR frequency synchronisation
