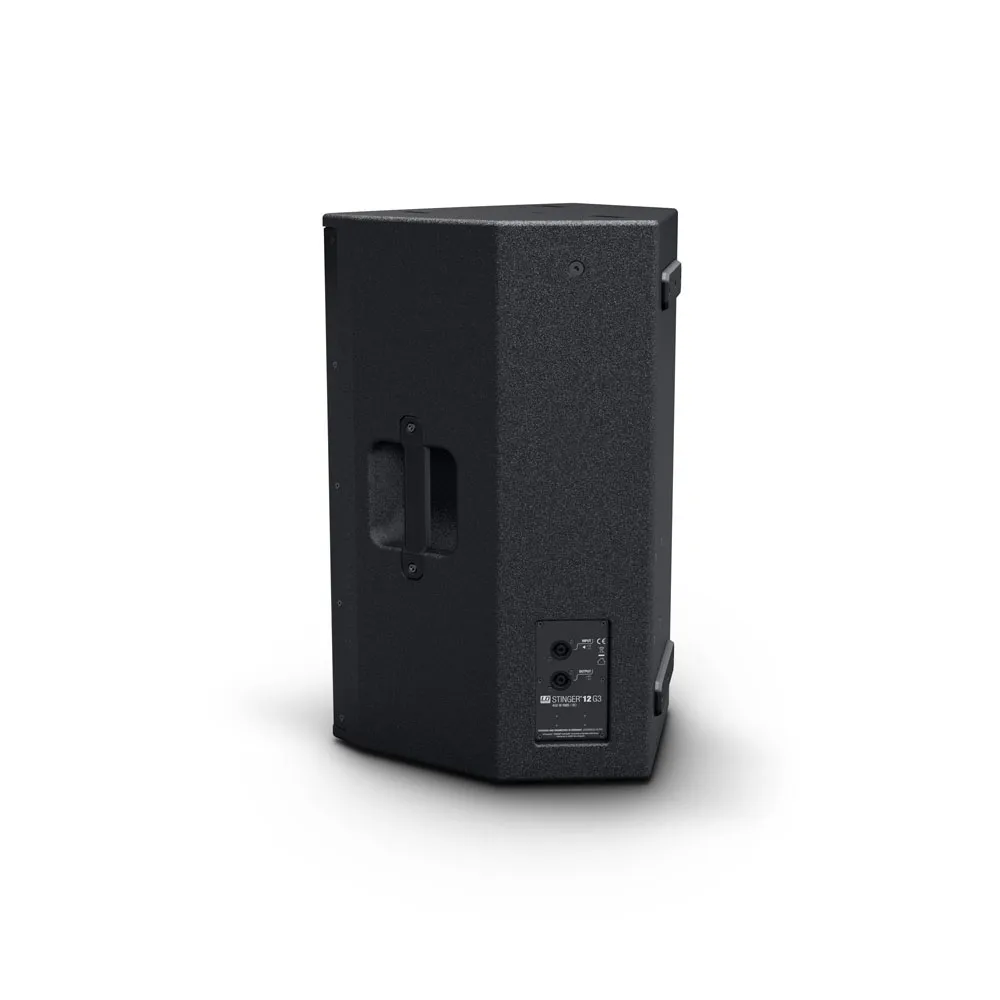

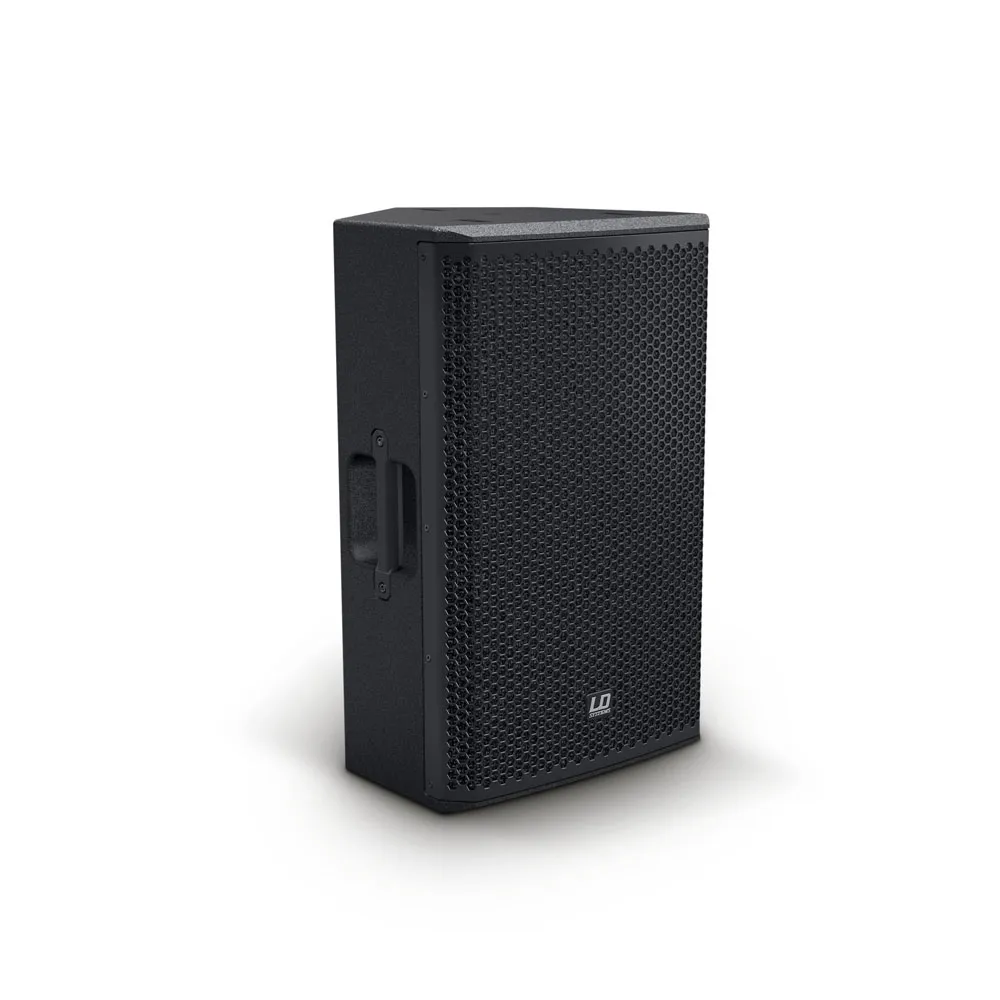

LD Systems Stinger 12 G3

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger® 12 G3 provides 400 watts of continuous power; the maximum sound pressure level is 125 dB. Its specially developed 12" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The Stinger® 12 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers an exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 12 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.



Product number: LDEB122G3
Product type: PA loudspeaker
Type: passive
Low/mid driver dimensions: 12"
Low/mid driver dimensions (mm): 304.8mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2.5"
Woofer voice coil (mm): 63.5mm
Horn: CD horn
HF driver dimensions: 1"
HF driver dimensions (mm): 25.4mm
HF driver magnet: Ferrite
HF driver brand: BMS
HF driver voice coil: 1"
HF driver voice coil (mm): 25.4mm
Dispersion (H x V): 90 x 50°
Load rating (RMS): 400W
Peak power: 800W
Frequency response: 58 - 20000Hz
SPL (1W/1m): 99dB
Max. SPL: 125dB
Impedance: 8Ohm(s)
Protection circuits: HF Driver
Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Loudspeaker outputs: 1
Speaker output connections: Speakon compatible
Cabinet material: 15 mm Plywood
Cabinet surface: Polyurea
Cabinet construction: vented
Monitor angle: 54°
Width: 390mm
Height: 627mm
Depth: 377mm
Weight: 17.7kg
