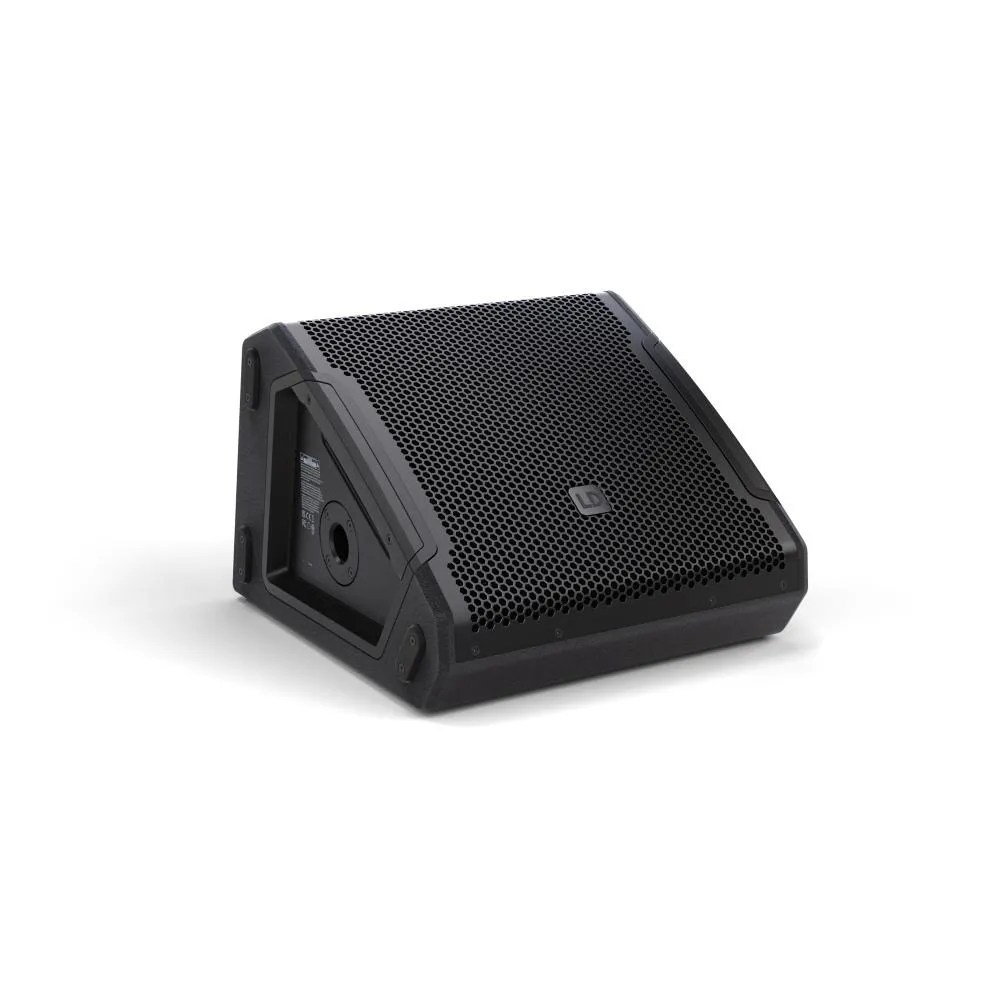

LD Systems MON 12 A G3

12" powered coaxial stage monitor Black

Compact high-performance stage monitor with top-of-the-range technologies
Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
12" woofer with 2.5" voice coil
Optimised, practical radiation pattern due to 50° x 90° CD horn
DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
3-band EQ, Notch filter, 4 application presets and delay function

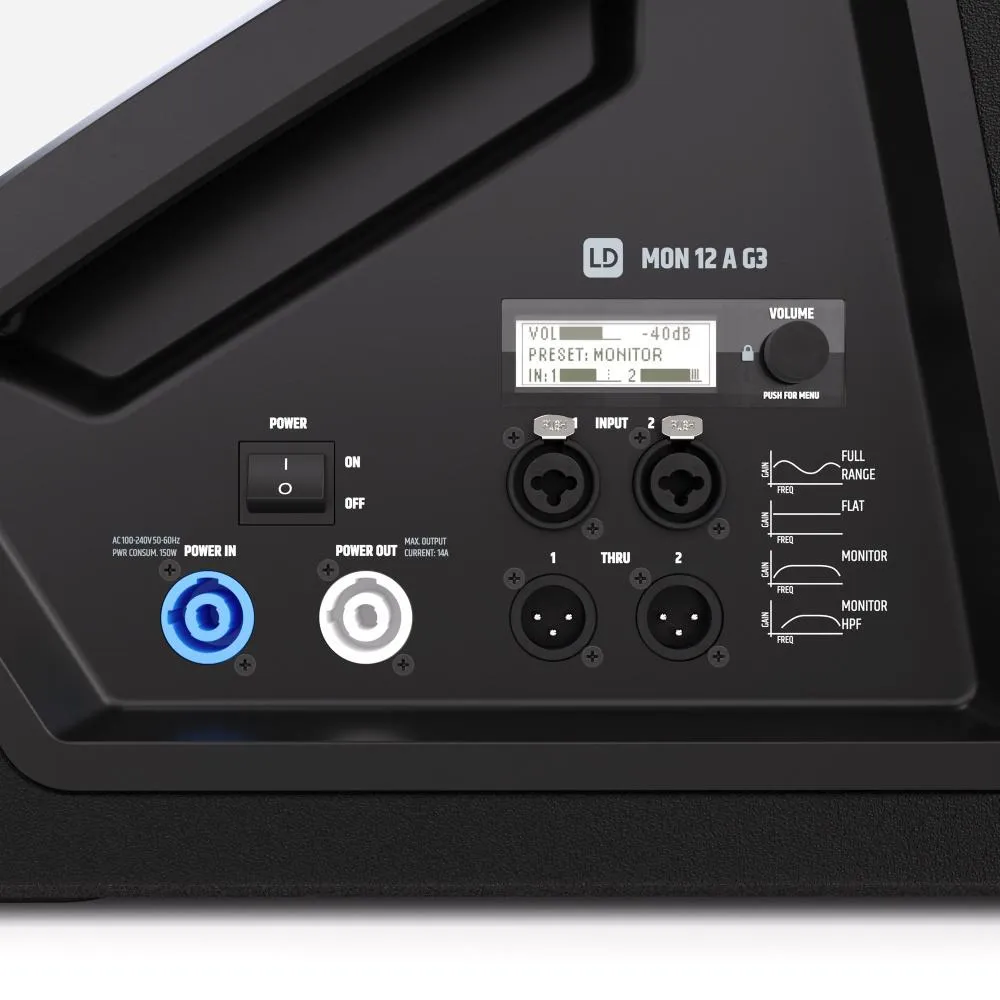

PowerCON compatible loop-through professional power connection
35 mm speaker stand flange for FOH applications
Durable Polyurea coating and heavy-duty front grille

Product type Stage monitors
Type Powered
Color Black
System output (RMS) 300 W
System output (Peak) 1200 W
Max. SPL Average (Sine burst) 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst) 127 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB) 68 - 18000 Hz
Frequency response (-10 dB) 55 - 20000 Hz
Crossover frequency 1400 Hz
Monitor angle 33°
Dispersion (H x V) 50° x 90°
Width 425 mm
Depth 453 mm
Height 315 mm
Features 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
Weight 17,4 kg
