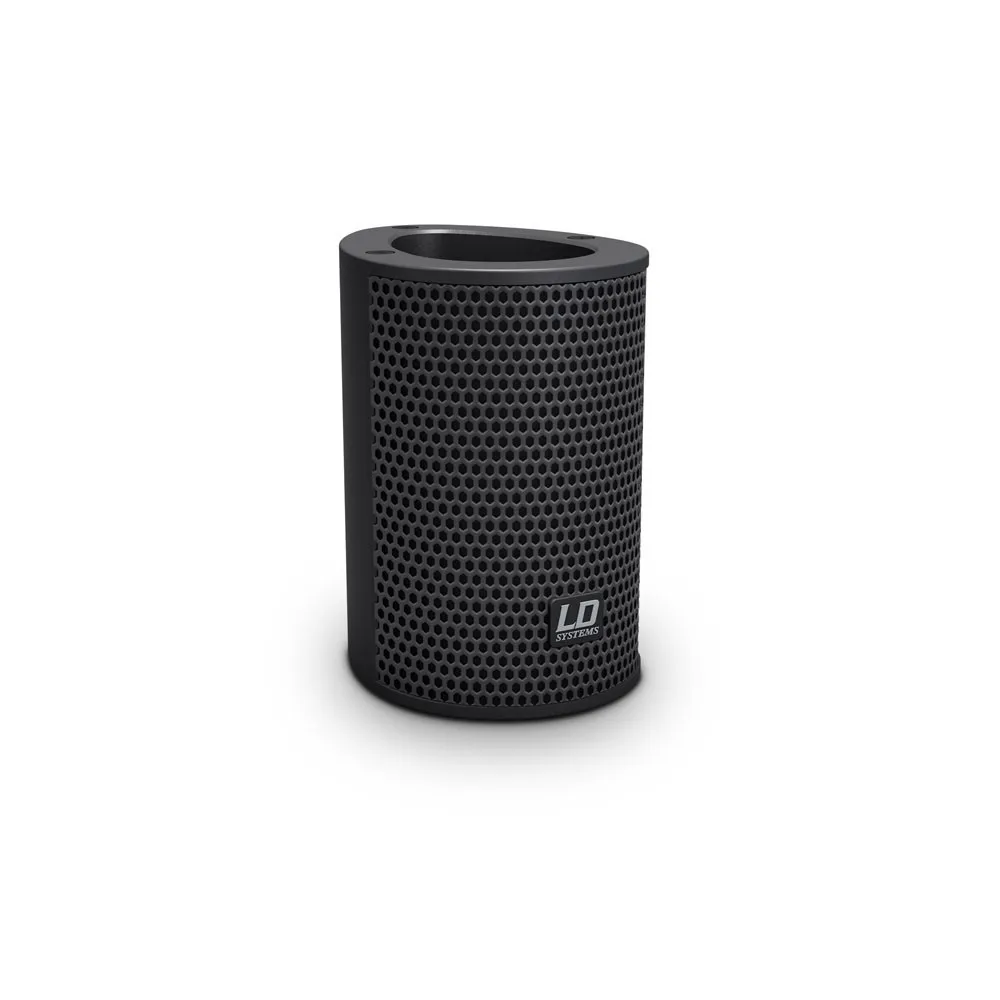

LD Systems Maui 5 GO Charging Dock

Design matches that of the battery column
Very short charging times: 80% capacity = 2 h, 100% capacity = 3 h
Multi-voltage power supply included

Product type
PA Power Amplifier Accessories
Type
Loading Dock with Power Cable
Connections Loading Dock
Low-voltage socket, multipin
Operating Voltage Loading Dock
20 - 40 V DC
Protection Features Loading Dock
current limiter
Dimensions (W x H x D) Loading Dock
81 mm x 125 mm x 106 mm
Weight Loading Dock
0.31 kg
Input Voltage Power Cable
100 V AC - 240 V AC, 50 - 60 Hz
Input Connector Power Cable
ICE Connector male
Rated Output Voltage Power Cable
24 V
Output Current Power Cable
5 A
Protection Features Power Cable
over-current, power supply overload, short circuit, thermal overload
Indicators
power LED
Dimensions (L x W x H) Power Cable
167 mm x 67 mm x 35 mm
Weight Power Cable
0.62 kg
Description
This charging dock is a flexible alternative to the MAUI 5 GO’s built-in smart charger. Featuring LD Systems’ Quick-Swap technology, it lets you recharge replacement battery elements while operating the MAUI 5 GO to provide virtually unlimited battery power. Charging takes only 2 hours to 80% and 3 hours to full capacity. The dock comes with a 100V - 240V multi-voltage power supply with overload, over-voltage and over-temperature protection. MAUI 5 GO replacement batteries are available as accessories.
