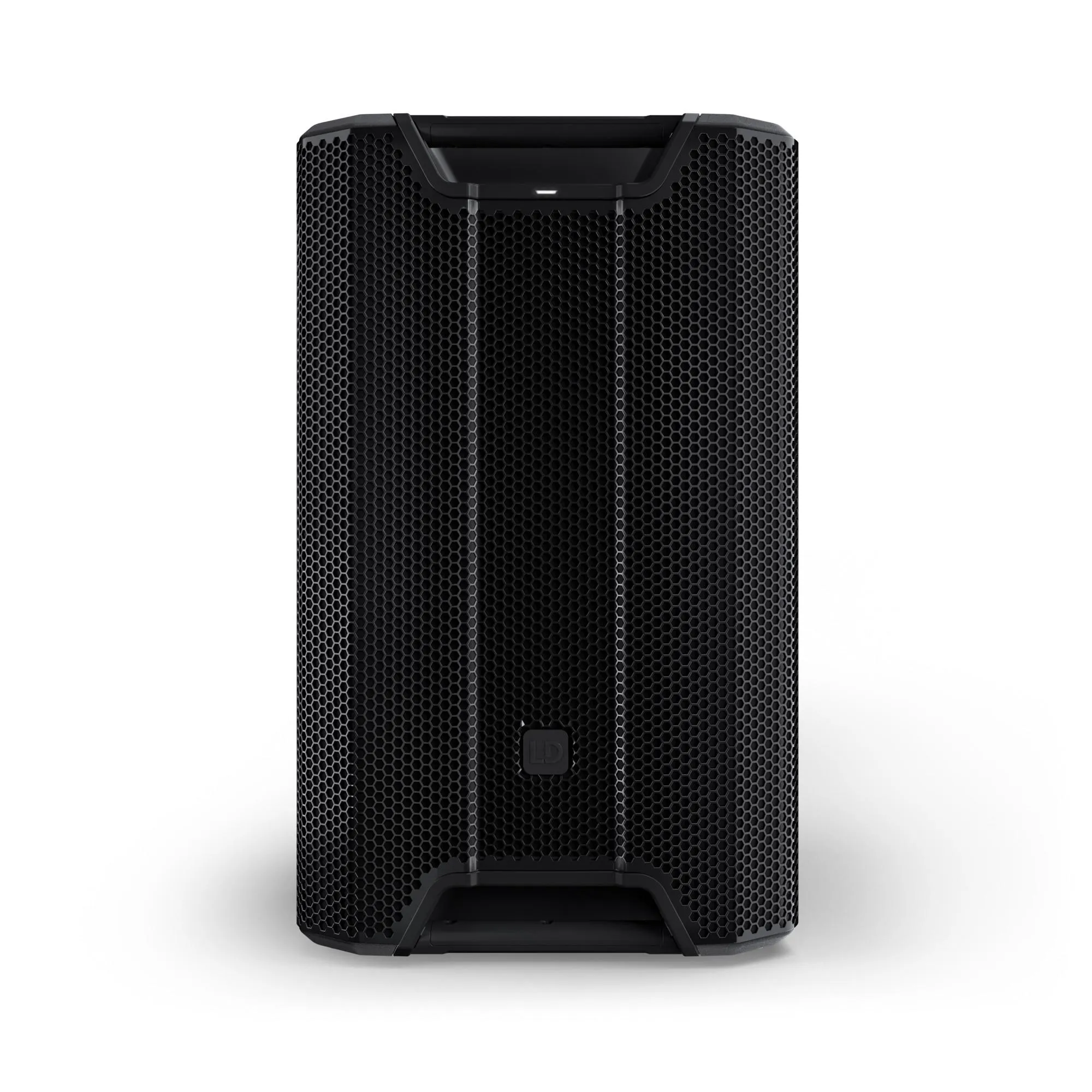

LD Systems Icoa Pro 15 A Black

The ICOA PRO 15 A features a powerful 15" coaxial loudspeaker, delivering professional full-range audio performance with a robust design ideal for clubs, live events, and installations. Its unique coaxial configuration combines a 15" woofer and a 3" titanium tweeter for precise sound coherence and detail, while the rotatable horn ensures optimal dispersion.

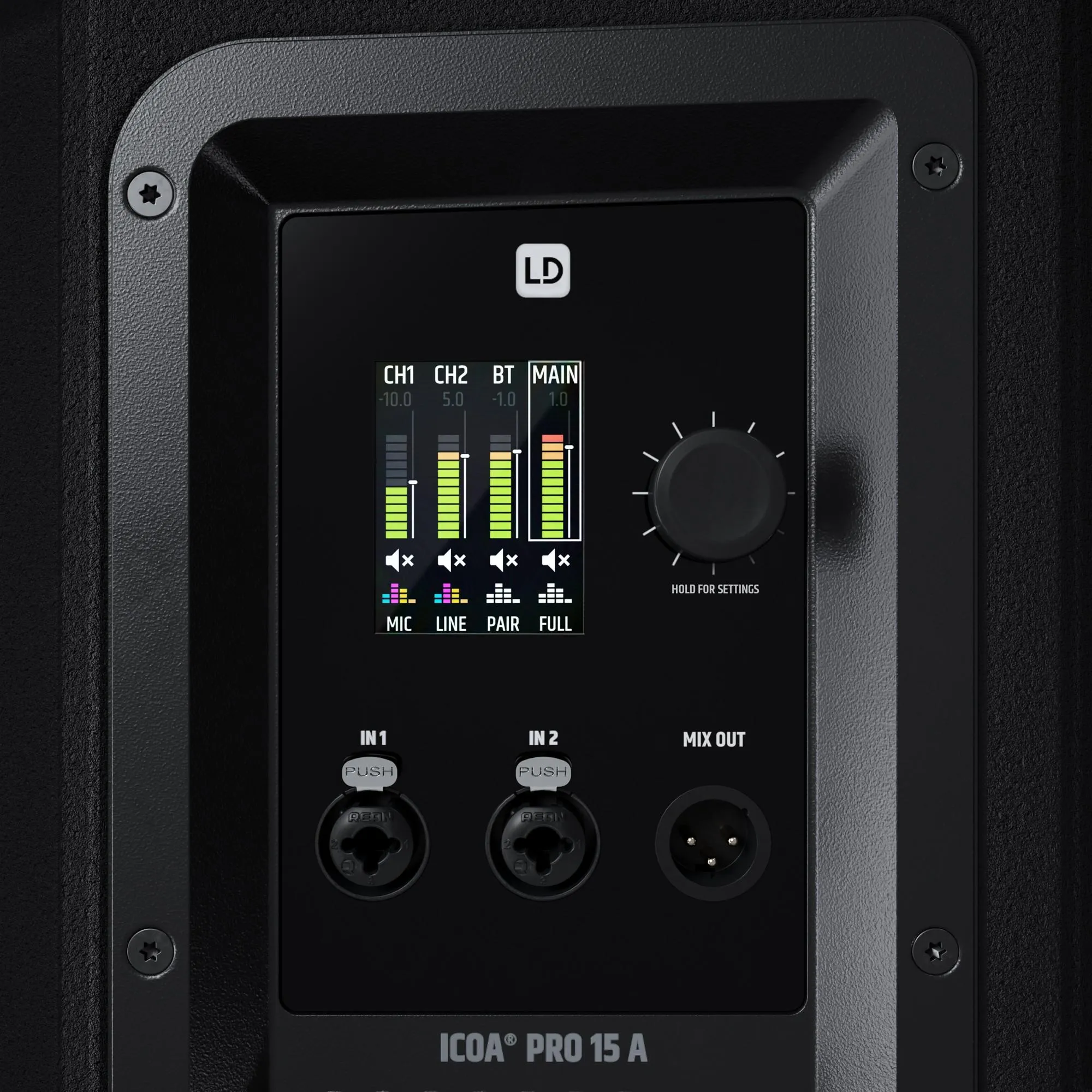

Powered by a Class D amplifier with up to 1500 W RMS (3000 W peak) and a maximum SPL of 135 dB, the speaker offers impressive low-end response down to 53 Hz. The advanced SysCore DSP provides distortion-free sound and customizable settings through an intuitive color display and the free ICOA PRO app, allowing for quick wireless adjustments and multiple speaker pairing.

With versatile mounting options, ergonomic handling, and a rugged ABS cabinet, the ICOA PRO 15 A is an excellent choice for various applications, complemented by optional protective covers for safe transport.

General
Peak output power 3,000 W
RMS output power 1,500 W
Amp class Class D
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) 130 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4) 135 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) 120 dB
Frequency response (-10 dB, rel. Avg) 53 - 20,000 Hz
Speaker system 2-way coaxial system (Common Motor Design)
Crossover frequency 800 Hz
Beam angle 90° (hor.) / 50° (vert.)

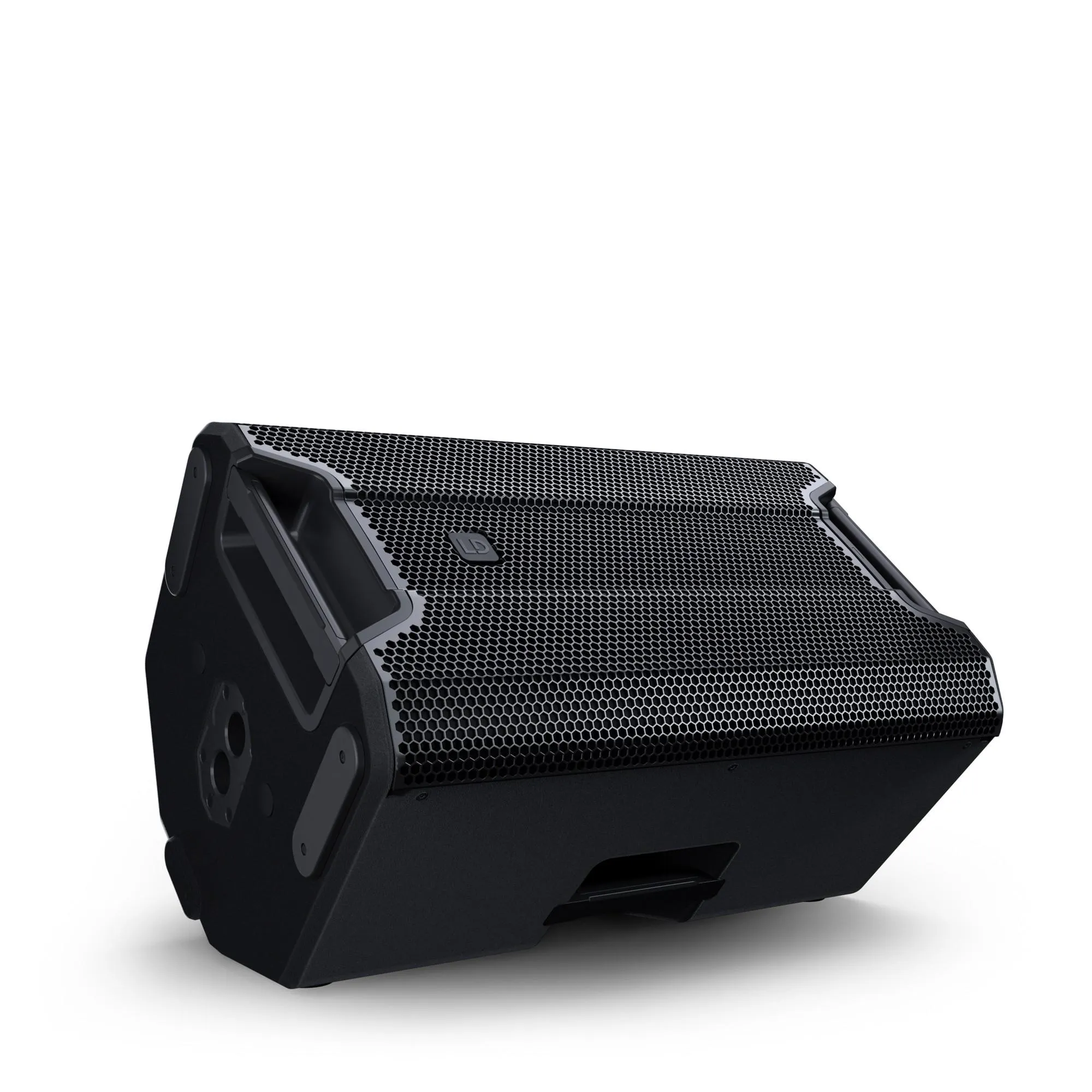

Monitor angle 50 °
Protection features Multiband Limiter, Short circuit, Overheating, Direct current
Colour Black

Bluetooth
Bluetooth version Bluetooth® 5.1
Features Audio Streaming (A2DP), TrueWireless™ Stereo, TrueWireless™ Mirroring, App control
Supported audio codecs SBC, AAC

Inputs
Number of mic/line inputs 2
Mic/Line-in connector type XLR combo socket
Number of line inputs 1

Outputs
Number of line outputs 1
Line outputs connector type XLR 3-pole male

Signal processing
AD/DA converter bit depth 24 Bit
AD/DA converter sampling rate 48 kHz
Min. Signal-to-noise ratio (SNR) 108 dB

Dimensions & weight
Width 417 mm
Height 690.7 mm
Depth 414.8 mm
Weight 25.8 kg
