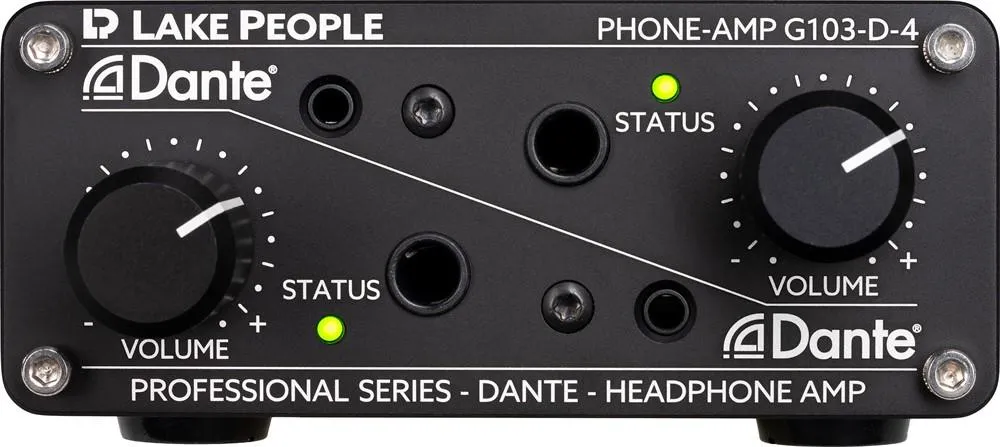

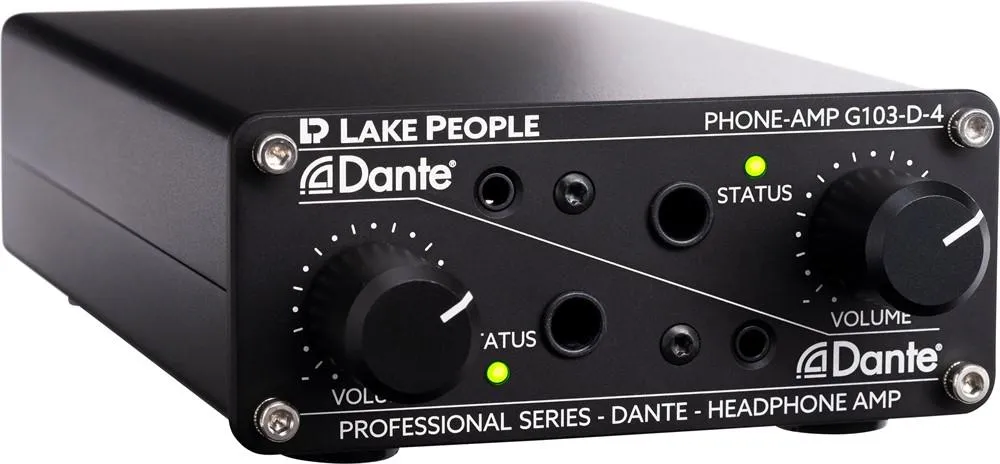

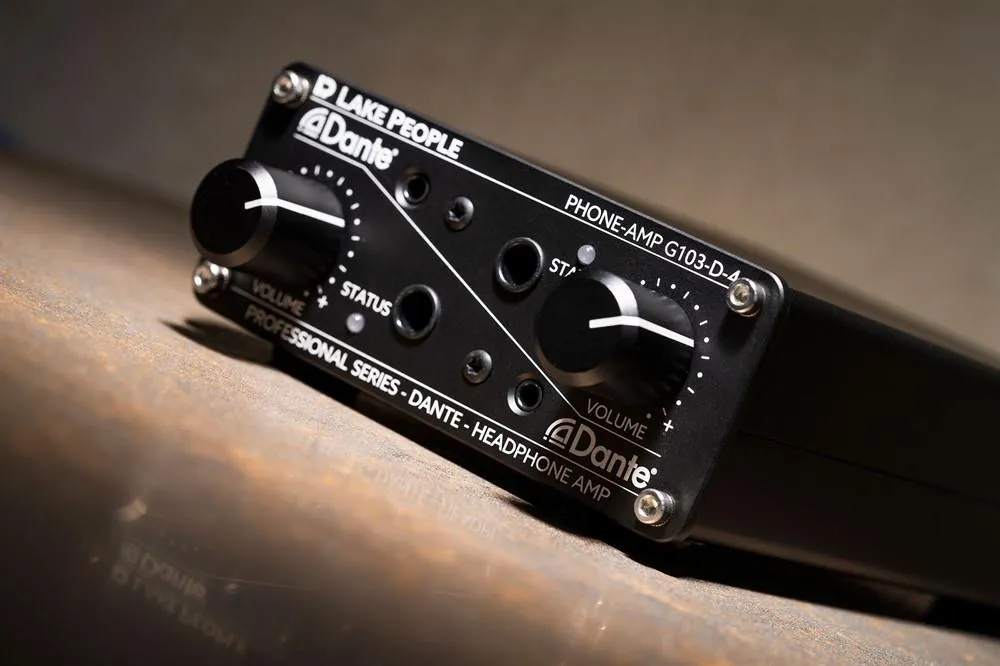

Lake People G103-D4

The Lake People G103-D4 headphone amplifier is engineered for professionals and audiophiles who demand the highest quality sound. With its robust design and Dante network integration, this amplifier is perfectly suited for modern studio environments, offering both flexible connectivity and outstanding audio fidelity. The Dante protocol ensures that the G103-D4 can easily integrate with larger audio networks, making it ideal for both studio and live sound applications.

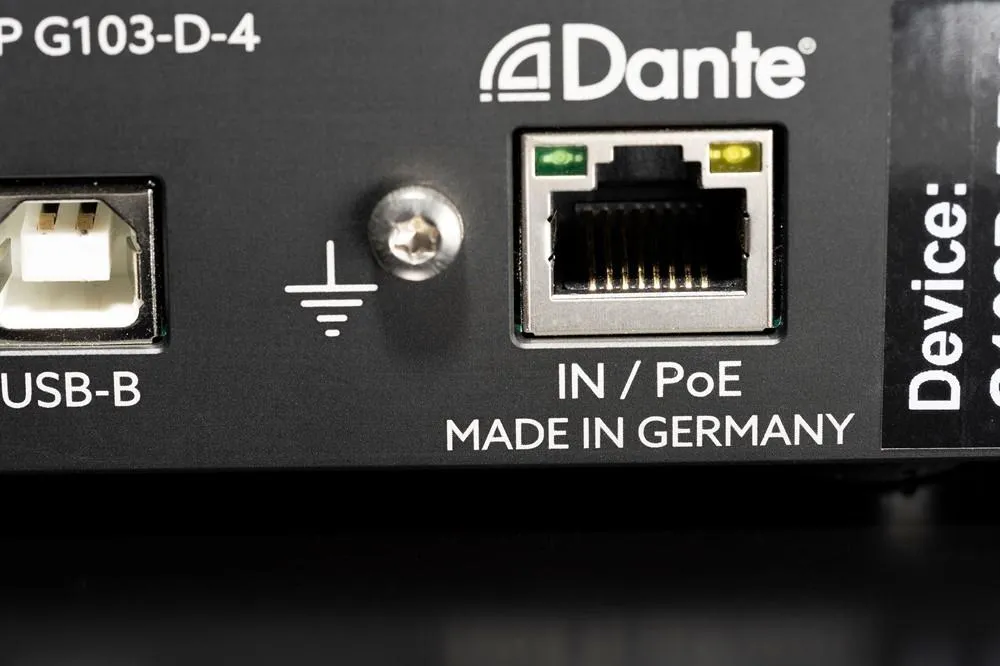

Dante Network Connectivity:
Seamlessly integrates into professional audio networks, allowing for low-latency, high-quality digital audio transmission over Ethernet.

High-Quality Sound:
Employs a discrete analog signal path to maintain transparent, high-fidelity sound with minimal distortion.

Powerful Output:
Drives high-impedance headphones with ease, delivering up to 1.5W per channel for an immersive listening experience.

Balanced Audio:
Features balanced XLR and RCA inputs and outputs, providing superior noise rejection and enhanced sound quality.

Precision Volume Control:
Equipped with a stepped attenuator for precise volume adjustments, ensuring accurate control for critical listening and mixing.

Technical Data
Dimensions 105 x 42 x 163 mm (WxHxD)
Volume Knob 18 mm Aluminum
Attenuator Make ALPS RK14
Dynamic range < 105 dB (A-bew.)
Amplifier make 4x Power Op-Amps
Output impedance < 1 Ohm
Signal-to-noise ratio (SNR) -102 dBu (A-bew.)
Frequency range 5 Hz - 90 kHz
Crosstalk -90 / -70 dB (1 kHz / 15 kHz)

Specifications
Type Dante Headphone Amp
Inputs 4 Channel Dante
Headphones 2x 6,3mm + 1x 3,5mm
Controls 2x Stereo Level Control
Form Factor Desktop

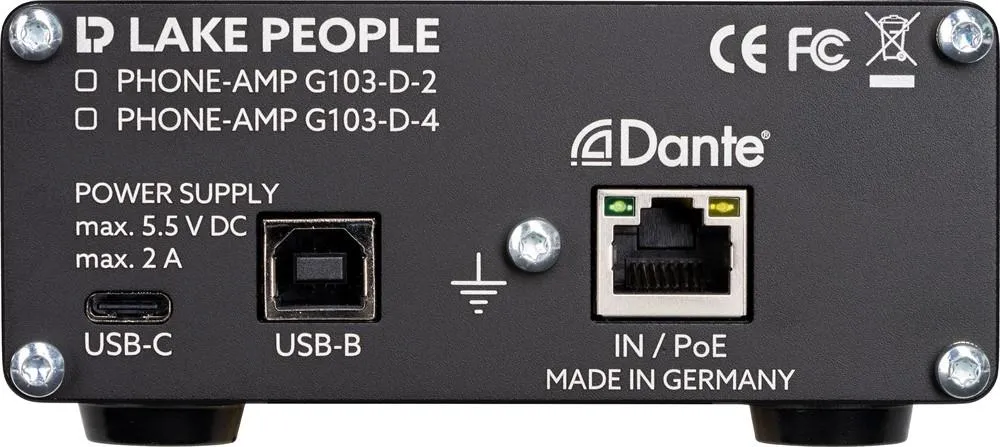

Power Supply USB-B, -C
Dimensions 19 x 5 x 10,5 cm
Weight 0,8 kg
