Lake People F822

The Lake People ANA-TOOL F822 is a dual stereo line converter designed to bridge the gap between professional and consumer audio equipment. Whether you need to adapt levels between different gear, reduce noise, or ensure optimal gain staging, the F822 provides a transparent and distortion-free conversion.

Unbalancing, impedance and level matching unit for interfacing between consumer- and studio equipment. - 2 x 4 identical sections from studio level to consumer level "-10 dBu"

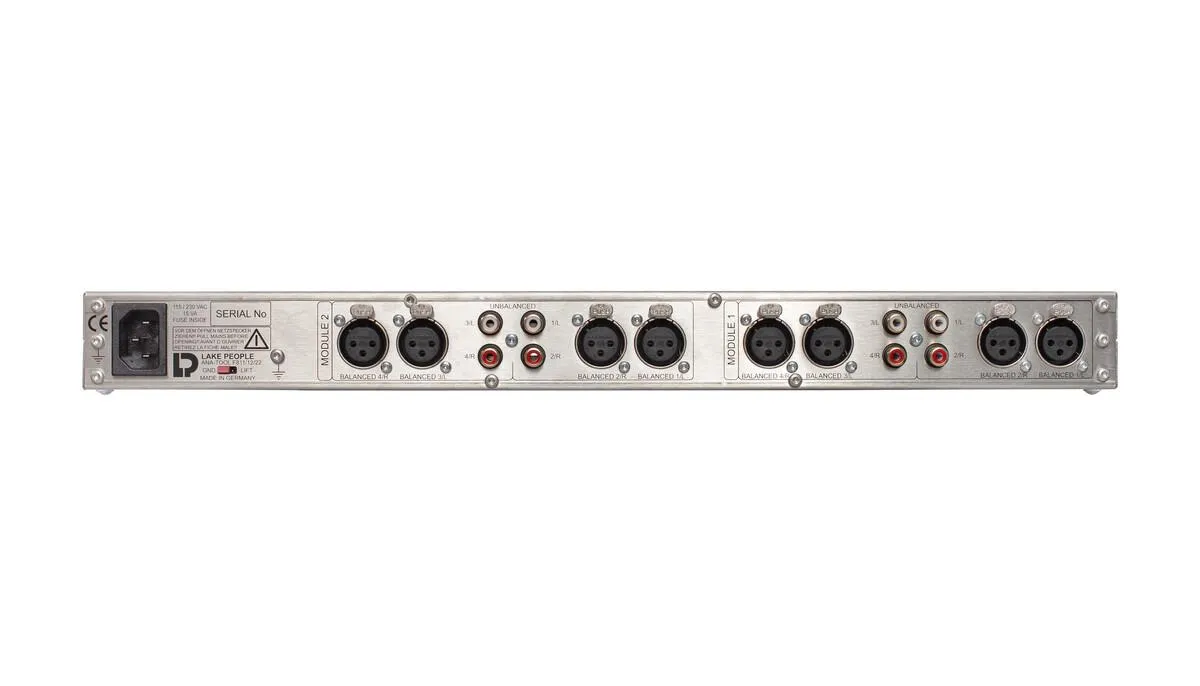

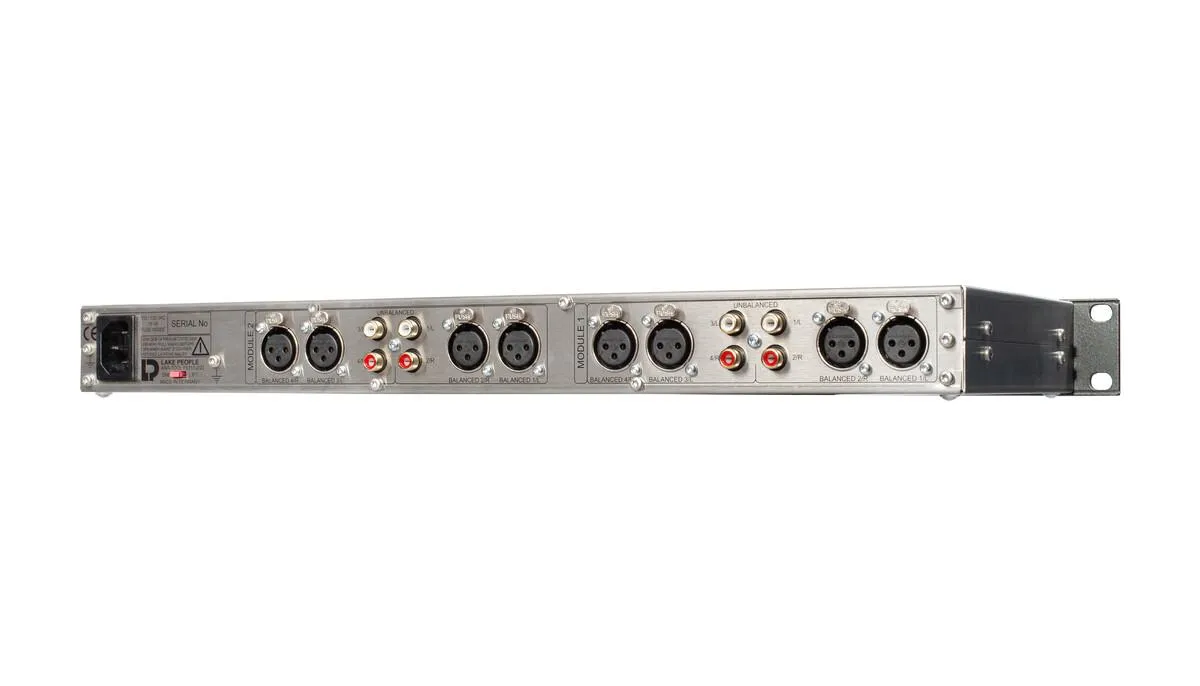

- Rear inputs via gold plated XLR sockets
- Inputs optimized for studio level signals signals
- Impedance 20 kohms
- internal differencial amplifiers with special circuitry for highest CMRR
- Internal filters to reduce the bandwidth to a safe and useful range: 5 Hz … 70 kHz (-1 dB)

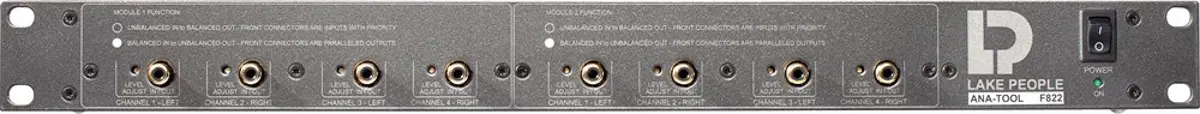

- Front accessible multiturn trimpots for level adjustment with a range from -21 … +3 dB
- Unbalanced outputs on the front and rear panel with gold plated RCA connectors
- Output impedance < 15="">
- 19”, 1 U stainless steel case, front color dark grey

FEATURES
Differentiation of input signals with special circuits for maximum common-mode rejection
2 identical sections with 4 channels from studio level to consumer level ‘-10 dBu’
Front-panel spindle trimmers for level adjustment in the range -21 ... +3 dB
Inputs optimised for line-level signals

TECHNICAL DATA
Max. Input Voltage > +25 dBu
dimensions 483 x 44 x 166 mm (BxHxT)
housing form 19" / 1 HE
output impedance < 15 Ohm
Line I/O 8 / 8 (XLR/RCA)
max. output level > +21 dBu
mic gain 20 kOhm
power supply Internal 230 V / 115 V AC
THD+N (@ -1 dBFs) < -100 dB
frequency range 5 Hz - 70 kHz ( -1 dB)
crosstalk < -100 dB @ 15 kHz
gain range -21 - +3 dBu
