Korg NTS-3 DYI Kaoss Pad Kit

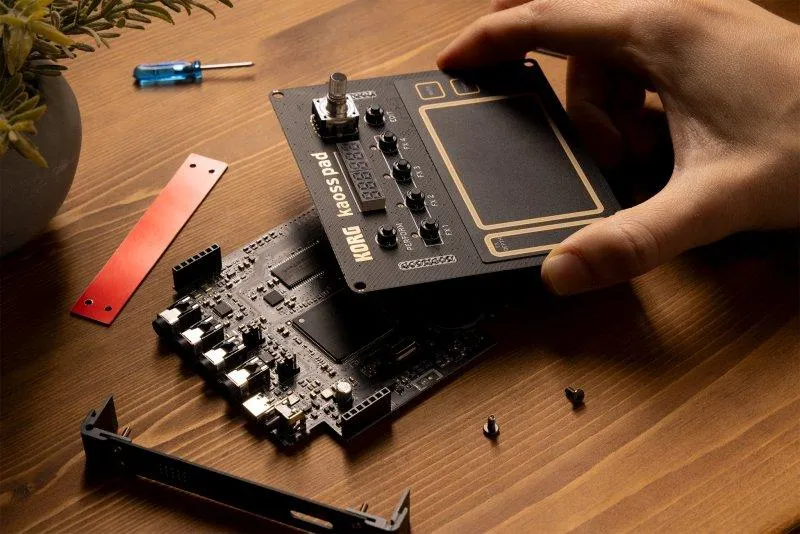

Build your KAOSS

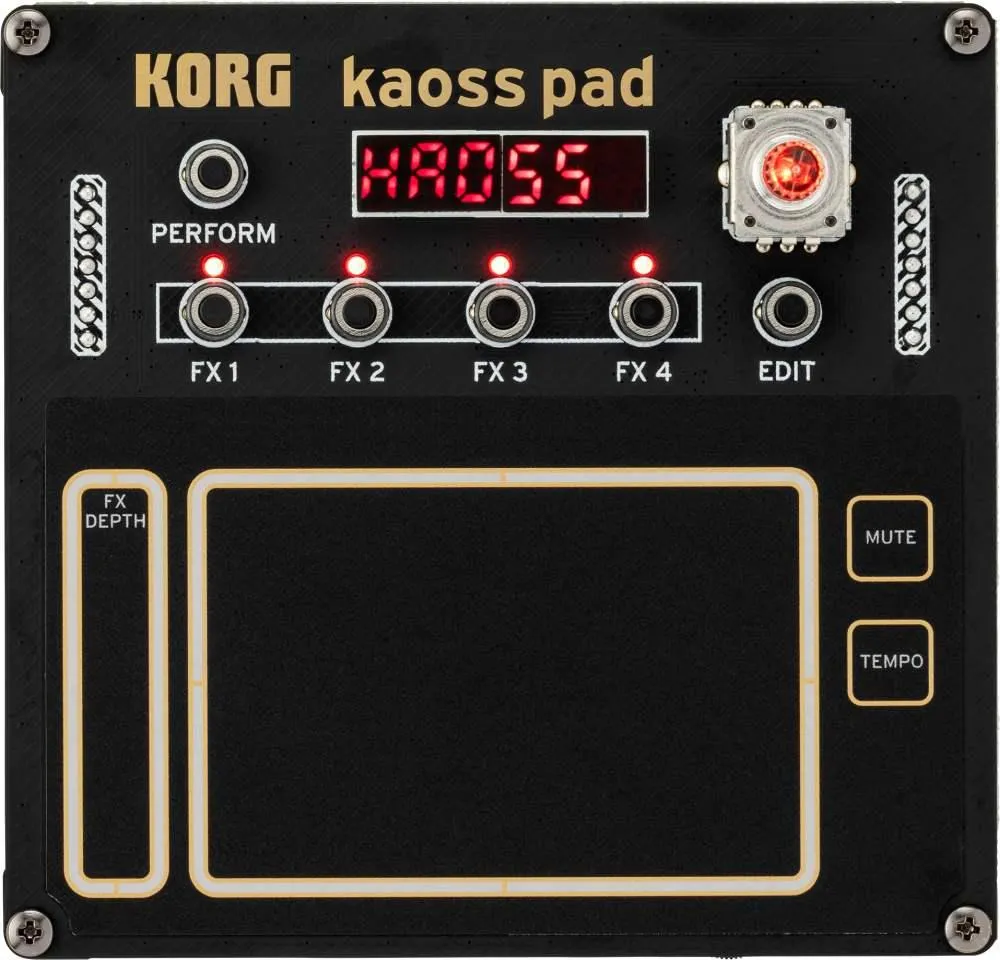

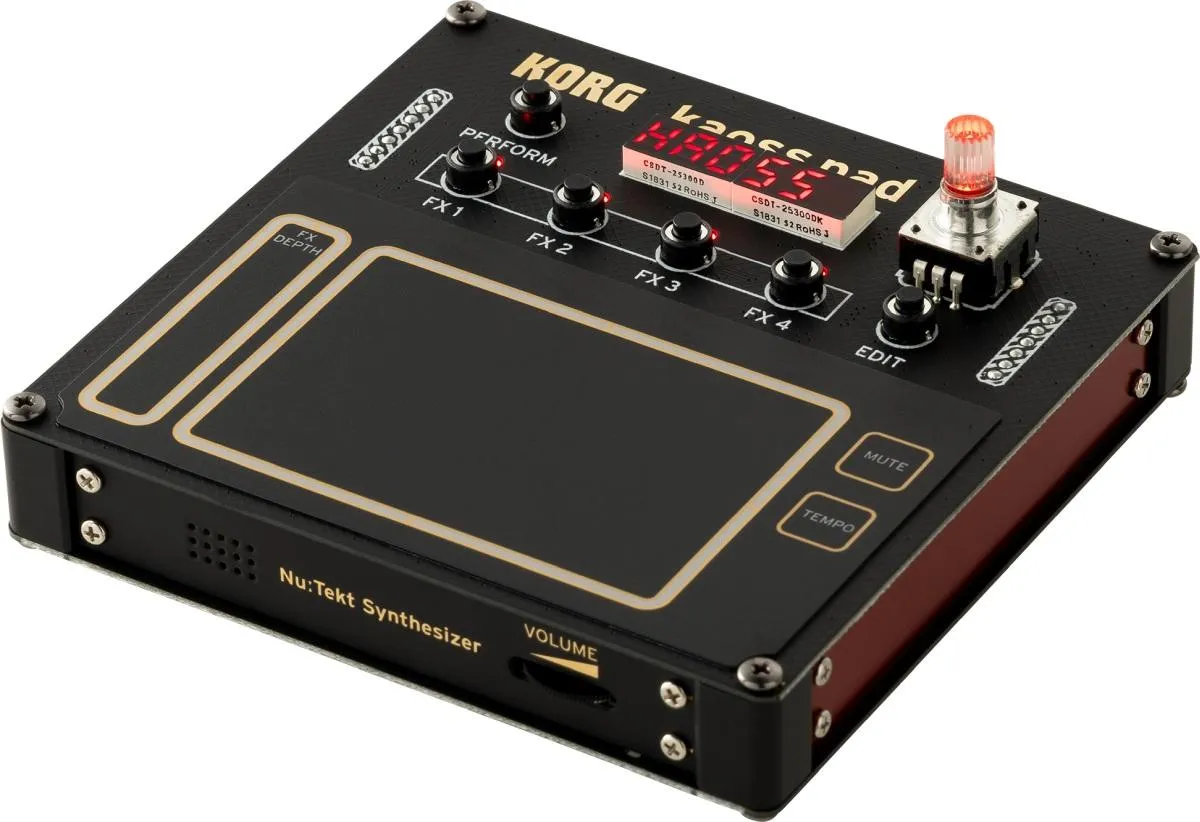

The Nu:Tekt NTS-3 kaoss pad is a groundbreaking new effects unit, seamlessly integrating the iconic KAOSS XY pad touch interface and the distinctive KAOSS effects into a compact yet powerful customizable DIY kit.
With up to 4 effects playable at the same time and deep editing options, NTS-3 stands as a performance powerhouse, offering unparalleled versatility that elevates your on-the-go performances to new heights.
Designed with performance in mind, the NTS-3 boasts user-friendly controls and adaptable connectivity, making it the ultimate compact FX unit that will delight musicians, sound creators and DIY gadget fans alike.
Experience the next level of sonic expression with the Nu:Tekt NTS-3 kaoss pad.

KAOSS powered performances
Betraying its compact size, The NTS-3 kaoss pad comes with a treasure trove of built-in, distinctive KAOSS effects. These range from essential filters and compressors to immersive delays, reverbs and imaginative modulation effects, offering a palette of original and previously unexplored performance possibilities. With its powerful engine, the NTS-3 allows you to play individual KAOSS effects or seamlessly combine up to 4 effects simultaneously, which can be saved for future use. Toggle these on and off at will, and route them in various configurations for virtually  endless avenues of creative expression and boundless performance possibilities. But that’s not all—the NTS-3 opens the door to extensive editing options, enabling you to meticulously customize and fine-tune each effect's parameters to your heart's content, with the freedom and precision your creativity demands.

Specifications

Effects Total 35
Filter 5
Modulation 6
Delay 4
Reverb 5
Other (looper, grainshifter, vinyl break…)
Mastering 7
OSC 3
Performance programs 200 programs (100 preload, 100 user programs)

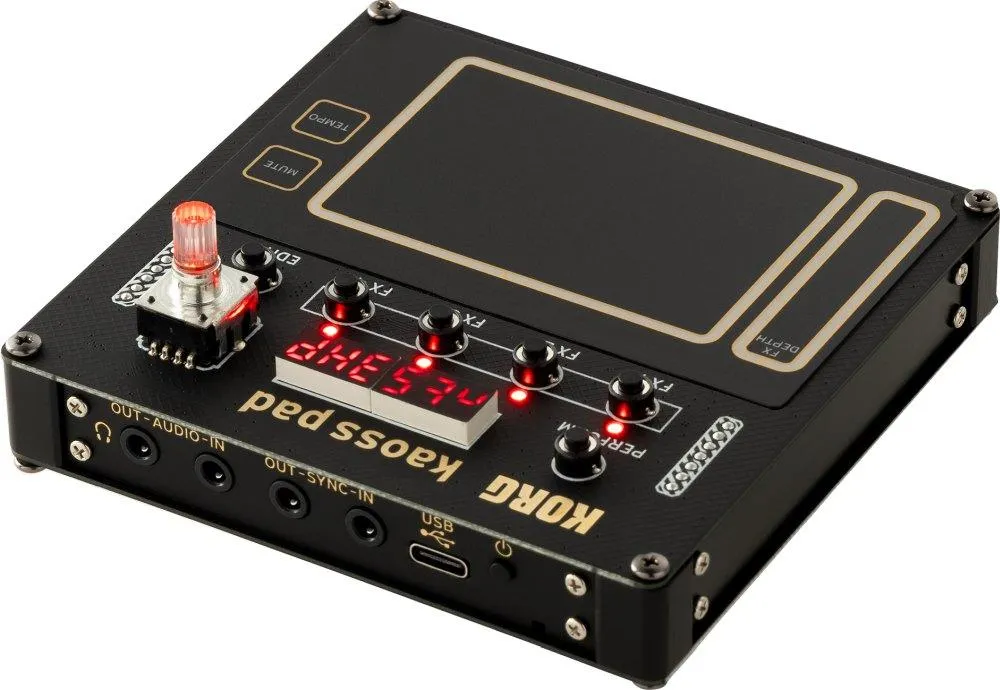

Input/output jacks Headphone / AUDIO OUT jack (3.5 mm stereo mini-phone jack)
AUDIO IN jack (3.5 mm stereo mini-phone jack)
SYNC OUT jack (3.5 mm TRS mini-phone jack, 5V output level)
SYNC IN jack (3.5 mm TRS mini-phone jack, 20V maximum input level)
USB port (Type-C)
Power supply USB bus power mode
Current consumption 500 mA or less
Dimensions (W × D × H) 104 × 101 × 39 mm
Weight 119 g
Included items USB cable, Assembly Instructions
