Korg HD-S NuTekt Harmonic Distortion Pedal DIY Kit

Korg Nu:Tekt HD-S – Distortion Pedal DIY Kit with Three Combinable Circuits

The Korg Nu:Tekt HD-S is a unique distortion pedal that combines three separate circuits to create a wide range of distortion sounds. By adjusting the balance between the circuits, you can shape everything from traditional fuzz to unusual filter-like modulations and experimental tonal textures.

Developed by Fumio Mieda, known for his work on effects such as the Univibe, the pedal uses a different approach to sound shaping than conventional distortion and fuzz pedals. Four external controls and three internal trim potentiometers provide extensive options for tailoring the sound to your needs.

The Korg Nu:Tekt HD-S is suitable not only for electric guitar but also for electric bass, synthesizers and other instruments that benefit from creative, distinctive distortion.

The pedal is supplied as a DIY kit and can be assembled without soldering. The necessary tools are included, making it suitable for users who want to build their own effects pedal and learn more about its design.

Features

Distortion pedal with three combinable circuits
Flexible sound shaping by adjusting the balance between circuits
Wide tonal range from traditional fuzz to filter-like modulation

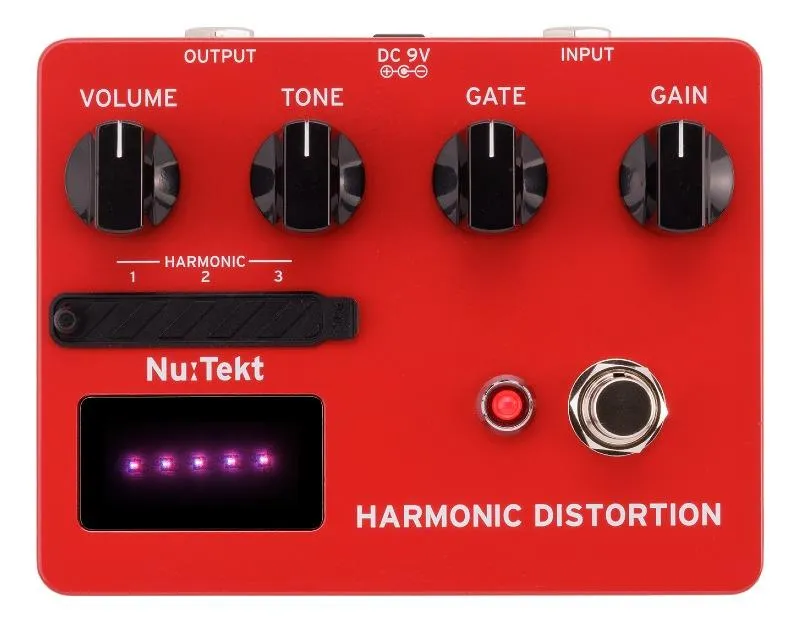

Four external controls

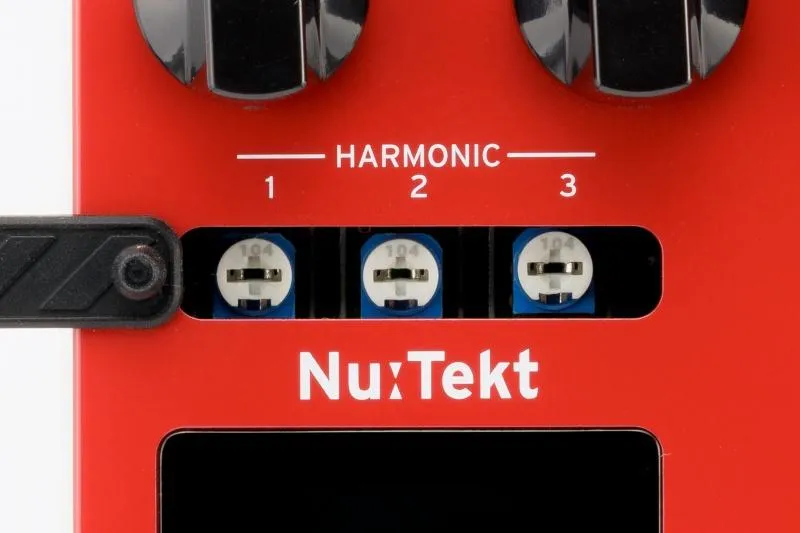

Three internal trim potentiometers
Designed by Fumio Mieda
Suitable for electric guitar, bass, synthesizers and other instruments
Supplied as a DIY kit
Solder-free assembly
Assembly tools included

Connections

Input: Mono jack
Output: Mono jack
Power connection: 9 V DC

Power Supply

9 V battery, 6LF22 or 6LR61
9 V DC power adapter, sold separately
Battery life: Up to 10 hours with an alkaline battery
Power consumption: 45 mA
Recommended power adapter: Korg KA189, 9 V DC

Technical Specifications

Type: Distortion pedal with three combinable circuits
Dimensions (W × D × H): 122 × 96 × 55 mm
Weight: 340 g without battery

Included Accessories

Manual
Assembly tools
Guitar pick
Fumio Mieda caricature sticker
