König & Meyer 19450 Speaker Wallmount

K&M 19450 – Long-arm speaker wall mount

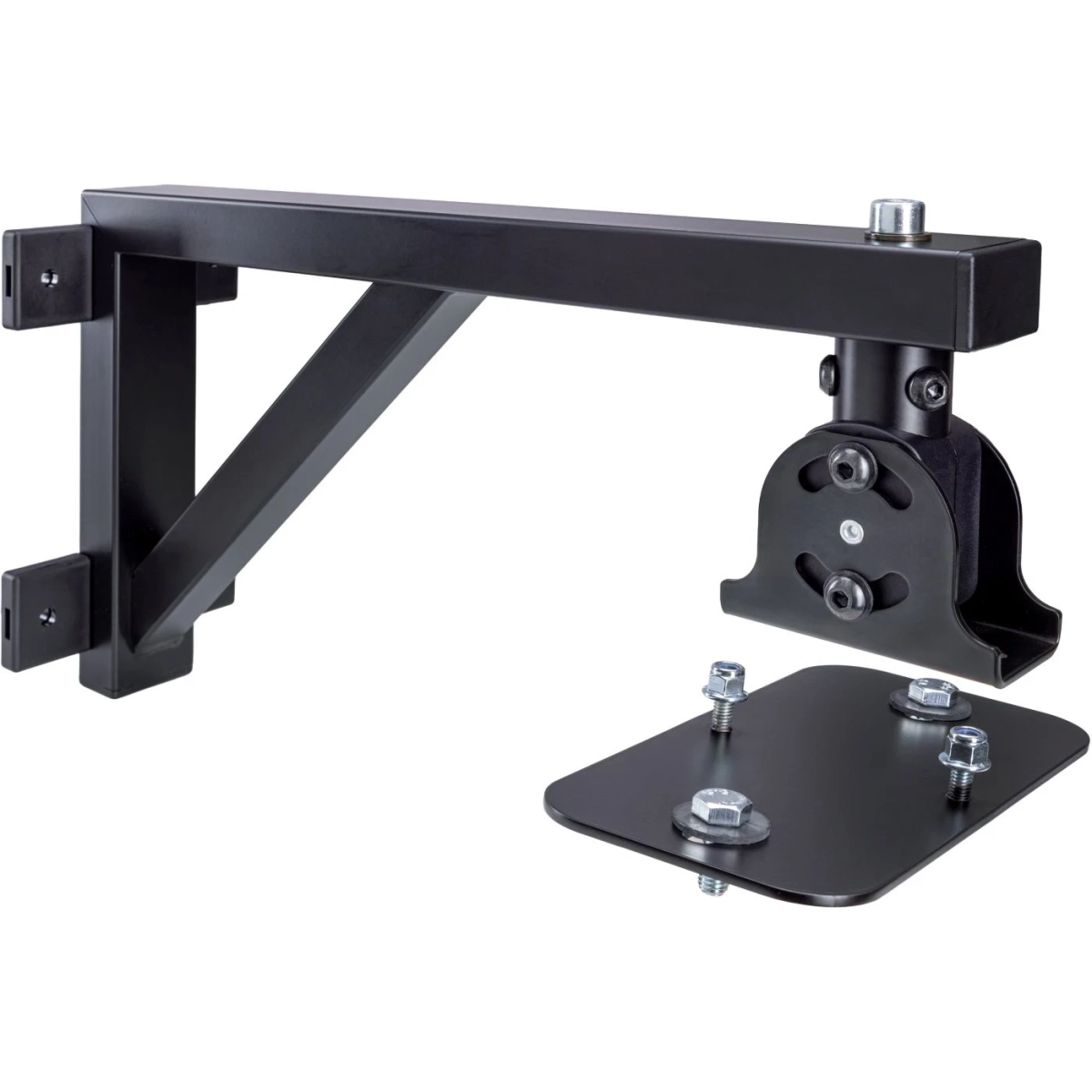

The K&M 19450 is a sturdy and flexible speaker wall mount, designed for easy and secure wall installation. The mount is compatible with a wide range of Yamaha speakers and allows for high-precision adjustment of both position and angle. The practical design with hook mounting and screw lock makes installation quick and easy.

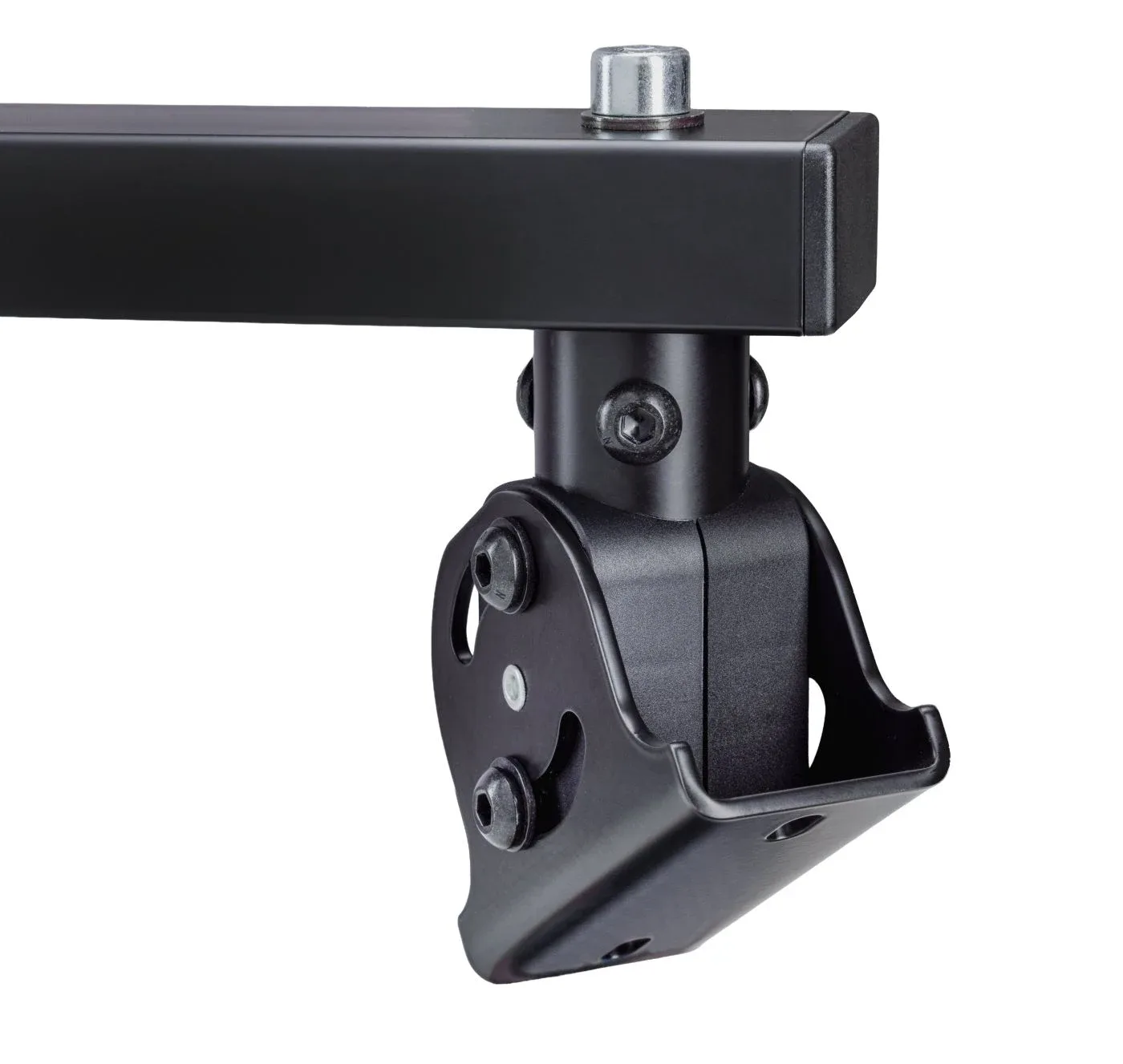

The mount offers stepless tilt adjustment between -45° and 45° as well as 360° rotation, providing optimal sound imaging in all environments, from studios and stages to conference rooms and installations. With a wall clearance of 400 mm, it provides ample space for cabling and placement. The sturdy steel construction supports speakers weighing up to 28 kg.

Compatibility
Direct fit: Yamaha DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
Requires Yamaha U-Bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10

Features
Sturdy steel wall mount for professional speaker installations
Stepless angle adjustment between -45° and 45°
360° rotation for flexible sound direction
Long arm with 400 mm wall clearance
Quick installation with hook mount and screw lock
Supports speakers up to 28 kg
Fits multiple Yamaha models directly or via U-Bracket
Specifications
Adjustment method: Stepless
Tilt: -45° to 45°
Mounting plate: 180 × 90 mm
Weight: 3.35 kg
Material: Steel
Max load: 28 kg
Mounting: Wall mount
Hole spacing: 60–70 mm or 115–150 mm
Rotation: 360°
Wall clearance: 400 mm
Color: Black
