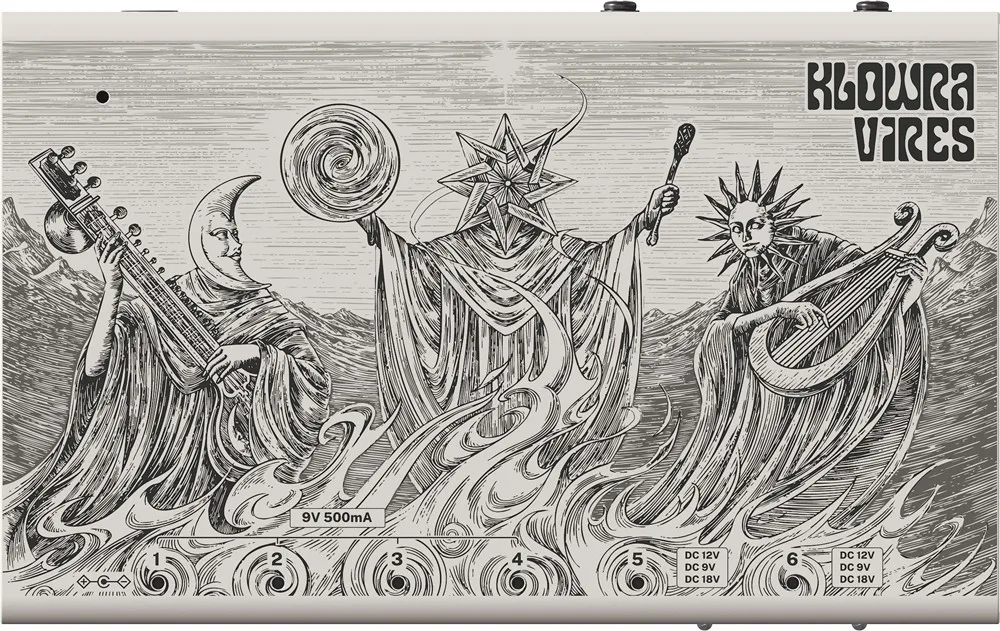

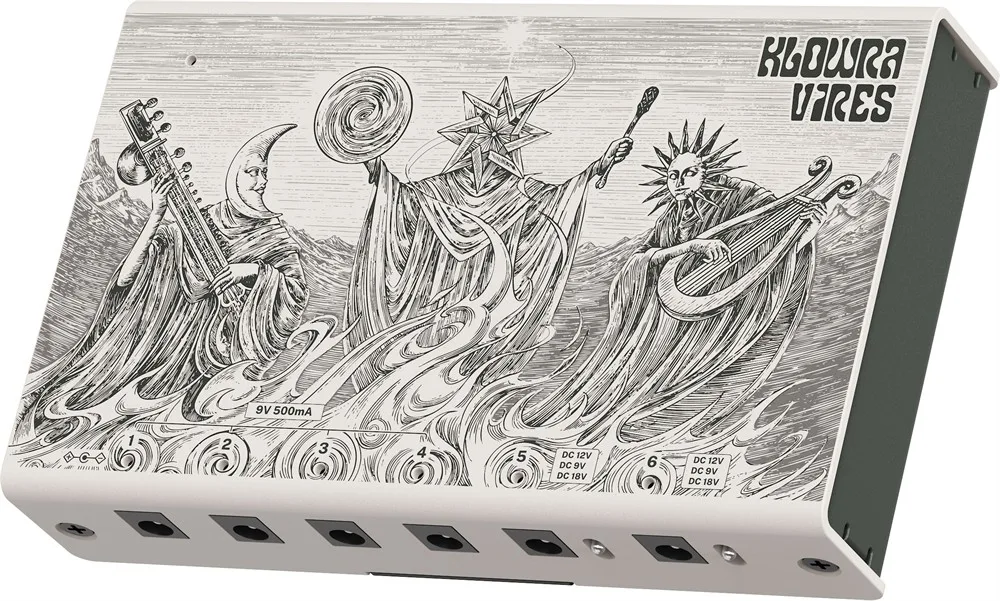

Klowra Vires Effects Pedal Power Supply

Klowra Vires Effects Pedal Power Supply

The Klowra Vires is a powerful, low-noise power supply designed for pedalboards that require clean and stable power. Its dual-isolated architecture powers up to six effects pedals through individually isolated outputs, helping minimise noise and ground issues. With four high-current 9 V outputs and two adjustable outputs selectable between 9, 12 and 18 V, Vires accommodates both analogue pedals and more power-hungry digital effects.

A dedicated 24 V output allows compatible power supply systems to be expanded for larger pedalboards. Each output features an LED indicator for power status and fault detection, as well as overload and short-circuit protection. The universal 100–240 V AC input allows the power supply to adapt to different mains voltages worldwide.

Features and Specifications

Low-noise effects pedal power supply
Dual-isolated architecture
6 individually isolated high-current outputs with centre-negative polarity
4 × 9 V DC outputs, rated at 500 mA each
2 adjustable outputs: 9 V / 500 mA, 12 V / 375 mA or 18 V / 250 mA
24 V DC EIAJ output rated at 1,500 mA for expanding compatible power supply systems
Individual LED indicators for power status and fault detection
Overload and short-circuit protection on each output
Universal AC input: 100–240 V AC, 50/60 Hz
Includes IEC power cable and a complete set of pedal power cables
Compact aluminium enclosure
Dimensions (W × D × H): 158 × 98 × 32 mm
Weight: 450 g
