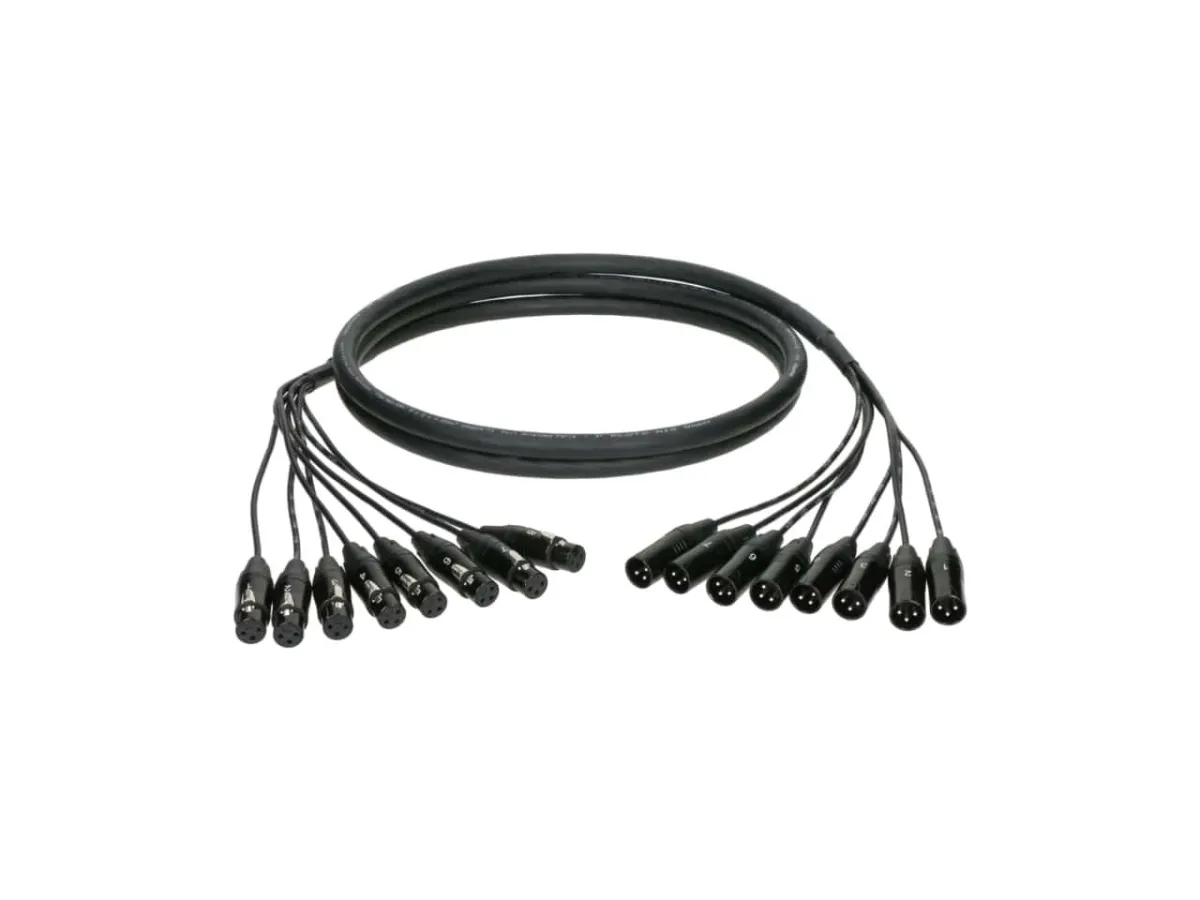

Klotz 8xXLR 3-pin Male > 8xXLR 3-pin Female 3m

SUC Universal Looms are manufactured using the robust yet flexible DigiWire cable and offer a choice of two, four or eight balanced signals with a conductor cross-section of 0.22 mm² (AWG 24) and are therefore suitable for both digital and analogue signals. The excellent layer wiring of the elements of the cable core maintains its structure even under high loads and an Al-coated foil (PiMF) effectively protects the individual pairs from electromagnetic interference. The black PVC casing is very robust and yet offers pleasant flexibility. The black chrome XLR 3p connectors from KLOTZ are used as connectors. The channel marking is laser engraved and guaranteed to be permanent and clear even in dark environments.

Can be used with analog and digital signal
Channel marking through laser engraved XLR connectors
XLR plugs with metal shell, plastic sleeve and silver-plated pins
DigiWIRE multicore cable - robust and flexible
conductor cross-section: 0.22 mm² (AWG 24)
Perfect for stage, studio and rehearsal space



Technical specifications
channels: 8
cable typ: DigiWIRE, Ø 0,22 mm², robust and flexible studio multicore cable, foil-shielded pairs (PiMF)
jacket: PVC
connectors
connector 1: 8x XLR 3-pin female, metal shell, black plastic sleeve
contact 1: silver-plated
connector 2: 8x XLR 3-pin male, metal shell, black plastic sleeve
contact 2: silver-plated
manufacturer XLR: KLOTZ
