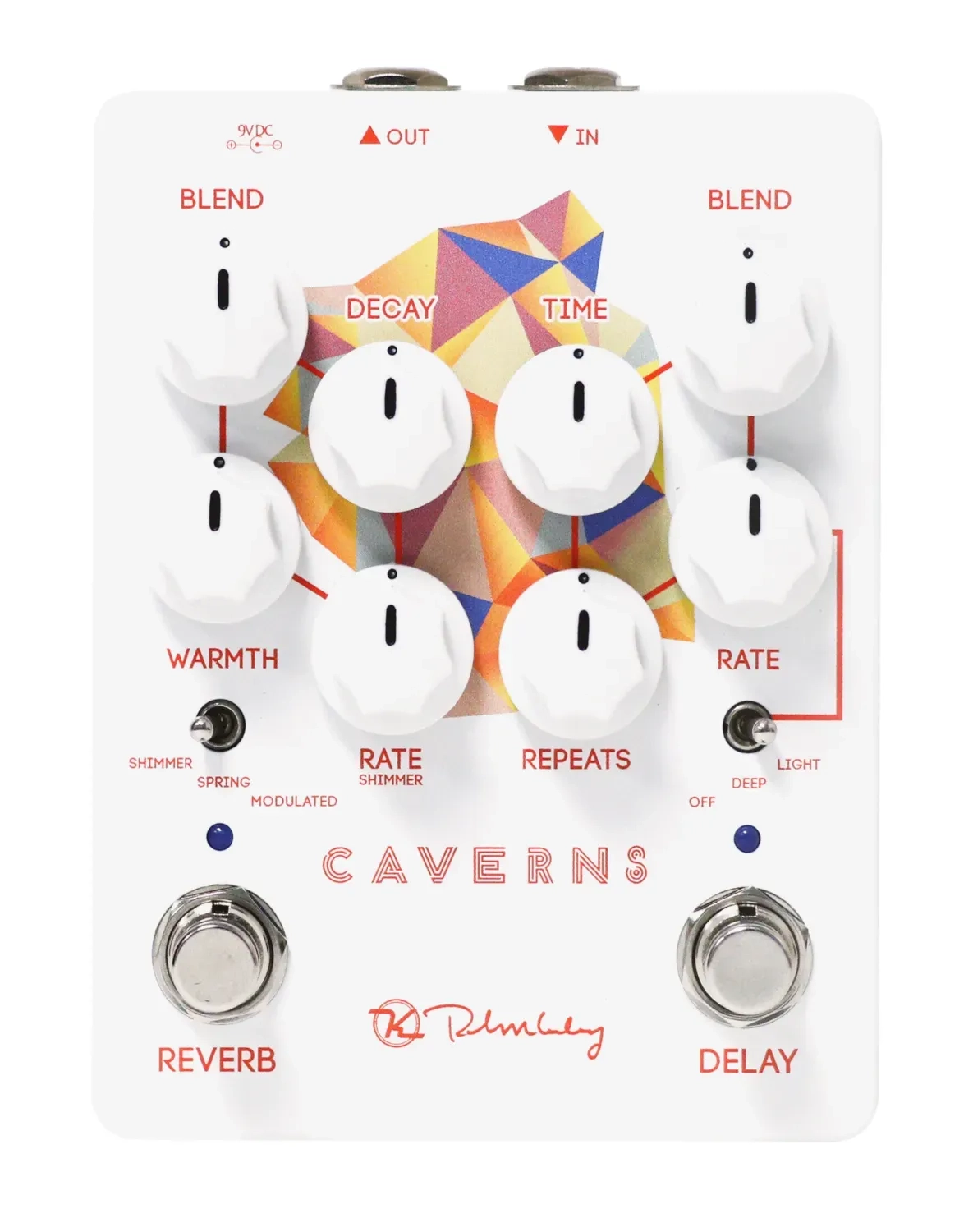

Keeley Electronics Caverns V2 Delay/Reverb

Keeley Caverns V2 - Delay / Reverb
The new Caverns Delay Reverb V2 dual effect pedal combines delay and reverb for the perfect end to any pedal board. The reverb and delay on the Caverns can be used individually or combined together. The Reverb side is equipped with a three way toggle switch than gives you the option to choose between Spring mode (Black style amp with F style tremolo), Modulation mode (choral modulation) or Shimmer mode (octave-up voices in reverb trails). The Delay side of the pedal incorporates Keeley's popular Magnetic Echo circuit, designed to emulate analog tape delay lines. Three-way switchable modulation gives you options for adding Wow and Flutter to the repeats. Also, the new Caverns Delay Reverb V2 allows you to choose between True-Bypass or Trails, giving you the freedom to create huge caverns of sounds and let them ring out even after you turn the pedal off. The Keeley buffer is engineered to retain your tone and feed your amplifier a full strength signal.

delay / reverb effects pedal
completely reworked version of the popular Keeley Caverns Delay / Reverb
both effects useable independently
Switching System Mode for using both effects separetely even with looper switchers
3 reverb modes (Shimmer / Spring / Modulated)
3 delay time modulation modes (Deep / Light / Off)
switchable bypass (true bypass / trails)
Reverb section controls for Blend, Warmth, Decay, Rate
Delay section controls for Time, Blend, Repeat, Rate
Reverb section toggle switch for selecting between Reverb modes
Delay section toggle switch for selecting between delay time modulation modes
Reverb footswitch
Delay footswitch
internal Delay Trails switch for selecting True/Trails Bypass for the Delay
internal Reverb Trails switch for selecting True/Trails Bypass for the Reverb
4 internal dip switches for activating Switching System Mode
metal housing
status LEDs
6.3 mm TRS IN/OUT jacks
power supply via optional 9V DC adapter, 2.1 mm x 5.5 mm barrel plug, polarity (-) center
battery operation not supported
current draw approx. 75 mA
dimensions (L x W x H) 120 x 99 x 53 mm
weight 450 g
made in USA
