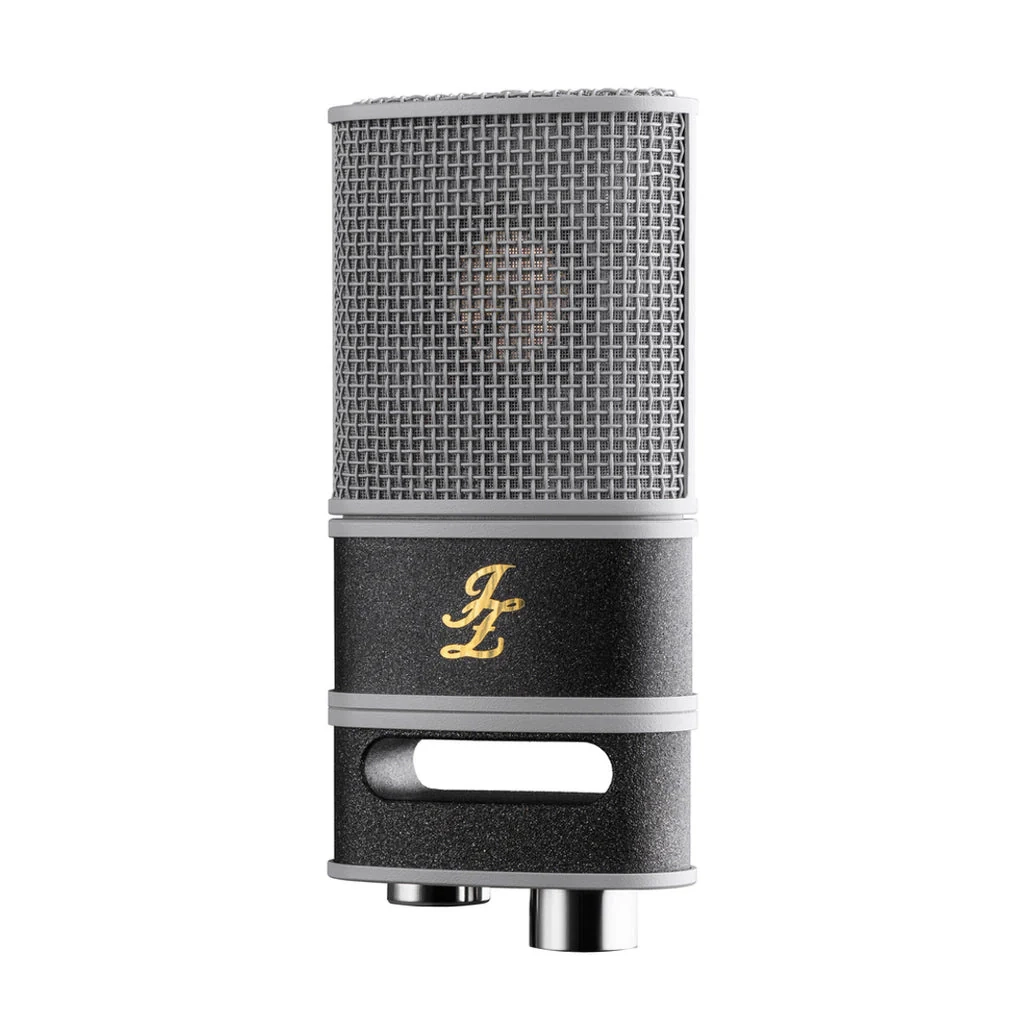

JZ Microphones Vintage 12

Large diaphragm 1" (25mm) Golden Drop Capsule - Cardioid
Extra-low self-noise level - 6 dB (A)
Maximum Sound Pressure Level (SPL) - 134 dB
Class A discrete electronics, components
Gold plated output contacts
Handcrafted
5 Year Warranty

VINTAGE 12

AKG's C12 is considered one of the best tube condenser microphones ever made. When it comes to vocals, no other mic can offer that level of silkiness, fullness and clarity.

The legendary mic has been an inspiration for many microphone manufacturers ever since and its CK12 capsule is still one of the best capsules ever built.

JZ Microphones now offers our version of the classic C12!

We have adopted the best sonic qualities of the C12, replaced tubes with more modern and durable transistor technology, and added our innovative Golden Drop Capsule to take the V12 to the next level.

Get the legendary sound of a classic C12 in a stylish new shape, with superior design and quality components that deliver even greater clarity and precision!

SOUND

With a slight scoop in the upper mid- range, a neutral and harmonic rich low-end, and an airy, wide bell lift in the top end, the V12 offers you a luscious and full character without ever becoming too bright or dark.

On all vocals, the new V12 is a must have! On acoustic guitar, electric guitar cabinets, percussion instruments, spoken word and so much more, the V12 is outstanding.

FEATURES

- Large diaphragm 1" (25mm) Golden Drop Capsule - Cardioid
- Extra-low self-noise level - 6 dB (A)
- Maximum Sound Pressure Level (SPL) - 134 dB
- Class A discrete electronics, components
- Gold plated output contacts
- Handcrafted
- 5 Year Warranty

TECHNICAL SPECIFICATION:

Transducer Type electrostatic
Operating principle pressure gradient
Polar Patterns Cardioid
Diaphragm’s active diameter 25 mm
Frequency Response 20 Hz - 20 kHz
Sensitivity at 1 kHz 22 mV/Pa
Output Impedance 50Ω
Rate Load Impedance >1000Ω
Maximum SPL 134 dB SPL (2.5kΩ, 0.5% THD)
S/N Ratio 87 dB-A
Noise Level 6 dB-A
Dynamic Range 128dB
Power Requirement + 48V DC Phantom Power
Weight 590 g
Dimensions 185mm x 71mm x 30mm
Current consumption 2 mA
Output connector 3-pin XLR male

PACKAGE INCLUDES:
1 x V12 microphone
1 x Warranity sheet
