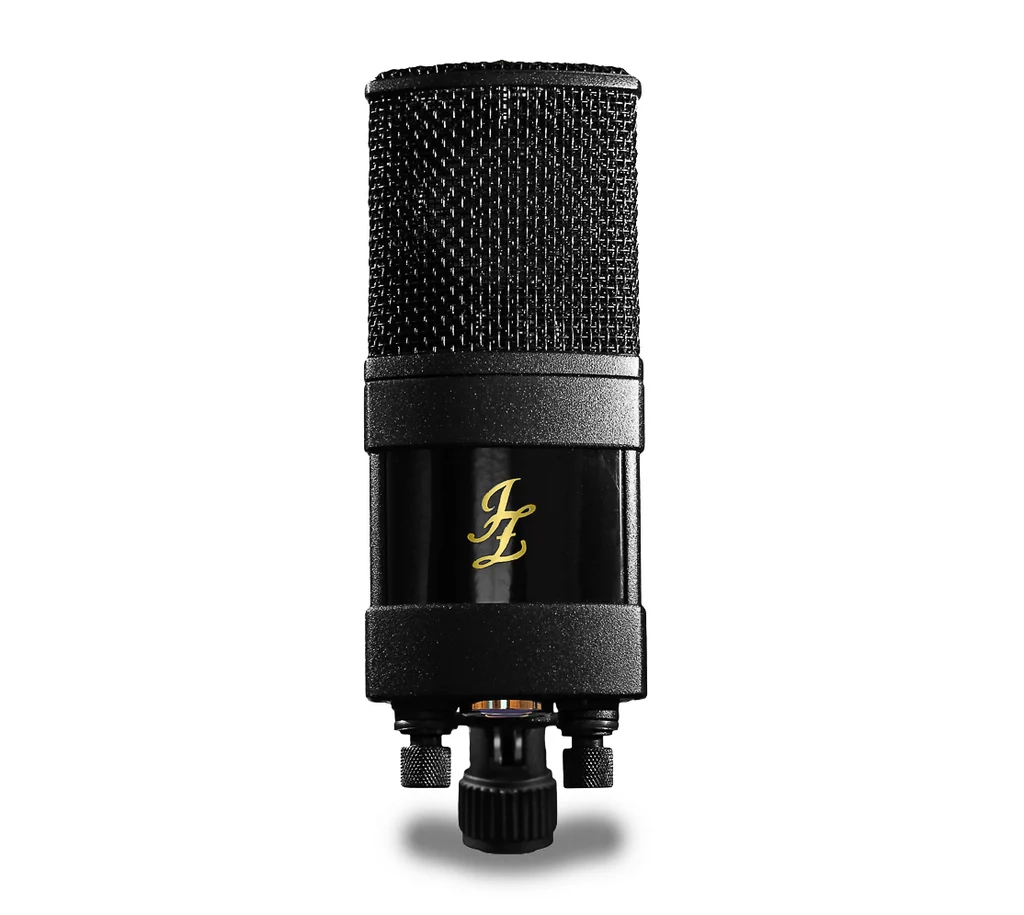

JZ Microphones Vintage 11

Large diaphragm cardioid condenser microphone
Golden Drop Technology™
Class A discrete amplifier circuit
Extremely low self-noise
Advanced shock-mount technology
Handcrafted
5 Year Warranty

VINTAGE 11

V11 is designed to deliver well-balanced, super rich sound for warm yet transparent and clear recordings in numerous applications.

Built by hand, using only the best, most carefully selected electronic components, each and every JZ Microphones product allow you to fully capture the very essence of the performance.

Advanced shock-mount technology will kill all unnecessary vibrations and keep the signal untouched giving you the best recording experience.

FEATURES

- Large diaphragm cardioid condenser microphone
- Golden Drop Technology™
- Class A discrete amplifier circuit
- Extremely low self-noise
- Advanced shock-mount technology
- Handcrafted
- 5 Year Warranty

"Innovative design approach. Holds its own with other hi-end mics. Truly stunning on acoustic instruments." - MIX Magazine

"Natural sound quality, low noise, smart looks. The first thing of note is that the Vintage 11 is a very quiet mic, with little apparent in the way of self noise." – Future Music

"In reality, it is simply a very good, very well built, warm-sounding studio microphone with an attractive price tag. Someone who is operating on a budget looking for that hi-end studio sound should consider the V11." - Modern Vocalist

TECHNICAL SPECIFICATION:

Transducer Type electrostatic
Operating principle pressure gradient
Polar Patterns Cardioid
Diaphragm’s active diameter 27 mm
Frequency Response 20 Hz - 20 kHz
Sensitivity at 1 kHz 22 mV/Pa
Output Impedance 50Ω
Rate Load Impedance >1000Ω
Maximum SPL 134 dB SPL (2.5kΩ, 0.5% THD)
S/N Ratio 87.5 dB-A
Noise Level 6.5 dB-A
Dynamic Range 128dB
Power Requirement + 48V DC Phantom Power
Weight 590 g
Dimensions 185mm x 71mm x 30mm
Current consumption 2 mA
Output connector 3-pin XLR male

PACKAGE INCLUDES:
1 x Vintage 11 condenser microphone
Warranty sheet
Cardboard packaging box
