JBL ASB6118

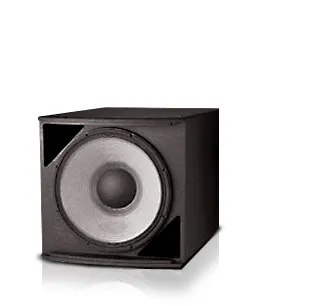

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

Large vent area for high output.
Arrays with AM6200 and AM4200 mid-high loudspeakers (using PAF-2K planar array frame kit) Arrays with AM2212 full-range speakers (using PAF-1K planer array frame kit). See Array Guide.
For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Frequency Range : 28 Hz – 1 kHz (-10 dB)
Frequency Response : 35 Hz – 1 kHz ( ± 3 dB)
Transducer Power Rating (AES) : 1200 W (4800 W peak), 2 hrs
Long-Term System Power Rating (IEC) : 800 W (3200 W peak), 100 hrs
Maximum SPL : 30 Hz – 100 Hz: 129 dB-SPL cont avg
(135 dB peak)
100 Hz – 500 Hz: 129 dB-SPL cont avg
(135 dB peak)
System Sensitivity (dB-SPL, 1W @ 1m) : 30 Hz – 100 Hz: 98 dB
100 Hz – 500 Hz: 98 dB
Nominal Impedance : 8 ohms
