Ibanez AUC10E-OPN

Okoume neck
The Okoume neck provides greater playing comfort.

Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.

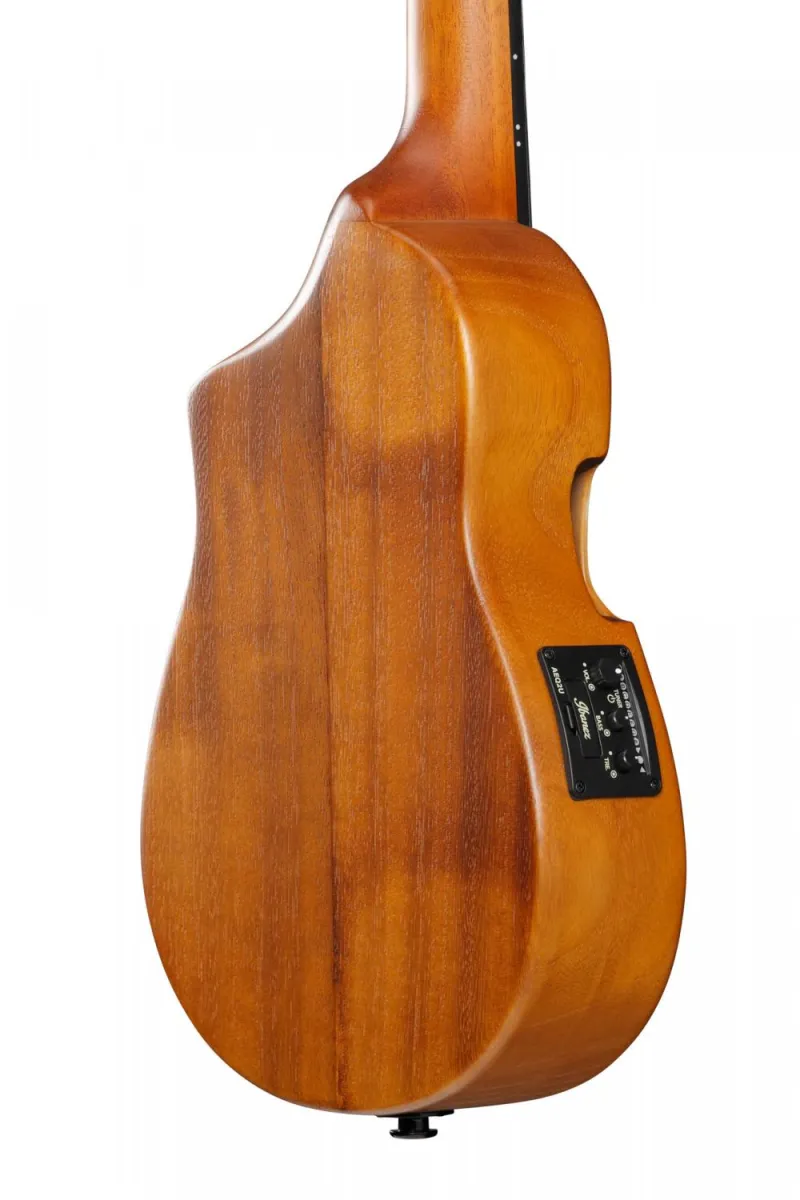

Solid Paulownia back and sides
The light weight Paulownia back and sides offer well-balanced tone with superior note definition and added brightness.

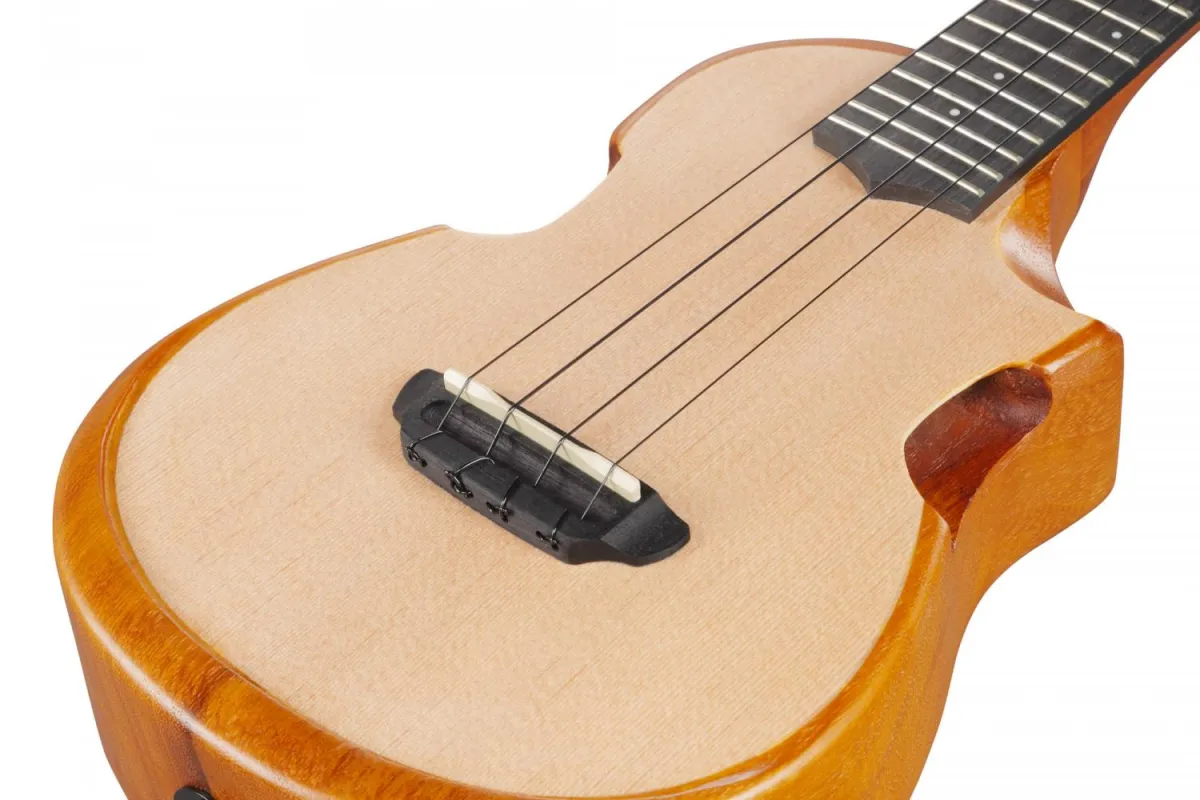

Purpleheart double hole bridge
The double hole bridge makes string changes super easy as there is no need to bend the strings or tie a knot at the end. This also helps maintain the correct string tension, which enhances tuning stability.

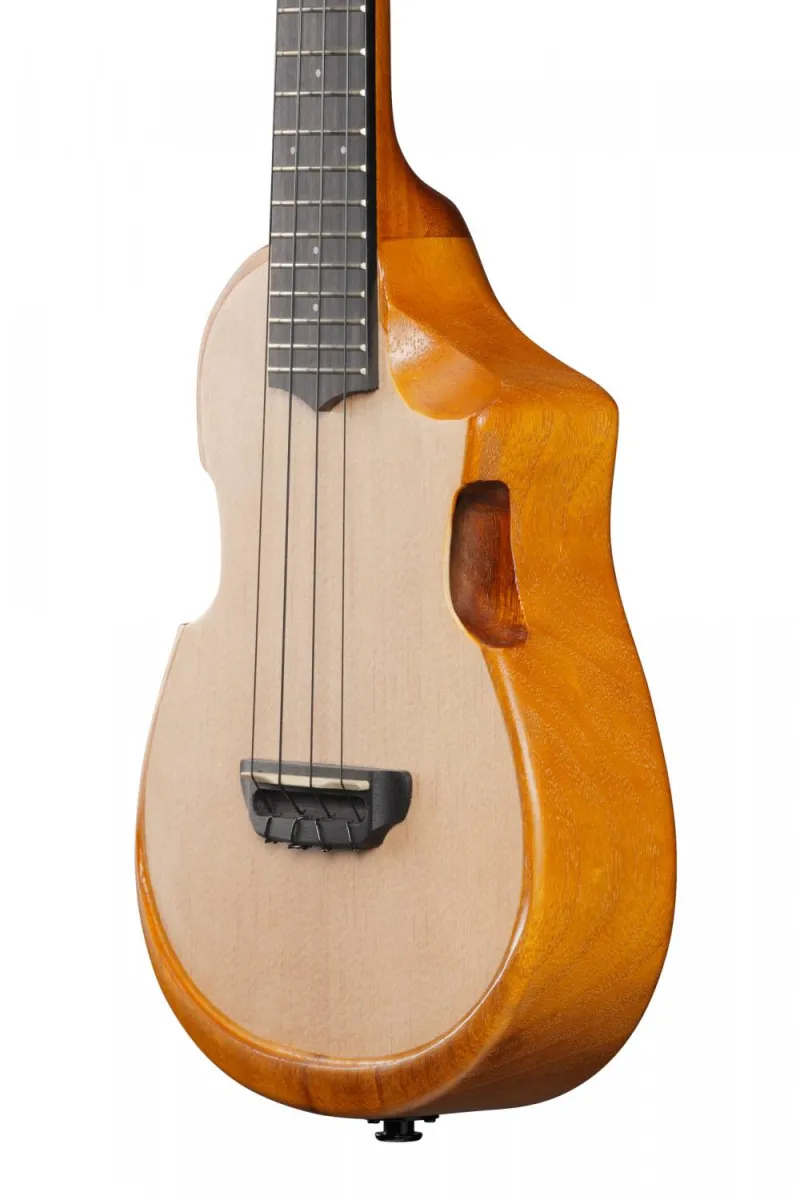

Stereo Sound Port System
The dual sound holes on the waist provide a unique surround sound effect, helping players more effectively monitor their sound.

Elevated Comfort Armrest
This Elevated Comfort Armrest can prevent your arm from touching the body top to provide richer sound and natural sustain while providing extreme playing comfort.

Beveled Cutaway
The Beveled Cutaway offers exceptional high fret access.

Edgeless Comfort Heel
The Edgeless Comfort Heel is smoothly rounded toward the cutaway, allowing for easy playing in any position.

Spruce top
Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

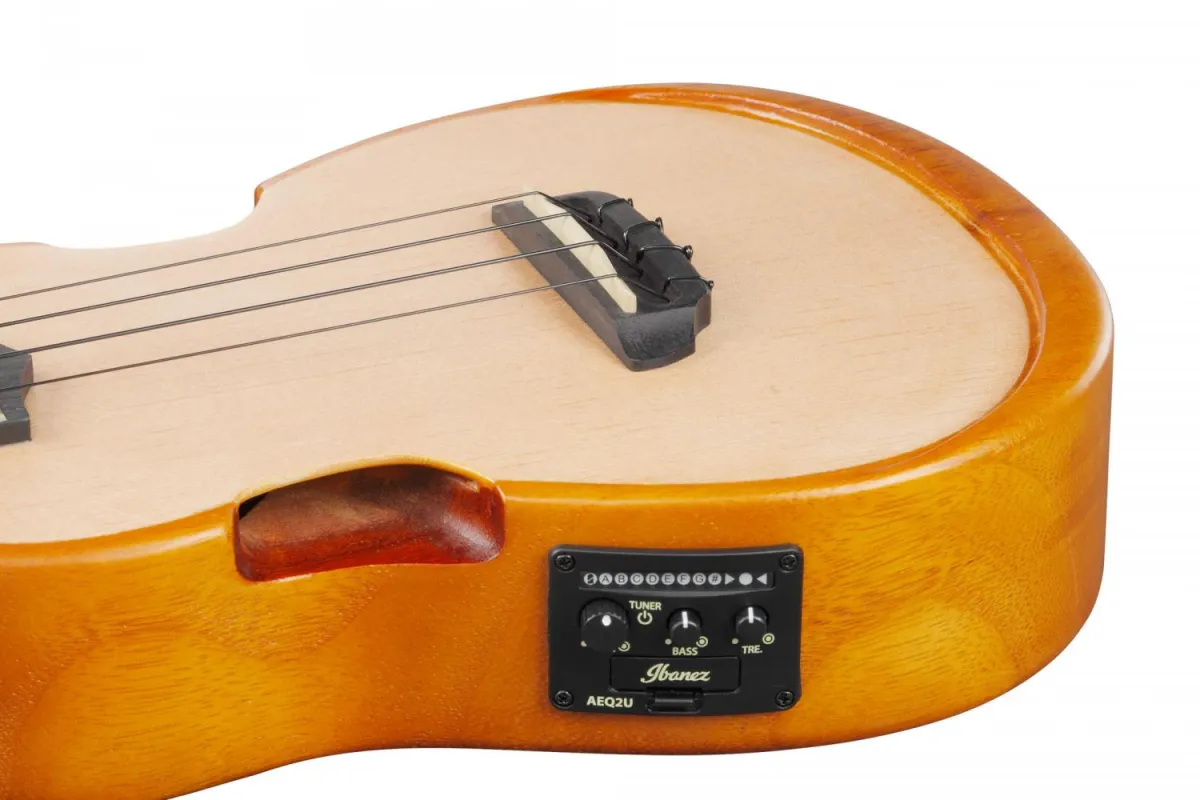

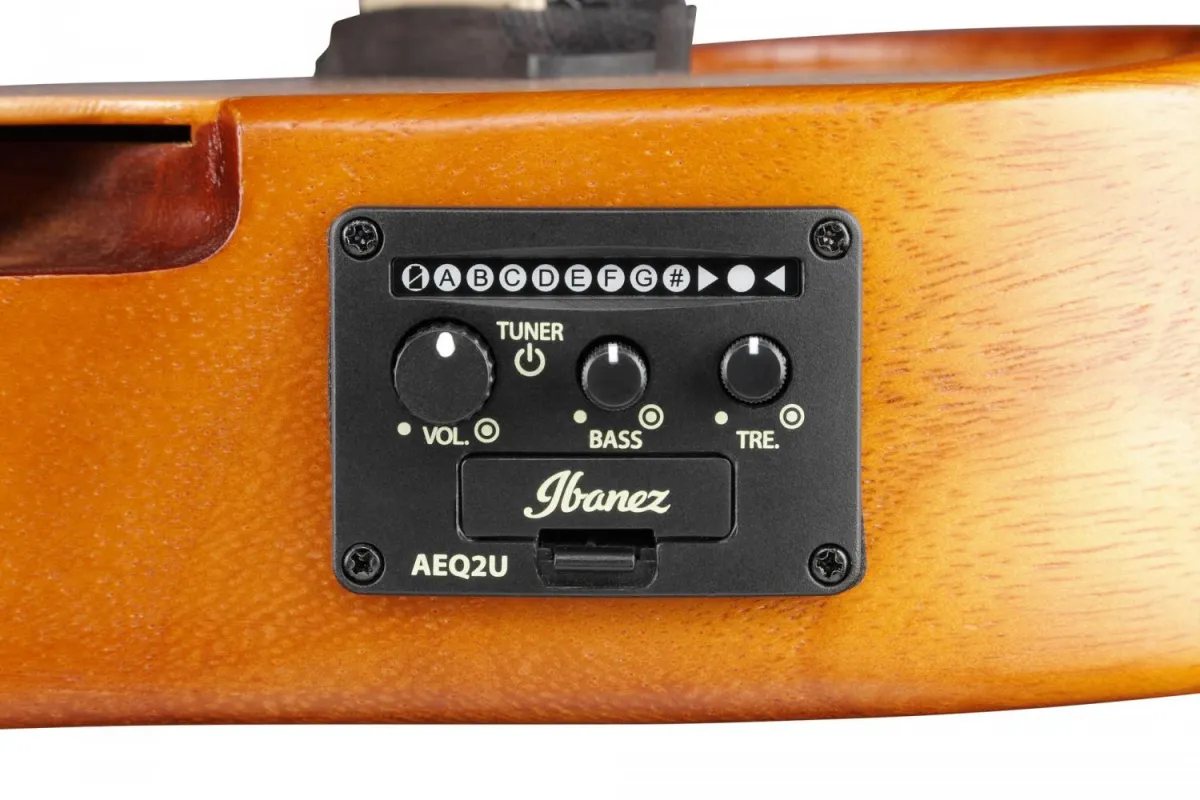

Ibanez AEQ-2U preamp w/Onboard tuner
The AEQ-2U preamp provides the extra punch of on-board EQ and a convenient, easy-to-read digital tuner.

SPECS
body shape
AU concert body
top
Spruce top
back & sides
Solid Paulownia back & Solid Paulownia sides
neck
AUCOkoume neck
fretboard
Purpleheart fretboard
bridge
Purpleheart double hole bridge
inlay
White dot inlay
soundhole rosette
-
tuning machine
Black Die-cast tuners
number of frets
19
strings
Aquila® Nylblack
string gauge
.026/ .032/ .038/ .028
string space
15mm
factory tuning
1A,2E,3C,4G
pickup
Ibanez Undersaddle
preamp
Ibanez AEQ2U preamp w/Onboard tuner
output jack
1/4" Endpin Jack
battery
CR2032 x2
NECK DIMENSIONS
Scale :
382mm/15"
a : Width
37mm at NUT
b : Width
47mm at 14F
c : Thickness
17.5mm at 1F
d : Thickness
20.7mm at 7F
Radius :
400mmR

DESCRIPTION
BODY DIMENSIONS
a : Length
11"
b : Width
8 1/16"
c : Max Depth
2 1/2"
