Ibanez AAM50-OPN

AAM50-OPN (Open Pore) Western guitar. Advanced Auditorium.

Advanced Auditorium
For this purpose, we sought to create something entirely new: a series of instruments imbued with old-fashioned, handcrafted, and rare qualities.

In these instruments, we use the highest-quality woods and design them with uncompromising attention to detail, representing the pinnacle of Ibanez acoustic guitar design and tone.

The body shape is designed to achieve high playability combined with a well-balanced and resonant sound that “sits” equally well in the studio and on stage, whether playing solo or in an ensemble. A specially designed X-M bracing provides a wide sound and excellent projection (how the instrument projects the sound). A rich and long sustain that works well for both pick and fingerstyle playing.

The AAM50 features our new A.I.R. Port design. Acoustic - Information - Response

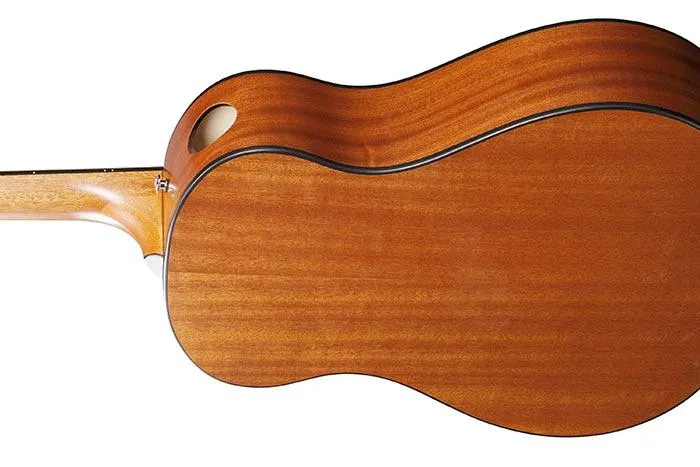

The A.I.R. Port is designed for better monitor sound for the guitarist. A hole in the side facing you. It’s a fantastic feature. A clear trend among acoustic guitars, but no major manufacturer offers it at an affordable price point. Plus, what the others have is basically just a hole drilled in the body.
Ibanez believed there had to be a better way to achieve better monitor sound.
After testing many different sizes and types of holes and designs, they settled on the perfect sound port design: placing angled wooden blocks that direct the sound out of the port. They also decided to apply it to a wide range of models.

The body features a solid Sitka spruce top with sapele back and sides.

• Advanced Auditorium Body.
• Solid Sitka spruce top
• Sapele back & sides.
• X-M bracing
• Low Oval Grip Okoume neck.
• Purpleheart fretboard & bridge.
• 43mm nut width.
• Rounded body edge binding.

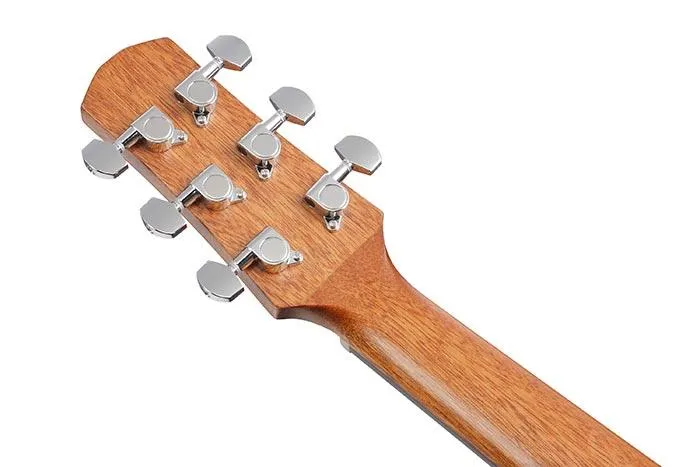

• Chrome die-cast machine heads (18:1 gear ratio).
• Ibanez Advantage bridge pins.
• D'Addario Coated Phosphor Bronze strings 012-053.
• A.I.R. port
Matching case: IAB540-BK.

Neck
• Scale length: 634mm / 25"
• Nut width: 43mm.
• Width at 14th fret: 55 mm.
• Thickness at 1st fret: 21 mm.
• Thickness at 7th fret: 22 mm.
• Radius: 400 mmR.

Body
• Length: 495 mm.
• Width: 390 mm.
• Depth: 90/106 mm.
